CN202525573U

CN202525573U - Novel embedded handle

Info

Publication number: CN202525573U
Application number: CN2012201189498U
Authority: CN
Inventors: 徐煜杰
Original assignee: Jinling Institute of Technology
Current assignee: Jinling Institute of Technology
Priority date: 2012-03-26
Filing date: 2012-03-26
Publication date: 2012-11-14
Anticipated expiration: 2022-03-26

Abstract

The utility model provides a novel embedded handle, relating to the field of manufacturing furniture hardware. The novel embedded handle comprises a base (1), a sleeve (2), a plate (3) and a handle (4), wherein the base (1) is fixed at the lower end of the sleeve (2), the plate (3) is arranged in the sleeve (2) and is movably connected with the sidewall of the sleeve (2) through a shaft, and the handle (4) is fixed at the lower end of the inner side surface of the plate (3). The novel embedded handle is of a simple structure; when a drawer needs to be drawn back, a part of the lower end of the plate, having the handle, extends out as long as the upper end of the plate is pressed down, and the handle is pulled out, so that a whole operation process is very convenient; and the handle at the lower end of the plate exerts a balance weight function when the upper end of the plate is loosened so that the plate is automatically closed; therefore, the embarrassment of easily hanging clothes by a common exposed handle is effectively avoided, the novel embedded handle is of low cost and is suitable for popularizing.

Description

A kind of novel embedded handle

Technical field:

The utility model relates to Furniture fittings and makes the field, is specifically related to a kind of novel embedded handle.

Background technology:

What common in the market drawer handle adopted mostly is the mode of bright dress; Though it can satisfy daily pull needs; But can find in the daily life process, owing to be that bright dress often is very easy to collude the clothes of holding the pedestrian, careless slightlyly will draw bad clothes; Thereby cause unnecessary economic loss, and the mode of bright dress also can influence the attractive in appearance of furniture on the whole.

The utility model content:

The purpose of the utility model provides a kind of novel embedded handle, and it can solve existing problem in the background technology effectively.

In order to solve the existing problem of background technology, the utility model adopts following technical scheme: it comprises base 1, sleeve pipe 2, disc 3 and shakes hands 4; Base 1 is fixed on the lower end of sleeve pipe 2, and disc 3 is arranged in the sleeve pipe 2, and flexibly connects through the sidewall of axle with sleeve pipe 2, and handle 4 is fixed on the lower end of disc 3 inner surfaces.

The utlity model has following beneficial effect: simple in structure, the upper end that when needs pull the drawer out, only need press disc, the part that has handle of its lower end will be stretched out; Pull out handle again and get final product, the whole operation process is very convenient, and the handle that disc is held at present when unclamping can play the effect of a counterweight again; Make the disc auto-closing; Effectively stopped the embarrassment that common bright dress handle is prone to tangle clothes, and cheap, the suitable popularization.

Description of drawings:

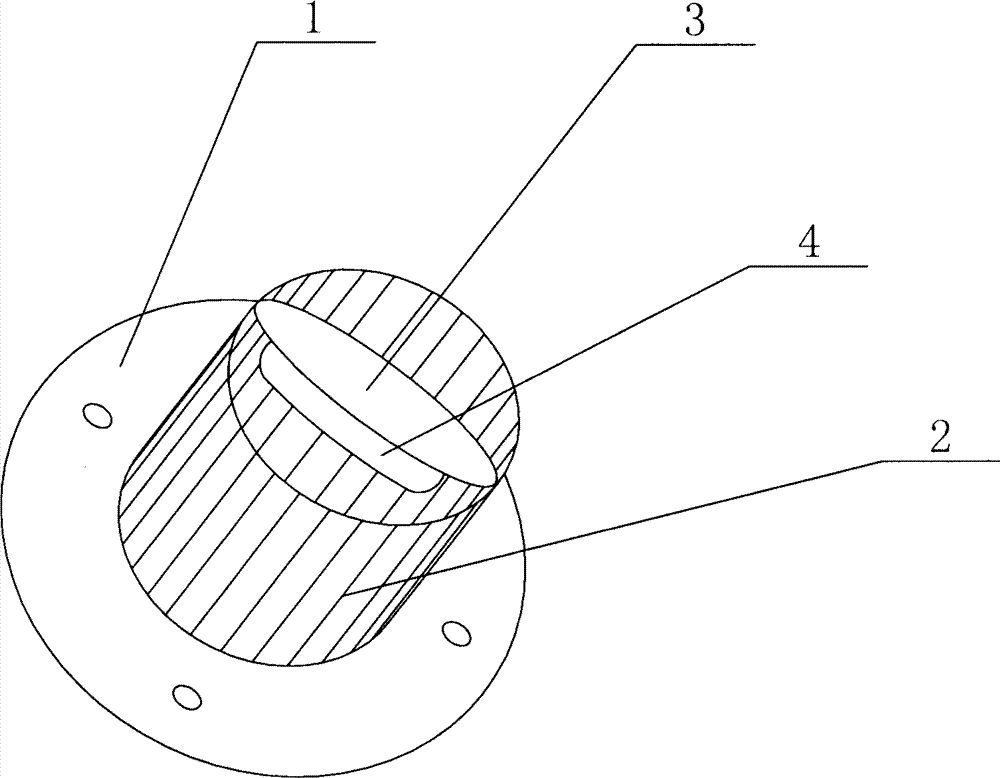

Fig. 1 is the structural representation of the utility model.

The specific embodiment:

Referring to Fig. 1, this specific embodiment is to adopt following technical scheme: it comprises base 1, sleeve pipe 2, disc 3 and shakes hands 4; Base 1 is fixed on the lower end of sleeve pipe 2, and disc 3 is arranged in the sleeve pipe 2, and flexibly connects through the sidewall of axle with sleeve pipe 2, and handle 4 is fixed on the lower end of disc 3 inner surfaces.

This specific embodiment has following beneficial effect: simple in structure, and the upper end that when needs pull the drawer out, only need press disc, the part that has handle of its lower end will be stretched out; Pull out handle again and get final product, the whole operation process is very convenient, and the handle that disc is held at present when unclamping can play the effect of a counterweight again; Make the disc auto-closing; Effectively stopped the embarrassment that common bright dress handle is prone to tangle clothes, and cheap, the suitable popularization.

Accompanying drawing described herein and embodiment only in order to the explanation the utility model technical scheme but not to its restriction; Although with reference to preferred embodiment the utility model has been carried out more detailed explanation, the those of ordinary skill in affiliated field is to be understood that; Still can make amendment and perhaps the part technical characterictic is equal to replacement the specific embodiment of the utility model; And not breaking away from the spirit of the utility model technical scheme, it all should be encompassed in the middle of the technical scheme scope that the utility model asks for protection.

Claims

1. a novel embedded handle is characterized in that it comprises base (1), sleeve pipe (2), disc (3) and handle (4); Base (1) is fixed on the lower end of sleeve pipe (2), and disc (3) is arranged in the sleeve pipe (2), and flexibly connects through the sidewall of axle with sleeve pipe (2), and handle (4) is fixed on the lower end of disc (3) inner surface.
