Abstract
本实用新型公开了一种使用方便的便携式移动电源，包括：壳体，在所述壳体上设置有旋转插脚和USB接口，在所述壳体的内部设置有交流转直流电路板、蓄电池和控制电路板，所述的旋转插脚与交流转直流电路板相连接，所述的USB接口与控制电路板相连接，所述的蓄电池与交流转直流电路板和控制电路板相连接。优点是：在有交流电源输入的时候可以对手机等个人数码用品进行充电，同时也可以对移动电源内部的蓄电池进行充电，当断开交流电源时，移动电源内部的蓄电池可以直接对手机等个人数码用品进行充电，使用起来非常方便。
The utility model discloses an easy-to-use portable mobile power supply, which comprises: a casing, on which a rotating pin and a USB interface are arranged, and an AC-to-DC circuit board, a storage battery and a USB port are arranged inside the casing. The control circuit board, the rotating pins are connected to the AC-to-DC circuit board, the USB interface is connected to the control circuit board, and the storage battery is connected to the AC-to-DC circuit board and the control circuit board. The advantage is: when there is AC power input, it can charge personal digital products such as mobile phones, and it can also charge the storage battery inside the mobile power supply. It is very convenient to use for charging digital products.
Description
技术领域 technical field
本实用新型涉及一种充电器产品，尤其涉及一种便携式移动电源。 The utility model relates to a charger product, in particular to a portable mobile power supply.
背景技术 Background technique
目前，随着电信事业的发展，手机等个人数码用品在人们的生活和工作中应用非常普遍，给人们的生活和工作带来极大方便，手机等个人数码用品在使用一段时间后需要使用充电器进行充电。现有充电器由：壳体，设置在壳体上的旋转插脚、USB接口和设置在壳体内的控制电路板组成。充电时，手机等数码用品通过连接线与充电器的USB接口相连接，充电器的旋转插脚与220伏交流电源相连接。现有充电器本身只有充电功能，没有蓄电功能，在没有交流电源的情况下，不方便对手机等个人数码用品进行充电，使用起来很不方便。 At present, with the development of the telecommunications industry, personal digital products such as mobile phones are widely used in people's life and work, which brings great convenience to people's life and work. Personal digital products such as mobile phones need to be charged after being used for a period of time. to charge the device. The existing charger is composed of a housing, a rotating pin arranged on the housing, a USB interface and a control circuit board arranged in the housing. During charging, the digital articles such as mobile phone are connected with the USB interface of charger by connecting line, and the rotating pin of charger is connected with 220 volts alternating current power supply. The existing charger itself only has a charging function and has no power storage function. When there is no AC power supply, it is inconvenient to charge personal digital products such as mobile phones, and it is very inconvenient to use.
发明内容 Contents of the invention
本实用新型所要解决的技术问题是：提供一种使用方便的便携式移动电源。 The technical problem to be solved by the utility model is to provide a convenient portable mobile power supply.
为了解决上述技术问题，本实用新型采用的技术方案是：便携式移动电源，包括：壳体，在所述壳体上设置有旋转插脚和USB接口，在所述壳体的内部设置有交流转直流电路板、蓄电池和控制电路板，所述的旋转插脚与交流转直流电路板相连接，所述的USB接口与控制电路板相连接，所述的蓄电池与交流转直流电路板和控制电路板相连接。 In order to solve the above-mentioned technical problems, the technical solution adopted by the utility model is: a portable mobile power supply, including: a housing, on which a rotating pin and a USB interface are provided, and an AC-to-DC converter is provided inside the housing. The circuit board, the storage battery and the control circuit board, the rotating pins are connected to the AC to DC circuit board, the USB interface is connected to the control circuit board, and the storage battery is connected to the AC to DC circuit board and the control circuit board connect.
本实用新型的优点是：上述便携式移动电源，在有交流电源输入的时候可以对手机等个人数码用品进行充电，同时也可以对移动电源内部的蓄电池进行充电，当断开交流电源时，移动电源内部的蓄电池可以直接对手机等个人数码用品进行充电，使用起来非常方便。 The utility model has the advantages that: the portable mobile power supply can charge personal digital products such as mobile phones when there is an AC power input, and can also charge the storage battery inside the mobile power supply. When the AC power supply is disconnected, the mobile power supply The internal storage battery can directly charge personal digital products such as mobile phones, which is very convenient to use.
附图说明 Description of drawings
图1为本实用新型便携式移动电源的结构示意图。 Fig. 1 is a structural schematic diagram of a portable mobile power supply of the present invention.

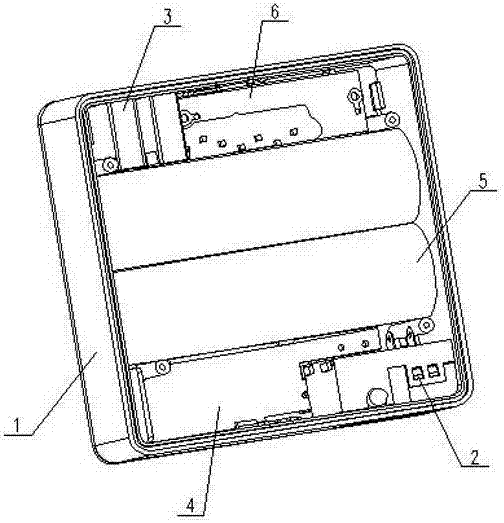

图2为本实用新型便携式移动电源的内部结构示意图。 Fig. 2 is a schematic diagram of the internal structure of the portable mobile power supply of the present invention.
图中：1、壳体，2、旋转插脚，3、USB接口，4、交流转直流电路板，5、蓄电池，6、控制电路板。 In the figure: 1. shell, 2. rotating pin, 3. USB interface, 4. AC to DC circuit board, 5. storage battery, 6. control circuit board.
具体实施方式 Detailed ways
下面结合附图和具体实施例详细描述一下本实用新型的具体内容。 The specific content of the present utility model is described in detail below in conjunction with accompanying drawing and specific embodiment.
如图1、图2所示，便携式移动电源，包括：壳体1，在所述壳体1上设置有旋转插脚2和USB接口3，在所述壳体1的内部设置有交流转直流电路板4、蓄电池5和控制电路板6，所述的旋转插脚2与交流转直流电路板4相连接，所述的USB接口3与控制电路板6相连接，所述的蓄电池5与交流转直流电路板4和控制电路板6相连接。
As shown in Figure 1 and Figure 2, the portable mobile power supply includes: a
上述便携式移动电源，在有交流电源输入的时候可以对手机等个人数码用品进行充电，同时也可以对移动电源内部的蓄电池进行充电，当断开交流电源时，移动电源内部的蓄电池可以直接对手机等个人数码用品进行充电，使用起来非常方便。 The above-mentioned portable mobile power supply can charge personal digital products such as mobile phones when there is an AC power input, and can also charge the storage battery inside the mobile power supply. When the AC power supply is disconnected, the storage battery inside the mobile power supply can directly charge the mobile phone. It is very convenient to use such as personal digital products for charging.
