本实用新型公开了一种太阳能杀菌衣架，包括衣架本体，及设置在衣架本体顶部的太阳能板，及设置在衣架本体下端、与衣架本体固定连接的挂杆，及设置在挂杆中间的透光罩，及设置在透光罩内的紫外线发光器，及设置在衣架本体内、与太阳能板相连接的蓄电池，及设置在衣架本体左端的定时器，及设置在挂杆内的控制器，所述蓄电池、控制器、定时器和紫外线发光器通过导线依次连接。通过太阳能板吸收太阳光，将太阳光能转化为电能存储在蓄电池中，由定时器设定一段时间，控制器控制紫外线发光器对挂在衣架上的衣服进行杀菌，在一定实际应用上，具有高效节能的效果，且干净卫生。
The utility model discloses a solar sterilizing clothes hanger, which comprises a clothes hanger body, a solar panel arranged on the top of the clothes hanger body, a hanging rod arranged at the lower end of the clothes hanger body and fixedly connected with the clothes hanger body, and a light-transmitting rod arranged in the middle of the hanger body. cover, and the ultraviolet illuminator arranged in the light-transmitting cover, and the storage battery arranged in the clothes hanger body and connected with the solar panel, and the timer arranged at the left end of the clothes hanger body, and the controller arranged in the hanging rod. The battery, the controller, the timer and the ultraviolet light emitter are connected in sequence through wires. Absorb sunlight through solar panels, convert solar energy into electrical energy and store it in the battery, set a period of time by the timer, and the controller controls the ultraviolet light emitter to sterilize the clothes hanging on the hanger. In certain practical applications, it has Energy-efficient, clean and hygienic.
Description
Technical field
The utility model relates to a kind of solar energy sterilization clothes hanger.
Background technology
The employed clothes hanger of tradition people does not generally have the function of sterilization, does not have function regularly yet; When under sunlit situation is arranged, hanging clothing; Can realize certain germicidal efficacy, but meet rainy weather, just can not play bactericidal action preferably; And moist environment can make clothing breed bacteria more easily.
Summary of the invention
But the technical problem that the utility model will solve provides a kind of setting-up time length is carried out sterilization to clothes solar energy sterilization clothes hanger.
For solving the problems of the technologies described above, the utility model adopts following technical scheme: a kind of solar energy sterilization clothes hanger comprises the clothes hanger body; And be arranged on the solar panels of clothes hanger bodies top; And the peg that is arranged on clothes hanger body lower end, is connected with the clothes hanger body-fixed, and be arranged on the diffuser in the middle of the peg, and be arranged on the luminescence-utraviolet device in the diffuser; And the battery that is arranged in the clothes hanger body, is connected with solar panels; And be arranged on the timer of clothes hanger body left end, and be arranged on the controller in the peg, said battery, controller, timer and luminescence-utraviolet device are connected through lead successively.
Further, said luminescence-utraviolet device is luminescence-utraviolet fluorescent tube or LED ultraviolet lamp.
Further, said timer comprises LED display and small-sized input keyboard.
The beneficial effect of the utility model solar energy sterilization clothes hanger is: absorb sunshine through solar panels; Solar energy is converted into power storage in battery; Set a period of time by timer, controller control luminescence-utraviolet device carries out sterilization to dress on a hanger, in certain practical application; Have energy-efficient effect, and clean hygiene.
Description of drawings

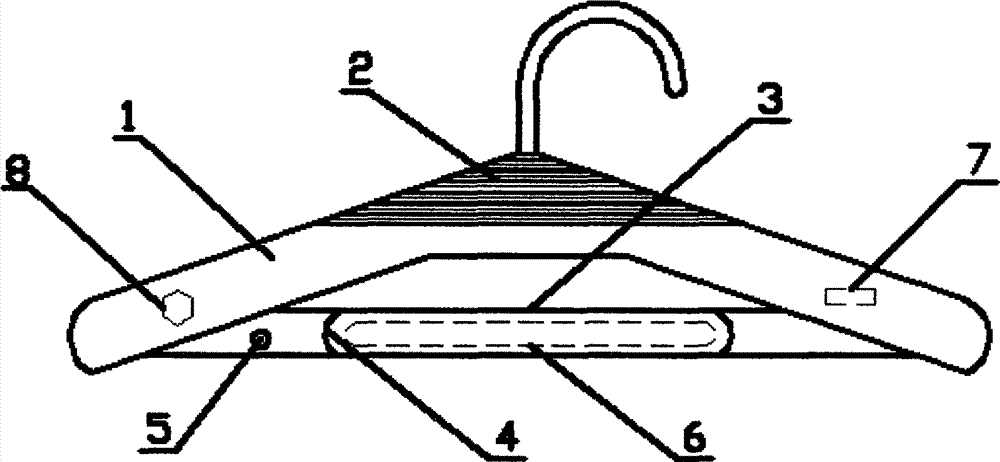

Fig. 1 is the front view of the utility model solar energy sterilization clothes hanger;
Fig. 2 is the internal structure sketch map of the utility model solar energy sterilization clothes hanger.
The specific embodiment
In the present embodiment, shown in seeing figures.1.and.2, this solar energy sterilization clothes hanger; Comprise clothes hanger body 1, and be arranged on the solar panels 2 at clothes hanger body 1 top, and the peg 3 that is arranged on clothes hanger body 1 lower end, is fixedly connected with clothes hanger body 1; And be arranged on the diffuser 4 in the middle of the peg 3; And be arranged on the luminescence-utraviolet device 6 in the diffuser 4, and the battery 7 that is arranged in the clothes hanger body 1, is connected with solar panels 2, and be arranged on the timer 8 of clothes hanger body 1 left end; And being arranged on the controller 5 in the peg 3, said battery 7, controller 5, timer 8 are connected through lead (not shown) with luminescence-utraviolet device 6 successively.
Wherein, said luminescence-utraviolet device 6 is luminescence-utraviolet fluorescent tube or LED ultraviolet lamp; Said timer 8 comprises LED display and small-sized input keyboard, and timer 8 carries out timing through small-sized input keyboard input time, is controlled by 5 pairs of luminescence-utraviolet devices 6 of controller.
The beneficial effect of the utility model solar energy sterilization clothes hanger is: absorb sunshine through solar panels; Solar energy is converted into power storage in battery; Set a period of time by timer, controller control luminescence-utraviolet device carries out sterilization to dress on a hanger, in certain practical application; Have energy-efficient effect, and clean hygiene.
The above is merely the specific embodiment of the utility model, but the protection domain of the utility model is not limited thereto, and any variation or replacement of expecting without creative work all should be encompassed within the protection domain of the utility model.Therefore, the protection domain of the utility model should be as the criterion with the protection domain that claims were limited.
Claims (3)
1. solar energy sterilization clothes hanger; It is characterized in that: comprise the clothes hanger body, and be arranged on the solar panels of clothes hanger bodies top, and the peg that is arranged on clothes hanger body lower end, is connected with the clothes hanger body-fixed; And be arranged on the diffuser in the middle of the peg; And be arranged on the luminescence-utraviolet device in the diffuser, and be arranged on the battery that the clothes hanger body is interior, be connected with solar panels, and be arranged on the timer of clothes hanger body left end; And being arranged on the controller in the peg, said battery, controller, timer and luminescence-utraviolet device are connected through lead successively.
2. solar energy sterilization clothes hanger according to claim 1 is characterized in that: said luminescence-utraviolet device is luminescence-utraviolet fluorescent tube or LED ultraviolet lamp.
3. solar energy sterilization clothes hanger according to claim 1 is characterized in that: said timer comprises LED display and small-sized input keyboard.
