Abstract
A capsule strain forming machine comprises a machine frame, an upper mold plate and a lower mold plate, wherein the upper mold plate and the lower mold plate enable capsule strains to be formed. The lower mold plate is placed on the upper end face of the machine frame which is in sliding connection with a guide rail which longitudinally penetrates through the top end face of the machine frame, the upper mold plate is fixed on the top end of the guide rail, and the bottom end of the guide rail is fixed on a fixed plate. An air cylinder is longitudinally installed inside the machine frame, a piston rod on the air cylinder is connected with the fixed plate, and a side edge of the machine frame is provided with a position switch which is used for positioning the lower mold plate. The capsule strain forming machine is reasonable in structural design, can automatically finish compression forming of capsule strains, enhances production efficiency and product quality of capsule strains, saves manpower, lowers invest of manpower costs, and is beneficial for being widely used.
Description
Technical field
The utility model relates to a kind of edible fungus species production equipment, especially a kind of capsules strain forming machine.
Background technology
Capsules strain is just as capsule, and many are pressed on the peak nest plate, the direct adhesion of ventilating cover and bacterial classification, and every has 600 500,400 not wait, design science, standard criterion, transportation, storage and inoculation are all very convenient.Therefore yet in capsules strain manufacturing process, need bacterial classification be pressed into capsule shape, need great amount of manpower to accomplish, wasting time and energy very.
Summary of the invention
The utility model will solve the shortcoming of above-mentioned prior art, and a kind of capsules strain forming machine is provided, and can accomplish automatically bacterial classification is pressed into capsule shape, has improved the efficient that capsules strain is produced.
The utility model solves the technical scheme that its technical problem adopts: this capsules strain forming machine; Comprise frame, make the cope match-plate pattern and the lower bolster of capsules strain moulding; Lower bolster places the frame upper surface, slidely connects guide rail on its mid frame, and guide rail vertically passes the frame top end face; Wherein cope match-plate pattern is fixed on the top of guide rail, and the bottom of guide rail is fixed on the fixed head; Be provided with the cylinder of vertical installation in its mid frame, the piston rod on the cylinder is connected on the fixed head, and the side of its mid frame is provided with the travel switch of location lower bolster.Lower bolster in this mechanism is deposited the cellular board through the solid spawn of pulverizing, and cope match-plate pattern is realized pressing down automatically through cylinder, accomplishes the operation to the die cast of capsules strain automatically.
Perfect for further, lower bolster is provided with the cell body that many groups are used for the bacterial classification moulding, and wherein the lower surface of cope match-plate pattern is provided with the column briquetting that is complementary with cell body.Lower bolster is provided with the cell body that many groups make the bacterial classification moulding, and through column briquetting die cast, disposable completion molding procedure improves the production efficiency of capsules strain moulding.
Guide rail has four, is separately fixed on four angles of cope match-plate pattern.Stress balance when cope match-plate pattern is pressed down makes the capsules strain surfacing after the moulding.
The bottom of frame is provided with wheel.Can be convenient to moving frame like this.
The effect that the utility model is useful is: the utility model reasonable in design; Can accomplish die cast automatically, not only improve the production efficiency and the product quality of capsules strain, and save manpower capsules strain; Reduced input, helped being widely used the manpower expense.
Description of drawings

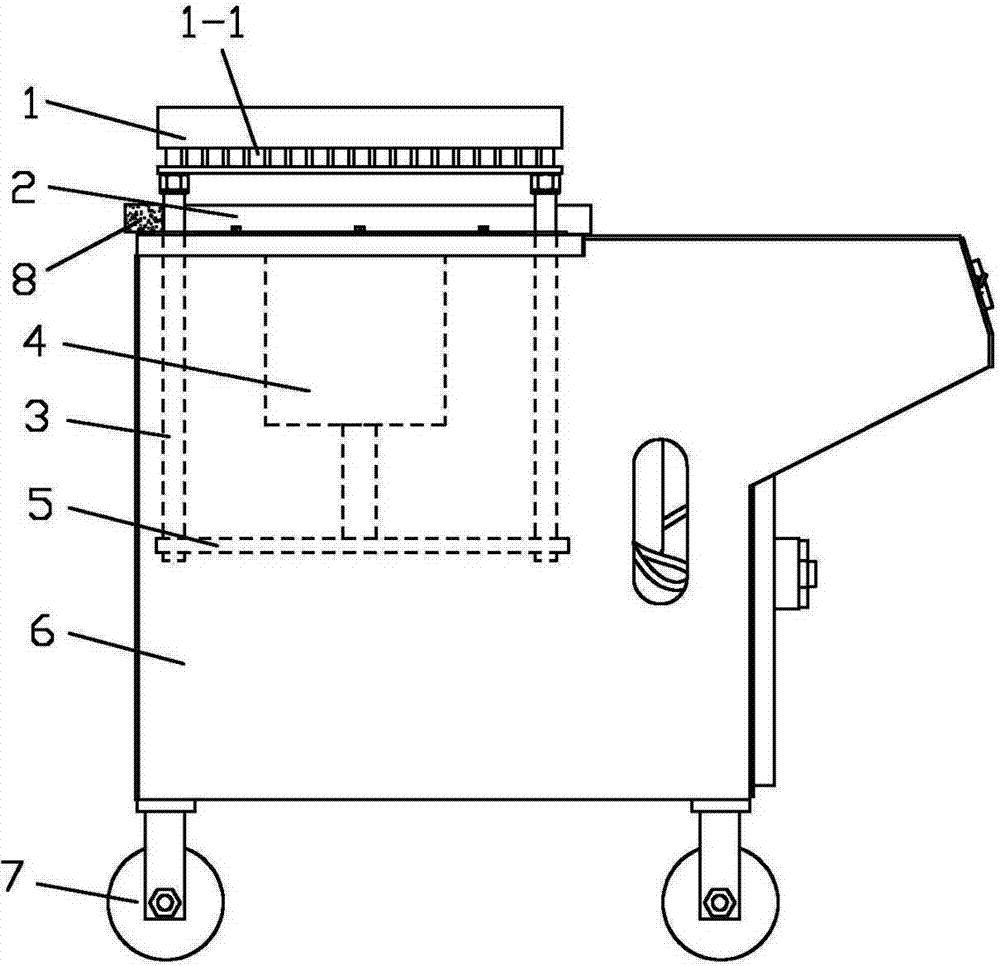

Fig. 1 is the positive structural representation of the utility model;
Fig. 2 is the structural representation of the utility model side;
Fig. 3 is the vertical view of the utility model;
Fig. 4 is the structural representation of lower bolster bottom in the utility model.
Description of reference numerals: cope match-plate pattern 1, column briquetting 1-1, lower bolster 2, cell body 2-1, guide rail 3, cylinder 4, fixed head 5, frame 6, wheel 7, travel switch 8.
Embodiment
Below in conjunction with accompanying drawing the utility model is described further:
With reference to accompanying drawing: this capsules strain forming machine; Comprise frame 6, make the cope match-plate pattern 1 and the lower bolster 2 of capsules strain moulding; Lower bolster 2 places frame 6 upper surfaces, slidely connects guide rail 3 on its mid frame 6, and guide rail 3 vertically passes frame 6 top end faces; Wherein cope match-plate pattern 1 is fixed on the top of guide rail 3, and the bottom of guide rail 3 is fixed on the fixed head 5; Be provided with the cylinder 4 of vertical installation in its mid frame 1, the piston rod on the cylinder 4 is connected on the fixed head 5, and the side of its mid frame 6 is provided with the travel switch 8 of location lower bolster 2.Lower bolster 2 is provided with the cell body 2-1 that many groups are used for the bacterial classification moulding, and wherein the lower surface of cope match-plate pattern 1 is provided with the column briquetting 1-1 that is complementary with cell body 2-1.Guide rail 3 has four, is separately fixed on four angles of cope match-plate pattern 1.The bottom of frame 6 is provided with wheel 7.
Wherein lower bolster 2 is deposited the cellular board through the solid spawn of pulverizing, and on cope match-plate pattern 1, lays a foam cap through the cutting of impression cutting machine.Lower bolster 2 advances from frame 6 upper surface levels; When lower bolster 2 is shifted the fixed position onto (lower bolster 2 is corresponding with the position of cope match-plate pattern 1), lower bolster 2 front ends touch travel switch 8, and cylinder 4 beginnings promote fixed head 5 downwards then; Fixed head 5 moves down through the cope match-plate pattern 1 that guide rail 3 drives frame 6 tops; Cope match-plate pattern 1 presses down in the process and is pressed onto foam cap stably on the plastics peak nest plate, covers bacterial classification, and time-delay is used in the cope match-plate pattern 1 descending back that puts in place; Automatically rise after making the moulding cope match-plate pattern stop time several seconds, the capsules strain moulding process finishes.
The utility model reasonable in design; Adopt cylinder 4 to promote fixed head 5 and slide up and down, fixed head 5 moves up and down through the cope match-plate pattern 1 that guide rail 3 drives frame 6 tops, when lower bolster 2 advances in frame 6 table-surface level; Front end touches travel switch 8; Travel switch 8 control cylinders 4, cylinder 4 begin to press down promotion fixed head 5, accomplish the die cast to capsules strain automatically.Not only improved the production efficiency and the product quality of capsules strain, and saved manpower, reduced input, helped being widely used the manpower expense.
Though the utility model is through illustrating and describe with reference to preferred embodiment,, those skilled in the art should understand, and in the scope of claims, can do the various variation on form and the details.
Claims (4)
1. capsules strain forming machine; Comprise frame (6), make the cope match-plate pattern (1) and the lower bolster (2) of capsules strain moulding; Lower bolster (2) places frame (6) upper surface, it is characterized in that: slidely connect guide rail (3) on the said frame (6), guide rail (3) vertically passes frame (6) top end face; Said cope match-plate pattern (1) is fixed on the top of guide rail (3), and the bottom of guide rail (3) is fixed on the fixed head (5); Be provided with the cylinder (4) of vertical installation in the said frame (1), the piston rod on the cylinder (4) is connected on the fixed head (5), and the side of said frame (6) is provided with the travel switch (8) of location lower bolster (2).
2. capsules strain forming machine according to claim 1; It is characterized in that: said lower bolster (2) is provided with the cell body (2-1) that many groups are used for the bacterial classification moulding, and the lower surface of said cope match-plate pattern (1) is provided with the cylindricality briquetting (1-1) that is complementary with cell body (2-1).
3. capsules strain forming machine according to claim 2 is characterized in that: said guide rail (3) has four, is separately fixed on four angles of cope match-plate pattern (1).
4. capsules strain forming machine according to claim 1 is characterized in that: the bottom of said frame (6) is provided with wheel (7).
