CN202513369U - Magnetic-attracting type plug panel with supporting port - Google Patents
Magnetic-attracting type plug panel with supporting port Download PDFInfo
- Publication number
- CN202513369U CN202513369U CN2012200727328U CN201220072732U CN202513369U CN 202513369 U CN202513369 U CN 202513369U CN 2012200727328 U CN2012200727328 U CN 2012200727328U CN 201220072732 U CN201220072732 U CN 201220072732U CN 202513369 U CN202513369 U CN 202513369U
- Authority
- CN
- China
- Prior art keywords
- magnetic
- panel
- plug
- supporting port
- magnetic head
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Connector Housings Or Holding Contact Members (AREA)
Abstract
The utility model relates to a magnetic-attracting type plug panel with a supporting port, which comprises a panel and the supporting port, wherein a socket frame is reserved on the panel; a magnetic-attracting piece is embedded into an inner side or an outer side of one side of the panel, a magnetic head is embedded into one end of the supporting port, both the magnetic head and the magnetic-attracting piece are magnetic, and the magnetic head is attracted on the magnetic-attracting piece. By adopting the structure, the panel can be sleeved at the outer side of a wall socket, and the magnetic head at the bottom end of the supporting port is attracted on the magnetic-attracting piece of the panel, so that a plug unplugged from the wall socket can be supported by placing the plug on the supporting port; accordingly, the problem that the plugs has no place to set is solved.
Description
Technical field
The utility model relates to and a kind ofly is loaded on being used on the wall socket and hangs the magnetic-type holder mouth plug panel that the holder plug is used.
Background technology
The use of socket is for people the connector that connects electric power to be provided; Just can be communicated with power supply among plug inserted in socket, need regular insertion and extract between plug and the socket, the wall socket used always of people all is not to be with the plug supporting plate at present; Causing plug to be extracted like this can put afterwards nowhere; Arbitrarily placement causes electric wire to twine easily, and the electrical equipment that sometimes also can bad resolution plug be connected often has situation about mispluging and takes place.
The utility model content
The technical problem that the utility model will solve provides a kind of magnetic-type holder mouth plug panel on the wall socket that is loaded on that the holder plug uses that is used to hang.
For solving the problems of the technologies described above, the technical scheme that the utility model is taked is:
A kind of magnetic-type holder mouthful plug panel is made up of panel and holder mouth, leaves the plate frame on the panel, and the inboard or outside on panel one side is embedded with the magnetic sheet, asks an end of mouth to be embedded with magnetic head, and magnetic head and magnetic sheet all have magnetic, and magnetic head is adsorbed on the magnetic sheet.
As the further improvement of the utility model, the quantity of holder mouth is between 1-10.
After adopting the such structure of the utility model, can panel be enclosed within the outside of wall socket, the magnetic head of Tuo Kou bottom is adsorbed on the magnetic sheet of panel, pull up the plug that comes from wall socket and just can place holder mouthful to hold, make plug be unlikely to put nowhere.
Description of drawings
Below in conjunction with accompanying drawing and embodiment the utility model is remake further detailed explanation.
Fig. 1 is the overall structure sketch map of the magnetic-type holder mouthful plug panel of the utility model.
Among the figure: 1, panel, 2, the plate frame, 3, the magnetic sheet, 4, Tuo Kou, 5, magnetic head.
Fig. 2 is the structural representation of wall socket in the magnetic-type holder mouthful plug panel of the utility model.
Among the figure: 6, wall socket.

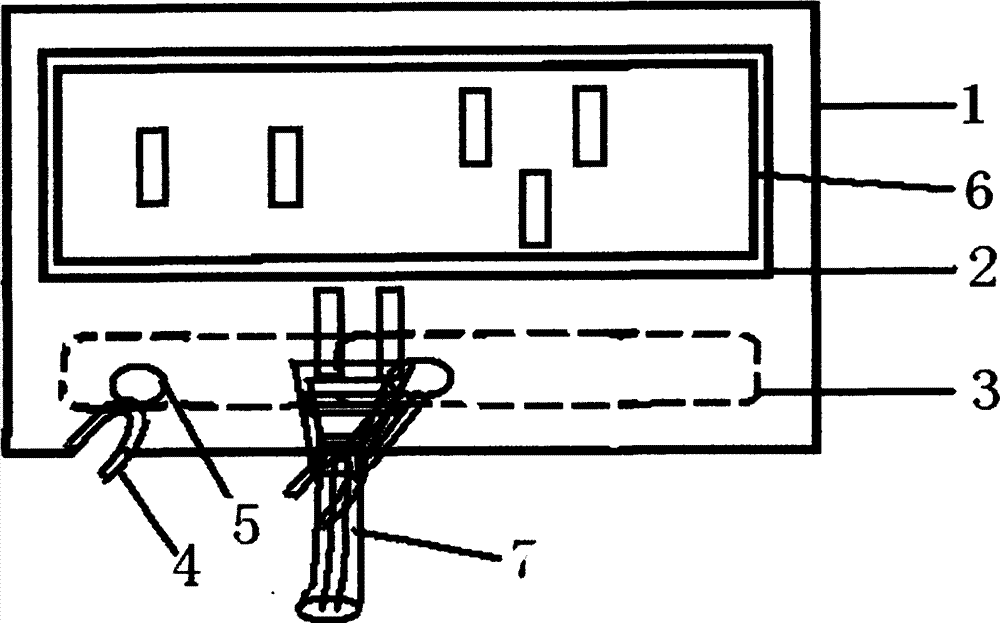

Fig. 3 is that the magnetic-type holder mouthful plug panel of the utility model is loaded on the exemplary view when holding plug enforcement on the wall socket.
Among the figure: 1, panel, 2, the plate frame, 3, the magnetic sheet, 4, Tuo Kou, 5, magnetic head, 6, wall socket, 7, plug.
Embodiment
The structure of the magnetic-type holder mouthful plug panel of the utility model and enforcement demonstration are shown in Fig. 1-3; Form by panel 1 and holder mouth 4; Leave plate frame 2 on the panel 1, the inboard or outside on panel 1 one side is embedded with magnetic sheet 3, and an end of holder mouth 4 is embedded with magnetic head 5; Magnetic head 5 all has magnetic with magnetic sheet 3, and magnetic head 5 is adsorbed on the magnetic sheet 3; Wall socket 6 is placed among the plate frame 2 of panel 1, pulls up the plug 7 that comes from wall socket 6 and can place holder mouth 4 to hold.
Undoubtedly, the structure or the device of the magnetic-type holder mouthful plug panel of the utility model also can adopt other structure, have multiple conversion and remodeling, are not limited in the concrete structure of above-mentioned execution mode.Simple conversion all drops within the protection range of the utility model, and in a word, the protection range of the utility model should comprise those conspicuous to those skilled in the art conversion or substitute and change shape.
Claims (2)
1. magnetic-type holder mouthful plug panel; Form by panel (1) He Tuokou (4); It is characterized in that: leave plate frame (2) on the panel (1), panel (1) the inboard or outside on one side is embedded with magnetic sheet (3), and an end of holder mouthful (4) is embedded with magnetic head (5); Magnetic head (5) all has magnetic with magnetic sheet (3), and magnetic head (5) is adsorbed on the magnetic sheet (3).
2. magnetic-type holder mouthful plug panel according to claim 1 is characterized in that: the quantity of holder mouthful (4) is between 1-10.
