Abstract
本实用新型公开了一种组合式空气净化设备，包括光触媒装置和负离子发射装置，所述光触媒装置位于组合式空气净化设备的入风口处，所述负离子发射装置位于组合式空气净化设备的出风口处，所述光触媒装置的上方设有紫外线UV管，所述负离子发射装置通过高压控制板和电源模块相连。本实用新型提供的组合式空气净化设备，采用组合式光触媒装置和负离子发射装置取代传统的空气净化器过滤网，克服空气净化器过滤网维护保养和更换不方便的缺陷，并且能够杀灭空气中细菌和病毒，输送大容量的负离子，以达到净化空气的最佳效果。
The utility model discloses a combined air purification device, which comprises a photocatalyst device and an anion emission device, the photocatalyst device is located at the air inlet of the combined air purification device, and the anion emission device is located at the air outlet of the combined air purification device An ultraviolet UV tube is arranged above the photocatalyst device, and the negative ion emitting device is connected to a power module through a high-voltage control board. The combined air purification equipment provided by the utility model adopts a combined photocatalyst device and negative ion emitting device to replace the traditional air purifier filter, overcomes the defects of inconvenient maintenance and replacement of the air purifier filter, and can kill airborne Bacteria and viruses, transporting large-capacity negative ions to achieve the best effect of purifying the air.
Description
Technical field
This utility model relates to a kind of air cleaning facility, relates in particular to a kind of combination type air cleaning equipment.
Background technology
The purification style of air purifier in the market mainly is divided into the strainer filtering purification, filter screen decomposing, purifying and filter screen adsorption cleaning on classification.Strainer filtering purifies, and is to handle through the filtration, purification that the netted filter screen of high density or VHD is tackled dust in air, granule, pollen.The filter screen decomposing, purifying is the catalytic decomposition material through proportioning, decomposes to change organic molecular structure, makes harmful molecule become harmless molecule, makes macromole become micromolecular decomposing, purifying and handles.The filter screen adsorption cleaning is the purified treatment that pathogenic bacteria, antibacterial, mycete through drainage screen are carried out mummification and dust, organic molecule etc. is adsorbed.Room air is mainly three pollutants, and one type is biological pollutant, and this pollutant volume is little but range of scatter is wide; Speed is fast, like bacterial virus, and the huge and wide-scale distribution at a terrific speed of number; Caused multiple disease; Fungal spore, poison are very easily propagated in the warm geographic air that has a humid climate, breeding, and long-term contact is prone to cause irritated, asthma.One type is abnormal flavour, and for example from house pet, culinary art, rubbish and human body, abnormal flavour lets the people do not feel like oneself usually, influences daily life life and neighbourhood's environment.One type is contaminants of chemical origin, and from medicated cigarette, fitting-out work, cleaning supplies and furniture, this pollutant Long contact time Diazolidinyl Urea, nerve and respiratory tract bring healthy hidden danger.Adopt drainage screen to purify the shortcoming that has two aspects: first; Though filter screen can filter the bigger microgranule of volume in the net air; Like dust, hair etc.; Air abnormal flavour and harmful chemical pollutants such as second hand smoking, formaldehyde, dioxin and ozone be can effectively filter, antibacterial and viral performance in the air do not killed but do not possess.Second: filter screen needs care and maintenance, needs often to clean, and cleans the back natural drying, has brought a very big difficult problem in order to avoid produce the replacing of putting a sound, especially filter screen to the client.For example, transfer redness to, and when continuing flicker, need preposition filter screen be taken off cleaning when preposition filter screen detector display lamp on the air purifier control panel.Dirt cleaned 1 time in more about 12 months, and dirt cleaned once in more about 2 months.HEPA (high efficiency particle air filter) high efficiency microgranule filter screen is not wait to 5 years in 3 months service life, and the abnormal smells from the patient filter screen is not wait in 4～12 months service life.When the green of the filter screen monitor display lamp on the panel when running well transfers yellow to, need to change in two weeks, as not changing, two week the back display lamps transfer to red by yellow and continue flicker, till after changing, resetting.After cleaning or changing any filter screen; All need reset the filter screen monitor; And no matter behaviour in service how, high efficiency microgranule filter screen was changed once at least in 5 years, and the abnormal smells from the patient filter screen is annual at least to be changed once; Then can only change when high efficiency microgranule net and odor particles net need be changed, can not clean.
Therefore, in order to kill antibacterial and virus in the air, overcome the maintaining of air purifier drainage screen and change inconvenient defective, be necessary the purifier of air purifier is improved.
The utility model content
This utility model technical problem to be solved provides a kind of combination type air cleaning equipment; Can kill antibacterial and virus in the air; Replace the air purifier drainage screen; Overcome its maintaining and change inconvenient defective, and can carry jumbo anion, to reach the optimum efficiency that purifies air.
This utility model is to solve the problems of the technologies described above the technical scheme that adopts to provide a kind of combination type air cleaning equipment; Comprise photocatalyst device and anion emission device; Said photocatalyst device is positioned at the air intake vent place of combination type air cleaning equipment; Said anion emission device is positioned at the air outlet place of combination type air cleaning equipment, and the top of said photocatalyst device is provided with the ultraviolet (UV) pipe, and said anion emission device links to each other with power module through the high voltage control plate.
Above-mentioned combination type air cleaning equipment; Wherein, Said anion emission device comprises a plurality of charcoal fiber emitting heads of being located at side by side on the mounting; Each charcoal fiber emitting head is fastened in the metal sleeve, and is fixed on the mounting through the metal electrode pin, and the voltage output end of said metal electrode pin and high voltage control plate links to each other.
Above-mentioned combination type air cleaning equipment, wherein, said photocatalyst device is the photocatalyst fiber of surface-coated Nano titanium dioxide.
Above-mentioned combination type air cleaning equipment, wherein, the peak wavelength of said ultraviolet (UV) pipe is 182nm or 254nm.
Above-mentioned combination type air cleaning equipment, wherein, said mounting is the nylon mounting.
This utility model contrast prior art has following beneficial effect: the combination type air cleaning equipment that this utility model provides; Adopt combined type photocatalyst device and anion emission device to replace the traditional air purifier drainage screen; Overcome the maintaining of air purifier drainage screen and change inconvenient defective; And can kill antibacterial and virus in the air, carry jumbo anion, to reach the optimum efficiency that purifies air.In addition, a plurality of charcoal fiber emitting heads are used in this utility model combination, and fastening with the metal sleeve sealing, further guarantee jumbo anion output.
Description of drawings

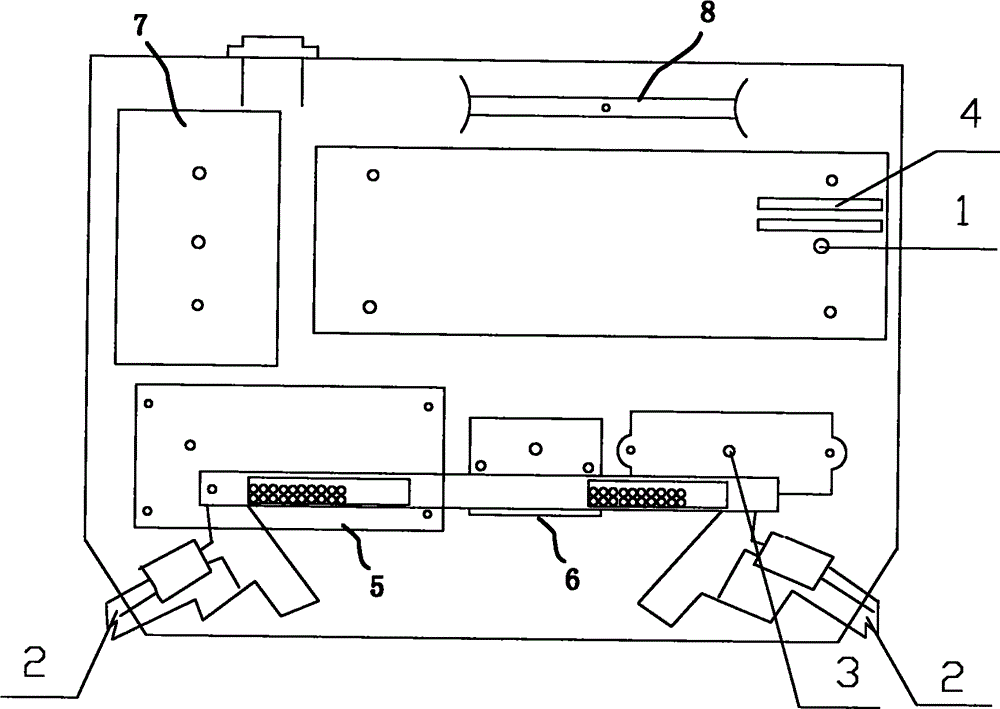

Fig. 1 is this utility model combination type air cleaning equipment structural representation.
Among the figure:
1 photocatalyst device, 2 anion emission devices, 3 anion high tension generators
4 ultraviolet (UV) pipes, 5 central processing units, 6 high voltage control plates
7 power modules, 8 fans
The specific embodiment
Below in conjunction with accompanying drawing and embodiment this utility model is done further to describe.
Fig. 1 is this utility model combination type air cleaning equipment structural representation.
See also Fig. 1; The combination type air cleaning equipment that this utility model provides; Comprise photocatalyst device 1 and anion emission device 2, said photocatalyst device 1 is positioned at the air intake vent place of combination type air cleaning equipment, and said anion emission device 2 is positioned at the air outlet place of combination type air cleaning equipment; The top of said photocatalyst device 1 is provided with ultraviolet (UV) (UltraViolet) pipe 4, and said anion emission device 2 links to each other with power module 7 through high voltage control plate 6.High voltage control plate 6 can be handled the negative oxygen ion that contaminated air and output human body need by central processing unit 5 controls to greatest extent with ultraviolet (UV) pipe 4.In order to dispel the heat and to quicken rate of air circulation, the combination type air cleaning equipment can be equipped with fan 8.
The combination type air cleaning equipment that this utility model provides, ultraviolet (UV) pipe 4 preferably can provide the ultraviolet of ultraviolet (UV) pipe 4,182 wavelength of 182 wavelength and 254 wavelength to have germ-resistant performance, and the ultraviolet of 254 wavelength has the performance of dispelling abnormal flavor.Photocatalyst preferably adopts Nano titanium dioxide, and it coats the fiber base material surface, under the effect of light, produces strong catalytic degradation function, toxic and harmful in the air of degrading effectively; Can effectively kill various bacteria, and can the toxin that antibacterial or fungus discharge be decomposed and harmless treatment; Also possess functions such as deodorization, anti-soil simultaneously.Under the effect of ultraviolet (UV) pipe 4 and photocatalyst device 1; The airborne toxic gas of ability degraded; Can kill antibacterial and virus in the air, the air of degraded has become the negative oxygen ion that human body needs after the air channel is through anion high tension generator 3 and anion emission device 2.Negative oxygen ion can be facilitated the synthetic and vitamin storage of human body, strengthen and the physiological activity of human activin, so it is otherwise known as " air vitamin ", and it is as the vitamin of food, and the vital movement of human body and other biological is had crucial influence.The combination type air cleaning equipment substitutes the traditional air purifier drainage screen and is installed in the air purifier; Can not only overcome the maintaining of air purifier drainage screen and change inconvenient defective; And can kill antibacterial and virus in the air; Carry jumbo anion, to reach the optimum efficiency that purifies air.The output capacity of air is to design according to the power of UV pipe and the wind speed flow that quickens the fan of rate of air circulation, to guarantee effectively to handle contaminated air.
Though this utility model discloses as above with preferred embodiment; Right its is not in order to limit this utility model; Any those skilled in the art; In spirit that does not break away from this utility model and scope, when can doing a little modification and perfect, so the protection domain of this utility model is when being as the criterion with what claims defined.
Claims (5)
1. combination type air cleaning equipment; It is characterized in that; Comprise photocatalyst device (1) and anion emission device (2), said photocatalyst device (1) is positioned at the air intake vent place of combination type air cleaning equipment, and said anion emission device (2) is positioned at the air outlet place of combination type air cleaning equipment; The top of said photocatalyst device (1) is provided with ultraviolet (UV) pipe (4), and said anion emission device (2) links to each other with power module (7) through high voltage control plate (6).
2. combination type air cleaning equipment according to claim 1; It is characterized in that; Said anion emission device (2) comprises a plurality of charcoal fiber emitting heads of being located at side by side on the mounting; Each charcoal fiber emitting head is fastened in the metal sleeve, and is fixed on the mounting through the metal electrode pin, and said metal electrode pin links to each other with the voltage output end of high voltage control plate (6).
3. combination type air cleaning equipment according to claim 1 and 2 is characterized in that, said photocatalyst device (1) is the photocatalyst fiber of surface-coated Nano titanium dioxide.
4. combination type air cleaning equipment according to claim 1 and 2 is characterized in that, the peak wavelength of said ultraviolet (UV) pipe (4) is 182nm or 254nm.
5. combination type air cleaning equipment according to claim 2 is characterized in that, said mounting is the nylon mounting.
