Abstract
本实用新型公开了一种拔插卡头标尺式可更换安全棉花棒，棉花棒由杆体和棉花球组成，棉花球连与杆体上，衡量杆上留有插孔，插孔旁刻有或者印有刻度标尺，卡头插于插孔之中，衡量杆的一端中空，杆体插于衡量杆上中空的一端之中。采用这样的结构以后，由于杆体插于衡量杆之中，增加了杆体的附加长度，杆体本身的长度就能够大大缩短，这样就能够减少杆体对于木材的使用量，有利于环保和节约资源；通常人耳朵内侧外耳道的长度为2.5-3.5cm，以衡量杆上的刻度标尺作为参照，将卡头插于衡量杆上不同位置的插孔之中，使其处在安全距离之内，这样人们在进行掏耳朵的时候，就有个参照标准，避免把握不好深浅尺度，把耳朵掏伤。
The utility model discloses a replaceable safety cotton swab with plug-in card head scale type. The cotton swab is composed of a rod body and a cotton ball. The cotton ball is connected with the rod body. There is a graduated scale, the chuck is inserted into the socket, one end of the measuring rod is hollow, and the rod body is inserted into the hollow end of the measuring rod. After adopting such a structure, since the rod body is inserted into the measuring rod, the additional length of the rod body is increased, and the length of the rod body itself can be greatly shortened, which can reduce the amount of wood used by the rod body, which is conducive to environmental protection and resource saving; usually The length of the inner ear canal of the human ear is 2.5-3.5cm. With the scale scale on the measuring rod as a reference, insert the chucks into the sockets at different positions on the measuring rod so that they are within a safe distance, so that people can When picking out the ears, there is a reference standard, so as to avoid not grasping the depth scale and hurting the ears.
Description
Technical field
This utility model relates to a kind of replaceable safe Cotton swab of removable card leader chi formula that has replaceable Cotton swab and graduated scale.
Background technology
Cotton swab is as a kind of medical gadget; Be that people often will use, Cotton swab major part commonly used all is a long body of rod this appearance of cotton ball of ining succession, and the material of the body of rod all is wooden or bamboo matter usually; The body of rod of a Cotton swab with material seldom; But the consumption of Cotton swab is huge, and taking care of the pence just needs to consume a large amount of natural timbers, and this is unfavorable for resources effective utilization and environmental protection; Cotton swab commonly used picks one's ears; Usually the length of the inboard external auditory meatus of people's ear is 2.5-3.5cm; It is to be with graduatedly that but Cotton swab commonly used does not have a, and people use bad assurance yardstick like this, and ear is one of human organ of very fragility; Might make it injured slightly because of carelessness, also not see the Cotton swab that has the safety precaution function and be carved with numerical value in the market.
The utility model content
The technical problem that this utility model will solve provides a kind of replaceable safe Cotton swab of removable card leader chi formula that has replaceable Cotton swab and graduated scale.
For solving the problems of the technologies described above, the technical scheme that this utility model is taked is:
The replaceable safe Cotton swab of a kind of removable card leader chi formula; Cotton swab is made up of the body of rod and cotton ball, cotton ball connect with the body of rod on, weigh on the bar and leave jack; Jack is other to be carved with or to be printed on graduated scale; Dop inserts among the jack, weighs an end hollow of bar, and the body of rod inserts among the end of weighing hollow on the bar.
As the further improvement of this utility model, the numerical value on the said graduated scale is arranged in order from small to large.
As the further improvement of this utility model, the quantity of weighing jack on the bar is between 1-10.
Adopt after the such structure of this utility model, weigh among the bar because the body of rod inserts in, increased the additional length of the body of rod, the length of the body of rod itself just can shorten greatly, so just can reduce the use amount of the body of rod for timber, helps environmental protection and economizes on resources; Usually the length of the inboard external auditory meatus of people's ear is 2.5-3.5cm;, as reference dop is inserted among the jack of weighing diverse location on the bar with the graduated scale on the measurement bar, it is within the safe distance; People are when picking one's ears like this; Individual reference standard is just arranged, avoid holding bad depth yardstick, draw wound to ear.
Description of drawings
Below in conjunction with the accompanying drawing and the specific embodiment this utility model is remake further detailed explanation.
Fig. 1 is a structural representation of weighing bar in the replaceable safe Cotton swab of this utility model removable card leader chi formula.
Among the figure: 1, weigh bar, 2, graduated scale, 3, jack, 4, dop.
Fig. 2 is the structural representation of Cotton swab in the replaceable safe Cotton swab of this utility model removable card leader chi formula.
Among the figure: 5, the body of rod, 6, cotton ball.

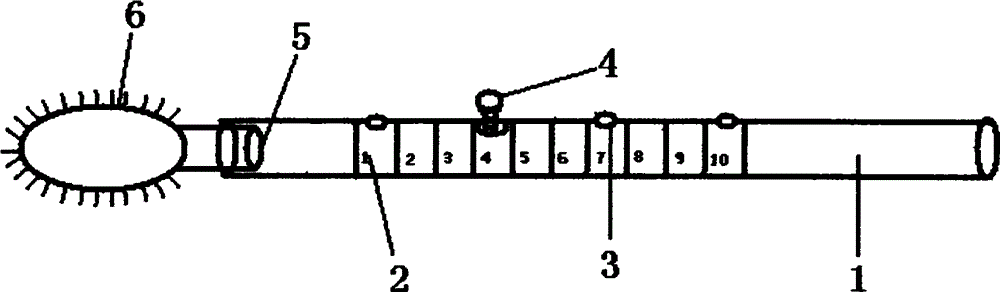

Fig. 3 is the overall structure sketch map of the replaceable safe Cotton swab of this utility model removable card leader chi formula.
Among the figure: 1, weigh bar, 2, graduated scale, 3, jack, 4, dop, 5, the body of rod, 6, cotton ball.
The specific embodiment
The structure of the replaceable safe Cotton swab of this utility model removable card leader chi formula is shown in Fig. 1-3, and Cotton swab is made up of the body of rod 5 and cotton ball 6, on cotton ball 6 companies and the body of rod 5; Weigh on the bar 1 and leave jack 3, the quantity of jack 3 is between 1-10, and jack 3 is other to be carved with or to be printed on graduated scale 2; Numerical value on the graduated scale 2 is arranged in order from small to large; Dop 4 inserts among the jack 3, weighs an end hollow of bar 1, and the body of rod 5 inserts among the end of weighing hollow on the bar 1.
Undoubtedly; The structure of this utility model has multiple conversion and remodeling; Be not limited in the concrete structure of above-mentioned embodiment; Simple conversion all drops within the protection domain of this utility model, and in a word, the protection domain of this utility model should comprise those conspicuous to those skilled in the art conversion or substitute and change shape.
Claims (3)
1. replaceable safe Cotton swab of removable card leader chi formula; Cotton swab is made up of the body of rod (5) and cotton ball (6), cotton ball (6) connect with the body of rod (5) on, it is characterized in that: weigh on the bar (1) and leave jack (3); Jack (3) is other to be carved with or to be printed on graduated scale (2); Dop (4) inserts among the jack (3), weighs an end hollow of bar (1), and the body of rod (5) inserts in measurement bar (1) and goes up among the end of hollow.
2. the replaceable safe Cotton swab of removable card leader chi formula according to claim 1, it is characterized in that: the numerical value on the said graduated scale (2) is arranged in order from small to large.
3. the replaceable safe Cotton swab of removable card leader chi formula according to claim 1 is characterized in that: measurement bar (1) is gone up the quantity of jack (3) between 1-10.
