Abstract

The utility model relates to a cleaning appliance, in particular to a broom. The broom includes a broom handle (1) and a broom head (2). It also includes a dust cover (3). The material of the dust cover (3) is terry cloth. The top of the dust cover (3) is small and the bottom is large. The top of the dust cover (3) is provided with an elastic sleeve (4), the diameter of the elastic sleeve (4) is equivalent to the diameter of the broom handle (1), and the bottom of the dust cover (3) is provided with a tightening belt (5), which surrounds the The bottom edge of the dust cover (3) is arranged, and the two end points of the tightening belt (5) are located outside the dust cover (3). The utility model has the advantages of simple structure and practical function, and is suitable for cleaning dust and clothing fibers.

Description

a broom

technical field

The utility model relates to a cleaning appliance, in particular to a broom.

Background technique

At present, what the house decoration of general family uses is wooden floor, and wooden floor all needs soft bristle broom to sweep. The general cleaning procedure is to sweep once before mopping the floor. As shown in FIG. 1 , a broom in the prior art includes a broom handle 1 and a broom head 2 . Applicants have found that the most difficult items to clean up each time they clean up are flying dust and clothing fibers. Sweep here and leave there. If you don’t sweep and then mop the floor, the floor will be like a big face, which is a headache.

Utility model content

The purpose of the utility model is to overcome the deficiencies of the prior art and provide a broom suitable for cleaning dust and clothing fibers.

In order to achieve the above object, the technical scheme of the utility model is as follows: a broom, including a broom handle and a broom head, it also includes a dust cover, the material of the dust cover is terry cloth, the top of the dust cover is small and the bottom is large, and the top of the dust cover is set Elastic sleeve, the diameter of elastic sleeve is equivalent to the diameter of broom handle.

When in use, cover the dust cover on the broom head and wet the dust cover with water. This broom can be used like a conventional broom, and can easily prevent dust and clothing fibers from flying.

As a further technical solution, a tightening belt is provided at the bottom of the dust cover, the tightening belt is arranged around the bottom edge of the dust cover, and the two ends of the tightening belt are located outside the dust cover.

When not in use, the dust cover can be taken off, or the dust cover can be turned up and fixed on the broom handle with a tightening band.

In summary, the utility model has the advantages of simple structure and practical function, and is suitable for cleaning dust and clothing fibers.

Description of drawings

Fig. 1 is the structural representation of broom in the prior art;

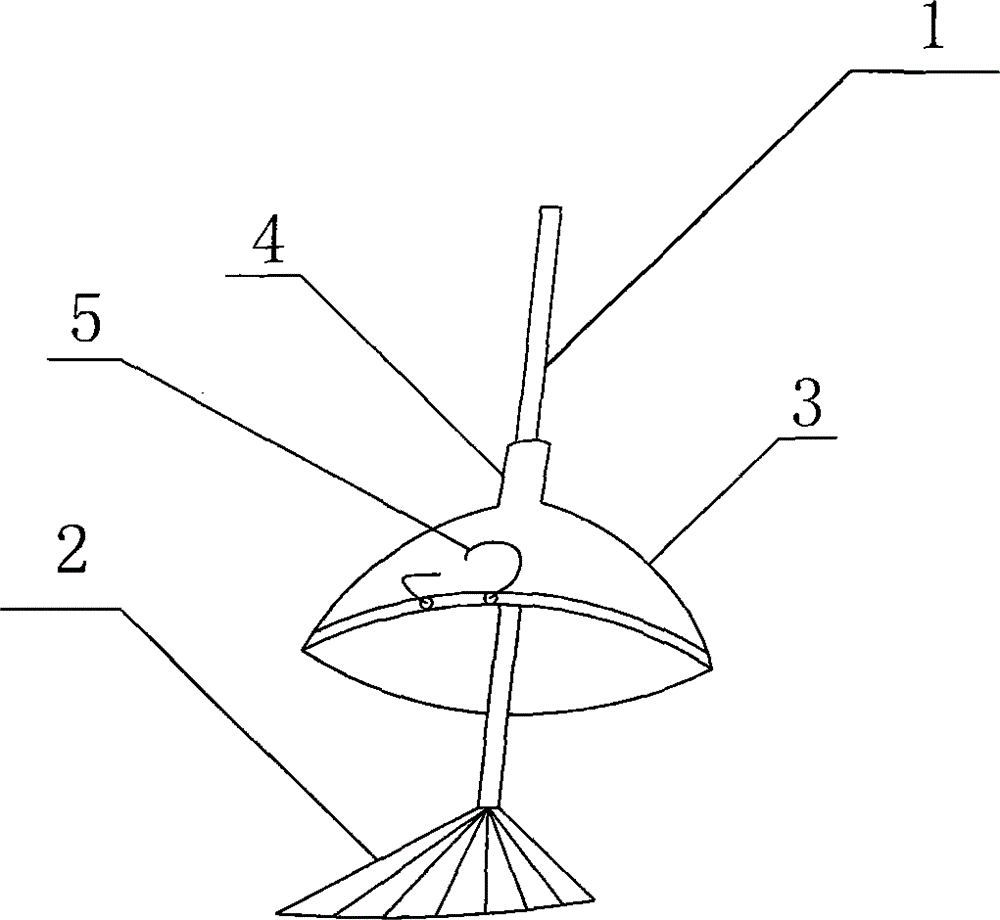

Fig. 2 is a schematic structural view of the utility model, in which the dust cover has not been placed on the broom head among the figures.

Detailed ways

Example 1

As shown in Figure 2, a kind of broom comprises broom handle 1, broom head 2 and dust cover 3, and the material of dust cover 3 is terry cloth, and the top of dust cover 3 is small and the bottom is big, and the top of dust cover 3 is provided with elastic cover 4, The diameter of the elastic sleeve 4 is equivalent to the diameter of the broom handle 1, and the bottom of the dust cover 3 is provided with a tightening band 5, which is arranged around the bottom edge of the dust cover 3, and the two ends of the tightening band 5 are located outside the dust cover 3 .

Claims (2)

1. a besom comprises besom handle (1) and broom head (2), and it is characterized in that: it also comprises grey dust hood (3); The material of ash dust hood (3) is a towelling; Little bottom, ash dust hood (3) top is big, and the top of grey dust hood (3) is provided with resilient sleeve (4), and the diameter of the diameter of resilient sleeve (4) and besom handle (1) is suitable.

2. a kind of besom as claimed in claim 1 is characterized in that: the bottom of said grey dust hood (3) is provided with belt tensioner (5), and belt tensioner (5) is around the bottom margin setting of grey dust hood (3), and two end points of belt tensioner (5) are positioned at outside the grey dust hood (3).
