CN202496954U - Combined frame - Google Patents

Abstract

The utility model relates to a combination frame, which is composed of a front cover plate, a socket, a rear cover plate, a mirror, two connecting rods, a loading board, bolts and two blower placement frames. The socket is located at the upper end of the front cover, and is fixedly connected with the front cover; the mirror is fixedly installed on the front end of the front cover; the loading plate is placed horizontally, and one end of it is connected with the lower end of the front cover; two connecting rods are distributed symmetrically On the left and right sides of the front cover, one end is connected to the front cover, and the other end is connected to the other end of the loading plate. The two connecting rods, the loading plate and the front cover form a triangular shape, which improves the device. Stability; two hair dryer racks are symmetrically installed on the left and right sides of the loading plate through bolts. The utility model has the advantages of low cost, high stability, convenient use, etc., and can realize the function of supporting the heating device.

Description

a combination rack

technical field

The utility model relates to the technical field of daily necessities, in particular to a combination frame.

Background technique

In daily life, especially in winter, people often adopt many kinds of heating methods, such as using electric heating treasures to warm hands, and people also use hair dryers to dry after shampooing. These devices solve the problems that people encounter in their daily life and bring great convenience to people's life. But, when electric heating treasure or other heating devices are heated, often because there are no objects carrying these heating devices near the socket, people need to carry chairs or other objects to support these heating devices; Hair gets blown all over the place because of the lack of a mirror near the socket. Therefore, there is an urgent need for a low-cost, high-stability, easy-to-use device that can support the heating device, that is, a combined frame.

Contents of the invention

In order to make up for the above shortcomings, the utility model provides a combination frame.

The technical solution adopted by the utility model to solve the technical problem is: a combination frame, which is composed of a front cover, a socket, a rear cover, a mirror, two connecting rods, a loading plate, bolts and two blower placement frames, The middle part of the upper end of the front cover is provided with a semicircular lead hole, and two counterbores are symmetrically arranged on the left and right sides of the upper end of the front cover; the socket is located at the upper end of the front cover and is fixedly connected with the front cover; The upper end of the front cover is overlapped with a circular lead hole, and the upper end of the rear cover is symmetrically provided with two through holes on the left and right sides. The two through holes communicate with the two sink holes of the front cover. The utility model can be fixed on the wall by additional screws in the two counterbores of the plate and the two through holes of the back cover; the mirror is fixedly installed on the front end of the front cover, and the mirror can be used when people use a hair dryer to dry their hair. It is convenient to see the degree of hair drying and hairstyle to ensure that the hair will not be blown messy; the loading plate is placed horizontally, one end of which is connected to the lower end of the front cover, and the loading plate is used to place heating devices or other suitable weights The device; two connecting rods are symmetrically distributed on the left and right sides of the front cover, one end of which is connected to the front cover, and the other end is connected to the other end of the loading plate, the two connecting rods, the loading plate and the front cover The shape of a triangle is formed between them, which improves the stability of the device; the two hair dryer racks are symmetrically installed on the left and right sides of the loading plate through bolts, and the two hair dryer racks are in a spiral shape.

The beneficial effects of the utility model are: a combined frame has the advantages of low cost, high stability, convenient use, etc., and can realize the function of supporting the heating device.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the utility model is further described.

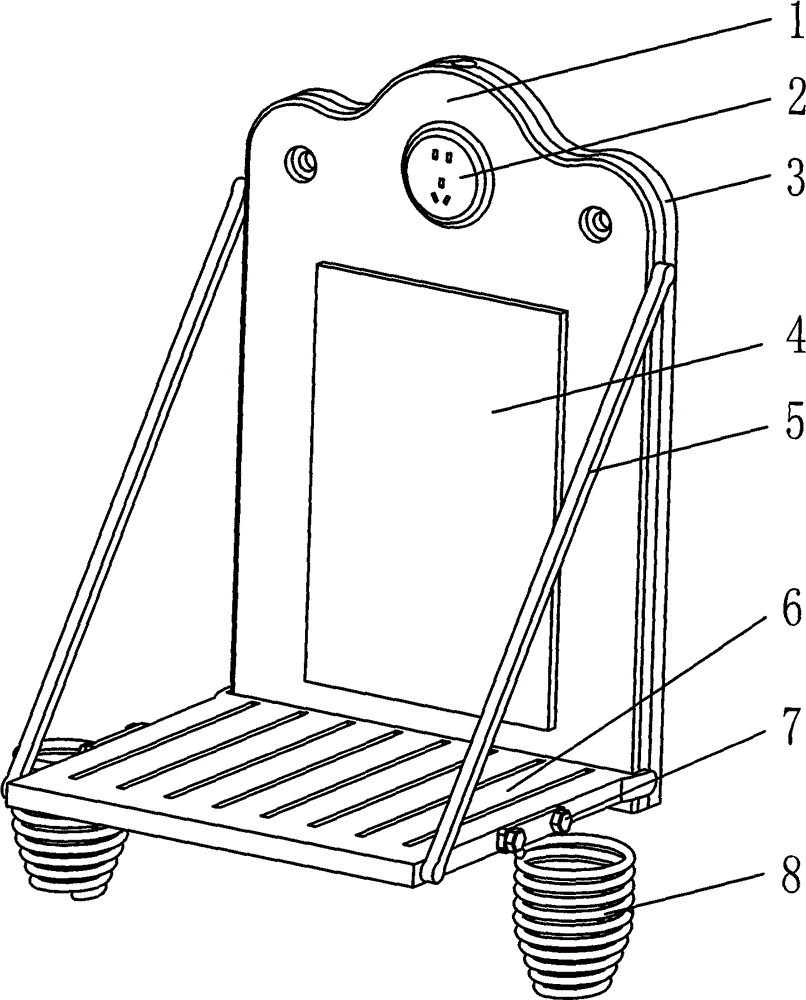

Fig. 1 is the three-dimensional structure schematic diagram of the present utility model.

Among the figure 1, front cover plate, 2, socket, 3, rear cover plate, 4, mirror, 5, connecting rod, 6, loading plate, 7, bolt, 8, hair dryer placement frame.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments and illustrations.

As shown in Figure 1, a combination frame is composed of a front cover 1, a socket 2, a rear cover 3, a mirror 4, two connecting rods 5, a loading plate 6, bolts 7 and two blower racks 8, The middle part of the upper end of the front cover 1 is provided with a semicircular lead hole, and the upper end of the front cover 1 is symmetrically provided with two countersunk holes on the left and right sides; 1 is fixedly connected; the upper end of the rear cover 3 and the front cover 1 is overlapped with a circular lead hole, and the upper end of the rear cover 3 is symmetrically provided with two through holes on the left and right sides, and the two through holes are connected with the front cover 1 The two countersunk holes of the front cover plate 1 and the two through holes of the rear cover plate 3 are attached with screws, so that the utility model can be fixed on the wall; the mirror 4 is fixedly installed on the front The front end face of cover plate 1, mirror 4 can conveniently see the degree of hair drying and hairstyle clearly when people use blower to dry their hair, so as to ensure that hair will not be blown messy; The lower end of the cover plate 1 is connected, and the loading plate 6 is used to place a heating device or other devices with suitable weight; two connecting rods 5 are symmetrically distributed on the left and right sides of the front cover plate 1, and one end thereof is connected with the front cover plate 1, and its The other end is connected with the other end of the loading plate 6, and the two connecting rods 5, the loading plate 6 and the front cover 1 form a triangular shape, which improves the stability of the device; two blower racks 8 are symmetrically installed by bolts On the left and right sides of the loading board 6, two hair dryer placement frames 8 are in a spiral shape.

When the operator needs to heat the electric heater or other heating devices, he can put the electric heater or other heating devices on the loading board, and then insert the plug into the socket to heat it; when the operator needs When using a hair dryer to dry your hair, you can insert the plug of the hair dryer into the socket, and then face the mirror to dry and shape your hair. When the hair dryer is finished, you can pull out the plug, and then put the hair dryer into the hair dryer. in the rack for next use.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions are only the principles of the utility model. Without departing from the spirit and scope of the utility model, the utility model There will also be various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (1)

1. a combined bay is made up of front shroud, socket, back shroud, mirror, two connecting rods, support board, bolt and two hair-dryer racks, and the left and right sides, upper end of described front shroud is arranged with two counterbores; Socket is positioned at the upper end of front shroud, and is connected with front shroud; The upper end overlapping of back shroud and front shroud is provided with circular fairlead, and the left and right sides, upper end of back shroud is arranged with two through holes, two corresponding communicating of counterbore of two through holes and front shroud; Mirror is fixedly mounted on the front end face of front shroud; Support board is horizontal positioned, the lower ends of one of which end and front shroud; Two connecting rods are symmetrically distributed in the left and right sides of front shroud, and the one of which end links to each other with front shroud, and its other end links to each other with the other end of support board; Two hair-dryer racks are installed in the left and right sides of support board through the bolt symmetry, and two hair-dryer racks twist.
