Abstract
本实用新型公开了一种便利晾衣架，包括挂钩，所述挂钩底部连接有挂管，所述挂管两端分别螺丝连接有托肩。所述便利晾衣架能根据衣服的大小来调节，防止衣服肩部变形，且本便利晾衣架结构简单，实用。
The utility model discloses a convenient clothes drying rack, which comprises a hook, the bottom of the hook is connected with a hanging pipe, and the two ends of the hanging pipe are connected with supporting shoulders by screws respectively. The convenient clothes drying rack can be adjusted according to the size of the clothes to prevent deformation of the shoulders of the clothes, and the convenient clothes drying rack has a simple structure and is practical.
Description
Technical field
The utility model relates to a kind of clothes hanger, is specifically related to a kind of convenient hanger.
Background technology
The clothes hanger that is used to hang out in the daily life all is a fixed in shape, can not regulate according to the size of clothes.
The utility model content
The purpose of the utility model is to overcome the defective that exists in the prior art, and a kind of convenient hanger is provided.
For realizing above-mentioned purpose, the technical scheme of the utility model is:
A kind of convenient hanger comprises hook, and said hook bottom is connected with hanging tube, and said hanging tube two ends screw respectively are connected with the holder shoulder.
Further, said hanging tube is hinged with clip.
The beneficial effect of the utility model: because holder shoulder is connected with the hanging tube screw, so two hold in the palm the spacing scalable of takeing on, can cooperate the clothes of different size, and this convenient hanger is simple in structure, practicality.
Description of drawings

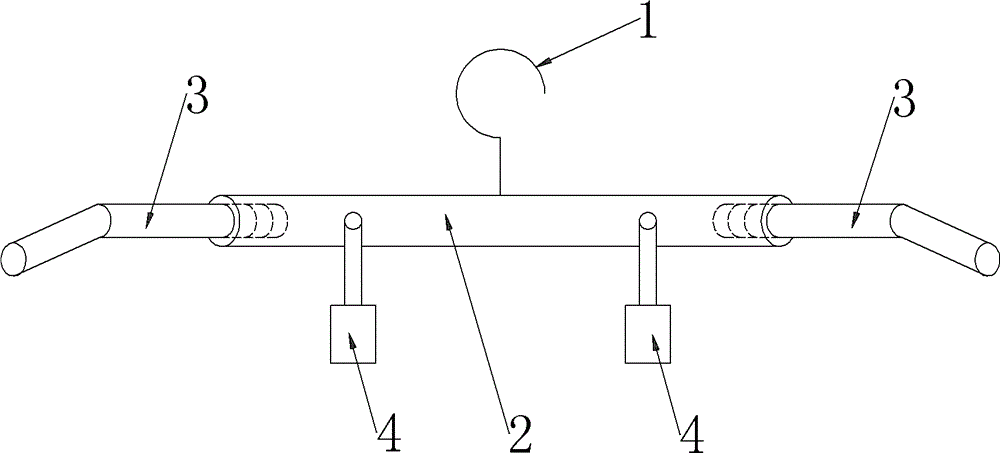

Fig. 1 is the sketch map of the utility model.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is elaborated:
The technical scheme of the utility model practical implementation is:
In conjunction with Fig. 1, a kind of convenient hanger comprises hook 1, and said hook 1 bottom is connected with hanging tube 2, and said hanging tube 2 two ends screw respectively are connected with holder shoulder 3, and said hanging tube 2 is hinged with clip 4.
Claims (2)
1. a convenient hanger comprises hook, it is characterized in that, said hook bottom is connected with hanging tube, and said hanging tube two ends screw respectively are connected with the holder shoulder.
2. convenient hanger according to claim 1 is characterized in that said hanging tube is hinged with clip.
