Abstract

The utility model discloses a one-handed backrest adjustment structure of a rocking chair, comprising a base frame; a fixed frame, which is arranged on the base frame and has a fixed frame seat and a fixed cover, wherein the fixed frame seat has a plurality of fixed slots, and the fixed cover has an opening; a rear bracket, which has a long slot at both ends, and a moving piece with an opening and a spring are arranged inside the two ends of the rear bracket; an adjusting bracket, which has an adjusting cross bar at both ends, and the adjusting cross bar passes through the long slot of the rear bracket, the opening of the moving piece, and the opening of the fixed cover, and then is engaged with the fixed slot in the fixed frame seat, and the adjusting cross bar abuts against one end of the spring inside the moving piece; a fixing clip, which clamps the rear bracket and the adjusting bracket, and the fixing clip has a fixing rivet that passes through the rear bracket and abuts against the other end of the spring inside the rear bracket.

Description

One-handed backrest adjustment structure of rocking chair

technical field

The utility model relates to a chair back adjustment structure, in particular to a chair back angle adjustment structure which can be operated with one hand to adjust the posture of a rocking chair.

Background technique

Newborn babies often need to be treated with various comforts during a period of time after birth, especially babies from 0 to 6 months old. And the multiple baby comforting equipments that are aimed at this effect are released such as rocking bed, rocking chair or the like. A rocking bed is roughly a device in which a baby can lie flat and has a gentle rocking, shaking or shaking on the bottom, and is mostly used for a longer period of sleep for babies. A rocking chair is a mechanism in which a baby can sit and lie with a rocker attached.

However, the aforementioned rocking chair needs to be able to adjust the child's lying posture when the child is getting bigger and bigger. The existing adjustment method is to set a group of knobs on the left/right sides of the rotating shaft of the chair back. Those who don’t (such as parents) must bend down or squat down to adjust the knob, and must operate alone to complete the structural locking of the left/right sides. The steps are cumbersome and this adjustment method is not very convenient for the user. The design, such as squatting down to adjust when standing or doing housework, is very troublesome.

In view of the above-mentioned shortcomings, the utility model which has an adjustment structure that can easily adjust the back of the rocking chair and can be adjusted when the user stands up arises spontaneously.

Utility model content

The purpose of this utility model is to provide a rocking chair that can easily adjust the inclination angle of the chair back, especially for carrying young children at birth, so that the parents who take care of the children can use the rocking chair to appease the uneasy emotions of the children, and With this mechanical structure, one-hand operation can be used to adjust the inclination angle of the chair back, so that children can lie down in the most comfortable position, and it is convenient to adjust the angle from lying down to reclining or sitting up, which meets the expectations of a wide range of users , to meet the needs of children at different stages for vehicles.

The utility model is a one-hand chair back adjustment structure of a rocking chair, which includes a bottom frame; a fixed frame, which is arranged on the bottom frame, has a fixed frame seat and a fixed cover, and the fixed frame seat has a plurality of fixed card slots , and the fixed cover has an opening; a rear bracket, two ends of which are respectively provided with a long slot, and the two ends of the rear bracket are respectively provided with a moving part with an opening and a spring; an adjustment bracket, two ends of which An adjustment cross bar is formed, and the adjustment cross bar passes through the elongated slot of the rear bracket, the opening of the moving part, and the opening of the fixed cover, and then snaps into the fixing slot in the holder seat, and the adjustment cross bar is on the The inside of the moving part is against one end of the spring; a fixing clip clamps the rear bracket and the adjustment bracket, and the fixing clip has a fixing rivet passing through the rear bracket and resisting the spring inside the rear bracket another side.

The utility model is characterized in that the position of the back of the rocking chair can be easily changed by means of a simple mechanical structure, and for situations where both hands cannot be vacated at the same time, for example, a female friend who needs to vacate one hand to appease a child, etc. For the operator, it is a very easy and labor-saving way to adjust the inclination angle of the seat back by pulling up the adjustment bracket with one hand and lifting or pulling down the rear bracket at the same time; in addition, by forming a Multiple fixed card slots allow the height of the chair back to be adjusted in multiple stages to meet various needs.

Description of drawings

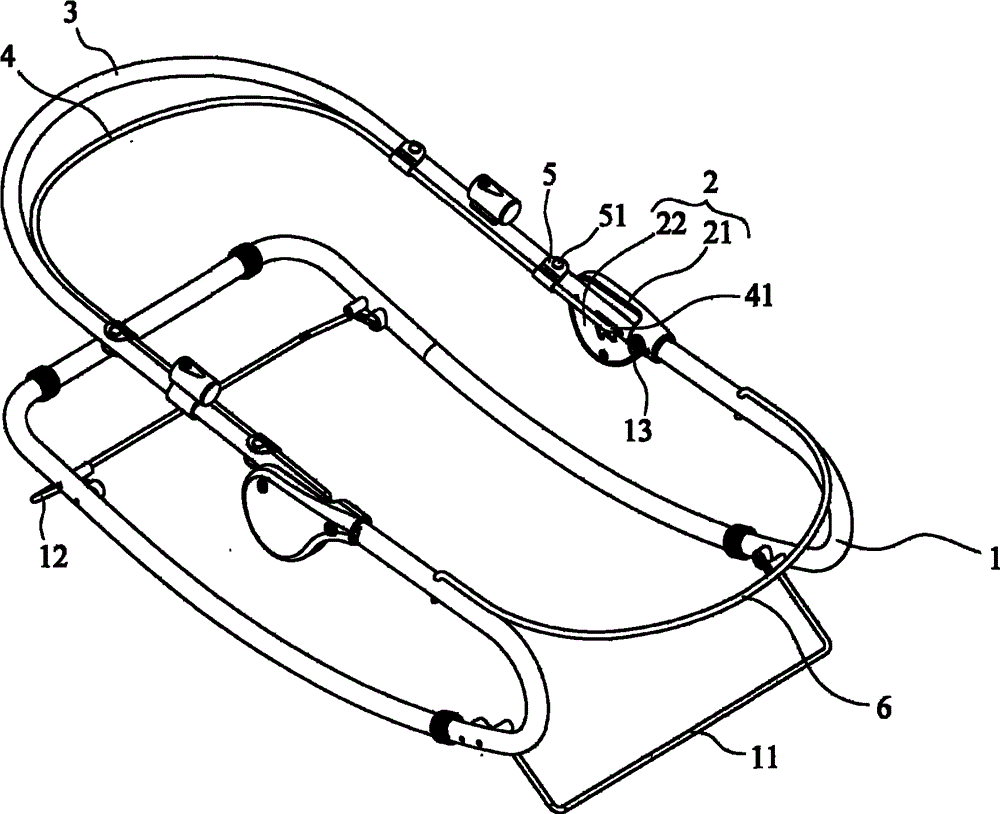

Fig. 1 is the three-dimensional schematic diagram showing the utility model;

Fig. 2 is a schematic diagram showing an exploded plane of the fixed frame seat and the fixed cover of the present invention;

Fig. 3 is a schematic perspective view showing some components of the utility model;

Fig. 4A is a plane sectional view showing the rear bracket and the adjustment bracket of the present invention;

Fig. 4B is a plane sectional view showing the rear bracket and the adjustment bracket of the present invention;

Fig. 5 is a perspective view showing the utility model.

Explanation of main component symbols

1 Base frame 11 Front support frame

12 rear support frame 13 rivets

2 fixed frame 21 fixed frame seat

211 fixed card slot 2111 first fixed card slot

2112 The second fixed card slot 2113 The third fixed card slot

2114 Fourth fixed card slot 22 Fixed cover

221 opening 3 rear brackets

31 long slot 32 moving parts

321 hole 322 spring

4 Adjustment bracket 41 Adjustment cross bar

5 fixing clips 51 fixing rivets

6 Front bracket A position

B position C position

D position E position

F position G position

Detailed ways

The features of the utility model can be clearly understood with reference to the detailed descriptions of the drawings and the embodiments.

Referring to Fig. 1, the utility model is a one-handed back adjustment structure of a rocking chair, including:

An underframe 1, the bottom of which is arc-shaped rather than horizontal, so the utility model can be shaken back and forth in situ, and a front support frame 11 and a rear support frame 12 are additionally provided front and rear; on the bottom frame 1 , and combine the fixed frame on the bottom frame 1 with a rivet 13 . Referring to Fig. 2, the fixed frame 2 is composed of a fixed frame base 21 and a fixed cover 22, the fixed frame base 21 has a plurality of fixed slots 211, the fixed cover 22 has an opening 221, and the opening The profile shape of 221 is identical with the shape of fixing slot 211; A back support 3, shape is a U font, offers a long slot 31 (with reference to Fig. 3) respectively at the two ends of U word opening top, and this back support 3 A moving part 32 with an opening 321 and a spring 322 (refer to FIG. 4A ) are respectively arranged inside both ends; an adjustment bracket 4 (refer to FIGS. 1 , 3 and 4A ), and an adjustment cross bar 41 is formed at its two ends After passing through the elongated slot 31 of the rear bracket 3, the opening 321 of the moving part 32, and the opening 221 of the fixed cover 22, the adjusting cross bar 41 is engaged with the fixing slot 211 in the fixing frame seat 21, and the adjusting The cross bar 41 is against one end of the spring 322 inside the moving part 32; a fixing clip 5 (referring to Fig. 3 and Fig. 4A), after the fixing clip 5 clamps the rear bracket 3 and the adjusting bracket 4, at this time The adjusting bracket 4 can radially move inside the fixing clip 5 , and then a fixing rivet 51 passes through the rear bracket 3 and abuts against the other end of the spring 322 inside the rear bracket 3 (refer to FIG. 4A ).

Next, the actuation situation when the utility model is used is described. First referring to Fig. 1, it is a state diagram when the rear support 3 of the present invention is horizontal, at this moment, the adjusting cross bar 41 of the adjusting support 4 is engaged with the first fixing groove 2111 of the fixing frame seat 21 in Fig. 2 , That is position A. When the user wants to stand up the rear bracket 3, the user only needs to hold the U-shaped bottom of the rear bracket 3 and lift it upwards, then the first fixing slot 2111 to the second fixing slot 2112 The outline of the boundary is a relatively circular shape, so the adjustment cross bar 41 will move along the boundary outline of the first fixing slot 2111 to the second fixing slot 2112, that is, it will move from position A to position B, and finally move to Position C is engaged with the second fixing slot 2112, and at the same time, the adjustment bar 41 will gradually move upward from the state shown in Figure 4A to the state shown in Figure 4B until it moves from position B to position C, and the adjustment The crossbar 41 will return to the state shown in FIG. 4A due to the rebounding force of the spring 322 , and the adjustment crossbar 41 will engage with the second fixing slot 2112 . In the present invention, the number of the plurality of fixing slots 211 is four, so the user can make the rear bracket 3 have four different height changes, which means that the adjusting crossbar 41 is respectively engaged with the first fixing slots 2111 , the second fixing slot 2112 , the third fixing slot 2113 and the fourth fixing slot 2114 , the actuation methods are the same as the aforesaid actuation methods. Referring to FIG. 5 , it is a state diagram when the adjusting crossbar 41 is engaged with the fourth fixing slot 2114 , it is located at position D, and the rear support 3 is at the highest height.

Conversely, when the utility model is in the state of Fig. 5, and the user wants to return the rear bracket 3 to a lower state, the user can pull the adjustment bracket 4 in Fig. 5 toward the direction of the rear bracket 3 with one hand, Then the adjustment crossbar 41 is changed from the state of FIG. 4A to the state of FIG. 4B in the same way. At this time, the adjustment crossbar 41 will move from the position D in FIG. Pulling in the direction of the ground, the adjusting cross bar 41 will move from position E to position F, and then after the user releases the previously pulled adjusting bracket 4, the adjusting cross bar 41 will change from the state of Fig. 4B to the state of Fig. 4A, and At the same time, it will move from the position F in FIG. 2 to the position G, which means that the adjusting cross bar 41 will move from the fourth fixing slot 2114 to engage with the third fixing slot 2113 . In the same way, when the rear bracket 3 is to be returned to the state shown in Fig. 1, the operation steps are the same as those described above, as long as the adjustment crossbar 41 is moved from position D to position E, and then the rear bracket 3 is pulled toward the ground direction by a large margin, so that Adjust the crossbar 41 to move from position E to position H, and finally return to position A.

The above-mentioned are only used to explain the preferred embodiments of the present utility model, and are not intended to limit the utility model in any form. Modifications or changes should still be included in the intended protection category of the utility model.

Claims (4)

1. the singlehanded chair back of a rocking chair is adjusted structure, it is characterized in that this structure comprises:

One underframe;

One fixed mount is located at this underframe, has a fixing stand, this fixedly stand have a plurality of fixed card slots;

One after-poppet, its two ends offer an elongate slot respectively, and this inside, after-poppet two ends is provided with a moving member and the spring with a perforate respectively;

One regulates support; Its two ends form one and regulate cross bar; This adjusting cross bar passes the fixed card slot that is fastened on behind the opening of perforate, fixed cap of elongate slot, the moving member of this after-poppet in the fixing stand, and this adjusting cross bar props up an end of this spring in this moving member inside;

One geometrical clamp is regulated the support clamping with this after-poppet and this, and has on this geometrical clamp that a fixing rivet passes this after-poppet and prop up the other end of this spring in this after-poppet inside.

2. the singlehanded chair back adjustment structure of rocking chair as claimed in claim 1 is characterized in that underframe is provided with a fore-stock.

3. the singlehanded chair back adjustment structure of rocking chair as claimed in claim 1 is characterized in that underframe is provided with a front support stand and a rear support stand.

4. the singlehanded chair back adjustment structure of rocking chair as claimed in claim 1 it is characterized in that this fixed mount further has a fixed cap, and this fixed cap has an opening.
