CN202496788U - Electric heating chair - Google Patents
Electric heating chair Download PDFInfo
- Publication number
- CN202496788U CN202496788U CN2011205346633U CN201120534663U CN202496788U CN 202496788 U CN202496788 U CN 202496788U CN 2011205346633 U CN2011205346633 U CN 2011205346633U CN 201120534663 U CN201120534663 U CN 201120534663U CN 202496788 U CN202496788 U CN 202496788U
- Authority
- CN
- China
- Prior art keywords
- electric heating
- chair
- sitting
- heating chair
- utility
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Landscapes
- Chair Legs, Seat Parts, And Backrests (AREA)
Abstract
本实用新型提供了一种电热椅，所述电热椅是指在坐椅子设置连接有电源连接线的电热坐垫，通电以后会发热。在气温较低时，使人坐在椅子上不会感到冰凉。
The utility model provides an electric heating chair. The electric heating chair refers to an electric heating seat cushion connected with a power supply connection line arranged on the sitting chair, which will generate heat after being energized. When the temperature is low, people will not feel cold while sitting on the chair.
Description
技术领域 technical field
本实用新型涉及一种坐椅，具体地说是一种带电热垫套的电热椅。 The utility model relates to a chair, in particular to an electric heating chair with an electric heating cushion cover. the
背景技术 Background technique
现在到了冬天椅子一般都比较冰凉，使人坐在上面感觉很冷。 Chairs are generally colder in winter, which makes people feel very cold when sitting on them. the
发明内容 Contents of the invention
本实用新型的目的在于：提供一种通电发电热椅，使人坐上去不凉。 The purpose of the utility model is to provide a heating chair with electricity to generate electricity, so that people can sit on it without being cool. the
本实用新型所采用的技术方案在于：在椅子设置连接有电源连接线的电热坐垫，通电以后会发热。在气温较低时，使人坐在椅子上不会感到冰凉。 The technical solution adopted by the utility model is: the chair is provided with an electric heating cushion connected with a power connection line, which will generate heat after being energized. When the temperature is low, people will not feel cold while sitting on the chair. the
附图说明 Description of drawings
下面结合附图和具体实施例对本实用新型作进一步详述。 Below in conjunction with accompanying drawing and specific embodiment the utility model is described in further detail. the

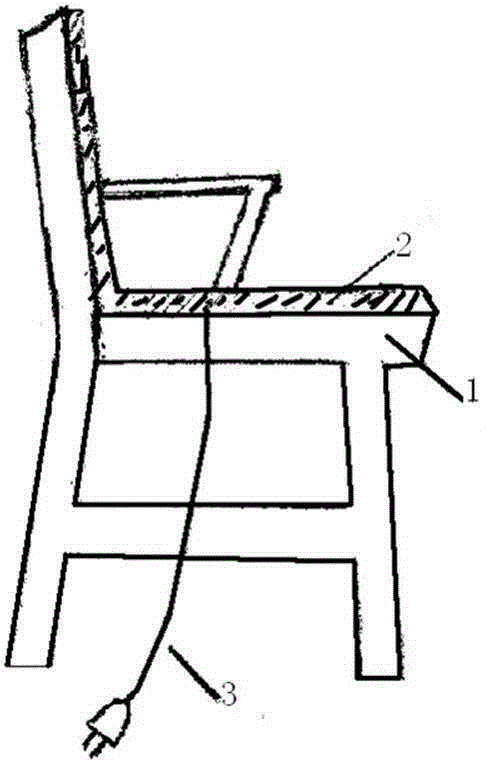

附图1为本实用新型结构示意图。 Accompanying drawing 1 is the structural representation of the utility model. the
具体实施方式 Detailed ways
附图实施例所示：在椅子1设置连接有电源连接线3的电热坐垫2。 Shown in the accompanying drawings embodiment: chair 1 is provided with the electric heating cushion 2 that is connected with power connection line 3. the
