本实用新型公开了一种方便快捷的六棱柱状多坐面折叠收纳凳，其特征是，它由六棱柱状凳身和坐面组成可以方便展开和收纳的结构，所述六棱柱状凳身为中空结构，凳身上面依次开设有与坐面等宽的切孔口，底面有配重结构、坐面板由和六棱柱状凳身尺寸相同的六棱柱片组成，坐面板可以旋转突出或者旋转折叠进六棱柱状凳身所在的范围内；内置螺钉、合页之类的紧固件，以达到连接牢靠的目的；六棱柱状凳身由金属或其他材料制成六棱柱形，可以成为家庭装饰品；该折叠凳坐面展开后即可使用，用毕可折叠，占地小，携带方便，特别适合学生、工人等外出人员使用，当不用就可以折叠方便存储与携带。
The utility model discloses a convenient and fast hexagonal column-shaped folding storage stool with multiple sitting surfaces, which is characterized in that it is composed of a hexagonal column-shaped stool body and a sitting surface, which can be conveniently unfolded and stored. It is a hollow structure, and the top of the stool is provided with cutouts as wide as the sitting surface in turn. There is a counterweight structure on the bottom surface, and the sitting panel is composed of hexagonal prism pieces with the same size as the hexagonal column-shaped stool body. The sitting panel can be rotated to protrude or rotate. Fold into the range where the hexagonal column stool is located; built-in fasteners such as screws and hinges to achieve the purpose of firm connection; the hexagonal column stool is made of metal or other materials, and can become a family Decoration; the folding stool can be used after the seat surface is unfolded, and can be folded after use. It occupies a small area and is easy to carry. It is especially suitable for students, workers and other people who go out.
Description
Technical field
The utility model relates to a kind of faldstool, and more particularly, it relates to the folding Storage stool of a kind of many seats of conveniently hexa-prism face.
Background technology
At present, sell faldstool miscellaneous on the market, these faldstools all have certain effect, but are not that many seats face can fold Storage stool in the hexa-prism structure.Especially do not have small portable multiduty, and be suitable for the various faldstools that are convenient for carrying and collect use, up to the present, on market, do not see the folding Storage stool of many seats of hexa-prism face of both attractive in appearance, simple in structure, handy portable multi-purpose as yet.
Summary of the invention
The purpose of the utility model is to overcome deficiency of the prior art, provide a kind of simple in structure, be easy to processing and manufacturing, good decorating effect, the folding Storage stool of many seats of hexa-prism face easy to carry, attractive in appearance.
The utility model is a kind of combination stool; It forms the structure that can conveniently launch and take in by hexa-prism stool body and a plurality of square seat face; Said hexa-prism stool is as hollow structure; Stool on one's body face offer successively with the seat face wide cut the aperture, the bottom surface by counter weight construction, sit panel by forming with six measure-alike prism sheet of hexa-prism stool body, sit panel and can rotate outstanding or rotary folding and advance in the scope that hexa-prism stool body belongs to; The securing member of built-in screw, hinge and so on connects firm purpose to reach; Hexa-prism stool body is processed hexagon by metal or other materials, and when need not just storing and carry by folding convenient, changing in the past, stool can become family adornment to the slow-witted sensation of people; This faldstool seat face can use after launching, and is collapsible with finishing, and takes up an area of for a short time, easy to carry, is particularly suitable for migrant persons' uses such as student, workman.The utlity model has simple in structure, low price, easy to use, advantage such as be easy to carry about with one.
The beneficial effect of the utility model is: (1) is simple in structure, is easy to make, and only needs on the basis of original furniture production equipment, to change slightly, can make, and cost is lower.(2) reliability is high, the ability resistance to compression, and the life-span is long; (3) good decorating effect, suitable family, bar or migrant person's usefulness, (4) weight is lighter; Volume is less, takes in easy to carry.
Description of drawings
Accompanying drawing 1 is the front view after the utility model folds.
Accompanying drawing 2 is the vertical views after the utility model folds.
Accompanying drawing 3 is the folding back of seat face perspective diagrams of the utility model.

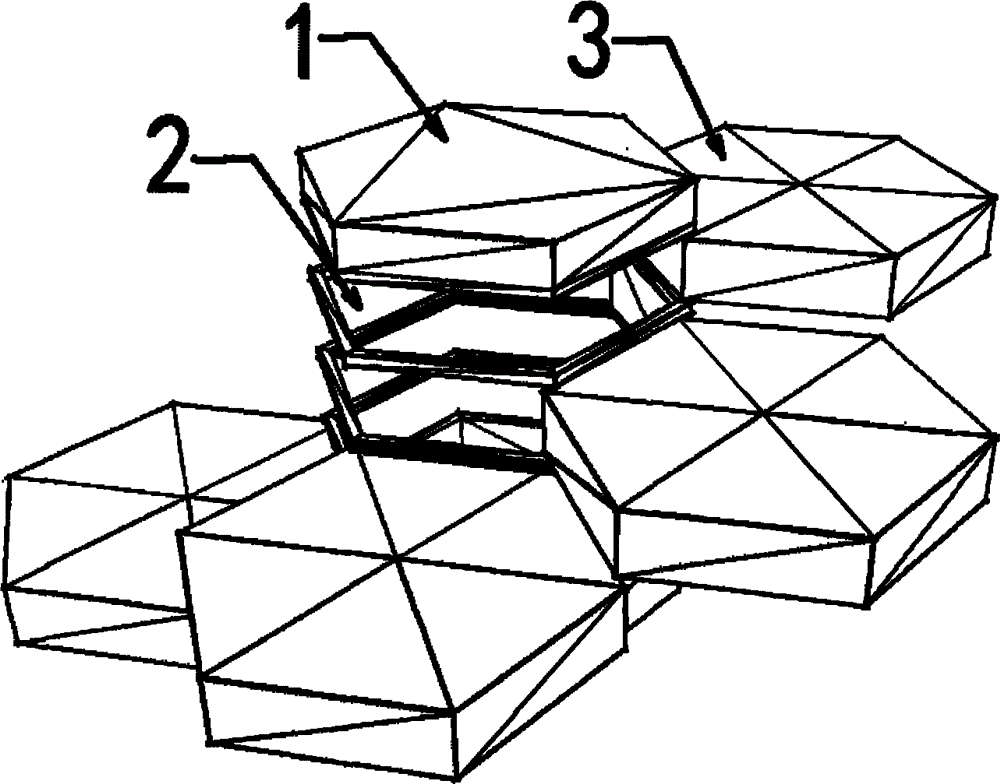

Accompanying drawing 4 is that the seat face of the utility model launches the volume rendering sketch map.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is done further to describe.
In the drawings, the folding Storage stool of many seats of hexa-prism face mainly by hexa-prism stool body 1, with wide the cutting aperture 2, can rotate the seat panel 3 that outstanding or rotary folding advances hexa-prism stool body and constitute of seat face.
Claims (1)
1. folding Storage stool of many seats of hexa-prism face conveniently; It is characterized in that; It forms the structure that can conveniently launch and take in by hexa-prism stool body and seat face, and said hexa-prism stool is as hollow structure, stool on one's body face offer successively with the seat face wide cut the aperture; By forming with six measure-alike prism sheet of hexa-prism stool body, the seat panel can rotate outstanding or rotary folding advances in the scope at hexa-prism stool body place by counter weight construction, seat panel in the bottom surface; Built-in screw, hinge securing member connect firm purpose to reach; Hexa-prism stool body is made of metal hexagon, when need not just storing and carry by folding convenient.
