Abstract
The utility model relates to the field of female underwear and swimsuit. The technical problem to-be-solved is to overcome the disadvantage in the prior art. The utility model provides a steel ring used for brassiere. The steel ring is fit for female chest shape, especially sternum shape, and has more comfort and plastic beauty. The steel ring is composed by a bending steel wire, has an arc shape, and has a first part toward the central part of the brassiere and a second part far from the central part of the brassiere. The first part and the second part are slope segments, between which is an arc segment. The improvement is that the arc segment is at least in part arched to the brassiere lateral to be an arc shape. The sternum below human breast is arc. The purpose of the arc-shaped arch of the steel ring is to fit human sternum shape. The brassiere part supported by the steel ring is also arc-shaped. After being worn, the brassiere can completely fit with the outlines of human body below breasts, is tightly close to the human body, and provides greatest comfort.
Description
Technical field
The utility model relates to women underwear, swimming suit field, and a kind of steel ring that is used for corselet of saying so more specifically cooperates women's chest type more, has higher comfort level and plasticity aesthetic feeling.
Background technology
Women underwears such as existing brassiere, body modelling dress, moulding for better, liner has semicircle steel ring in the cup lower edge usually.Steel ring the earliest is made up of plane steel wire bending, whole steel ring at grade, this steel ring is to the design of the chest type of human body, therefore wears uncomfortablely, and moulding effect is not good yet.For the comfort level and the moulding effect that can improve steel ring, a lot of underwear producers have all carried out various improvement to steel ring.
Existing ameliorative measure mainly contains several kinds: such as Chinese patent, the patent No. is 200710029877.3; European patent application, application number are 10190066.0; Japanese patent application, application number is opened 2011-116083 for the spy; And U.S. Patent application, application number is the technology of 12/942,764 these several steel rings, the flat steel wire that constitutes steel ring has a unified inclination angle, the human body chest type of can fitting more.Be exactly Chinese patent in addition, the patent No. is 200420095198.8 and 20112006111.5, and steel ring is reversed, and makes it further to fit health, has higher comfort level.
The improvement of these above-mentioned steel rings mainly concentrates on the improvement on the comfort level, no matter angle is set or twists, and its purpose all is to make it to fit more with human body chest type curve, improves comfort level.And be not increase significantly moulding aspect.And the improvement of these steel rings mainly be consider steel ring and breast curve to coupling; But in wearing the process of corselet; Steel ring mainly is to fit with the human chest bone, is supported by breastbone, and that wears corselet is uncomfortable mainly from the friction with bone of corselet part that steel ring supported.And existing steel ring does not design according to the shape of skeleton, and comfort level is still waiting to improve.
The utility model content
The utility model technical problem to be solved is to overcome deficiency of the prior art, a kind of women's chest type, particularly breastbone shape of cooperating more is provided, the corselet steel ring with higher comfort level and plasticity aesthetic feeling.
The utility model realizes going up purpose through following technical scheme.
The utility model has designed a kind of steel ring that is used for corselet; Be used to be embedded in corselet cup lower edge and play the support effect, constitute by the steel wire bending, whole curved; Have first and the second portion that deviates from the corselet middle part towards the corselet middle part; First and second portion are bevel phase, are segmental arc between it, and its improvement is that said segmental arc at least partly arches upward curved to the corselet outside.The breastbone of human body below breast is curved; The purpose that the arc of steel ring arches upward is the breastbone form fit with human body; The corselet part that steel ring supported is also curved, and after corselet was worn, corselet can cooperate with breast below human body outline fully like this; Be close to human body, have maximum comfort level.Arch upward the steel ring arch section of arc after corselet is worn to the corselet outside; A support force that makes progress can be provided; Can have higher support effect to the breast of human body; Make corselet have the breast that bigger rigidity is carried the women, thereby make breast have more stereoeffect, thereby reach better moulding purpose.
According to the different profile of human body and the size of required moulding effect, the peak that said segmental arc arches upward exceeds 2 ~ 15mm than the minimum point of other parts.The height that arches upward is high more, and moulding effect is obvious more naturally, but in order to consider the comfort level of wearing simultaneously, and to be the peak that arches upward of said segmental arc exceed 4 ~ 10mm than the minimum point of other parts to optimal scheme.
After reaching moulding effect; In order further to improve the comfort that corselet is worn; The steel wire making that the utility model will constitute steel ring is flat, as steel ring is flat on the desktop, can see that the bottommost of first and second portion forms a plane; Said segmental arc middle part is arched upward curved with respect to said plane, both sides seamlessly transit to first and second portion.
Because after corselet was worn, the corselet that the first of said steel ring and second portion support was close to the human body of the inside and outside both sides of breast, has bigger contact area in order to make corselet and human body surface, has higher comfortable wearing degree.The described steel wire cross section of the utility model is a rectangle, sees that from cross section the bottom surface of said first and second portion at grade.If promptly with the steel ring horizontal on the table, desktop is being close in the bottom surface of first and second portion, and segmental arc upwards arches upward apart from desktop one segment distance.
Can certainly as prior art, make the steel wire that constitutes steel ring have certain inclination angle, promptly said steel wire cross section be a rectangle, sees from cross section, sees from cross section, and said first, second portion and segmental arc have the same tilt angle.Or see that from cross section the part steel wire has an inclination angle at least.
Because the corselet that segmental arc supported partly need be pressed close to udder shape; And the human body almost plane that the corselet that both sides first and second parts are supported is partly pressed close to; So the utility model the best is embodiment is to have only segmental arc partly to have the inclination angle that meets the corselet shape; First and second parts are plane, seamlessly transit with said segmental arc.When wearing corselet, said first and second parts receive the extruding of breast like this, and making the segmental arc perk provides a support force that makes progress to corselet, play moulding effect.
The specification that has more corselet is different, like the difference of types such as 1/2 glass or 3/4 glass, or the A/B/C/D cup ... Deng the difference of size, said inclination angle is 20 ~ 70 degree, and it is 38 ± 4 degree or 26 ± 6 degree or 55 ± 2 degree or 65 ± 2 degree that the best provides the inclination angle of selection.
With respect to prior art, the steel ring that this patent designed has higher moulding ability, and has kept the comfortable wearing degree of existing steel ring.Corselet is the applying human body breastbone shape of degree greatly, human body natural's curve stressed down, play the moulding effect with comfortable wearing of nature, the more design of ergonomic.Have outstanding substantive distinguishing features and obvious improvement, creative.
Description of drawings
Fig. 1 is the structural representation of embodiment 1;

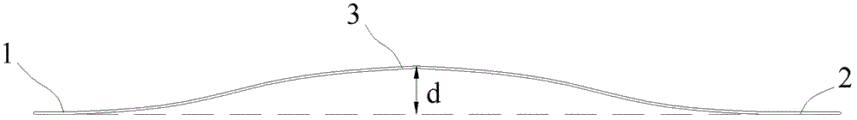

Fig. 2 is the plan view of Fig. 1;
Fig. 3 is the side view of Fig. 1;
Fig. 4 is the perspective view of Fig. 1;
Fig. 5 is the structural representation of embodiment 2;
Fig. 6 is the plan view of Fig. 5;
Fig. 7 is the side view of Fig. 5;
Fig. 8 is the A2-A2 schematic cross-section of Fig. 5;
Fig. 9 is the A3-A3 schematic cross-section of Fig. 5;
Figure 10 is the A1-A1 schematic cross-section of Fig. 5;
Figure 11 is the structural representation of embodiment 3;
Figure 12 is the plan view of Figure 11;
Figure 13 is the side view of Figure 11;
Figure 14 is the B2-B2 schematic cross-section of Figure 11;
Figure 15 is the B3-B3 schematic cross-section of Figure 11;
Figure 16 is the B1-B1 schematic cross-section of Figure 11;
Figure 17 is user mode steel ring and human body coupling sketch map;
Figure 18 is corselet and a human body coupling sketch map under the normal condition;
Figure 19 is corselet under the motion shape body and human body coupling sketch map.
The specific embodiment
For example the utility model is done further explanation below in conjunction with accompanying drawing.
A kind of steel ring that is used for corselet as shown in figs. 1 and 4; Be used for being embedded in corselet cup lower edge and play support effect (figure only illustrates one of them), constitute by the steel wire bending, whole curved; Have first 1 and the second portion 2 that deviates from the corselet middle part towards the corselet middle part; First 1 is a bevel phase with second portion 2, is segmental arc 3 between it, and said segmental arc 3 part at least arches upward curved to the corselet outside.Like Fig. 2, shown in 3 and 4, the maximum height d that segmental arc 3 medial arc arch upward is 5mm.
It can also be seen that from Fig. 1 to Fig. 4; The steel wire that constitutes steel ring is flat; The bottommost of first 1 and second portion 2 forms a plane; It is curved to make said segmental arc 3 middle parts arch upward with respect to said plane through the compacting of cambered surface mould, and segmental arc 3 both sides seamlessly transit to first 1 and second portion 2.It can also be seen that from Fig. 2 and Fig. 3 though segmental arc 3 arches upward, the steel wire of flat does not reverse.
A kind of steel ring that is used for corselet as shown in Figs. 5 to 7; Be used for being embedded in corselet cup lower edge and play support effect (figure only illustrates one of them), constitute by the steel wire bending, whole curved; Have first 11 and the second portion 21 that deviates from the corselet middle part towards the corselet middle part; First 11 is a bevel phase with second portion 21, is segmental arc 31 between it, and said segmental arc 31 part at least arches upward curved to the corselet outside.Shown in Fig. 6 and 7, the maximum height d1 that segmental arc 31 medial arc arch upward is 8mm.
Can find out that from the sectional view of Fig. 8 to Figure 10 the steel wire that constitutes steel ring is flat, and steel wire has an inclination angle a1, as can be seen from the figure first 11, second portion 21 and third part have identical inclination angle a1, and the angle of inclination angle a1 is 35 degree.
A kind of steel ring that is used for corselet shown in Figure 11 to 13; Be used for being embedded in corselet cup lower edge and play support effect (figure only illustrates one of them), constitute by the steel wire bending, whole curved; Have first 12 and the second portion 22 that deviates from the corselet middle part towards the corselet middle part; First 12 is a bevel phase with second portion 22, is segmental arc 32 between it, and said segmental arc 32 part at least arches upward curved to the corselet outside.Shown in Figure 11 and 13, the maximum height d2 that segmental arc 32 medial arc arch upward is 10mm.
Figure 14 to 16 can find out to have only segmental arc 32 parts to have the inclination angle a2 that meets the corselet shape from the cross section, and a2 is 54 degree, and first 12 and second portion 22 seamlessly transit with said segmental arc 32 for not have the plane of inclination angle.
The use of above-mentioned steel ring is shown in Figure 17 to 19, and when corselet 6 was worn on health 4, said steel ring 5 was placed through in the passage 61 of corselet 6 cup lower edges, and breast 41 is played the support effect.According to anthropotomical characteristics, on the position of breast downside, be the thoracic cavity that constitutes by the arc breastbone, the thoracic cavity left-right symmetric, therefore being embodied on the health 4 then, health slightly is symmetrical arc.Steel ring structure shown in the foregoing description, because segmental arc partly has the structure that arc arches upward, thus can be complementary with health 4 arcwall faces of breast 41 downsides, shown in figure 17.Particularly embodiment 3 described segmental arc both sides with inclination angle seamlessly transit to plane first and second portion, further meet the plane breastbone in human body 4 breast, 41 both sides.
Shown in figure 18, can fit the fully curve of human body of the corselet of the said support of steel ring of this structure, shown in dashed curve among the figure, more ergonomic design makes the corselet wearing more comfortable.Even in the title that moved, use the corselet of this steel ring can guarantee that corselet and body curve fit, shown in the middle dashed curve shown in figure 19, can not cause corselet distortion or displacement because of strenuous exercise.
On the other hand, use the corselet of this type steel ring, steel ring obtains the abundant support of health, therefore has higher supporting force, has higher chest shape shape effect, makes user's breast have more third dimension, further shows women's aesthetic feeling curve.
Claims (10)
1. steel ring that is used for corselet; Be used to be embedded in corselet cup lower edge and play the support effect, constitute by the steel wire bending, whole curved; Have first and the second portion that deviates from the corselet middle part towards the corselet middle part; First and second portion are bevel phase, are segmental arc between it, and other are characterised in that said segmental arc at least partly arches upward curved to the corselet outside.
2. the steel ring that is used for corselet according to claim 1 is characterized in that peak that said segmental arc arches upward exceeds 2～15mm than the minimum point of other parts.
3. the steel ring that is used for corselet according to claim 2 is characterized in that peak that said segmental arc arches upward exceeds 4～10mm than the minimum point of other parts.
4. the steel ring that is used for corselet according to claim 1 is characterized in that the steel wire that constitutes steel ring is flat, and said segmental arc middle part is arched upward curved with respect to said plane, and both sides seamlessly transit to first and second portion.
5. according to each described steel ring that is used for corselet of claim 1 to 4, it is characterized in that said steel wire cross section is a rectangle, see that from cross section the bottom surface of said first and second portion at grade.
6. according to each described steel ring that is used for corselet of claim 1 to 4, it is characterized in that said steel wire cross section is a rectangle, see that from cross section said first, second portion and segmental arc have the same tilt angle.
7. according to each described steel ring that is used for corselet of claim 1 to 4, it is characterized in that seeing that the part steel wire has an inclination angle at least from cross section.
8. the steel ring that is used for corselet according to claim 7 is characterized in that having only segmental arc partly to have the inclination angle that meets the corselet shape, and first and second parts are plane, seamlessly transit with said segmental arc.
9. the steel ring that is used for corselet according to claim 7 is characterized in that said inclination angle is 20～70 degree.
10. the steel ring that is used for corselet according to claim 9 is characterized in that said inclination angle is 38 ± 4 degree or 26 ± 6 degree or 55 ± 2 degree or 65 ± 2 degree.
