Abstract
The utility model discloses a device for detecting an end face of an optical fiber array, which comprises a detection platform, an optical fiber array fixture, a support, a CCD measuring camera and a monitoring terminal, wherein the optical fiber array fixture is provided with a group of V-shaped slots used for placing optical fibers, the optical fiber array fixture and the support are both arranged on the detection platform, the CCD measuring camera is installed on the support, and the CCD measuring camera is connected to the monitoring terminal. The optical fiber array fixture is provided with a five-dimensional adjusting mechanism, the monitoring terminal is a personal computer, and the CCD measuring camera is a zoom camera. The device for detecting the end face of the optical fiber array can detect the condition of the optical fiber array end face quickly and accurately, and effectively improve the efficiency of PLC dual debugging.
Description
Technical field
The utility model relates to a kind of end face pick-up unit of fiber array.
Background technology
In the optical communication technique field, PLC can realize that the optical multiplexed signal of a plurality of wavelength is incorporated in the optical fiber and transmit, and the light signal that also can realize a wavelength decomposes in the multifiber and transmits.PLC is widely used in communication; Fields such as cable TV network; And the particularly fiber-to-the-home development of the develop rapidly of the communications field has increased the demand of PLC greatly; Existing PLC can not satisfy the demand of communication, and the situation of fiber array end face has a strong impact on the efficient of PLC antithesis debugging, and does not also have the device of dedicated test fiber array end face now on the market.
The utility model content
The utility model technical matters to be solved provides a kind of end face pick-up unit of fiber array, and the end face pick-up unit of this fiber array is the end face situation of detection fiber array rapidly and accurately, can effectively improve the efficient of PLC antithesis debugging.
The technical solution of utility model is following:
A kind of end face pick-up unit of fiber array comprises that monitor station, fiber array anchor clamps, support, CCD measure camera and monitoring terminal; The fiber array anchor clamps are provided with the one group of V-type groove that is used to place optical fiber; Fiber array anchor clamps and support all are arranged on the monitor station, and it is rack-mount that CCD measures camera; CCD measures camera and is connected with monitoring terminal.
Described fiber array anchor clamps are provided with five dimension governor motions.
Described monitoring terminal is a PC.
It is varifocal formula camera that described CCD measures camera.
Beneficial effect:
The end face pick-up unit of the fiber array of the utility model; Employing is with the fiber array anchor clamps of five dimension governor motions; And measure the image that camera obtains the fiber array end face in real time through CCD and on monitoring terminal, show, be convenient to operating personnel and amplify the end face of checking fiber array and judge thus whether the end face of fiber array is qualified from the screen of monitoring terminal, and; For obtaining distinct image, described CCD measures camera and adopts varifocal formula camera.Thereby, the end face pick-up unit convenient test of the fiber array of the utility model, flexible operation, detection efficiency is high.
Description of drawings

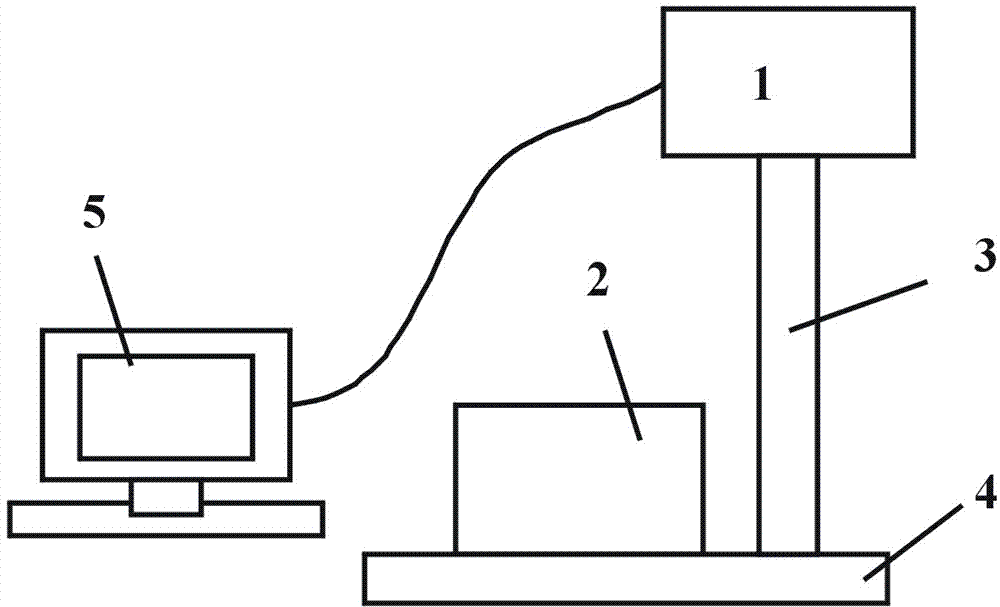

Fig. 1 is the structural representation of end face pick-up unit of the fiber array of the utility model;
Label declaration: 1-CCD measures camera, 2-fiber array anchor clamps, 3-support, 4-monitor station, 5-monitoring terminal
Embodiment
Below will combine accompanying drawing and specific embodiment that the utility model is explained further details:
Embodiment 1:
As shown in Figure 1, a kind of end face pick-up unit of fiber array comprises that monitor station, fiber array anchor clamps, support, CCD measure camera and monitoring terminal; The fiber array anchor clamps are provided with the one group of V-type groove that is used to place optical fiber; Fiber array anchor clamps and support all are arranged on the monitor station, and it is rack-mount that CCD measures camera; CCD measures camera and is connected with monitoring terminal.
Described fiber array anchor clamps are provided with five dimension governor motions.
Described monitoring terminal is a PC.
It is varifocal formula camera that described CCD measures camera.
Adopt the end face pick-up unit of the fiber array of present embodiment; Can carry out the inspection of following project: 1. optic array surface angle; 2. grind the detection of rear end face; 3. aglow only do not have a fibercuts, 4. 3 contacts (every optical fiber checking from fiber end face and V-type groove, cover plate whether 3 do not contact confirm).Whether the synthetic determination fiber array is qualified from above several aspects.
Claims (4)
1. the end face pick-up unit of a fiber array is characterized in that, comprises that monitor station, fiber array anchor clamps, support, CCD measure camera and monitoring terminal; The fiber array anchor clamps are provided with the one group of V-type groove that is used to place optical fiber; Fiber array anchor clamps and support all are arranged on the monitor station, and it is rack-mount that CCD measures camera; CCD measures camera and is connected with monitoring terminal.
2. the end face pick-up unit of fiber array according to claim 1 is characterized in that, described fiber array anchor clamps are provided with five dimension governor motions.
3. the end face pick-up unit of fiber array according to claim 1 is characterized in that, described monitoring terminal is a PC.
4. according to the end face pick-up unit of each described fiber array of claim 1-3, it is characterized in that it is varifocal formula camera that described CCD measures camera.
