Abstract
The utility model discloses a combined bolt and relates to a component of an automobile. The combined bolt comprises a hexagonal flange bolt (1). The hexagonal flange bolt (1) is equipped with a screw (2). A waveform gasket (3) is sleeved on the screw (2). The waveform gasket (3) is of an annular structure having an opening. In addition, the waveform gasket (3) is in the structure of waves along a circumferential direction. The combined bolt helps to solve a problem that a conventional combined bolt is poor in anti-loosening performance.
Description
Technical field
The utility model relates to a kind of automobile and uses component.
Background technique
Automobile is used bolt at present, generally is to adopt elastic washer assembling bolt structure, and the elastic washer edge of this bolt is the lineal shape that is inclination.The anti-loosening property of this bolt is poor.In use, because automobile is in the wavy attitude in motion top, becoming flexible can appear in the therefore long-time back bolt that uses, and very easily causes security incident.
The model utility content
The utility model provides a kind of assembling bolt, and the utility model has solved the problem of the anti-loosening property of existing assembling bolt difference.
For addressing the above problem, the utility model adopts following technological scheme: a kind of assembling bolt, comprise hexagonal flange bolt 1, and screw rod 2 is arranged on the hexagonal flange bolt 1; On screw rod 2, be set with wave washer 3, wave washer 3 is loop configuration that opening is arranged, and said wave washer 3 is along circumferencial direction undulate structure.
Therefore the utility model can prevent automobile bolt looseness phenomenon in movement process because packing ring adopts wavy shaped configuration.The wave packing ring can strengthen the anti-loosing effect of assembling bolt.
Description of drawings

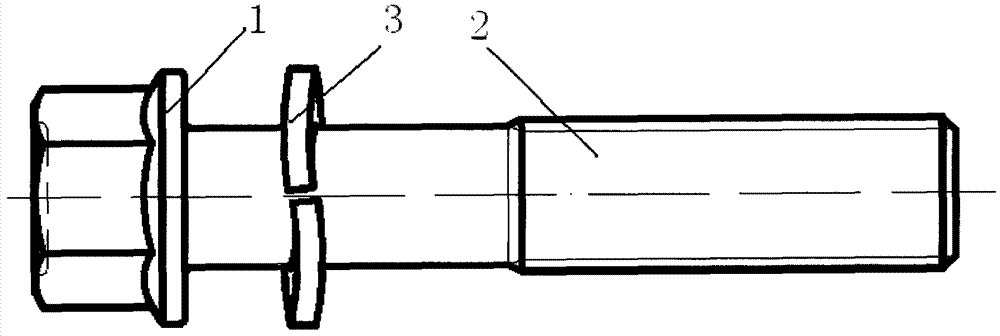

Fig. 1 is the utility model structural representation;
Fig. 2 is the left view of Fig. 1;
Fig. 3 is the plan view of wave washer;
Fig. 4 is the side view of Fig. 3.
Symbol description among the figure: hexagonal flange bolt 1, screw rod 2, wave washer 3.
Embodiment
Shown in Fig. 1-4, a kind of assembling bolt, a kind of assembling bolt comprises hexagonal flange bolt 1, and screw rod 2 is arranged on the hexagonal flange bolt 1; On screw rod 2, be set with wave washer 3, wave washer 3 is loop configuration that opening is arranged, and said wave washer 3 is along circumferencial direction undulate structure.
What should explain at last is: obviously, the foregoing description only be for explain clearly that the utility model does for example, and be not qualification to mode of execution.For the those of ordinary skill in affiliated field, on the basis of above-mentioned explanation, can also make other multi-form variation or change.Here need not also can't give exhaustive to all mode of executions.And conspicuous variation of being amplified out thus or change still are among the protection domain of the utility model.
Claims (1)
1. an assembling bolt comprises hexagonal flange bolt (1), and screw rod (2) is arranged on the hexagonal flange bolt (1); It is characterized in that on screw rod (2), be set with wave washer (3), wave washer (3) is the loop configuration that opening is arranged, said wave washer (3) is along circumferencial direction undulate structure.
