CN202492432U - Device for denitrification by SBR combined with anaerobic ammoxidation of landfill leachate - Google Patents
Device for denitrification by SBR combined with anaerobic ammoxidation of landfill leachate Download PDFInfo
- Publication number
- CN202492432U CN202492432U CN2011205126703U CN201120512670U CN202492432U CN 202492432 U CN202492432 U CN 202492432U CN 2011205126703 U CN2011205126703 U CN 2011205126703U CN 201120512670 U CN201120512670 U CN 201120512670U CN 202492432 U CN202492432 U CN 202492432U
- Authority
- CN
- China
- Prior art keywords
- water tank
- short distance
- peristaltic pump
- sbr
- distance nitration
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Withdrawn - After Issue
Links
Images
Landscapes
- Purification Treatments By Anaerobic Or Anaerobic And Aerobic Bacteria Or Animals (AREA)
Abstract
The utility model relates to a device for denitrification by SBR combined with anaerobic ammoxidation of landfill leachate, and belongs to the technical field of biological denitrification of landfill leachate with a low carbon nitrogen (C/N) ratio and a high ammonia nitrogen concentration. The device is provided with an integrated water tank, an SBR short distance nitration reactor, and an anaerobic ammoxidation reactor; a prepositive water tank and a postpositive water tank of the integrated water tank are communicated with the SBR short distance nitration reactor through a water outlet pipe and a peristaltic pump; the postpositive water tank is connected with the bottom of the anaerobic ammoxidation reactor through the water outlet pipe and the peristaltic pump; the anaerobic ammoxidation reactor is provided with a self-circulation pipeline, and is connected with the SBR prepositive water tank through the water outlet pipe and the peristaltic pump; the method comprises the following steps: starting the SBR short distance nitration reactor, starting the anaerobic ammoxidation reactor, wherein the SBR short distance nitration reactor and the anaerobic ammoxidation reactor are in series operation. The device of the utility model is applicable to organic matter removal and short distance denitrification of late landfill leachate in landfills, has advanced technology, and obvious advantages in energy saving and consumption reduction.
Description
Technical field
The utility model relates to a kind of percolate SBR and Anammox combined denitrification device, belongs to low-carbon and nitrogen (C/N) than high-concentration ammonia nitrogenous wastewater bio-denitrification technology field, is applicable to the biological denitrificaion of the high ammonia-nitrogen wastewater of low C/N ratios such as percolate in late period.
Background technology
In recent years, along with the continuous increase of MSW output, landfill method became most widely used in the world processing and method of disposal gradually.The percolate that landfill produces because of have complicated component, water quality and quantity variation greatly, organism and water quality characteristicses such as ammonia nitrogen concentration height, the imbalance of microbial nutrition element ratio, make it be treated as in the international coverage one of unsolved difficult problem still.Adopt the processing percolate that single treatment technology often can not economical and efficient, need the process integration of different characteristics to use.The famine of organic carbon source is the barrier that late period, the percolate nitric efficiency can't improve, and adds the expense that organic carbon source can significantly increase sewage water denitrification.Therefore, need to propose the apparatus and method of more efficiently denitrogenation.
Bio-denitrifying sewage is through nitrated with NH
4 +-N is converted into NO
3 --N passes through denitrification again with NO
3 --N is converted into nitrogen and from water, overflows.The denitrification stage is with NO
3 --N is an electron acceptor(EA), and organism is converted into nitrogen with ammonia nitrogen and accomplishes biological denitrificaion as electron donor.But for high NH
4 +The denitrogenation of-N percolate in late period, its C/N is than only about 1, because the organic carbon source wretched insufficiency causes the traditional biological nitric efficiency to reach about 10%.
And Anammox has following advantage: because anaerobic ammonia oxidizing bacteria is an autotrophic bacteria; Carbonate/carbonic acid gas is the required inorganic carbon source of its growth; So need not molecular oxygen, the oxidation of ammonia nitrogen participates in; The reduction of nitrite nitrogen simultaneously also need not organic carbon source, and this will reduce the working cost of sewage aerobic biological denitrificaion greatly; Rate of increase of Anammox mikrobe (doubling time is 11d) and productive rate (0.11g [VSS]/g [NH
4 +]) be low-down, so sludge yield is low, yet the transformation efficiency of nitrogen but is 0.25mg [N]/(mg [SS] d), and is equal to each other with traditional aerobic nitrification; Under the condition that does not add any pharmaceutical chemicals, can reduce the working cost of sewage work, can realize the efficient removal of nitrogen again.As far as the percolate percolate of low C/N than high ammonia nitrogen, realize that the Anammox reaction is the optimal path of its denitrogenation, also be simultaneously the denitride technology that is fit to the most with its water quality characteristics.
The utility model content
The purpose of the utility model is in order to solve the problems of the technologies described above, to propose a kind of percolate SBR and Anammox combined denitrification device, promptly at first realizing percolated liquid in city refuse landfill middle and high concentration NH
4 +The short distance nitration reaction of-N then realizes the Anammox reaction again, finally realizes the apparatus and method of the percolate autotrophic denitrification of economical and efficient.
The purpose of the utility model realizes through following technical scheme:
A kind of percolate SBR and Anammox combined denitrification device is characterized in that:
This device comprises integrated water tank, SBR short distance nitration reactor drum, anaerobic ammonia oxidation reactor; Integrated water tank comprises raw water box, rearmounted water tank, preposition water tank and places raw water box, rearmounted water tank and preposition water tank intermediary heating water tank, is provided with the temperature control heating unit in the heating water tank; Raw water box is connected with preposition water tank with first peristaltic pump through first water inlet pipe, and raw water box is connected through the 4th water inlet pipe and the 7th peristaltic pump and anaerobic ammonia oxidation reactor; Preposition water tank in the integrated water tank is connected with the 4th peristaltic pump and SBR short distance nitration reactor drum through second water inlet pipe; SBR short distance nitration reactor drum is connected with rearmounted water tank with the 5th peristaltic pump through first rising pipe; Rearmounted water tank is connected with the anaerobic ammonia oxidation reactor bottom with the 3rd peristaltic pump through the 3rd water inlet pipe; Anaerobic ammonia oxidation reactor is provided with second return line and the 6th peristaltic pump is used for self-circulation, and anaerobic ammonia oxidation reactor is connected with preposition water tank with first return line through second peristaltic pump;
SBR short distance nitration reactor drum is provided with several first sample cocks from top to bottom, and second water inlet pipe is provided with water inlet control valve; First rising pipe is provided with water discharge valve; SBR short distance nitration reactor drum is provided with mechanical stirring device; Be provided with aeration head at SBR short distance nitration reactor bottom, aeration head links to each other through aeration tube with aeration pump, and aeration tube is provided with first gas meter; SBR short distance nitration reactor drum coupling is provided with DO appearance, ORP appearance and pH appearance;
Anaerobic ammonia oxidation reactor is provided with temperature control heating zone device and cylindrical sludge bed, and anaerobic ammonia oxidation reactor top is provided with triphase separator and top seal plate, and the top of this triphase separator is communicated with alkali lye bottle, second gas meter; Cylindrical sludge bed top supernatant enters into cylindrical sludge bed bottom through the 6th peristaltic pump and circulates; A water part is overflowed through the discharging of second rising pipe in cylindrical sludge bed top, and a part is back to preposition water tank, and the anaerobic ammonia oxidation reactor outside is provided with several second sampling valves up and down that are communicated with Sludge Bed.
Utilize said apparatus to realize the method for percolate short distance nitration and Anammox combined denitrification, it is characterized in that may further comprise the steps:
Step 1: start SBR short distance nitration reactor drum: the nitrifying sludge with actual cities sewage work is that seed sludge injects SBR short distance nitration reactor drum, and its sludge concentration is 5000kg MLSS/m
3, simultaneously, be stoste and dilute the back with tap water and inject preposition water tank that with the actual cities percolate from garbage filling field percolate after preposition water tank will dilute through second water inlet pipe and the 4th peristaltic pump pumps into SBR short distance nitration reactor drum; The aerating system that subsequent start-up is made up of aeration head, aeration pump and aeration tube carries out nitrated to the percolate that flows into SBR short distance nitration reactor drum; Reaction process is kept dissolved oxygen DO about 2mg/L; The pH value maintains about 7.8, if when pH is too high or too low, then adds NaHCO
3Make the pH value maintain this scope, keep SBR short distance nitration reactor drum water inlet NH through regulating the 4th peristaltic pump
4 +-N load is ALR=0.4kgNH
4 +-N/m
3About d, be 18mg/L through keeping pH value and ALR to make the average free ammonia FA concentration in the SBR short distance nitration reactor drum in above-mentioned value; Move SBR short distance nitration reactor drum under these conditions, as its water outlet nitrous acid nitrogen NO
2 --N cumulative percentage was greater than 95% o'clock, and the SBR short distance nitration is achieved and keeps, and had possessed the influent quality requirement of anaerobic ammonia oxidation reactor;
Step 2: start anaerobic ammonia oxidation reactor: the mud with certain anaerobic ammoxidation activity in the pilot scale anaerobic ammonia oxidation reactor of certain sewage work is added to anaerobic ammonia oxidation reactor, and sludge concentration is 5kg MLSS/m
3Anaerobic ammonia oxidation reactor makes temperature be controlled at 35 ° of C through temperature control heating zone device; Make the concentration of its nitrite nitrogen and ammonia nitrogen all be maintained 100mg/L with the tap water dilution reactor drum water outlet of SBR short distance nitration and percolate stoste, the above-mentioned mixing water after will diluting simultaneously is pumped into anaerobic ammonia oxidation reactor according to the flow of 20L/d; As anaerobic ammonia oxidation reactor water outlet NH
4 +-N and NO
2 --N concentration is during all less than 15mg/L, and the Anammox reaction is achieved and keeps;
Step 3: after SBR short distance nitration reactor drum and anaerobic ammonia oxidation reactor are accomplished startup respectively, with both series operations: wherein the water-filling ratio of SBR short distance nitration reactor drum is 1:1, and the mixed solution of percolate in the raw water box and anaerobic ammonia oxidation reactor effluent recycling liquid pumps into preposition water tank through first peristaltic pump and second peristaltic pump; Water outlet pumps into SBR short distance nitration reactor drum through the 4th peristaltic pump in the preposition water tank, in SBR short distance nitration reactor drum, at first utilizes the carbon source of percolate to carry out denitrogenation as denitrifying carbon source, descends gradually up to platform occurring at denitrification stage redox potential ORP; When simultaneously the pH value rises to vertex and no longer changes; Close the mechanical stirring device of SBR short distance nitration reactor drum this moment, stops anoxia stirring, stops denitrification; Then opening aeration pump, to carry out aeration nitrated; Along with the generation of nitrifying process acid, pH reduces gradually, when ammonia nitrogen has been consumed; Nitrite concentration has reached peak, and pH increases owing to the stripping effect gradually subsequently; Simultaneously; DO concentration increases sharply, and ammonia paddy and DO hop point appear on pH and the DO curve, in addition separately; The ORP value is also with the carrying out and increase up to ammonia nitrogen and be consumed of nitrification, and nitrite concentration reaches not proceeding and change with aeration of ORP after the peak; The appearance of ORP platform shows that nitrate salt and nitrite no longer increase, and nitrated end at this moment, stops aeration, closes aeration pump; After the nitrated completion, quiescent setting 30 ~ 60 minutes carries out mud-water separation, opens the 5th peristaltic pump 32 supernatant is pumped into rearmounted water tank; Water outlet pumps into from the anaerobic ammonia oxidation reactor bottom through the 3rd peristaltic pump in the rearmounted water tank, works as NO
2 --N/NH
4 +-N>1.32 the time, suitably increase the flow that gets into anaerobic ammonia oxidation reactor from raw water box, work as NO on the contrary
2 --N/NH
4 +-N<1.32 in time, suitably reduce from the flow of raw water box entering anaerobic ammonia oxidation reactor; SBR short distance nitration reactor drum and raw water box mix the nitrated mixed solution that flows into and enter into the reaction of anaerobic ammonia oxidation reactor completion Anammox through the 3rd peristaltic pump and the 7th peristaltic pump; When anaerobic ammonia oxidation reactor total nitrogen load reaches 0.8kg TN/m
3More than the d, and the water outlet NH of system
4 +-N and NO
2 --N clearance was greater than 90% o'clock, and system has realized the whole process autotrophic denitrification process of percolate.
Beneficial effect
Percolate SBR of the utility model and Anammox combined denitrification device compared with prior art have advantage:
The whole process autotrophic denitrification process of percolate:
1) under the condition that does not add additional carbon, realize the high-efficiency biological denitrification of percolate, solved ammonia nitrogen in high density, low ratio of carbon to ammonium late period percolate a processing difficult problem, greatly reduce operation and construction cost.
2) realization of short distance nitration makes the transform mode of ammonia nitrogen be different from traditional nitrated mode, has reduced energy consumption, has improved efficient, has reduced sludge yield.
3) through the process of online detection redox potential ORP and pH value assurance short-cut denitrification, control churning time in real time with the method for process control, thereby reach purpose of energy saving.And in nitrifying process, ammonia paddy, DO hop point and ORP platform have not only accurately shown nitrated terminal point and energy efficient, the while has also been avoided excessive aeration and has kept higher nitrous acid accumulation rate.
4) after this technology maturation operation, need not add outer adding medicine, and need not add water source dilution stoste, simplify management process, can directly handle the percolate in late period of high-concentration ammonia-nitrogen.
Description of drawings

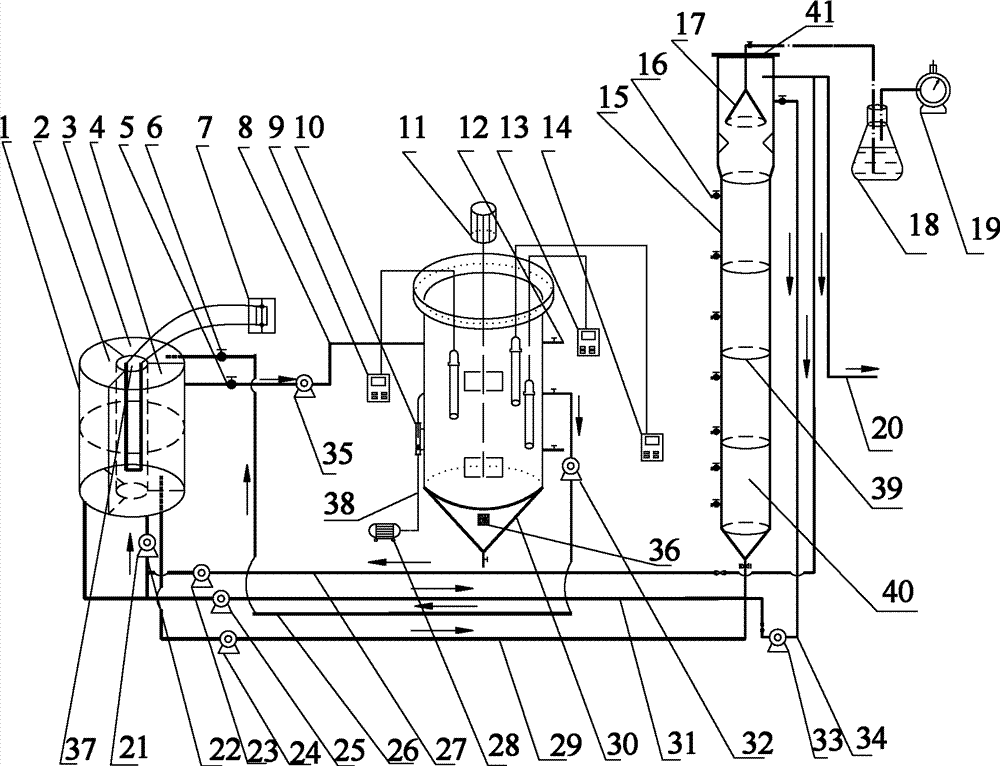

Fig. 1 is the percolate SBR and the Anammox combined denitrification apparatus structure synoptic diagram of the utility model.
Among the figure: the integrated water tank of 1-; The 2-raw water box; The rearmounted water tank of 3-; The preposition water tank of 4-; The 5-water inlet control valve; The 6-water discharge valve; 7-temperature control heating unit; 8-second water inlet pipe; The 9-DO appearance; 10-first gas meter; The 11-mechanical stirring device; 12-first sampling valve; The 13-ORP appearance; The 14-pH appearance; The 15-anaerobic ammonia oxidation reactor; 16-second sampling valve; The 17-triphase separator; 18-alkali lye bottle; 19-second gas meter; 20-second rising pipe; 21-first peristaltic pump; 22-first water inlet pipe; 23-second peristaltic pump; 24-the 3rd peristaltic pump; 25-the 7th peristaltic pump; 26-first rising pipe; 27-first return line; The 28-aeration pump; 29-the 3rd water inlet pipe; 30-SBR short distance nitration reactor drum; 31-the 4th water inlet pipe; 32-the 5th peristaltic pump; 33-the 6th peristaltic pump; 34-second return line; 35-the 4th peristaltic pump; The 36-aeration head; The 37-heating water tank; The 38-aeration tube; 39-temperature control heating zone device; 40-cylindrical sludge bed; 41-top seal plate;
Embodiment
Below in conjunction with accompanying drawing and embodiment the utility model is further described:
As shown in Figure 1, percolate SBR of the utility model and Anammox combined denitrification device comprise integrated water tank 1, SBR short distance nitration reactor drum 30, anaerobic ammonia oxidation reactor 15; Integrated water tank comprises raw water box 2, rearmounted water tank 3, preposition water tank 4 and places raw water box 2, rearmounted water tank 3 and preposition water tank 4 intermediary heating water tank 37, is provided with temperature control heating unit 7 in the heating water tank; Raw water box 2 is connected with preposition water tank 4 with first peristaltic pump 21 through first water inlet pipe 22, and raw water box 2 is connected with anaerobic ammonia oxidation reactor 15 through the 4th water inlet pipe 31 and the 7th peristaltic pump 25; Preposition water tank 4 in the integrated water tank is connected with SBR short distance nitration reactor drum 30 with the 4th peristaltic pump 35 through second water inlet pipe 8; SBR short distance nitration reactor drum 30 is connected with rearmounted water tank 3 with the 5th peristaltic pump 32 through first rising pipe 26; Rearmounted water tank 3 is connected with anaerobic ammonia oxidation reactor 15 bottoms with the 3rd peristaltic pump 24 through the 3rd water inlet pipe 29; Anaerobic ammonia oxidation reactor 15 is provided with second return line 34 and the 6th peristaltic pump 33 is used for self-circulation, and anaerobic ammonia oxidation reactor 15 is connected with preposition water tank 4 with first return line 27 through second peristaltic pump 23;
SBR short distance nitration reactor drum 30 is provided with several first sample cock, 12, the second water inlet pipes 8 from top to bottom and is provided with water inlet control valve 5; First rising pipe 26 is provided with water discharge valve 6; SBR short distance nitration reactor drum 30 is provided with mechanical stirring device 11; Be provided with aeration head 36 in SBR short distance nitration reactor drum 30 bottoms, aeration head 36 links to each other through aeration tube 38 with aeration pump 28, and aeration tube 38 is provided with first gas meter 10; SBR short distance nitration reactor drum 30 couplings are provided with DO appearance 9, ORP appearance 13 and pH appearance 14;
Anaerobic ammonia oxidation reactor 15 is provided with temperature control heating zone device 39 and cylindrical sludge bed 40; Anaerobic ammonia oxidation reactor 15 tops are provided with triphase separator 17 and top seal plate 41, and the top of this triphase separator 17 is communicated with alkali lye bottle 18, second gas meter 19; Cylindrical sludge bed 40 top supernatants enter into cylindrical sludge bed 40 bottoms through the 6th peristaltic pump 33 and circulate; A water part is overflowed through 20 dischargings of second rising pipe in cylindrical sludge bed 40 tops, and a part is back to preposition water tank 4, and anaerobic ammonia oxidation reactor 15 outsides are provided with several second sampling valves 16 up and down that are communicated with Sludge Bed.
Wherein, integrated water tank 1 TV is 52L, is divided into four parts, and wherein raw water box 2, preposition water tank 4, and rearmounted water tank 3, the volume of heating water tank 37 is respectively 30L, 10L, 10L, 2L.SBR short distance nitration reactor drum 30 internal diameters are 12cm, and external diameter is 13cm, and height is 40cm, and total useful volume is 4.5L.Anaerobic ammonia oxidation reactor 15 is cylindrical; Form by synthetic glass; Its top internal diameter, external diameter and highly be respectively 80mm, 90mm, 450mm; Lower section internal diameter, external diameter and highly be respectively 60mm, 70mm, 1450mm, top and the bottom are by the high truncated cone-shaped synthetic glass pipe coupling of 50mm, and useful volume is 5.5L.Anaerobic ammonia oxidation reactor 15 is provided with triphase separator, is 200mm apart from the distance at top, and begins from reactor bottom that every spacing 200mm is provided with thief hole on sidewall, totally 5.
Get Beijing and fill out the percolate that rubbish buries, its ammonia nitrogen concentration is up to 2200mg/L, COD/NH
4 +-N=1.4 is typical case's percolate in late period.Concrete grammar is:
Step 1: start SBR short distance nitration reactor drum 30: the nitrifying sludge with actual cities sewage work is that seed sludge injects SBR short distance nitration reactor drum 30, and its sludge concentration is 5000kg MLSS/m
3, simultaneously, be stoste and dilute the back with tap water and inject preposition water tank 4 that with the actual cities percolate from garbage filling field percolate after preposition water tank will dilute through second water inlet pipe 8 and the 4th peristaltic pump 35 pumps into SBR short distance nitration reactor drum 30; The aerating system that subsequent start-up is made up of aeration head 36, aeration pump 28 and aeration tube 38 carries out nitrated to the percolate that flows into SBR short distance nitration reactor drum 30; Reaction process is kept dissolved oxygen DO about 2mg/L; The pH value maintains about 7.8; When if pH is too high or too low, then add NaHCO
3Make the pH value maintain this scope, keep SBR short distance nitration reactor drum 30 water inlet NH through regulating the 4th peristaltic pump 35
4 +-N load is ALR=0.4kgNH
4 +-N/m
3About d, be 18mg/L through keeping pH value and ALR to make the average free ammonia FA concentration in the SBR short distance nitration reactor drum 30 in above-mentioned value; Move SBR short distance nitration reactor drum 30 under these conditions, as its water outlet nitrous acid nitrogen NO
2 --N cumulative percentage was greater than 95% o'clock, and the SBR short distance nitration is achieved and keeps, and had possessed the influent quality requirement of anaerobic ammonia oxidation reactor;
Step 2: start anaerobic ammonia oxidation reactor 15: the mud with certain anaerobic ammoxidation activity in the pilot scale anaerobic ammonia oxidation reactor of certain sewage work is added to anaerobic ammonia oxidation reactor 15, and sludge concentration is 5kg MLSS/m
3Anaerobic ammonia oxidation reactor 15 makes temperature be controlled at 35 ° of C through temperature control heating zone device 39; Make the concentration of its nitrite nitrogen and ammonia nitrogen all be maintained 100mg/L with the tap water dilution 30 water outlets of SBR short distance nitration reactor drum and percolate stoste, the above-mentioned mixing water after will diluting simultaneously is pumped into anaerobic ammonia oxidation reactor 15 according to the flow of 20L/d; As anaerobic ammonia oxidation reactor 15 water outlet NH
4 +-N and NO
2 --N concentration is during all less than 15mg/L, and the Anammox reaction is achieved and keeps;
Step 3: after SBR short distance nitration reactor drum 30 is accomplished startup respectively with anaerobic ammonia oxidation reactor 15; With both series operations: wherein the water-filling ratio of SBR short distance nitration reactor drum 30 is 1:1, and the mixed solution of percolate in the raw water box 2 and anaerobic ammonia oxidation reactor 15 effluent recycling liquid is pumped into preposition water tank 4 through first peristaltic pump 21 and second peristaltic pump 23, and water outlet pumps into SBR short distance nitration reactor drum 30 through the 4th peristaltic pump 35 in the preposition water tank 4; In SBR short distance nitration reactor drum 30, at first utilize the carbon source of percolate to carry out denitrogenation as denitrifying carbon source; Descend gradually up to platform occurring at denitrification stage redox potential ORP, when pH value rises to vertex and no longer changes simultaneously, close the mechanical stirring device 11 of SBR short distance nitration reactor drum 30 at this moment; Stop anoxia stirring; Stop denitrification, then opening aeration pump 28, to carry out aeration nitrated, along with the generation of nitrifying process acid; PH reduces gradually; When ammonia nitrogen has been consumed, nitrite concentration has reached peak, and pH is because stripping effect and increasing gradually subsequently; Simultaneously; DO concentration increases sharply, and ammonia paddy and DO hop point appear on pH and the DO curve, in addition separately; The ORP value is also with the carrying out and increase up to ammonia nitrogen and be consumed of nitrification, and nitrite concentration reaches not proceeding and change with aeration of ORP after the peak; The appearance of ORP platform shows that nitrate salt and nitrite no longer increase, and nitrated end at this moment, stops aeration, closes aeration pump 28; After the nitrated completion, quiescent setting 30 ~ 60 minutes carries out mud-water separation, opens the 5th peristaltic pump 32 supernatant is pumped into rearmounted water tank 3; Water outlet pumps into from anaerobic ammonia oxidation reactor 15 bottoms through the 3rd peristaltic pump 24 in the rearmounted water tank 3, works as NO
2 --N/NH
4 +-N>1.32 the time, suitably increase the flow that gets into anaerobic ammonia oxidation reactor 15 from raw water box 2, work as NO on the contrary
2 --N/NH
4 +-N<1.32 in time, suitably reduce from the flow of raw water box entering anaerobic ammonia oxidation reactor 15; SBR short distance nitration reactor drum 30 mixes the nitrated mixed solution that flows into raw water box 2 and enters into anaerobic ammonia oxidation reactor 15 completion Anammox reactions through the 3rd peristaltic pump 24 and the 7th peristaltic pump 25; When anaerobic ammonia oxidation reactor total nitrogen load reaches 0.8kg TN/m
3More than the d, and the water outlet NH of system
4 +-N and NO
2 --N clearance was greater than 90% o'clock, and system has realized the whole process autotrophic denitrification process of percolate.
At the average ammonia nitrogen concentration of percolate is 2200mg/L, COD/NH
4 +Under the condition of-N=1.4, the test-results of steady running shows: A/O reactor drum short distance nitration reactor drum NO
2 --N cumulative percentage is more than 96%, and the total nitrogen TN of system's water outlet is less than 48mg/L, and the TN clearance is greater than 81%, water outlet NH
4 +-N and NO
2 --N is all less than 16mg/L, and the total nitrogen of Anammox UASB load is 0.7Kg TN/m
3About.
More than be an exemplary embodiments of the utility model, the enforcement of the utility model is not limited thereto.
Claims (1)
1. percolate SBR and Anammox combined denitrification device, it is characterized in that: this device comprises integrated water tank (1), SBR short distance nitration reactor drum (30), anaerobic ammonia oxidation reactor (15); Integrated water tank comprises raw water box (2), rearmounted water tank (3), preposition water tank (4) and places raw water box (2), rearmounted water tank (3) and preposition water tank (4) intermediary heating water tank (37), is provided with temperature control heating unit (7) in the heating water tank; Raw water box (2) is connected with preposition water tank (4) with first peristaltic pump (21) through first water inlet pipe (22), and raw water box (2) is connected through the 4th water inlet pipe (31) and the 7th peristaltic pump (25) and anaerobic ammonia oxidation reactor (15); Preposition water tank (4) in the integrated water tank is connected with the 4th peristaltic pump (35) and SBR short distance nitration reactor drum (30) through second water inlet pipe (8); SBR short distance nitration reactor drum (30) is connected with rearmounted water tank (3) with the 5th peristaltic pump (32) through first rising pipe (26); Rearmounted water tank (3) is connected with anaerobic ammonia oxidation reactor (15) bottom with the 3rd peristaltic pump (24) through the 3rd water inlet pipe (29); Anaerobic ammonia oxidation reactor (15) is provided with second return line (34) and the 6th peristaltic pump (33) is used for self-circulation, and anaerobic ammonia oxidation reactor (15) is connected with preposition water tank (4) with first return line (27) through second peristaltic pump (23);
SBR short distance nitration reactor drum (30) is provided with several first sample cocks (12) from top to bottom, and second water inlet pipe (8) is provided with water inlet control valve (5); First rising pipe (26) is provided with water discharge valve (6); SBR short distance nitration reactor drum (30) is provided with mechanical stirring device (11); Be provided with aeration head (36) in SBR short distance nitration reactor drum (30) bottom, aeration head (36) links to each other through aeration tube (38) with aeration pump (28), and aeration tube (38) is provided with first gas meter (10); SBR short distance nitration reactor drum (30) coupling is provided with DO appearance (9), ORP appearance (13) and pH appearance (14);
Anaerobic ammonia oxidation reactor (15) is provided with temperature control heating zone device (39) and cylindrical sludge bed (40); Anaerobic ammonia oxidation reactor (15) top is provided with triphase separator (17) and top seal plate (41), and the top of this triphase separator (17) is communicated with alkali lye bottle (18), second gas meter (19); Cylindrical sludge bed (40) top supernatant enters into cylindrical sludge bed (40) bottom through the 6th peristaltic pump (33) and circulates; A water part is overflowed through second rising pipe (20) discharging in cylindrical sludge bed (40) top, and a part is back to preposition water tank (4), and anaerobic ammonia oxidation reactor (15) outside is provided with several second sampling valves (16) up and down that are communicated with Sludge Bed.
