CN202491985U

CN202491985U - Bamboo box body structure

Info

Publication number: CN202491985U
Application number: CN2012200148005U
Authority: CN
Inventors: 胡爱强
Original assignee: Individual
Current assignee: Individual
Priority date: 2012-01-13
Filing date: 2012-01-13
Publication date: 2012-10-17
Anticipated expiration: 2022-01-13

Abstract

The utility model relates to the technical field of packing boxes, in particular to a bamboo-wood box structure, which comprises two end plates, two side plates and two bottom plates, and the two end plates, two side plates and two bottom plates surround As a frame structure, the end boards include a wooden frame and a number of bamboo strips laid on the wooden frame, and the wooden frame is composed of molded wood strips and vertical wooden strips; A number of bamboo strips laid on a wooden frame, the wooden frame is composed of molded wood strips and vertical wooden strips; the bottom plate includes a wooden frame and a number of bamboo strips laid on the wooden frame The frame is composed of molded wooden strips and vertical wooden strips connected. The utility model has simple structure and low manufacturing cost.

Description

A kind of bamboo wooden case body structure

Technical field

The utility model relates to the packing chest technical field, particularly a kind of bamboo wooden case body structure.

Background technology

The transportation that various items and machine are provided with all be unable to do without packing chest, and it can have protection to each object in the transportation, in order to avoid in transportation each object is caused damage.Mostly existing packing chest is carton or wooden case, though carton exists price low, advantages such as packaged convenience also exist the defective and the deficiency of insufficient strength, and transportation heavy mechanical equipment natural effect is not good; Wooden case, its intensity and fastness to rubbing depend primarily on wooden, and wooden better, the natural production cost is higher.It is low to develop a kind of cost, and the packing chest that intensity height and resistance to abrasion are good has become the focus of industry research.

The utility model content

The purpose of the utility model is defective and the deficiency to prior art, provides a kind of simple in structure, and cost of manufacture is low, intensity height and abrasion resistant bamboo wooden case body structure.

For realizing above-mentioned purpose, the utility model adopts following technical scheme:

The described a kind of bamboo wooden case body structure of the utility model; Comprise two end plates; Two side plates and two base plates, said two end plates, two side plates and two base plates surround frame structure; Said end plate comprises the peaceful some bamboo bars that are layed on the wooden frame of wooden frame, and said wooden frame is connected to form by mould batten and perpendicular batten; Said side plate comprises the peaceful some bamboo bars that are layed on the wooden frame of wooden frame, and said wooden frame is connected to form by mould batten and perpendicular batten; Said base plate comprises the peaceful some bamboo bars that are layed on the wooden frame of wooden frame, and said wooden frame is connected to form by mould batten and perpendicular batten.

Preferably, said end plate is square, oblong or trapezoidal setting.

Preferably, said side plate is rectangle or the square setting.

Preferably, said base plate is rectangle or the square setting.

After adopting said structure; The utility model beneficial effect is: the described end plate of the utility model; Side plate and base plate are formed by the peaceful some bamboo bars that are layed in wooden frame of wooden frame, and it has saved wood materials greatly, and bamboo bar intensity and resistance to abrasion are all very high simultaneously; The utility model is simple in structure, and cost of manufacture is low.

Description of drawings

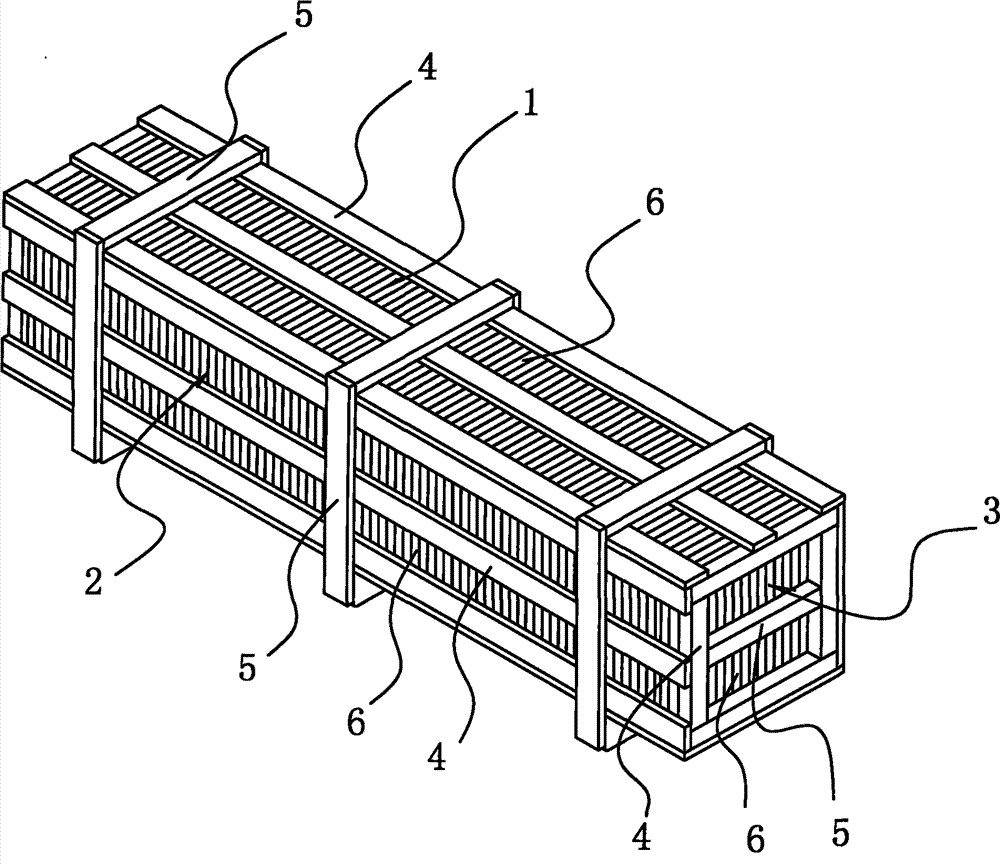

Fig. 1 is the utility model sectional structure scheme drawing.

Among the figure:

1, base plate; 2, side plate; 3, end plate; 4, perpendicular batten;

5, mould batten; 6, bamboo bar.

The specific embodiment

Below in conjunction with accompanying drawing the utility model is further described.

As shown in Figure 1, the described a kind of bamboo wooden case body structure of the utility model comprises 3, two side plates 2 of two end plates and two base plates 1, and 3, two side plates 2 of said two end plates and two base plates 1 surround frame structure, and promptly the utility model also is a hexahedron structure.

Wherein, said end plate 3 comprises the peaceful some bamboo bars 6 that are layed in wooden frame on the wooden frame, and said wooden frame is composed of a fixed connection by mould batten 5 and perpendicular batten 4.The quantity of its concrete mould batten 5 and perpendicular batten 4 can be decided according to the area and the requirement of strength of end plate 3.The end plate 3 of the utility model can be made as square, oblong or trapezoidal, and other shape also can naturally certainly.

Wherein, said side plate 2 comprises the peaceful some bamboo bars 6 that are layed on the wooden frame of wooden frame, and said wooden frame is composed of a fixed connection by mould batten 5 and perpendicular batten 4.The quantity of its concrete mould batten 5 and perpendicular batten 4 can be decided according to the area and the requirement of strength of side plate 2.The side plate 2 of the utility model can be made as square or rectangular, and other shape also can naturally certainly.

Wherein, said base plate 1 comprises the peaceful some bamboo bars 6 that are layed on the wooden frame of wooden frame, and said wooden frame is composed of a fixed connection by mould batten 5 and perpendicular batten 4.The quantity of its concrete mould batten 5 and perpendicular batten 4 can be decided according to the area and the requirement of strength of base plate 1.The base plate 1 of the utility model can be made as square or rectangular, and other shape also can naturally certainly.

Some bamboo bars that the utility model is located at wooden frame with wooden frame and tiling replace existing wood based panel, have greatly saved wood materials, reach identical intensity and wear resisting property, and it is lower that the utility model produces cost.

The above only is the preferred embodiments of the utility model, so all equivalences of doing according to the described structure of the utility model patent claim, characteristic and principle change or modify, includes in the utility model patent claim.

Claims

1. a bamboo-wood box structure, comprises two end plates (3), two side plates (2) and two base plates (1), described two end plates (3), two side plates (2) ) and two bottom plates (1) to form a frame structure, characterized in that: the end plate (3) includes a wooden frame and several bamboo strips (6) laid flat on the wooden frame, and the wooden frame is made of a mold Wooden strips (5) and vertical wooden strips (4) are connected; the side boards (2) include a wooden frame and several bamboo strips (6) laid flat on the wooden frame, and the wooden frame is made of molded wooden strips ( 5) connected with vertical wooden strips (4); the base plate (1) includes a wooden frame and several bamboo strips (6) laid flat on the wooden frame, and the wooden frame is composed of molded wooden strips (5) and vertical wooden strips. The wooden strips (4) are connected to form.

2. The bamboo-wood box structure according to claim 1, characterized in that: the end plates (3) are arranged in a square, rectangular or trapezoidal shape.

3. The bamboo-wood box structure according to claim 1, characterized in that: the side panels (2) are arranged in a rectangular or square shape.

4. The bamboo-wood box structure according to claim 1, characterized in that: the bottom plate (1) is arranged in a rectangular or square shape.
