CN202490630U - Energy-saving operation table applied to medical morphological experiment - Google Patents

Abstract

The utility model belongs to laboratory equipment, and relates to an energy-saving console used in medical morphology experiments. There is a lamp holder, and a lamp tube is installed on the lamp holder. The lamp tubes on each pole are connected in parallel. Plug and power switch. The beneficial effect of the utility model is that the structure is simple and easy to use, it overcomes the mode of the fixed lamp light source (the angle cannot be exchanged and does not save energy) of the traditional medical morphology experiment console, and the energy-saving lamp can be adjusted at 90 degrees at any time. Change the angle to cooperate with the observation of the experimental operation and the natural light source microscope.

Description

Energy-saving console for medical morphology experiments

technical field

The utility model belongs to laboratory equipment, and relates to an energy-saving operating platform applied to medical morphology experiments.

Background technique

 The fixed lamp light source of the traditional medical morphology experiment console cannot change the angle, and it is not energy-saving, inconvenient to use, and cannot meet the needs of experimental operations, so it needs to be improved.

Contents of the invention

In order to make up for the deficiencies of the prior art, the utility model provides an energy-saving console for medical morphology experiments with a simple structure and easy use.

The utility model is achieved through the following technical solutions:

The energy-saving console used in medical morphology experiments of the utility model is special in that it includes an experimental console with outriggers, the left and right ends of the experimental console are respectively fixed with poles, and the poles are fixed with Lamp holder, the lamp holder is equipped with a lamp tube, and the lamp tubes on each pole are connected in parallel. The pole is a bendable pole, and the inside of the pole contains wires. and power switch.

The utility model is an energy-saving operating platform applied to medical morphology experiments, and the lamp tube is an energy-saving lamp tube.

The utility model is an energy-saving console used in medical morphology experiments. A microscope cabinet for storing microscopes is provided under the experimental console.

The utility model relates to an energy-saving operating table applied to medical morphology experiments, and the experimental operating table has a mutually independent front and rear symmetrical structure.

The beneficial effect of the utility model is that the structure is simple and easy to use, it overcomes the mode of the fixed lamp light source (the angle cannot be exchanged and does not save energy) of the traditional medical morphology experiment console, and the adjustable energy-saving lamp can be used at any time at 90 degrees. Change the angle to cooperate with the observation of the experimental operation and the natural light source microscope.

Description of drawings

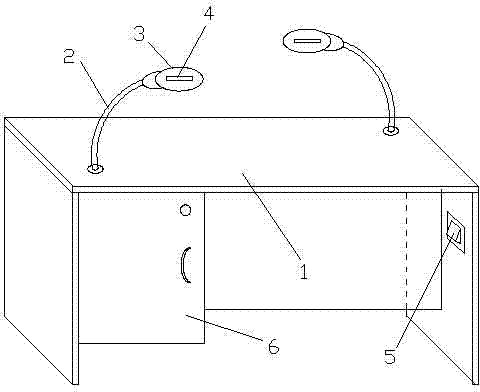

Fig. 1 is a schematic front view of the utility model, and the rear view is symmetrical to the front view.

In the figure, 1 is an experimental console, 2 is a pole, 3 is a lamp holder, 4 is a lamp tube, 5 is a power switch, and 6 is a microscope cabinet.

Detailed ways

Accompanying drawing is a kind of concrete embodiment of the utility model.

The energy-saving console used in medical morphology experiments of the present utility model includes an experimental console 1 with legs, a support rod 2 is respectively fixed on the left and right ends of the experimental console, and a lamp holder 3 is fixed on the support rod. There are lamp tubes 4 installed on the lamp holder, and the lamp tubes on each pole are connected in parallel. switch 5. The lamp tube is an energy-saving lamp tube. A microscope cabinet 6 for storing microscopes is provided under the experiment console.

The utility model relates to an energy-saving operating table applied to medical morphology experiments, and the experimental operating table has a mutually independent front and rear symmetrical structure. There is a microscope cabinet under the front and rear sides of the experimental console for storing microscopes. There is a fixed energy-saving lamp on both sides of the console table, and the lamp handle can be changed at any time by 90 degrees, which is suitable for experimental operation and natural light source microscope observation. There is an energy-saving lamp control switch at the bottom of the front, rear and both sides of the console.

The utility model is an energy-saving operation table applied to medical morphology experiments, and the size of the table top is 130cm×65cm.

Claims (4)

1. An energy-saving operating table applied to medical morphology experiments, characterized in that: it comprises an experimental operating table with outriggers, the left and right ends of the experimental operating table are respectively fixed with poles, and lamp holders are fixed on the poles , There are lamp tubes installed on the lamp base, and the lamp tubes on each pole are connected in parallel. switch. 2. The energy-saving console for medical morphology experiments according to claim 1, wherein the lamp tube is an energy-saving lamp tube. 3. The energy-saving operating table for medical morphology experiments according to claim 1, characterized in that: a microscope cabinet for storing microscopes is provided under the experimental operating table. 4. The energy-saving console for medical morphology experiments according to any one of claims 1-3, characterized in that: the experimental console is a front-back symmetrical structure independent of each other.
