Abstract
The utility model discloses a liquid stop clamp, which comprises a clamp arm I and a clamp arm II connected with each other, wherein the clamp arm I is provided with a hollow groove I; the tail end of the clamp arm I is provided with a clamping cap; the tail end of the clamp arm II is provided with a clamping bolt which is matched with the clamping cap; the middle part of the clamp arm II is provided with a plurality of toothed bumps distributed along a longitudinal axis; and both sides of the toothed bumps of the clamp arm II are provided with hollow grooves II and hollow grooves III respectively. During use, a transfusion set adjuster is shut down after transfusion, an injector nipple into which 5ml of tube-sealing fluid is sucked is connected with a transfusion set scalp needle, the needle is withdrawn along with push-injection of the tube-sealing fluid, the liquid stop clamp is clamped on the root part of a detaining needle when 1ml of tube-sealing fluid is left, 0.5-1ml of tube-sealing fluid is injected by pushing to the end, and the scalp needle inserted into a heparin cap is pulled out, so that tube sealing operation is completed. According to the liquid stop clamp disclosed by the utility model, tube sealing under a positive pressure is easier to realize, operation is easier and more convenient, a better tube sealing effect is achieved, and skin damages are avoided.
Description
Technical field
This utility model relates to a kind of liquid stopping clamp.
Background technology
Venous transfusion has advantages such as administration is rapid, zest is little, curative effect is fast, is a kind of clinically important treatment means.Venous detaining needle has been widely used in continuing or has been interrupted venous transfusion, blood transfusion, chemotherapy of tumors and the treatment of long-term intravenous hyperalimentation at present as the novel infusion apparatus of a kind of advanced person.Venous detaining needle has the function of reservation, has both alleviated patient because of the misery that repeated localised puncture causes, and has improved salvage success rate, has also alleviated nursing staff's workload, in clinical position, plays an important role.But the remaining needle tube sealing that uses at present folder (as shown in Figure 1) exists many drawbacks, and concrete manifestation is following: be erected on the skin after (1) folder is finished, patient is uncomfortable, very easily causes the local skin integrity impaired.(2) patient wear the clothes, cover by the time very easily touch or pressurized, bring inconvenience to patient life.(3) especially for the patient of gerontal patient, children's or the critical unconsciousness of the state of an illness,, might cause serious consequences such as remaining needle comes off, patient's massive blood loss, bring new problem to clinical nursing activity if touch the tube sealing folder because of carelessness.(4) need during tube sealing the limit push away the withdraw of the needle of liquid limit, difficulity of the movment is bigger.
Summary of the invention
To above-mentioned prior art, for overcoming the deficiency of existing tube sealing folder, this utility model provides a kind of new tube sealing folder---liquid stopping clamp; Its structure is different with prior art with operational approach, more is prone to reach the malleation tube sealing, operates easier; The tube sealing better effects if, and can not cause skin injury.
This utility model is realized through following technical scheme:
A kind of liquid stopping clamp; Comprise interconnective jig arm I and jig arm II, wherein, jig arm I is provided with hollow groove I; Jig arm I end is provided with the card medicated cap; Jig arm II end is provided with and blocks the snib that medicated cap matches, and jig arm II middle part is provided with some detent projection of its axis distribution longitudinally, and the detent projection both sides of jig arm II are respectively equipped with hollow groove II and hollow groove III.
Said card medicated cap upper surface is provided with at least one anti-skidding stricture of vagina.
The detent projection both sides of said jig arm II are respectively equipped with hollow groove II and hollow groove III.
Use: close transfusion device actuator after transfusion finishes, the syringe nipple of the 5ml tube-sealing solution (heparin-saline injection 125U/ml) that suction is good is connected with the transfusion device scalp acupuncture, and the withdraw of the needle of tube-sealing solution limit is injected on the limit; When also remaining the 1ml tube-sealing solution; The liquid stopping clamp of this utility model is clipped in the remaining needle root, inject again the 0.5-1ml tube-sealing solution to push away motionless till, at this moment; The scalp acupuncture that will insert in the calparine cap is again extracted, and accomplishes the tube sealing operation.
The liquid stopping clamp of this utility model more is prone to reach the malleation tube sealing, operates easylier, and tube sealing better effects if, and can not cause skin injury (can not be erected on the skin after the sealing) has the following advantages:
1. avoid causing skin injury, alleviate patient's financial burden, alleviate the patient suffering.
2. alleviate patients ' psychological pressure, help prolonging the Vein Tube time, treatment is accomplished smoothly.
3. safe in utilization, easy to operate, improve nursing staff's work efficiency, avoid the generation of medical tangle.
4. increase the patient comfort.
Description of drawings
Fig. 1 is the structural representation of liquid stopping clamp of the prior art.

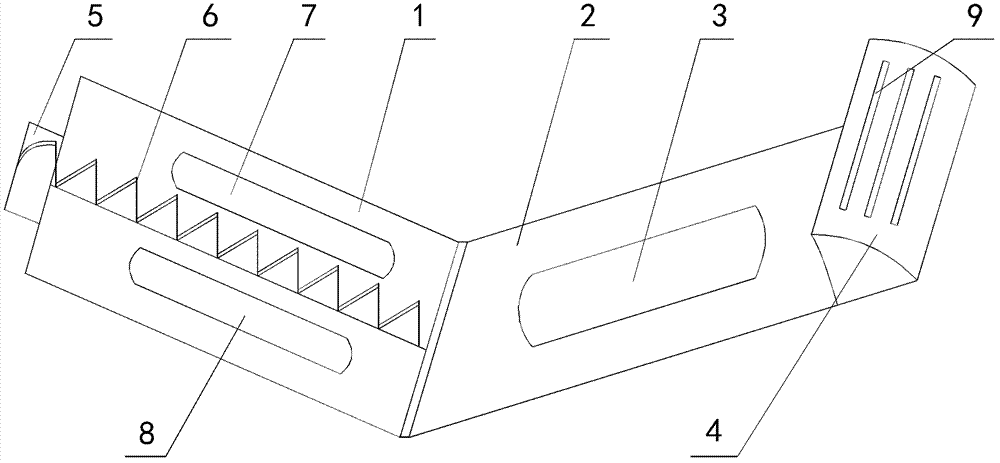

Fig. 2 is the structural representation of the liquid stopping clamp of this utility model.
Wherein, 1, jig arm I; 2, jig arm II; 3, hollow groove I; 4, card medicated cap; 5, snib; 6, detent projection; 7, hollow groove II; 8, hollow groove III.
The specific embodiment
Below in conjunction with accompanying drawing this practicality newly is further described.
A kind of liquid stopping clamp comprises interconnective jig arm I1 and jig arm II2, and is as shown in Figure 2; Wherein, Jig arm I1 is provided with hollow groove I3, and jig arm I1 end is provided with card medicated cap 4, and jig arm II2 end is provided with and blocks the snib 5 that medicated cap 4 matches; Jig arm II2 middle part is provided with some detent projection 6 of its axis distribution longitudinally, and detent projection 6 both sides of jig arm II2 are respectively equipped with hollow groove II7 and hollow groove III8.Card medicated cap upper surface is provided with three anti-skidding stricture of vaginas 9.
Use: close transfusion device actuator after transfusion finishes, the syringe nipple of the 5ml tube-sealing solution (heparin-saline injection 125U/ml) that suction is good is connected with the transfusion device scalp acupuncture, and the withdraw of the needle of tube-sealing solution limit is injected on the limit; When surplus 1ml tube-sealing solution also, the liquid stopping clamp of this utility model is clipped in the remaining needle root, and (tube for transfusion places between jig arm I1 and the jig arm II2, with pointing jig arm I1 and jig arm II2 is clutched; Then snib 5 snaps in the card medicated cap 4; Thereby fix, tube for transfusion is pressed against in the hollow groove I3 under the effect of detent projection 6 this moment, thereby is closed); Inject again the 0.5-1ml tube-sealing solution to push away motionless till; At this moment, the scalp acupuncture that will insert in the calparine cap is again extracted, and accomplishes the tube sealing operation.
Claims (3)
1. a liquid stopping clamp is characterized in that: comprise interconnective jig arm I and jig arm II, wherein; Jig arm I is provided with hollow groove I; Jig arm I end is provided with the card medicated cap, and jig arm II end is provided with and blocks the snib that medicated cap matches, and jig arm II middle part is provided with some detent projection of its axis distribution longitudinally.
2. a kind of liquid stopping clamp according to claim 1 is characterized in that: said card medicated cap upper surface is provided with at least one anti-skidding stricture of vagina.
3. a kind of liquid stopping clamp according to claim 1 is characterized in that: the detent projection both sides of said jig arm II are respectively equipped with hollow groove II and hollow groove III.
