Abstract
本实用新型涉及一种石灰窑用复合燃烧梁，由梁体、烧嘴和T形盖构成。烧嘴位于梁体的两侧和下部，梁体设有导热油流通的空腔，导热油流通的空腔与导热油出、入口连接。梁体内由隔板分为上、下两部分，梁体的上部分包括燃气通道、上助燃空气通道和燃气喷口，燃气通道与燃气喷口连接，燃气喷口对应梁体两侧的烧嘴。梁体的下部分设有煤粉管路、煤粉喷口和下助燃空气通道，煤粉管路与煤粉喷口连接，煤粉喷口对应梁体下部的烧嘴。本实用新型石灰窑用复合燃烧梁，通过隔板将燃烧梁梁体分为两部分，可以选择单独使用上部气体燃料燃烧或下部煤粉燃烧，也可以选择同时使用气体燃料燃烧和煤粉燃烧，增加了燃烧梁的操作灵活性，提高了燃烧梁的使用性能。
The utility model relates to a composite combustion beam for a lime kiln, which is composed of a beam body, a burner and a T-shaped cover. The burners are located on both sides and the lower part of the beam body, and the beam body is provided with a cavity for the circulation of the heat transfer oil, and the cavity for the flow of the heat transfer oil is connected with the outlet and the inlet of the heat transfer oil. The beam body is divided into upper and lower parts by a partition. The upper part of the beam body includes a gas channel, an upper combustion air channel and a gas nozzle. The gas channel is connected to the gas nozzle, and the gas nozzle corresponds to the burners on both sides of the beam body. The lower part of the beam body is provided with a pulverized coal pipeline, a pulverized coal nozzle and a lower combustion air passage, the pulverized coal pipeline is connected with the pulverized coal nozzle, and the pulverized coal nozzle corresponds to the burner at the lower part of the beam body. The composite combustion beam used in the lime kiln of the utility model divides the combustion beam body into two parts through a partition, and the upper gas fuel combustion or the lower coal pulverized combustion can be selected to be used alone, or both gas fuel combustion and coal pulverized combustion can be selected simultaneously. The operating flexibility of the combustion beam is increased, and the performance of the combustion beam is improved.
Description
Technical field
The utility model belongs to the combustion equipment technical field, relates to a kind of limestone kiln and uses burning beam, is specifically related to a kind of compound combustion beam that uses gas, solid fuel.
Background technology
With beam-type limekiln section scoria lime stone is the new technology that lime is produced.Beam-type limekiln has advantages such as energy consumption is low, the lime product quality is good, throughput is strong, turndown ratio is big, is widely used in the lime production of purposes such as metallurgy, chemical industry.Burning beam is the nucleus equipment of beam-type limekiln, and the beam body of burning beam is provided with burner, fuel conduit and combustion air pipeline, fuel conduit and combustion-aid air pipe road direction burner transfer the fuel and combustion air, and burner uniform distribution fuel also burns.The applicant's number of patent application is 200320111077.3, and the utility model patent that name is called " interior external heating type limestone kiln " provides the technical scheme of burning beam-type limekiln.The applicant is 200820078007.5 at another part application number, and name is called the structure of having introduced several kinds of beam bodies in the utility model patent of " a kind of kiln of lime calcining ".
Mostly the burning beam of prior art is the single fuel firing beam, a kind of fuel that can only burn, or geseous fuel or solid fuel.The burning beam of single-fuel can not adapt to the switching of fuel, and especially the quality of fuel changes, and calorific value does not reach when requiring, and the burning beam of single-fuel can not satisfy the needs of calcining materials, causes the calcination product quality to reduce.
Summary of the invention
For overcoming the deficiency of above-mentioned prior art; The utility model provides a kind of limestone kiln to use the compound combustion beam; Can using gas fuel or solid fuel calcine, can calcine with gas and two kinds of fuel of solid simultaneously again, improve the use properties and the flexibility of operation of burning beam.
The compound combustion beam is used in the utility model limestone kiln, is made up of beam body, burner and T female cap.Burner is positioned at the both sides and the bottom of beam body, and the beam body is provided with the cavity of thermal oil circulation, and outlet is connected the cavity of thermal oil circulation with thermal oil with the thermal oil inlet.Beam body inner route clapboard is divided into upper and lower two portions, and the top of beam body comprises blast tube, goes up combustion air passage and combustion gas spout, and blast tube is connected with the combustion gas spout, the burner of the corresponding beam body of combustion gas spout both sides.The lower section of beam body is provided with coal dust pipeline, coal dust spout and following combustion air passage, and the coal dust pipeline is connected with the coal dust spout, the burner of the corresponding beam body of coal dust spout bottom.
Beam body both sides are respectively equipped with 5～15 burners, and beam body bottom is provided with 5～15 burners.The burning beam external is equipped with the wear resistant heat preserving layer.Dividing plate is provided with the support that supports blast tube.
The compound combustion beam is used in the utility model limestone kiln, through dividing plate burning beam beam body is divided into two portions, and top is fuel gas buring equipment; The bottom is a coal-dust combustion device, can select to use separately upper gas fuel combustion or bottom coal dust firing, also can select using gas fuel combustion simultaneously and coal dust firing; Increased the flexibility of operation of burning beam; Improve the burning beam use properties, helped increasing the working ability in limestone kiln, improved the lime product quality.
Description of drawings

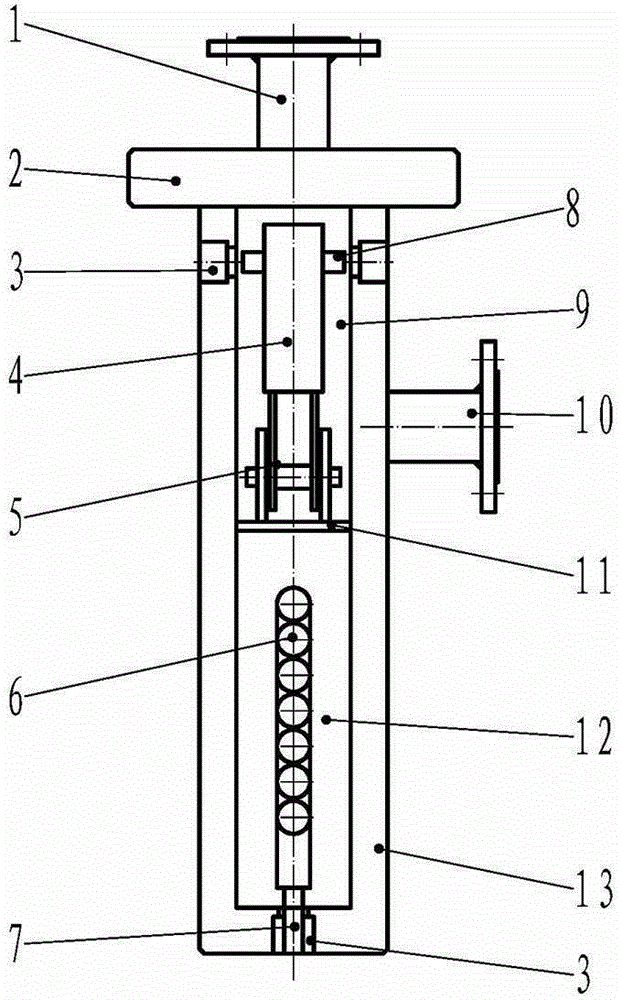

Fig. 1 is the structural representation of the utility model limestone kiln with the compound combustion beam.
Wherein: the outlet of 1-thermal oil, 2-T female cap, 3-burner, 4-blast tube, 5-support, 6-coal dust pipeline, 7-coal dust spout, 8-combustion gas spout, 9-last combustion air passage, 10-thermal oil inlet, 11-dividing plate, 12-following combustion air passage, 13-beam body.
Embodiment
Below in conjunction with accompanying drawing the utility model is done further explanation.
The compound combustion beam is used in the utility model limestone kiln, and is as shown in Figure 1, is made up of beam body 13, burner 3 and T female cap 2, and said burner is positioned at the both sides and the bottom of beam body, and it is 10 burners that every side is provided with, and the bottom is provided with 10 burners.The beam body is provided with the cavity of thermal oil circulation; The cavity of thermal oil circulation is connected with thermal oil outlet 1 with thermal oil inlet 10; The entrance and exit of thermal oil is connected with the thermal oil recycle system, is used for cooling combustion beam beam body, avoids high temperature to burn out equipment in burning beam and the beam body.Beam body inner route clapboard 11 is divided into upper and lower two portions.The top of beam body comprises blast tube 4, goes up combustion air passage 9 and combustion gas spout 8, and dividing plate is provided with support 5, is used to support blast tube 4.Blast tube is connected with the combustion gas spout, the burner 3 of the corresponding beam body of combustion gas spout both sides.Blast tube is connected with beam body 13 outside gas lines, and last combustion air passage is communicated with burner in the beam body, is connected with gas blower through pipeline in the beam external.The lower section of beam body is provided with 10 coal dust pipelines 6, coal dust spout 7 and following combustion air passage 12, and the coal dust pipeline is connected with the coal dust spout, the burner 3 of the corresponding beam body of coal dust spout bottom.The coal dust pipeline is connected with the external coal dust supply line of beam, is communicated with burner in the following combustion air passage 12 beam bodies, is connected with gas blower at the external pipeline that passes through of beam.The wear resistant heat preserving layer is equipped with in burning beam beam body 13 outsides, is used to protect the beam body, reduces material, flue gas and dust to the abrasion of beam body, avoids high temperature to burn out the beam body.
The utility model limestone kiln uses the operation scheme of compound combustion beam to do; On beam body top; Combustion gas gets into beam body top blast tube 4 through gas line, is ejected into burner 3 through combustion gas spout 8, and gets into the air mixed of burners through last combustion air passage 9 and burns.In beam body lower section, coal dust is through coal dust pipeline 6, coal dust spout 7 ejection coal dusts, and gets into the air mixed of burner and burns through combustion air passage down.
According to the production needs, can select independent using gas fuel combustion or coal dust firing, also can select using gas fuel combustion simultaneously and coal dust firing, flexibility of operation is good.
