CN202481674U - Flash recovery scraper - Google Patents
Flash recovery scraper Download PDFInfo
- Publication number
- CN202481674U CN202481674U CN2012200112234U CN201220011223U CN202481674U CN 202481674 U CN202481674 U CN 202481674U CN 2012200112234 U CN2012200112234 U CN 2012200112234U CN 201220011223 U CN201220011223 U CN 201220011223U CN 202481674 U CN202481674 U CN 202481674U
- Authority
- CN
- China
- Prior art keywords
- scraper plate
- chain
- corner
- flash
- ring seal
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Abstract
The utility model discloses a flash recovery scraper. The flash recovery scraper is C-shaped, sequentially comprises a first horizontal section, a vertical section and a second horizontal section along the material conveying direction, a feed inlet is arranged on the first horizontal section, and a discharge outlet is arranged on the second horizontal section; the flash recovery scraper comprises a C-shaped annular closed chain, a blanking plate and a bottom plate, the annular chain consists of a head part, a first inner corner, a second inner corner, a tail part, a first outer corner and a second outer corner sequentially along the walking direction; corner wheels are arranged at the first inner corner, the second inner corner and the first outer corner; a plurality of scraper blades arranged abreast are evenly distributed at the inner side of the annular chain fixedly along the length direction of the chain; the blanking plate is arranged in the first horizontal section and the vertical section in an extending manner, and arranged at the inner side of the annular chain; and the bottom plate is arranged in the second horizontal section in an extending manner, and arranged at the outer side of the annular chain.
Description
Technical field
The utility model relates to a kind of flash regenerative apparatus, relates in particular to a kind of scraper plate machine.
Background technology
The high spud angle travelling apron is the common equipment in the metallurgical industry; Being used for high spud angle carries and the vertical-lift material; Its principle of work is similar with common belt conveyor with structure; And adopt conveyor belt with wave baffle board at its edge to replace duck conveyor belt, thereby obtain bigger material hoisting depth with less floor area.
When the material of carrying is short grained powder, because raw meal particle size is tiny, when the upstream equipment blanking, can produces a large amount of dusts during with the material lifting, the ash that falls, and be deposited in the sealing-tape machine afterbody case.Therefore high spud angle sealing-tape machine polygamy has the flash regenerative apparatus.Original flash regenerative apparatus also adopts the wave baffle board at its edge sealing-tape machine; But in real work; There is certain problem in such flash regenerative apparatus: when operation, locate because a large amount of dusts, fine powder can get into the non-working surface that reclaims adhesive tape, motorized pulleys, passive cylinder etc., and cause the flash adhesive tape to block, situation such as motorized pulleys skid and burn out; Thereby equipment can't normally be moved, influence the collecting effect of returning charge; On the other hand, returning charge is deposited in the afterbody of conveyer, because the restriction of conveyer installation site, labor cleaning's returning charge is difficulty very, makes the returning charge accumulation of conveyer can't accomplish to clear up timely and effectively.In addition, when convey materials was fine coal, the accumulation of fine coal all can have very big influence to environment and safety.
Summary of the invention
The purpose of the utility model provides a kind of flash and reclaims the scraper plate machine, and this flash reclaims scraper plate machine reliability service for a long time, when collecting returning charge effectively, significantly reduces dust, the phenomenon of fall ash and dust stratification.
According to above-mentioned utility model purpose; The utility model provides a kind of flash and reclaim the scraper plate machine; It is the C type that said flash reclaims the scraper plate machine; Its transporting direction along material comprises one first horizontal segment, vertically section and one second horizontal segment successively, has an inlet point on said first horizontal segment, and said second horizontal segment has a discharging opening;
Said flash reclaims the ring seal chain that the scraper plate machine comprises a C type, said ring seal chain corner outside the corner and one second outside its direction of advancing has a head, one first inside lock, one second inside lock, an afterbody, one first successively;
Two drive wheels are located at said head and afterbody respectively;
Said first inside lock, second inside lock and the first outer corner respectively are provided with corner wheel;
The inboard of said ring seal chain, be evenly equipped with the scraper plate that several are set up in parallel each other regularly along the length direction of chain, said scraper plate has a height and a width;
One feeding plate, it is located in said first horizontal segment and the vertical section with extending, and is located at the inboard of said ring seal chain;
One base plate, it is located in said second horizontal segment with extending, and is located at the outside of said ring seal chain.
Powder drops on through inlet point on the feeding plate of first horizontal segment, is driven chain and is fixed on the scraper plate on the chain by drive wheel, and the powder that scraper plate promotes on the feeding plate of first horizontal segment moves to first inside lock.The horn ring of first inside lock makes chain and the scraper plate that is fixed on the chain turns to 90 °, and moves straight up.When scraper plate turns at first inside lock, can promote and carry the powder that is deposited on the scraper plate to move straight up, through vertical section.To second inside lock, by the effect of corner wheel, chain and the scraper plate that is fixed on the chain turn to 90 ° once more, move in horizontal direction.Powder on the scraper plate turns to scraper plate at the second inside lock place, and is fallen on the base plate of second horizontal segment, and is pushed to discharge hole for discharge by scraper plate.Scraper plate through the drive wheel revolution of afterbody, turns to through the first outer corner, the second outer corner again, and the drive wheel revolution of head continues the transportation powder thereby get back to inlet point.Some not the returning charge meeting of discharging along with chain and scraper plate turn back to inlet point, thereby be transported to discharge hole for discharge once more.
Reclaim in the scraper plate machine at above-mentioned flash, the ring seal chain of said C type is located in the C type framework, and said C type framework is provided with at least one and observes door in head, afterbody and the corner of corresponding ring seal chain.Observe door and can be used for the situation in the facilities for observation.
The gap is less between feeding plate and the C type framework, thereby has reduced phenomenons such as powder accumulation and dust, the ash that falls.
The described a kind of flash of the utility model reclaims the scraper plate machine, than existing flash regenerative apparatus, more is applicable to the high spud angle travelling apron that granule, granular material are carried, and has the following advantages:
(1) this flash reclaims the scraper plate machine and can collect returning charge effectively, has improved the efficient that returning charge is reclaimed;
(2) it is rational in infrastructure that this flash reclaims the scraper plate machine, can prevent the accumulation of returning charge effectively, makes artificial clear material number of times reduce about more than 80%;
(3) this flash reclaims scraper plate machine and adopts whole all-sealed structure, has eliminated dust, the situation of ash that falls, thereby has avoided the material leakage phenomenon in the whole material conveying process;
(4) this flash reclaims the more former flash regenerative apparatus of scraper plate machine, and the normal external operation ratio of equipment has improved more than 2 times, has significantly promoted the stability of equipment.
Description of drawings

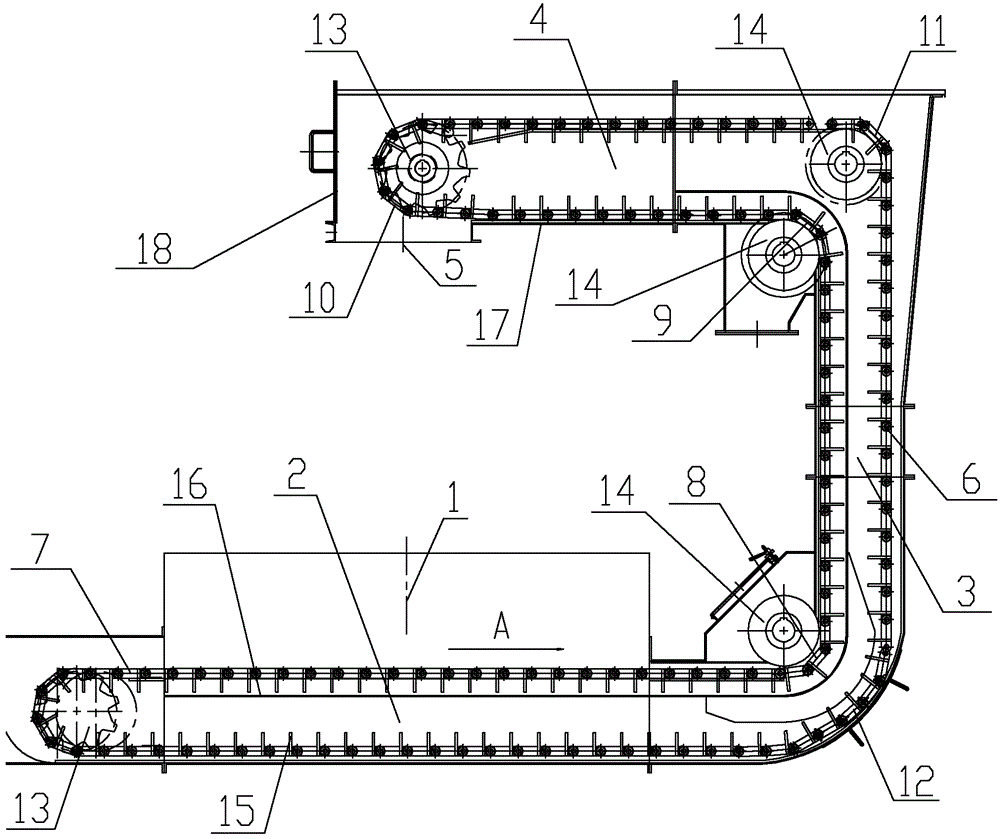

Fig. 1 is that the described flash of the utility model reclaims the structural representation of scraper plate machine under a kind of embodiment.
The specific embodiment
To combine Figure of description and concrete embodiment that the described flash of the utility model is reclaimed the scraper plate machine below and do further detailed description.
Fig. 1 has shown that the described flash of the utility model reclaims scraper plate machine structure in the present embodiment.As shown in Figure 1, C type flash reclaims the scraper plate machine and comprises leak free (inlet point 1 is except discharging opening 5) C type framework 18 and the ring seal chain 6 of being located at the C type in the C type framework 18.The inboard of ring seal chain 6, be evenly equipped with several scraper plates that is set up in parallel each other 15 regularly along the length direction of chain 6.Two drive wheels 13 are located at head 7 and afterbody 10 respectively, in order to drive and circumversion chain 6 and be fixed on the scraper plate 15 on the chain 6.Three horn rings 14 are located at first inside lock 8, second inside lock 9 and the first outer corner, 11 places respectively, with so that chain 6 and the scraper plate 15 that is fixed on the chain 6 turn to.Feeding plate 16 is located in first horizontal segment 2 and the vertical section 3 with extending, and is located at the inboard of ring seal chain 6.Base plate 17 is located in second horizontal segment 4 with extending, and is located at the outside of ring seal chain 6.The head 7 of C type framework 18, afterbody 10 and each corner are provided with observes door, in order to the facilities for observation inner case.
Please continue to consult Fig. 1; Powder drops on the feeding plate 16 of first horizontal segment 2 through inlet point 1; Drive chains 6 and the scraper plate 15 that is fixed on the chain 6 moves along direction A by drive wheel 13, the powder that scraper plate 15 promotes on the feeding plate 16 of first horizontal segment 2 moves to first inside lock 8.The horn ring 14 of first inside lock 8 makes chain 6 and the scraper plate 15 that is fixed on the chain 6 turns to 90 °, and moves straight up.When scraper plate 15 turns at first inside lock 8, can promote and the powder that carries on the feeding plate 16 that is deposited in first inside lock, 8 places moves straight up, through vertical section 3.To second inside lock 9, by horn ring 14 effects, chain 6 and the scraper plate 15 that is fixed on the chain 6 turn to 90 ° once more, move in horizontal direction.Powder on the scraper plate 15 turns to scraper plate 15 at second inside lock, 9 places, and is fallen on the base plate 17 of second horizontal segment 4, and is pushed to discharging opening 5 dischargings by scraper plate 15.Through drive wheel 13 revolutions of afterbody 10, first outer corner 11, the second outer corner 12 turns to scraper plate 15 again, and drive wheel 13 revolutions of head 7 continue the transportation powder thereby get back to inlet point 1.Some not the returning charge meeting of discharging along with chain 6 and scraper plate 15 turn back to inlet point 1, thereby be transported to discharging opening 5 dischargings once more.
Wherein, scraper plate and chain all adopt high-abrasive material to process, and to reduce wearing and tearing, increase the service life; Adopt bearing pin to removably connect between chain and the scraper plate, so that the replacing of scraper plate; In addition, C type framework adopts the sealing setting except that inlet point and discharging opening, in transmission course, can prevent the leakage of airborne dust and powder effectively.
Be noted that the above specific embodiment of enumerating that is merely the utility model, obviously the utility model is not limited to above embodiment, and many similar variations are arranged thereupon.If those skilled in the art from all distortion that the disclosed content of the utility model directly derives or associates, all should belong to the protection domain of the utility model.
Claims (2)
1. a flash reclaims the scraper plate machine, it is characterized in that:
It is the C type that said flash reclaims the scraper plate machine, and its transporting direction along material comprises one first horizontal segment, vertically section and one second horizontal segment successively, has an inlet point on said first horizontal segment, and said second horizontal segment has a discharging opening;
Said flash reclaims the ring seal chain that the scraper plate machine comprises a C type, said ring seal chain corner outside the corner and one second outside its direction of advancing has a head, one first inside lock, one second inside lock, an afterbody, one first successively;
Two drive wheels are located at said head and afterbody respectively;
Said first inside lock, second inside lock and the first outer corner respectively are provided with corner wheel;
The inboard of said ring seal chain, be evenly equipped with the scraper plate that several are set up in parallel each other regularly along the length direction of chain, said scraper plate has a height and a width;
One feeding plate, it is located in said first horizontal segment and the vertical section with extending, and is located at the inboard of said ring seal chain;
One base plate, it is located in said second horizontal segment with extending, and is located at the outside of said ring seal chain.
2. flash as claimed in claim 1 reclaims the scraper plate machine, it is characterized in that the ring seal chain of said C type is located in the C type framework, and said C type framework is provided with at least one and observes door in head, afterbody and the corner of corresponding ring seal chain.
