The utility model discloses a portable acupuncture needle box, and belongs to the field of medical devices. The portable acupuncture needle box is characterized by comprising a box body (1), an upper cover (2), a side cover (3), a No.1 needle storage tank (4), a No.2 needle storage tank (5), a No.3 needle storage tank (6) and an alcohol cotton ball placement area (7), wherein the box body (1) is connected with the upper cover (2) through a rotating shaft, and is connected with the side cover (3) through a rotating shaft; a baffle plate is arranged in the box body (1); and the inside of the box body (1) is divided into the No.1 needle storage tank (4), the No.2 needle storage tank (5), the No.3 needle storage tank (6) and the alcohol cotton ball placement area (7). By the portable acupuncture needle box, acupuncture needles can be vertically placed in different areas and can be placed in areas which are different from those of alcohol cotton balls; and the portable acupuncture needle box is convenient to carry and use.

Description

A kind of portable Acupuncture needle box

Technical field

A kind of portable Acupuncture needle box belongs to medical instruments field.

Background technology

Acupuncture is the rarity in China's traditional medicine, and is with a long history, and clinical practice is extensive, and curative effect is obvious, receives China people's approval and trust deeply.But there is potential safety hazard in traditional acupuncture apparatus in the process of using, sterilizing, hold, and especially for the acupuncturist, occupational exposure is a severe problem that can not be ignored especially.Especially incurable disease such as AIDS in case infect, will be brought great financial burden and mental burden to the clinicist.Up at present, the acupuncture case that generally uses clinically fails thoroughly to address this problem all the time.

Existing clinical Acupuncture needle box commonly used, the following problem of ubiquity: carry inconvenience, lid is loosening easily; That acupuncture needle holds is disorderly and unsystematic, be scattered easily, is not to hold respectively according to length when acupuncture needle holds, and mixes and puts together but be regardless of length; Also can't get when the acupuncturist gets acupuncture needle, but one one get, stabbed by needle point easily according to acupuncture needle length; Cotton ball soaked in alcohol also can't hold the subregion, thereby causes cotton ball soaked in alcohol contaminated easily.

Summary of the invention

The technical problem that this utility model will solve is: overcome the problem that prior art exists, design a kind of portable Acupuncture needle box.This portable Acupuncture needle box can hold the acupuncture needle subregion is vertical, and places with the cotton ball soaked in alcohol subregion.

This utility model solves the technical scheme that its technical problem adopted: the portable Acupuncture needle box of this utility model; Comprise box body, loam cake, side cover, store up needle tray for No. one, store up needle tray for No. two, store up needle tray and cotton ball soaked in alcohol rest area No. three; Box body adopts turning cylinder to be connected with loam cake; Box body and side cover adopt turning cylinder to be connected, are provided with baffle plate in the box body, and box body inside is divided into storage needle tray, No. two storage needle trays, stores up needle tray and cotton ball soaked in alcohol rest area No. three.

A described storage needle tray, No. two storage needle trays and No. three storage needle tray bottoms are provided with cotton mass, are used for fixing acupuncture needle.

A described storage needle tray degree of depth is greater than No. two storage needle tray degree of depth, and No. two storage needle tray degree of depth are greater than No. three storage needle tray degree of depth.

The side of described loam cake and side cover is provided with the sealing snap close, and the side cover inboard is provided with O-ring seal.

Compared with prior art; The beneficial effect that this utility model had is: the portable Acupuncture needle box of this utility model; Change vertically by horizontal common Acupuncture needle box, acupuncture needle holds the district and through shelf box is divided into three isolated areas near an end of loam cake: a storage needle tray, No. two storage needle trays and No. three storage needle trays, these three isolated areas can hold the acupuncture needle of clinical 3～5 kinds of different lengths commonly used respectively; And can place Rhizoma Sparganii pin, round-sharp needle, medical tweezers, cotton rod; Bottom, each acupuncture needle storage area is equipped with fixed block, and this fixed block is made up of the soft or soft material that is pierced through by needle point easily (sponge block or by antiseptic gauze or the textile piece that forms etc. that coincides, generally use high temperature resistant medical sponge); Become block structure, so that needle body is inserted on the fixed block; The Acupuncture needle box side is the cotton ball soaked in alcohol rest area, and by side cover sealing, structure is placed the cotton ball soaked in alcohol independent partitions thus, and on lid, is provided with the sealing snap close, make access, easy to carry, be difficult for contaminated.This utility model simple structure, operation, easy to use, cotton ball soaked in alcohol, lid are loosening easily, acupuncture needle placement different in size for can't independently carrying of can not occurring that horizontal acupuncture case occurs, be scattered easily, acupuncture needle horizontal put disorderly and unsystematic; Avoid the occupational exposure problem that causes acupuncturist institute all to face every day, be convenient to the autoclaving that standardizes, easy to carry, be applicable to outpatient service, ward, at home, tourism and visiting physician use, and are a kind of ideal portable acupuncture cases.

Description of drawings

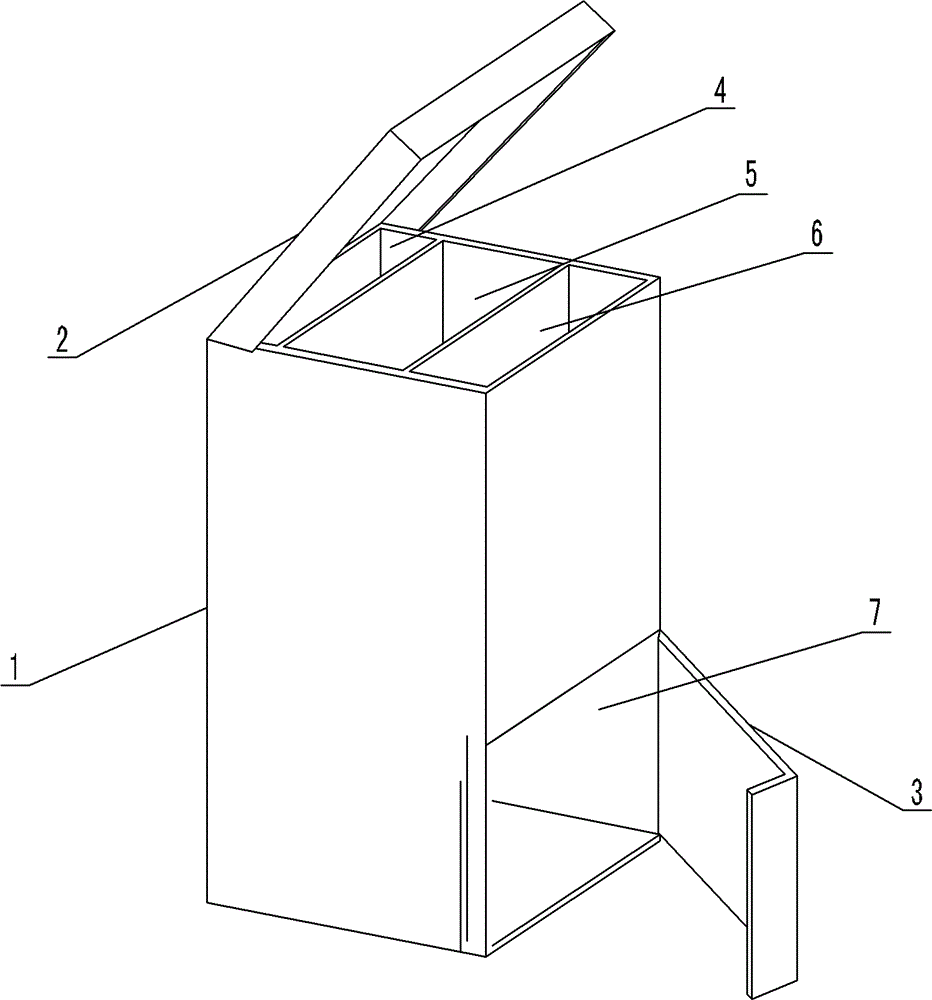

Fig. 1 is the contour structures sketch map of the portable Acupuncture needle box of this utility model;

Fig. 2 is the cutaway view of the portable Acupuncture needle box of this utility model;

Fig. 1～2nd, the most preferred embodiment of this utility model.

Wherein: 6 No. three storages of No. 4 storages of 1 box body, 2 loam cakes, 3 side covers needle tray 5 No. two storages needle tray needle tray, 7 cotton ball soaked in alcohol rest areas.

The specific embodiment

Further specify below in conjunction with 1～2 pair of portable Acupuncture needle box of this utility model of accompanying drawing:

With reference to Fig. 1～2

This portable Acupuncture needle box is made up of box body 1, loam cake 2, side cover 3, storage needle tray 4, No. two storage needle trays 5, No. three storage needle trays 6 and cotton ball soaked in alcohol rest area 7.Box body 1 and loam cake 2 adopts turning cylinders to be connected, and box body 1 adopts turning cylinders to be connected with side cover 3, is provided with baffle plate in the box body 1, box body 1 inside is divided into store up needle tray 4 for No. one, store up needle tray 5 for No. two, store up needle tray 6 and cotton ball soaked in alcohol rest area 7 No. three.A storage needle tray 4, No. two storage needle trays 5 and No. three storage needle tray 6 bottoms are provided with fixed block.Storage needle tray 4 degree of depth are greater than No. two storage needle tray 5 degree of depth, and No. two storage needle tray 5 degree of depth are greater than No. three storage needle tray 6 degree of depth.The side of loam cake 2 and side cover 3 is provided with the sealing snap close, and side cover 3 inboards are provided with O-ring seal.

Work process is following:

Open loam cake 2,, the longest acupuncture needle is placed into No. one stores up in the needle tray 4 according to the length of acupuncture needle; And be fixed on the fixed block of storage needle tray 4 bottoms, will be placed into No. two than long acupuncture needle and store up in the needle tray 5, and be fixed on the fixed block of No. two storage needle tray 5 bottoms; The shortest acupuncture needle is placed into No. three to be stored up in the needle tray 6; And be fixed on the fixed block of No. three storage needle tray 6 bottoms, close loam cake 2, and the sealing hasp of fastening loam cake 2; Cotton ball soaked in alcohol is put into cotton ball soaked in alcohol rest area 7, close side cover 3, and the sealing hasp of fastening side cover 3.

The above; It only is the preferred embodiment of this utility model; Be not to be the restriction of this utility model being made other form, any professional and technical personnel of being familiar with possibly utilize the technology contents of above-mentioned announcement to change or be modified as the equivalent embodiment of equivalent variations.But every this utility model technical scheme content that do not break away to any simple modification, equivalent variations and remodeling that above embodiment did, still belongs to the protection domain of this utility model technical scheme according to the technical spirit of this utility model.

Claims

1. portable Acupuncture needle box; Comprise box body (1), loam cake (2), side cover (3), store up needle tray (4) for No. one, store up needle tray (5) for No. two, store up needle tray (6) and cotton ball soaked in alcohol rest area (7) No. three; Box body (1) directly all adopts turning cylinder to be connected with loam cake (2), side cover (3); Box body is provided with baffle plate in (1), and box body (1) inside is divided into a storage needle tray (4), No. two storage needle trays (5), No. three storages needle tray (6) and cotton ball soaked in alcohol rest areas (7).

2. a kind of portable Acupuncture needle box according to claim 1 is characterized in that: a described storage needle tray (4), No. two storage needle trays (5) pass through the cotton mass locking pin with No. three storage needle trays (6) bottom.

3. a kind of portable Acupuncture needle box according to claim 1 is characterized in that: described storage needle tray (a 4) degree of depth is greater than No. two storage needle tray (5) degree of depth, and No. two storage needle tray (5) degree of depth are greater than No. three storage needle tray (6) degree of depth.

4. a kind of portable Acupuncture needle box according to claim 1 is characterized in that: the side of described loam cake (2) and side cover (3) is provided with the sealing snap close, and side cover (3) inboard is provided with O-ring seal.
