Abstract
The utility model discloses an electrified installation tool for a bird scarer. The electrified installation tool comprises a hollow insulated operating rod (8) and an insulated pull rod (6) arranged in the hollow insulated operating rod (8), and is characterized in that the top of the hollow insulated operating rod (8) is provided with a left clamp plate (2); the left clamp plate (2) is connected with a right clamp plate (4) through a hinge shaft (3), and a spring (5) is arranged between the left clamp plate (2) and the right clamp plate (4); and the left clamp plate (2) and the bottom end of the right clamp plate (4) are provided with steel wire ropes, and the top of the insulated pull rod (6) is connected with the steel wire rope (1). The electrified installation tool does not need power cut, is good in use effect, is safe and reliable, can be used for saving the financial resources and material resources, is simple in integral structure, convenient in use and low in cost, and can be used for ensuring the security of power transmission and a power grid.
Description
Technical field
The utility model relates to the charged erecting tools of a kind of bird-scaring unit, especially relates to the charged erecting tools of a kind of bird-scaring unit that a kind of distribution overhead transmission line need not have a power failure and can use.
Background technology
Overhead high voltage line (tower bar) often receives the invasion of various birds, and birds land above the tower bar, nest and void excreta through being everlasting, and can cause the ground connection or the short circuit of circuit, cause line accident, has a strong impact on normal electric power and carries and power grid security.For avoiding the generation of this type of accident, all kinds of scarers are installed on pylon normally.Bird-scaring unit is installed is at present adopted following method usually: manual work is directly installed, but will have a power failure when installing, and causes line powering to interrupt, and brings influence for the people's the life and the production of enterprise.But the area that has is unaffected in order to guarantee resident and enterprise production electricity consumption; Also have a kind of way can adopt the live line working car to carry out the installation of bird-scaring unit; But the live line working car will receive the restriction of road conditions, can not be in the mountain area, hillside fields, rugged local the use, and also cost is high.
Summary of the invention
The purpose of the utility model is to overcome the shortcoming that exists in the prior art; Provide a kind of and can not need have a power failure, the safe and reliable charged erecting tools of a kind of bird-scaring unit; The technical scheme that adopts is: the charged erecting tools of a kind of bird-scaring unit, and comprise hollow insulating bar and be arranged on the insulated tension pole in the hollow insulating bar, it is characterized in that: left clamping plate are set at the top of said hollow insulating bar; Said left clamping plate and right clamping plate are hinged through hinge axis; And between said left clamping plate and said right clamping plate, spring is set, and in the bottom of said left clamping plate and said right clamping plate steel wire rope being set, the top of described insulated tension pole links to each other with described steel wire rope.Because steel wire rope passes from left clamping plate and right clamping plate bottom, and links to each other with the top of insulated tension pole, just can operate left and right sides clamping plate through the pulling insulated tension pole.
The technical scheme of the utility model also has: said left clamping plate and said right clamp region are symmetrical.
The technical scheme of the utility model also has: an end of said steel wire rope and said right clamping plate are fixed, and in the outside of the said left clamping plate of the other end hold-down nut are set.Its objective is when spring is opened, play the effect of fixed journey system.
The technical scheme of the utility model also has: the inside at the circular arc retained part of said left clamping plate and said right clamping plate is provided with anti-slip tank.Its objective is in order to increase frictional force.
The beneficial effect of the utility model is: the utility model improves on the basis that original binding is cut; At the top of said hollow insulating bar left clamping plate are set; Said left clamping plate and right clamping plate are hinged through hinge axis, and between said left clamping plate and said right clamping plate, spring are set, and in the bottom of said left clamping plate and said right clamping plate steel wire rope are set; The top of described insulated tension pole links to each other with described steel wire rope, is applicable to that the installation of various bird-scaring units does not have.Need to have a power failure, result of use is good, and is safe and reliable, practiced thrift financial resources, material resources, and overall structure is simple, easy to use, with low cost, guaranteed electric power conveying and power grid security.
Description of drawings

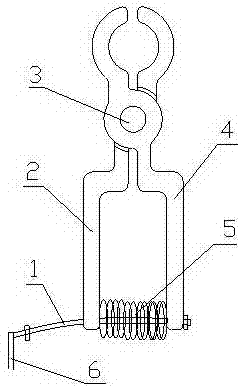

Accompanying drawing 1 is the structural representation of the utility model, and accompanying drawing 2 is sketch mapes of the installation bird-scaring unit of the utility model, wherein, the 1st, steel wire rope; The 2nd, left clamping plate, the 3rd, hinge axis, the 4th, right clamping plate; The 5th, be spring, the 6th, insulated tension pole, the 7th, the column part of bird-scaring unit; The 8th, hollow insulating bar, the 9th, cross-arm, the 10th, bird-scaring unit U-shaped base.
Embodiment
In conjunction with accompanying drawing, the concrete structure of the utility model is described.The utility model comprises hollow insulating bar 8 and is arranged on the insulated tension pole 1 in the insulated hollow action bars 8; Left clamping plate 2 are set at the top of hollow insulating bar 8; Left side clamping plate 2 are hinged through hinge axis 3 with right clamping plate 4; And between left clamping plate 2 and right clamping plate 4, spring 5 is set, and in the bottom of left clamping plate 2 and right clamping plate 4 steel wire rope being set, the top of insulated tension pole 6 links to each other with steel wire rope 1.
During use, the staff only need stand in the appropriate location of shaft tower, and opening is aimed at bird-scaring unit, and the pulling pull bar is clamped the bird-scaring unit column part, puts into the U-shaped bottom end opening of bird-scaring unit on the pylon, then with fixing with the insulating bar of six rib sleeves.
Certainly; Above-mentioned explanation is not the restriction to the utility model; The utility model also is not limited only to above-mentioned giving an example; Also be applicable to the installation of bird-scaring units such as needle-penetrating, variation, remodeling, interpolation or replacement that those skilled in the art are made in the essential scope of the utility model also belong to the protection range of the utility model.
Claims (4)
1. charged erecting tools of bird-scaring unit; Comprise hollow insulating bar (8) and be arranged on the insulated tension pole (6) in the hollow insulating bar (8); It is characterized in that: left clamping plate (2) are set at the top of said hollow insulating bar (8); Said left clamping plate (2) are hinged through hinge axis (3) with right clamping plate (4); And between said left clamping plate (2) and said right clamping plate (4), spring (5) is set, and in the bottom of said left clamping plate (2) and said right clamping plate (4) steel wire rope (1) being set, the top of described insulated tension pole (6) links to each other with described steel wire rope (1).
2. according to the charged erecting tools of the described a kind of bird-scaring unit of claim 1, it is characterized in that: said left clamping plate (2) are symmetrical with said right clamping plate (4) structure.
3. according to the charged erecting tools of the described a kind of bird-scaring unit of claim 1, it is characterized in that: an end of said steel wire rope (1) and said right clamping plate (4) are fixing, and the outside of the other end of said steel wire rope (1) and said left clamping plate (2) is provided with hold-down nut.
4. according to the charged erecting tools of the described a kind of bird-scaring unit of claim 1, it is characterized in that: the inside at the circular arc retained part of said left clamping plate (2) and said right clamping plate (4) is provided with anti-slip tank.
