CN202470213U - Solar system for intensively collecting heat and storing heat in individual households - Google Patents
Solar system for intensively collecting heat and storing heat in individual households Download PDFInfo
- Publication number
- CN202470213U CN202470213U CN201220052591.3U CN201220052591U CN202470213U CN 202470213 U CN202470213 U CN 202470213U CN 201220052591 U CN201220052591 U CN 201220052591U CN 202470213 U CN202470213 U CN 202470213U
- Authority
- CN
- China
- Prior art keywords
- heat
- thermal
- arrest
- water tank
- temperature sensor
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims abstract description 75
- 238000010438 heat treatment Methods 0.000 claims abstract description 15
- 238000009825 accumulation Methods 0.000 claims description 14
- 239000012141 concentrate Substances 0.000 claims description 4
- 238000005338 heat storage Methods 0.000 abstract description 2
- 238000012544 monitoring process Methods 0.000 abstract 1
- 238000013021 overheating Methods 0.000 abstract 1
- 125000004122 cyclic group Chemical group 0.000 description 2
- 230000009977 dual effect Effects 0.000 description 2
- 238000004134 energy conservation Methods 0.000 description 2
- 238000007726 management method Methods 0.000 description 2
- 238000004519 manufacturing process Methods 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 238000001816 cooling Methods 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 230000008030 elimination Effects 0.000 description 1
- 238000003379 elimination reaction Methods 0.000 description 1
- 238000005265 energy consumption Methods 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 230000007613 environmental effect Effects 0.000 description 1
- 239000000203 mixture Substances 0.000 description 1
- 230000003020 moisturizing effect Effects 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B10/00—Integration of renewable energy sources in buildings
- Y02B10/20—Solar thermal
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B10/00—Integration of renewable energy sources in buildings
- Y02B10/70—Hybrid systems, e.g. uninterruptible or back-up power supplies integrating renewable energies
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/40—Solar thermal energy, e.g. solar towers
- Y02E10/44—Heat exchange systems
Landscapes
- Heat-Pump Type And Storage Water Heaters (AREA)
Abstract
本实用新型涉及一种集中集热分户储热太阳能系统，其包括太阳能集热器组、膨胀水箱、循环泵、远程监控系统以及燃气炉辅助加热装置，所述的太阳能集热器组通过循环泵连接一组以上的集热主循环管和集热回水循环管，每组集热主循环管和回水循环管之间并联连接若干个分户换热水箱，所述的集热主循环管与分户换热水箱相连的分管路上设有电磁阀，集热主循环管上设置分户温度传感器T1，分户换热水箱上部设有温度传感器T3，下部设有温度传感器T2，电磁阀、温度传感器T3及温度传感器T2分别连接至分户控制器。本实用新型不仅节能、便于管理，而且还具备“防盗热”、防过热及水箱高温保护等功能，非常适合小区住户使用。
The utility model relates to a centralized heat collection and household heat storage solar energy system, which includes a solar heat collector group, an expansion tank, a circulation pump, a remote monitoring system and an auxiliary heating device for a gas furnace. The pump is connected to more than one set of heat collecting main circulation pipes and heat collecting return water circulation pipes, each group of heat collecting main circulation pipes and return water circulation pipes are connected in parallel with several household heat exchange water tanks, the heat collecting main circulation pipes are connected with Solenoid valves are installed on the sub-pipelines connected to the household water exchange tanks, household temperature sensors T1 are installed on the heat collection main circulation pipe, temperature sensors T3 are installed on the upper part of the household water exchange tanks, and temperature sensors T2 are installed on the lower parts. Solenoid valves, temperature The sensor T3 and the temperature sensor T2 are respectively connected to the household controller. The utility model is not only energy-saving and easy to manage, but also has the functions of "anti-theft heat", anti-overheating and high-temperature protection of the water tank, and is very suitable for residents in residential quarters.
Description
Technical field
The utility model relates to a kind of solar energy system, especially a kind of concentrated collection heat separating user heat-accumulation solar system.
Background technology
Solar heating system can be very economical environmental protection ground for people hot water is provided, gas furnace is the energy-saving periodical furnace of national standard, can be very fast, for people hot water is provided easily.
At present, existing neighbours living uses solar energy to mainly contain dual mode: a kind of is that every resident family independently uses, and its benefit is to install simply, and metering is convenient, but the tube side of managing up and down when using is long, and the cold water that accumulates in the pipeline is many, influences use.Another kind is to concentrate heat production heat accumulation household metering, and it is delivered to each user respectively through water pump and use after the solar thermal collector group is with the heating of the water in the big storage tank; Its benefit is not influence facade, and cost is low, but result of use is not good; The common water that uses in the large water tank; Heat runs off fast, and system operation cost is high, and is not easy to estate management.
Chinese patent CN 201093613 disclose a kind of can central heating, divide the solar water heating system of family heat accumulation, this system is not only energy-conservation, but also has saved administrative expenses; But still there is following deficiency in this system: at first, adopt electrical heating as assisted heating device, exist energy consumption many, the problem that the hot water cost is high; Secondly, the easy suddenly mixed phenomenon of heat that takes place because the temperature height is uneven of user's heat storage water tank; Once more, superheat state appears in hot water under this system easily, uses inconvenience.
The utility model content
The utility model technical problem to be solved is to provide a kind of concentrated collection heat separating user heat-accumulation solar system.
The technical scheme of the utility model: a kind of concentrated collection heat separating user heat-accumulation solar system; Comprise solar thermal collector group, expansion tank, circulating pump; Described solar thermal collector group connects thermal-arrest major cycle pipe and thermal-arrest backwater circulation pipe more than one group through circulating pump; Thermal-arrest major cycle pipe and thermal-arrest backwater circulation pipe are communicated with the inner heat exchange coil of each household water tank; Several minutes family heat-exchanging water tank that is connected in parallel between every group of thermal-arrest major cycle pipe and the thermal-arrest backwater circulation pipe, expansion tank is located on thermal-arrest major cycle pipe or the thermal-arrest backwater circulation pipe, and the family heat-exchanging water tank was provided with cold water inlet and hot water outlet in said minute; The branch pipeline that described thermal-arrest major cycle Guan Yufen family heat-exchanging water tank links to each other is provided with magnetic valve; Branch family temperature sensor T1 is set on the thermal-arrest major cycle pipe; Heat-exchanging water tank top, branch family is provided with temperature sensor T3; The bottom is provided with temperature sensor T2, and magnetic valve, temperature sensor T3 and temperature sensor T2 are connected to branch family controller respectively.When the temperature T of major cycle pipe 1 and water tank bottom temperature T 2 temperature difference are higher than 8 when spending, the controller opens magnetic valve, heat-exchanging water tank interior heat exchange coil and major circulatory system in branchs family begins heat exchange, when being lower than 4 when spending, closes magnetic valve.
Preferably, described thermal-arrest backwater circulation pipe comprises thermal-arrest return pipe and heat exchange return pipe, and thermal-arrest return pipe bottom and heat exchange return pipe bottom are connected, and the heat exchange return pipe is communicated with the inner heat exchange coil of each household heat-exchanging water tank.
Preferably, described solar energy system also is provided with long distance control system, and temperature sensor T1, circulating pump, temperature sensor T2, magnetic valve and temperature sensor T3 are connected to long distance control system respectively.
Preferably, described solar energy system also is provided with the gas furnace assisted heating device, and each gas furnace assisted heating device is connected with heat exchange coil through pump with branch family heat-exchanging water tank.
Preferably, said minute family heat-exchanging water tank is the 120L water tank.
Should concentrate collection heat separating user heat-accumulation solar system to control through dual mode.
Control mode one: temperature difference cyclic control system, when the temperature difference (being T1-T3 or T1-T2) when spending greater than 10, the solar energy circulating pump starts, and when the temperature difference is lower than 4 when spending, the solar energy circulating pump stops.In addition, gas furnace fully guarantees the requirement of whole day hot water as assisted heating device.
Control mode two: the constant temperature cyclic control system, when being higher than 55, solar thermal collector group thermal-arrest plate temperature spends, and circulating pump is started working, and spends when temperature is lower than 50, and circulating pump quits work.Such control can utilize effective solar energy temperature to greatest extent, and solar heat is sent in each tame heat-exchanging water tank.
The beneficial effect of the utility model is: this concentrate collection heat separating user heat-accumulation solar system not only energy-conservation, be convenient to management, but also possess functions such as " antitheft heat ", anti-overheated and water tank high temperature protection.
Description of drawings

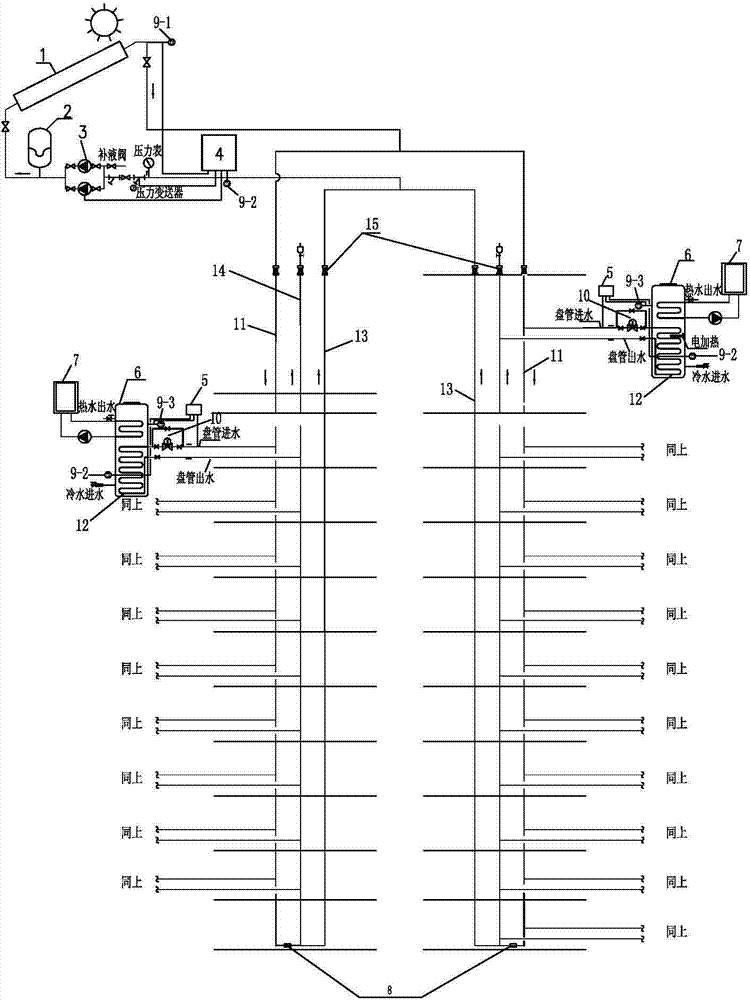

Fig. 1 is the utility model workflow sketch map.
Be denoted as among the figure: 1: solar thermal collector group, 2: expansion tank, 3: circulating pump, 4: long distance control system, 5: controller, 6: branch family heat-exchanging water tank, 7: gas furnace, 8: equilibrated valve, 9-1: branch family temperature sensor T1,9-2: temperature sensor T2,9-3: temperature sensor T3,10: magnetic valve, 11: thermal-arrest major cycle pipe, 12: heat exchange coil, 13: thermal-arrest return pipe, 14: heat exchange return pipe, 15: telescopic joint.
The specific embodiment
Below in conjunction with accompanying drawing, the specific embodiment of the utility model is described further, but the protection of the utility model is not limited to this.
As shown in Figure 1: a kind of concentrated collection heat separating user heat-accumulation solar system; Comprise solar thermal collector group 1, expansion tank 2, circulating pump 3; Described solar thermal collector group 1 connects two groups of thermal-arrest major cycle pipes 11 and thermal-arrest backwater circulation pipe through circulating pump 3; Described thermal-arrest backwater circulation pipe is divided into thermal-arrest return pipe 13 and heat exchange return pipe 14, and thermal-arrest return pipe 13 bottoms and heat exchange return pipe 14 bottoms are connected.Several minutes family heat-exchanging water tank 6 that is connected in parallel between every group of thermal-arrest major cycle pipe 11 and the thermal-arrest backwater circulation pipe, thermal-arrest major cycle pipe 11 is communicated with the inner heat exchange coils 12 of each household heat-exchanging water tanks with heat exchange return pipe 14.Expansion tank 2 is located on the thermal-arrest backwater circulation pipe, and family heat-exchanging water tank 6 was provided with cold water inlet and hot water outlet in said minute.
Branch family temperature sensor T1 9-1 is set on the described thermal-arrest major cycle pipe 11; The branch pipeline that thermal-arrest major cycle Guan Yufen family heat-exchanging water tank 6 links to each other is provided with magnetic valve 10; Heat-exchanging water tank 6 tops, branch family are provided with temperature sensor T3 9-3; The bottom is provided with temperature sensor T2 9-2, and magnetic valve 10, temperature sensor T3 and temperature sensor T2 are connected to branch family controller 5 respectively.Magnetic valve 10 is a closed type, when T1 and the T2 temperature difference are spent greater than 8, opens, and closes when spending less than 4.
Described solar energy system also is provided with long distance control system 4 and gas furnace 7 assisted heating devices, and branch family temperature sensor T1, circulating pump, temperature sensor T2, magnetic valve and temperature sensor T3 are connected to long distance control system respectively.Each gas furnace 7 assisted heating device is connected with heat exchange coil through pump with branch family heat-exchanging water tank 6.
During use, solar thermal collector group 1 absorbs solar energy, is converted into heat energy water is heated; Expansion tank 2 can adapt to the expansion of water, and under the effect of circulating pump 3, hot water gets into and divides family heat-exchanging water tank 6; Be provided with heat exchange coil in the branch family heat-exchanging water tank 6, heat exchange coil and the water generates heat exchange that divides in the family heat-exchanging water tank 6 have heated the water in the branch family heat-exchanging water tank 6; Self temperature reduces, and the water after the cooling leaves from minute family heat-exchanging water tank 6 coil pipe delivery ports, gets back to once more in the solar thermal collector group 1; Divide stored hot water in the heat-exchanging water tank 6 of family, heat-exchanging water tank 6 bottoms, branch family are provided with cold water inlet, and the top is provided with hot water outlet; Can take at any time, also can be at any time from running water moisturizing get into and divide in the family heat-exchanging water tank 6.When the temperature sensor T3 temperature displayed that is positioned at heat-exchanging water tank 6 tops, branch family is lower, in the time of can not satisfying the requiring of user, gas furnace 7 heats the water in minute family heat-exchanging water tank 6 as assisted heating device.
Be respectively equipped with telescopic joint 15 on thermal-arrest major cycle pipe 11, heat exchange return pipe 14, the thermal-arrest return pipe 13, to ensure the safe operation of pipeline.
Heat exchange return pipe 14 is provided with equilibrated valve 8, can guarantee that the pressure reduction of system is constant basically, balance resistance, the hydraulic misadjustment of elimination heat supply network.
Mix phenomenon mutually for avoiding branch family heat-exchanging water tank 6 that heat takes place because of temperature height is uneven, each minute the family can be through control magnetic valve 10 switching to reach " antitheft is hot " function.
The utility model realizes concentrating heat production storage heat separating user to use, and effectively uses heat, does not influence each user and uses, and very suitable cell resident family uses.
Claims (5)
1. concentrate collection heat separating user heat-accumulation solar system for one kind; Comprise solar thermal collector group, expansion tank, circulating pump; It is characterized in that: described solar thermal collector group connects thermal-arrest major cycle pipe and thermal-arrest backwater circulation pipe more than one group through circulating pump; Several minutes family heat-exchanging water tank is connected in parallel between every group of thermal-arrest major cycle pipe and the thermal-arrest backwater circulation pipe; Thermal-arrest major cycle pipe and thermal-arrest backwater circulation pipe are communicated with the inner heat exchange coil of each household heat-exchanging water tank, and expansion tank is located on thermal-arrest major cycle pipe or the thermal-arrest backwater circulation pipe, and the family heat-exchanging water tank was provided with cold water inlet and hot water outlet in said minute; The branch pipeline that described thermal-arrest major cycle Guan Yufen family heat-exchanging water tank links to each other is provided with magnetic valve; Branch family temperature sensor T1 is set on the thermal-arrest major cycle pipe; Heat-exchanging water tank top, branch family is provided with temperature sensor T3; The bottom is provided with temperature sensor T2, and magnetic valve, temperature sensor T3 and temperature sensor T2 are connected to branch family controller respectively.
2. concentrated collection heat separating user heat-accumulation solar according to claim 1 system; It is characterized in that: described thermal-arrest backwater circulation pipe is divided into thermal-arrest return pipe and heat exchange return pipe again; Thermal-arrest return pipe bottom and heat exchange return pipe bottom are connected, and the heat exchange return pipe is communicated with the inner heat exchange coil of each household heat-exchanging water tank.
3. concentrated collection heat separating user heat-accumulation solar according to claim 1 system; It is characterized in that: described solar energy system also is provided with long distance control system, and temperature sensor T1, circulating pump, temperature sensor T2, magnetic valve and temperature sensor T3 are connected to long distance control system respectively.
4. concentrated collection heat separating user heat-accumulation solar according to claim 1 system, it is characterized in that: described solar energy system also is provided with the gas furnace assisted heating device, and each gas furnace assisted heating device is connected with heat exchange coil through pump with branch family heat-exchanging water tank.
5. according to the described concentrated collection heat separating user heat-accumulation solar of right 1 system, it is characterized in that: said minute family heat-exchanging water tank is the 120L water tank.
