本实用新型涉及一种简易式包装袋锯齿痕加工装置，包括工作平台，其特征在于：所述工作平台沿包装袋输料方向上依次设有一对进料滚筒和一对出料滚筒，所述进料滚筒与出料滚筒之间的工作平台上设置有由液压缸驱动的弹性机座，所述弹性机座上连接有可拆解的齿状加工刀具。本实用新型结构简单、实用，很简单便捷地加工出袋体上的锯齿痕，加工效率高，锯齿痕加工质量好。
The utility model relates to a simple packaging bag sawtooth mark processing device, which includes a working platform, and is characterized in that: the working platform is sequentially provided with a pair of feeding rollers and a pair of discharging rollers along the feeding direction of the packaging bag. An elastic base driven by a hydraulic cylinder is arranged on the working platform between the feed drum and the discharge drum, and a detachable tooth-shaped processing tool is connected to the elastic base. The utility model has a simple structure and is practical, can easily and conveniently process the sawtooth marks on the bag body, has high processing efficiency, and has good processing quality of the sawtooth marks.
Description
技术领域 technical field
本实用新型涉及一种简易式包装袋锯齿痕加工装置，属于袋体加工装置。 The utility model relates to a simple packaging bag sawtooth mark processing device, which belongs to the bag body processing device. the
背景技术 Background technique
很多包装袋在使用过程中，为了能更方便的打开，需要设置易撕痕，然而目前的锯齿痕加工过程设备复杂，加工过程繁琐，并且加工的锯齿痕质量较差。因而，针对上述问题是本实用新型的研究目的。 During the use of many packaging bags, in order to be able to open more conveniently, easy tear marks need to be set. However, the current processing equipment for the saw tooth marks is complicated, the processing process is cumbersome, and the quality of the processed saw tooth marks is poor. Thereby, it is the research purpose of the present utility model for the problems referred to above. the
发明内容 Contents of the invention
本实用新型的目的在于提供一种简易式包装袋锯齿痕加工装置，该装置结构简单，袋体锯齿痕加工便捷、高效，且质量佳。 The purpose of the utility model is to provide a simple device for processing sawtooth marks on packaging bags. The device has a simple structure, and the processing of sawtooth marks on the bag body is convenient, efficient and of good quality. the
本实用新型的特征在于：一种简易式包装袋锯齿痕加工装置，包括工作平台，其特征在于：所述工作平台沿包装袋输料方向上依次设有一对进料滚筒和一对出料滚筒，所述进料滚筒与出料滚筒之间的工作平台上设置有由液压缸驱动的弹性机座，所述弹性机座上连接有可拆解的齿状加工刀具。 The utility model is characterized in that: a simple packaging bag sawtooth mark processing device, including a working platform, is characterized in that: the working platform is sequentially provided with a pair of feeding rollers and a pair of discharging rollers along the feeding direction of the packaging bag , the working platform between the feed drum and the discharge drum is provided with an elastic base driven by a hydraulic cylinder, and a detachable toothed processing tool is connected to the elastic base. the
本实用新型的优点：本实用新型结构简单、实用，很简单便捷地加工出袋体上的锯齿痕，加工效率高，锯齿痕加工质量好。 The utility model has the advantages: the utility model has a simple structure and is practical, and can easily and conveniently process the sawtooth marks on the bag body, with high processing efficiency and good processing quality of the sawtooth marks. the
附图说明 Description of drawings

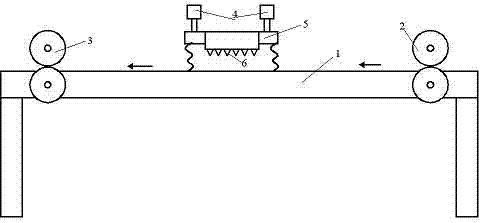

图1为本实用新型实施例结构示意图。 Fig. 1 is a structural schematic diagram of an embodiment of the utility model. the
具体实施方式 Detailed ways
参考图1，一种简易式包装袋锯齿痕加工装置，包括工作平台1，所述工作平台1沿包装袋输料方向上依次设有一对进料滚筒2和一对出料滚筒3，所述进料滚筒2与出料滚筒3之间的工作平台1上设置有由液压缸4驱动的弹性机座5，所述弹性机座5上连接有可拆解的齿状加工刀具6。 Referring to Fig. 1, a simple packaging bag sawtooth mark processing device includes a working platform 1, and the working platform 1 is provided with a pair of feeding rollers 2 and a pair of discharging rollers 3 in sequence along the feeding direction of the packaging bag. An elastic base 5 driven by a hydraulic cylinder 4 is provided on the working platform 1 between the feed drum 2 and the discharge drum 3 , and a detachable toothed machining tool 6 is connected to the elastic base 5 . the
具体实现过程如下：通过进料滚筒把袋体原料传送至出料滚筒，在工作平台上传送的过程中，通过由液压缸驱动的弹性机座下压，从而通过齿状加工刀具加工出锯齿痕，再由出料滚筒把成品输送出来，完成加工过程。 The specific realization process is as follows: the bag body raw material is conveyed to the discharge roller through the feed roller, and in the process of conveying on the working platform, the elastic base driven by the hydraulic cylinder is pressed down, so that the sawtooth marks are processed by the tooth-shaped processing tool , and then the finished product is conveyed out by the discharge roller to complete the processing process. the
