Abstract
The utility model discloses an automatic-clamping mold storage device, which comprises an automatic clamping device and a base, wherein the automatic clamping device is fixedly connected with the base. The automatic clamping device comprises a top plate, a movable clamping plate, a backing plate, a spiral spring and a connecting rod, wherein one end of the spiral spring is fixedly connected with the top plate, the other end of the spiral spring is fixedly connected with the movable clamping plate, the backing plate is placed on the base in a sticking manner, a clamping area for a mold is formed between the movable clamping plate and the backing plate, the top plate, the movable clamping plate, the backing plate and the base are provided with through holes corresponding to the spiral spring, and the connecting rod is arranged in the through holes and the spiral spring in penetrating manner. The automatic-clamping mold storage device has the advantages of simplicity, convenience and safety in storage of the mold, capability of moving along with the mold, simple structure, and convenience in operation. The automatic-clamping mold storage device is suitable for storing cold stamping molds.
Description
Technical field
The utility model relates to a kind of storing unit of mould, and more particularly, the utility model relates to a kind of automatic clamped-in style mold storing device.
Background technology
Mould is the plate shaping instrument, have precision height, quality big, deposit characteristics such as requiring height.At present; Most of automobile main frame maker and mould factory's mold storing adopt tie plate, need move sleeper during mold storing, and complicated operation is time-consuming; There is the potential safety hazard of wounding and weighing wounded; And sleeper is prone to humidity aging, and load bearing stength reduces rapidly thereupon, has increased the potential safety hazard to operating personnel and mold storing.Also have part automobile main frame maker and mould factory to adopt fixing storing unit to deposit mould, but existing mold storing apparatus structure is complicated, and can not moves with mould, operation is very inconvenient.
Like the Chinese patent Granted publication number is CN 201752885 U, and Granted publication day is the patent application case of 2011-03-02, discloses a kind of mold storing device; Comprise die frame, drawer frame and the guide rail processing assembly of being made up of guide rail body and guide rail cushion block, described die frame is the frame structure that is formed by fixedly connecting to angle bar in length and breadth, the guide rail processing assembly be fixed in die frame in length and breadth to the angle bar junction; But the drawer structure of the push-and-pull that drawer frame is employing angle steel and steel plate to be welded which is provided with wheel shaft, can on the guide rail processing assembly, move; Though this device can be left mould messy, that stack concentratedly,, its weak point is; Complex structure; In the mould carrying, when moving, can not move with mould, deposit operation is inconvenient.
The utility model content
The purpose of the utility model is to overcome most of automobile main frame maker and mould factory to deposit mould and adopt tie plate; The deposit operation complicacy is time-consuming; And there are the deficiency of the potential safety hazard of wounding and weighing wounded and the mold storing apparatus structure complicacy of prior art; In mould carrying, when moving, the deficiency that can not move with mould, provide a kind of simple in structure, can move, deposit easy, safe automatic clamped-in style mold storing device with mould.
In order to solve the problems of the technologies described above, the utility model takes following technical proposals to be achieved: a kind of automatic clamped-in style mold storing device, comprise automatic clamping device and base, and said automatic clamping device is fixedly connected with base.The design of the utility model has changed the location mode of original mould; Completely abolished sleeper, this device can be placed on the relevant position, ground, when depositing mould; Operating personnel directly are placed on this device with mould and upward get final product; Eliminated the potential safety hazard of deposit operation, when moving, this device can move with mould.
As preferably; Said automatic clamping device comprises top board, ambulatory splint, backing plate, helical spring and connecting rod, and a said helical spring end is fixedly connected with top board, and the other end is fixedly connected with ambulatory splint; Said backing plate pastes and is placed on the base; Constitute the clamp area of mould between ambulatory splint and the backing plate, be provided with through hole with the helical spring corresponding position on said top board, ambulatory splint, backing plate and the base, said connecting rod is located in said through hole and the helical spring.Mold storing and under helical spring effect, is fixed on mould holding between ambulatory splint and the backing plate between ambulatory splint and backing plate; The weight of mould is passed to ground through base; Realize safe fixation, described through hole is used to wear connecting rod, and connecting rod plays guiding, positioning action.
As preferably, the upper end of said connecting rod is fixedly connected with top board, and the lower end is fixedly connected with base.The connecting rod of this kind structure can play the guiding role when depositing mould, with the accurate fixation of mould on the backing plate of automatic clamping device.
As preferably, the two ends of said connecting rod are provided with screw thread, and the upper end of connecting rod is threaded with baffle plate, top board, and described baffle plate and top board stack from top to bottom, and the lower end of connecting rod is connected with whorl of base.This is simple in structure, and easy mounting is easy to operate.
As preferably, said base adopts high-strength engineering plastic to process.The intensity of engineering plastics is high, environmental sensitivity is low, has so just increased the security of mold storing.
As preferably, said automatic clamped-in style mold storing device size is by the size decision of mould.Can make the storing unit of different size according to the size of mould.
The beneficial effect of the utility model is:
1. deposit easy, the safety of mould.
2. can move with mould.
3. simple in structure, easy to operate.
Description of drawings

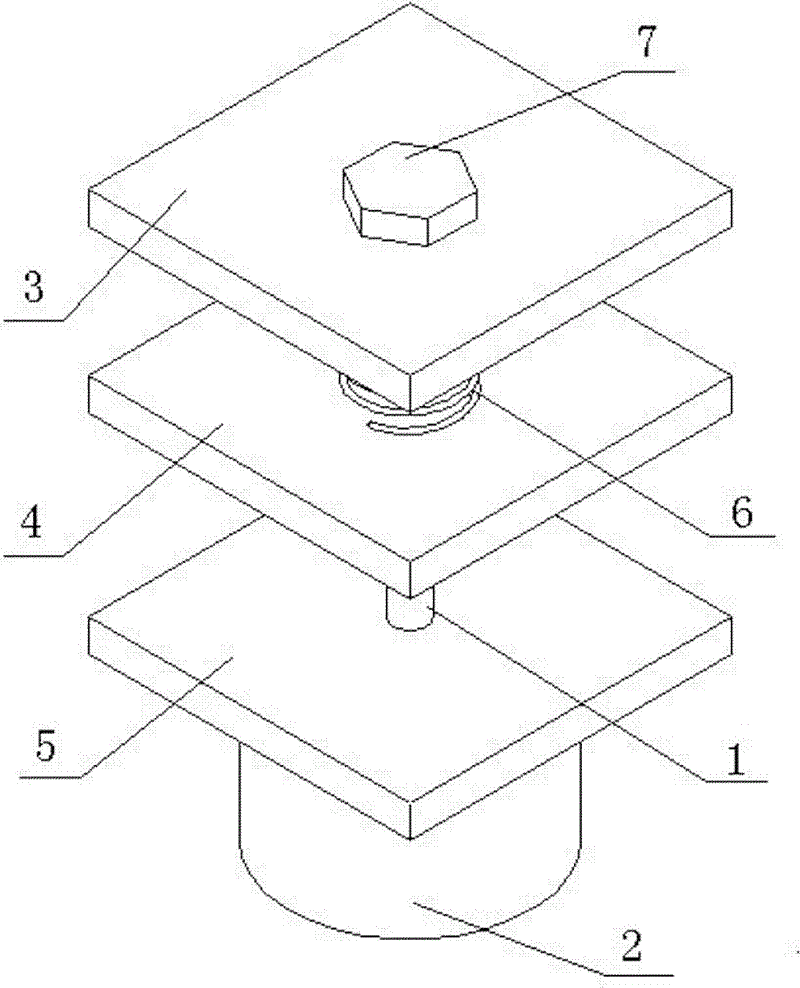

Fig. 1 is a kind of structural representation of the utility model;
Fig. 2 is a kind of front view of the utility model;
Fig. 3 is the vertical view of Fig. 2;
Among the figure: connecting rod 1 base 2 top boards 3 ambulatory splints 4 backing plates 5
The specific embodiment
Describe in further detail below in conjunction with accompanying drawing and specific embodiment technical scheme the utility model:
Embodiment:
Fig. 1, Fig. 2 and embodiment illustrated in fig. 3 in; A kind of automatic clamped-in style mold storing device comprises automatic clamping device and cylindrical base 2, and said automatic clamping device comprises top board 3, ambulatory splint 4, backing plate 5, helical spring 6 and connecting rod 1; One end of said helical spring 6 is fixedly connected with top board 3; The other end is fixedly connected with ambulatory splint 4, and said backing plate 5 pastes and is placed on the cylindrical base 2, constitutes the clamp area of mould between ambulatory splint 4 and the backing plate 5; Be provided with through hole with helical spring 6 corresponding positions on said top board 3, ambulatory splint 4, backing plate 5 and the base 2, top board 3, ambulatory splint 4, backing plate 5 structure that is square; Said connecting rod 1 is located in said through hole and the helical spring 6; The two ends of connecting rod 1 are provided with screw thread, and connecting rod 1 upper end is threaded with baffle plate 7, top board 3, and baffle plate 7, top board 3 stack from top to bottom; Baffle plate 7 is the tabular structure of hexagon, and connecting rod 1 lower end is threaded with base 2; Said base 2 adopts high-strength engineering plastic to process.
When using the automatic clamped-in style mold storing device of present embodiment; Only need mould U type groove is stuck between ambulatory splint 4 and the backing plate 5; Under the effect of helical spring 6, it is gripped; This device size confirms that according to the mould size deposit operation is convenient, safety, and this device can move with mould.
Above embodiment is only unrestricted in order to the technical scheme of explanation the utility model; The technical scheme of the utility model is made amendment or is equal to replacement; And do not break away from the spirit and the scope of the utility model technical scheme, all should be encompassed in the middle of the claim scope of the utility model.
Claims (6)
1. an automatic clamped-in style mold storing device is characterized in that, comprises automatic clamping device and base (2), and said automatic clamping device is fixedly connected with base (2).
2. automatic clamped-in style mold storing device according to claim 1; It is characterized in that; Said automatic clamping device comprises top board (3), ambulatory splint (4), backing plate (5), helical spring (6) and connecting rod (1); One end of said helical spring (6) is fixedly connected with top board (3); The other end is fixedly connected with ambulatory splint (4), and said backing plate (5) pastes and is placed on the base (2), constitutes the clamp area of mould between ambulatory splint (4) and the backing plate (5); Said top board (3), ambulatory splint (4), backing plate (5) and base (2) are gone up and helical spring (6) corresponding position is provided with through hole, and said connecting rod (1) is located in said through hole and the helical spring (6).
3. automatic clamped-in style mold storing device according to claim 2 is characterized in that the upper end of said connecting rod (1) is fixedly connected with top board (3), and the lower end is fixedly connected with base (2).
4. according to claim 2 or 3 described automatic clamped-in style mold storing devices; It is characterized in that; The two ends of said connecting rod (1) are provided with screw thread; The upper end of connecting rod (1) is threaded with baffle plate (7), top board (3), and said baffle plate (7) and top board (3) stack from top to bottom, and the lower end of connecting rod (1) is threaded with base (2).
5. automatic clamped-in style mold storing device according to claim 4 is characterized in that, said base (2) adopts high-strength engineering plastic to process.
6. automatic clamped-in style mold storing device according to claim 5 is characterized in that, said automatic clamped-in style mold storing device size is by the size decision of mould.
