Abstract
The utility model provides a 2U (2-unit) cabling rack, and belongs to the field of wire cable installation devices. The cabling rack structurally comprises a positioning plate and installation plates, wherein the installation plates are arranged at two ends of the positioning plate; the positioning plate is rectangular; the two ends of the positioning plate are respectively provided with a connecting plate, one end of each connecting plate is vertical to the positioning plate, and the other end of each connecting plate is vertically connected with the installation plates; the middle part of the positioning plate is sequentially provided with square through holes; the front side edge and the rear side edge of the positioning plate are respectively provided with a positioning sheet; the lower parts of the positioning sheets are vertical to the positioning plate; and the lower ends of the positioning sheets at the same side are connected in an end-to-end way. Compared with the prior art, the cabling rack has the characteristics of reasonable design, simple structure, convenience for using, reliability for installation and the like.
Description
Technical field
The utility model relates to a kind of cable erecting device, specifically a kind of 2U chute.
Background technique
Chute is that machine room is used for the equipment of cabling specially, fingering go into behind the machine room of telecommunications, Netcom, broadcasting and TV through chute cloth give out light, cable gets into terminal equipment, is used for the shelf that colligation light, cable are used.More cable is generally arranged in the 2u server, just make that layout is more mixed and disorderly, and make server maintenance comparatively difficult if arbitrarily put.Cable is positioned in the chute just can well addresses this is that, but existing chute mostly structure is comparatively heavy, cable is installed reliable inadequately, aesthetics is not strong.
Summary of the invention
The technical assignment of the utility model is the deficiency to existing technology, and a kind of reasonable in design, 2U chute that using effect is good is provided.
The utility model solves the technological scheme that its technical problem adopted: comprise positioning plate and mounting plate; Mounting plate is arranged on the two ends of positioning plate; Said positioning plate is rectangle, said positioning plate two ends be respectively arranged with connecting plate and with its vertical setting of one of which end, the connecting plate the other end is connected with mounting plate is vertical; Said positioning plate middle part is disposed with square through hole; Dual-side is respectively arranged with location piece before and after the said positioning plate, and the location piece bottom is vertical with positioning plate to be provided with, and the location piece lower end of the same side joins end to end and connects.
Laterally arrange between positioning plate and the mounting plate.
Mounting plate is provided with screw, and the location piece bottom is provided with through hole.
The square through hole position that is connected with location piece is corresponding.
A kind of 2U chute of the utility model compared with prior art, the beneficial effect that is produced is:
Have reasonable in design, simple in structure, easy to use, function admirable, characteristics such as weight is little, user cost is low, practicality, operate comparatively simply, cable can't be come off in chute inside, it is attractive in appearance and reliable to have guaranteed that well cable is installed.
Description of drawings

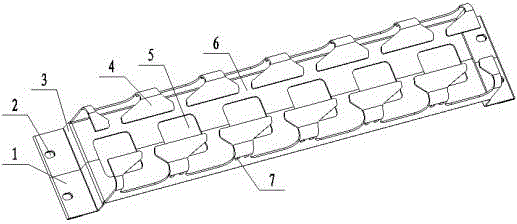

Accompanying drawing 1 is the structural representation of the utility model.
Among the figure: 1, mounting plate, 2, screw, 3, connecting plate, 4, location piece, 5, square through hole, 6, positioning plate, 7, through hole.
Embodiment
Below in conjunction with accompanying drawing the utility model is done following the detailed description.
Shown in accompanying drawing, a kind of 2U chute of the utility model, its structure comprises positioning plate 6 and mounting plate 1; Mounting plate 1 is arranged on the two ends of positioning plate 6; Said positioning plate 6 is rectangle, said positioning plate 6 two ends be respectively arranged with connecting plate 3 and with its vertical setting of one of which end, connecting plate 3 the other ends and 1 vertical being connected of mounting plate; Said positioning plate 6 middle parts are disposed with square through hole 5; Said positioning plate 6 front and back dual-sides are respectively arranged with location piece 4, location piece 4 bottoms and positioning plate 6 vertical settings, and location piece 4 lower ends of the same side join end to end and connect.
Laterally arrange between positioning plate 6 and the mounting plate 1.Two screws 2 are set on mounting plate 1, utilize screw that this chute is installed in the server.Location piece 4 bottoms are provided with through hole 7.Square through hole 5 position that is connected with location piece 4 is corresponding.
A kind of its processing and fabricating of 2U chute of the utility model is simple and convenient, and processing and fabricating gets final product shown in the by specification accompanying drawing.
Except that the described technical characteristics of specification, be this professional workforce's known technology.
Claims (4)
1. a 2U chute comprises positioning plate and mounting plate, and mounting plate is arranged on the two ends of positioning plate; It is characterized in that said positioning plate is rectangle, said positioning plate two ends be respectively arranged with connecting plate and with its vertical setting of one of which end, the connecting plate the other end is connected with mounting plate is vertical; Said positioning plate middle part is disposed with square through hole; Dual-side is respectively arranged with location piece before and after the said positioning plate, and the location piece bottom is vertical with positioning plate to be provided with, and the location piece lower end of the same side joins end to end and connects.
2. a kind of 2U chute according to claim 1 is characterized in that laterally arranging between positioning plate and the mounting plate.
3. a kind of 2U chute according to claim 1 is characterized in that mounting plate is provided with screw, and the location piece bottom is provided with through hole.
4. a kind of 2U chute according to claim 1 is characterized in that the square through hole position that is connected with location piece is corresponding.
