Abstract
一种太阳能手电，包括灯头和灯杆，灯头螺纹连接在灯杆前端，灯杆表面铺设太阳能电池板，太阳能电池板的输出端与灯头内的蓄电池相连，蓄电池与灯头前端的灯泡及侧面的开关组成串联电路，灯杆后端向内开设插槽，延伸杆与插槽内的滑道滑动连接，延伸杆内部设有灯泡，灯泡与蓄电池及开关相连，延伸杆一侧设有透明灯罩。本实用新型结构简单，使用方便，节能环保，适用于集中照明及大面积照明，适用范围广。
A solar flashlight, including a lamp holder and a lamp post. The lamp holder is threadedly connected to the front end of the lamp post, and a solar panel is laid on the surface of the lamp post. The output end of the solar panel is connected to the battery in the lamp holder, and the battery is connected to the light bulb at the front end of the lamp holder and the switch on the side. To form a series circuit, the rear end of the light pole is provided with a slot inward, the extension pole is slidably connected with the slideway in the slot, a light bulb is arranged inside the extension pole, the light bulb is connected with a battery and a switch, and a transparent lampshade is provided on one side of the extension pole. The utility model has the advantages of simple structure, convenient use, energy saving and environmental protection, is suitable for centralized lighting and large-area lighting, and has a wide application range.
Description
技术领域 technical field
本实用新型涉及一种照明设备。 The utility model relates to a lighting device.
背景技术 Background technique
手电是人们常用的照明设备之一，特别是晚间光线暗淡时，为人们提供必要的照明，但是现有的手电普遍采用电池供电，一旦电量不足，将影响正常使用，给人们带来不便。 Flashlight is one of lighting equipment commonly used by people, especially when the light is dim at night, it provides necessary lighting for people. However, existing flashlights are generally powered by batteries. Once the power is insufficient, normal use will be affected and inconvenience will be brought to people.
发明内容 Contents of the invention
本实用新型的目的克服了上述所说的不足，提供了一种使用方便，节能环保，适用于集中照明及大面积照明的太阳能手电。 The purpose of the utility model overcomes the above-mentioned deficiencies, and provides a solar flashlight which is easy to use, energy-saving and environment-friendly, and suitable for centralized lighting and large-area lighting.
本实用新型解决其技术问题所采用的技术方案是：一种太阳能手电，包括灯头和灯杆，灯头螺纹连接在灯杆前端，灯杆表面铺设太阳能电池板，太阳能电池板的输出端与灯头内的蓄电池相连，蓄电池与灯头前端的灯泡及侧面的开关组成串联电路，灯杆后端向内开设插槽，延伸杆与插槽内的滑道滑动连接，延伸杆内部设有灯泡，灯泡与蓄电池及开关相连，延伸杆一侧设有透明灯罩。 The technical scheme adopted by the utility model to solve the technical problems is: a solar flashlight, including a lamp holder and a lamp post, the lamp holder is threadedly connected to the front end of the lamp post, a solar panel is laid on the surface of the lamp post, and the output end of the solar panel is connected to the inside of the lamp holder. The battery is connected to the battery, the battery is connected with the light bulb at the front end of the lamp head and the switch on the side to form a series circuit, the rear end of the light pole is provided with a slot inward, the extension pole is slidingly connected with the slideway in the slot, the inside of the extension pole is provided with a light bulb, and the light bulb is connected to the battery It is connected with the switch, and a transparent lampshade is arranged on one side of the extension rod.
平时灯杆表面的太阳能电池板吸收光能并将其转化成电能储存在蓄电池内，晚间光线暗淡时，接通灯头内灯泡的串联电路，光束通过灯头向外集中照射，便于照亮前方道路，需要大面积照明时，可将延伸杆从灯杆内滑出，接通其内照明电路，便于大面积照明，可作为吊灯或台灯使用。 Usually, the solar panel on the surface of the light pole absorbs light energy and converts it into electrical energy and stores it in the battery. When the light is dim at night, connect the series circuit of the light bulb in the lamp head, and the light beam is irradiated outward through the lamp head, which is convenient for illuminating the road ahead. When large-area lighting is required, the extension pole can be slid out from the light pole to connect the internal lighting circuit, which is convenient for large-area lighting and can be used as a chandelier or table lamp.
本实用新型与现有技术相比具有如下优点：结构简单，使用方便，节能环保，适用于集中照明及大面积照明，适用范围广。 Compared with the prior art, the utility model has the following advantages: simple structure, convenient use, energy saving and environmental protection, suitable for centralized lighting and large-area lighting, and wide application range.

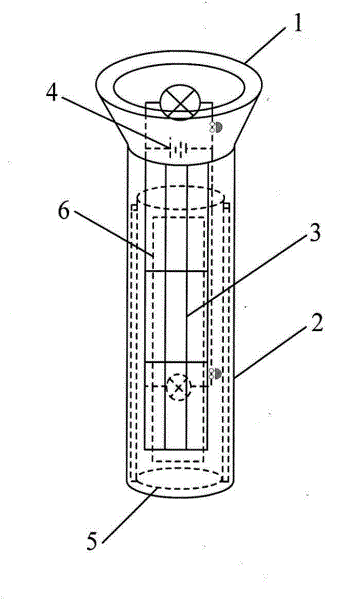

附图说明 图1是本实用新型的立体示意简图。 BRIEF DESCRIPTION OF THE DRAWINGS FIG. 1 is a three-dimensional schematic diagram of the utility model.
具体实施方式 在图1所示的本实用新型的立体示意简图中，包括灯头1和灯杆2，灯头1螺纹连接在灯杆2前端，灯杆2表面铺设太阳能电池板3，太阳能电池板3的输出端与灯头1内的蓄电池4相连，蓄电池4与灯头1前端的灯泡及侧面的开关组成串联电路，灯杆2后端向内开设插槽，延伸杆5与插槽内的滑道滑动连接，延伸杆5内部设有灯泡，灯泡与蓄电池4及开关相连，延伸杆5一侧设有透明灯罩6。 DETAILED DESCRIPTION OF THE PREFERRED EMBODIMENTS In the three-dimensional schematic diagram of the utility model shown in FIG. 1 , it includes a lamp cap 1 and a light pole 2. The lamp cap 1 is threadedly connected to the front end of the light pole 2. The surface of the light pole 2 is laid with a solar cell panel 3, and the solar cell panel The output terminal of 3 is connected with the battery 4 in the lamp holder 1, the battery 4 forms a series circuit with the light bulb at the front end of the lamp holder 1 and the switch on the side, the rear end of the light pole 2 opens a slot inward, and the extension rod 5 connects with the slideway in the slot Slidingly connected, a bulb is arranged inside the extension rod 5, and the bulb is connected to the battery 4 and the switch, and a transparent lampshade 6 is arranged on one side of the extension rod 5.
