Abstract

一种半自动潜水衣衣缝涂胶机，包括工作台面以及安装于工作台面上的横臂，在横臂上设置有垂直向下移动的下压连杆，下压连杆下端部设置有压紧轮以及向衣缝释放胶水的出胶头，在工作台面上设置有与压紧轮对应的送料驱动轮，送料驱动轮通过电机驱动。与现有的手工涂胶方式相比，本实用新型可大幅度降低作业者劳动强度，提高涂胶速度，提高生产效率，减小人力成本以及产品成本，提高产品利润率。并且采用本实用新型设备产品制作过程降低了对作业者技能的要求，更能保证胶水涂布的均匀性，提高产品的质量，也提高了整个产品合格率以及产品质量的稳定性，进一步保证了潜水人员的人身安全。

Figure 201120353961

A semi-automatic wetsuit seam gluing machine, including a worktable and a cross arm installed on the worktable, a downward-pressing connecting rod that moves vertically downward is arranged on the cross-arm, and a pressing rod is provided at the lower end of the downward-pressing connecting rod. The wheel and the glue outlet head that releases glue to the seam are provided with a feeding drive wheel corresponding to the pressing wheel on the worktable, and the feeding drive wheel is driven by a motor. Compared with the existing manual gluing method, the utility model can greatly reduce the labor intensity of operators, increase the gluing speed, improve production efficiency, reduce labor costs and product costs, and increase product profit margins. Moreover, the production process of the equipment of the utility model reduces the requirements for the skills of the operators, can better ensure the uniformity of glue coating, improve the quality of the product, and also improve the pass rate of the entire product and the stability of the product quality, further ensuring Personal safety of divers.

Figure 201120353961

Description

A kind of semi-automatic diving clothes seam glue spreader
Technical field
The utility model relates to the diving suit making apparatus, specifically a kind of semi-automatic diving clothes seam glue spreader.
Background technology
Because of diving has certain danger, and though therefore when diving under water special-purpose diving suit from material still the clothing seam sew up and require all very strictness.Wherein, for diving clothes seam is sewed up, need be at clothing seam place first spreading glue, and then mediate, compress at last, the clothing seam is bonded together fully.In the prior art, smearing, mediate and compressing of glue is manual operations, and labour intensity is big, and efficient is low, and handwork is high to the requirement of operator's technical ability, poor stability, and the uniformity that is difficult to ensure the quality of products makes the entire product cost of manufacture high.
The utility model content
In view of this, the utility model technical problem that will solve provides the semi-automatic diving clothes seam glue spreader that a kind of production efficiency is high, glue application is effective.
In order to solve the problems of the technologies described above, the utility model adopts following mode to realize:
A kind of semi-automatic diving clothes seam glue spreader; Comprise work top and be installed on the transverse arm on the work top; Transverse arm is provided with the connecting rod that presses down that moves vertically downward; Press down the connecting rod bottom and be provided with contact roller and stitch the glue-spreading head that discharges glue to clothing, work top is provided with the feeding driving wheel corresponding with contact roller, and the feeding driving wheel passes through motor-driven.
As the improvement to such scheme, the described connecting rod that presses down is fixed on the transverse arm through slide rail, presses down connecting rod and realizes knee-action through air cylinder driven.
As the further improvement to such scheme, described glue-spreading head is communicated with the rubber-storing cylinder of a storage glue, and rubber-storing cylinder is provided with the controlling organization of control glue-spreading head gel quantity.Wherein, Described controlling organization comprises that an end is movably installed in the piston that presses down the handle that can swing up and down on connecting rod or the rubber-storing cylinder and be installed on the rubber-storing cylinder middle and upper part; Be stored in glue in the rubber-storing cylinder and be arranged in the rubber-storing cylinder space of piston below; Piston is connected with handle, moves down speed and amplitude through the handle control piston.
As the further improvement to such scheme, described contact roller and the less formation annular groove of feeding driving wheel middle part diameter, the bigger formation of two ends diameter compress the convex ring of diving suit cloth.
Compare with existing manual gluing mode, the utility model can reduce operator's labour intensity significantly, improves gluing speed, enhances productivity, and reduces human cost and product cost, improves the product profit rate.And adopt the utility model device product manufacturing process to reduce requirement to operator's technical ability; More can guarantee the uniformity of glue application; Improve the quality of product, also improved the stability of entire product qualification rate and product quality, further guaranteed diving personnel's personal safety.
Description of drawings

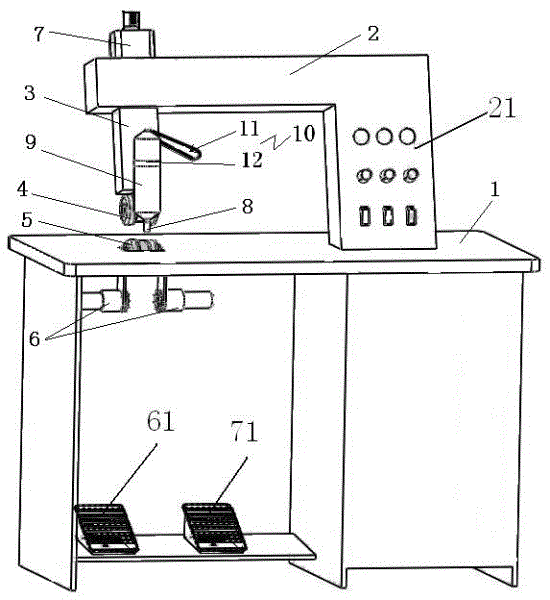

Fig. 1 is the utility model example structure sketch map.
The specific embodiment
Defective to prior art exists below will combine accompanying drawing describing in further detail the utility model for the ease of it will be appreciated by those skilled in the art that:
The semi-automatic diving clothes seam glue spreader that present embodiment discloses is used for the spreading glue at diving clothes seam place, mediates for follow-up cloth clothing seam and prepares.
Shown in accompanying drawing 1; The semi-automatic diving clothes seam glue spreader of this programme design comprises work top 1 and is installed on the transverse arm 2 on the work top 1; Transverse arm 2 be provided with vertically downward move press down connecting rod 3; This presses down connecting rod 3 and is fixed on the transverse arm 2 through slide rail, and drives the realization knee-action through cylinder 7.Pressing down the glue-spreading head 8 that connecting rod 3 bottoms are provided with contact roller 4 and stitch release glue to clothing, the rubber-storing cylinder 9 of this glue-spreading head 8 and a storage glue is communicated with, and rubber-storing cylinder 9 is provided with the controlling organization 10 of control glue-spreading head 8 gel quantities.Work top 1 is provided with the feeding driving wheel 5 corresponding with contact roller 4, and feeding driving wheel 5 drives through motor 6.
In the present embodiment; The controlling organization 10 that is adopted comprises that an end is movably installed in the piston 12 that presses down the handle 11 that can swing up and down on connecting rod 3 or the rubber-storing cylinder 9 and be installed on rubber-storing cylinder 9 middle and upper parts; Be stored in glue in the rubber-storing cylinder 9 and be arranged in rubber-storing cylinder 9 spaces of piston 12 belows; Piston 12 is connected with handle 11, when handle 11 bottoms, but speed that control piston 12 moves down and amplitude; Thereby the gel quantity of control glue-spreading head 8 certain hours, this gel quantity can drive down translational speed and the requirement of this cloth clothing seam place coating glue quantity is decided at feeding driving wheel 5 according to cloth.
In order to make cloth shift action and coating glue coordination, guarantee that glue is coated with at clothing seam place evenly, the bulge loop that compresses that above-mentioned contact roller 4 and the less formation annular groove of feeding driving wheel 5 middle part diameters, the bigger formation of two ends diameter compress the diving suit cloth.
For the ease of control cylinder 7, below work top 1, be provided with and compress floor push 71, for the ease of the speed that the control cloth moves, below work top 1, also be provided with the speed governing floor push 61 of control motor 6 rotating speeds.For the ease of entire equipment is controlled, be provided with control panel 21 in front, transverse arm 2 bottom, be furnished with the total control switch of control entire equipment electric power break-make and the button of other manipulation function on the control panel.
During work, at first two clothes of glue to be coated are positioned in the middle of the feeding driving wheel 5, and make two clothes lay respectively on the feeding driving wheel 5 two to compress on the convex ring through manual operations; Make through cylinder 7 then and press down connecting rod 3 and glue-spreading head 8 moves down; And the convex ring that compresses on the contact roller 4 is alignd with the convex ring that compresses on the feeding driving wheel 5, and cloth is pressed in compresses between the convex ring, glue-spreading head 8 is positioned near directly over the cloth clothing seam; Open motor 6 then; Motor 6 drives 5 rotations of feeding driving wheel, makes the cloth slit slowly through the slit between contact roller 4 and the feeding driving wheel 5, simultaneously; Flow out from rubber-storing cylinder 9 through handle 11 control glue, glue is evenly coated in the cloth slit.In this process, contact roller 4 also rotates along with moving of cloth, and its velocity of rotation and feeding driving wheel 5 basically identicals have guaranteed that the smooth and easy and cloth clothing that cloth moves sews on the stressed unanimity of lower surface.
The above embodiment has only expressed the embodiment of the utility model, and it describes comparatively concrete and detailed, but can not therefore be interpreted as the restriction to the utility model claim.Should be noted that; For the person of ordinary skill of the art; Not breaking away under the prerequisite of the utility model design, can also make some distortion and improvement, as press down mode that connecting rod drives etc. and all can adjust according to actual needs; Be adjusted into motor-driven etc. such as air cylinder driven, these all belong to the protection domain of the utility model.

Claims (5)

1.一种半自动潜水衣衣缝涂胶机，其特征在于，包括工作台面（1）以及安装于工作台面上的横臂（2），在横臂上设置有垂直向下移动的下压连杆（3），下压连杆下端部设置有压紧轮（4）以及向衣缝释放胶水的出胶头（8），在工作台面上设置有与压紧轮对应的送料驱动轮（5），送料驱动轮通过电机（6）驱动。 1. A semi-automatic diving suit seam gluing machine, characterized in that it includes a worktable (1) and a cross arm (2) installed on the worktable, and a downward pressure connection that moves vertically downwards is arranged on the cross arm. Rod (3), the lower end of the pressing link is provided with a pinch wheel (4) and a glue outlet (8) for releasing glue to the seam, and a feeding drive wheel (5) corresponding to the pinch wheel is set on the worktable. ), the feeding drive wheel is driven by the motor (6). 2.根据权利要求1所述的半自动潜水衣衣缝涂胶机，其特征在于：所述的下压连杆通过滑轨固定于横臂上，下压连杆通过气缸（7）驱动实现上下动作。 2. The semi-automatic diving suit seam gluing machine according to claim 1, characterized in that: the down-pressing connecting rod is fixed on the cross arm through the slide rail, and the down-pressing connecting rod is driven by the cylinder (7) to realize up and down action. 3.根据权利要求2所述的半自动潜水衣衣缝涂胶机，其特征在于：所述的出胶头与一存储胶水的储胶筒（9）连通，在储胶筒上设置有控制出胶头出胶量的控制机构（10）。 3. The semi-automatic gluing machine for wetsuit seams according to claim 2, characterized in that: the glue outlet head communicates with a glue storage tank (9) for storing glue, and a control outlet is arranged on the glue storage tank. A control mechanism (10) for the glue output of the glue head. 4.根据权利要求3所述的半自动潜水衣衣缝涂胶机，其特征在于：所述的控制机构包括一端部活动安装于下压连杆或储胶筒上可上下摆动的手柄（11）以及安装于储胶筒中上部的活塞（12），存储于储胶筒中的胶水位于活塞下方的储胶筒空间中，活塞与手柄连接，通过手柄控制活塞下移速度以及幅度。 4. The semi-automatic diving suit seam gluing machine according to claim 3, characterized in that: the control mechanism includes a handle (11) that is movably mounted on the downward pressure connecting rod or the rubber storage cylinder and can swing up and down And the piston (12) installed in the middle and upper part of the rubber storage cylinder. The glue stored in the rubber storage cylinder is located in the space of the rubber storage cylinder below the piston. The piston is connected to the handle, and the speed and range of the piston's downward movement are controlled by the handle. 5.根据权利要求1～4中任一项所述的半自动潜水衣衣缝涂胶机，其特征在于：所述的压紧轮和送料驱动轮中部直径较小形成环形凹槽、两端直径较大形成压紧潜水衣布料的压紧凸形环。 5. The semi-automatic diving suit seam gluing machine according to any one of claims 1 to 4, characterized in that: the diameter of the middle part of the pressing wheel and the feeding driving wheel is small to form an annular groove, and the diameter of both ends is small. The larger forms a compression male loop that compresses the wetsuit fabric.
