Abstract
The utility model discloses a solar energy greenhouse flower stand which comprises a stand body, wherein the stand body comprises stand walls and a ceiling which are made of glasses; a water storage tank and a timing watering device mounted at a water outlet of the water storage tank are arranged in the stand body; the ceiling is aslant arranged, and a solar panel is arranged on the outer surface of the ceiling; a battery connected with the solar panel is fixed on the inner surface of the stand walls; and the output terminal of the battery is electrically connected with the timing watering device. According to the flower stand provided by the utility model, flowers in the stand can be watered automatically, regularly and quantificationally, so that the management is convenient; and moreover, solar energy can be converted into electrical energy to supply power for facilities in the greenhouse flower stand, so that the purposes of green, energy conservation and environmental friendliness are achieved.
Description
Technical field
The utility model relates to the horticultural facility technical field, is specifically related to a kind of greenhouse flower stand.
Background technology
The greenhouse is can printing opacity, insulation, is used for the facility of cultivated plant.In the season of unsuitable plant growing, can be provided breeding time and increase output, be used for plant cultivation such as low temperature season warm season vegetable, flowers, forest more or grow seedlings etc.Flowers in the greenhouse flower stand need manage with delicacy; In flowers are cultured; The flowers that have possibly need special concern, but the person of growing flower can not be to its scrupulous care, for example under the too busy situation; Some flowers need be watered at regular time and quantity, and the person of growing flower maybe forgetting waters causes flowers lack of water even withered because have much to do.In addition, common power is all adopted in electricity consumption in the existing greenhouse flower stand, and in the long run/term, the common power power supply cost is too high, and comparing the isolated area, need set up power line earlier, and is very inconvenient, and hazardous.
Summary of the invention
The utility model technical problem to be solved is: a kind of solar energy greenhouse flower stand is provided, has realized that self-timing quantitatively waters to the flowers in the flower stand, be convenient to management; And utilize conversion of solar energy to supply power for the facility in the greenhouse flower stand, accomplished green, energy-saving and environmental protection for electric energy.
For solving the problems of the technologies described above, the technical scheme of the utility model is: the solar energy greenhouse flower stand, comprise the canopy body, and canopy wall and ceiling that said canopy body is processed by glass constitute, wherein:
In said canopy body, be provided with storage tank and the timing watering device that is installed on the delivery port of storage tank;
Said ceiling favours the horizontal plane setting, is provided with solar panel at the outer surface of said ceiling, is fixed with the accumulator that is connected with said solar panel at the inner surface of said canopy wall, and the output of said accumulator is electrically connected with said timing watering device.
As a kind of optimized technical scheme, at the inner surface of said canopy wall or ceiling illuminating lamp is installed, the output of said accumulator is electrically connected with said illuminating lamp.
As a kind of optimized technical scheme, the angle of said ceiling and horizontal plane is 13～15 degree.
After having adopted technique scheme, the beneficial effect of the utility model is:
1. the solar energy greenhouse flower stand of the utility model, canopy wall and ceiling that the canopy body is processed by glass constitute, and have reached the purpose of transparent heat insulating, are used for low temperature season and like warm flower cultivation or grow seedlings etc.The ceiling of canopy body favours the horizontal plane setting, is provided with solar panel at the outer surface of ceiling, is fixed with the accumulator that is connected with solar panel at the inner surface of canopy wall.On sunny daytime, solar panel is an electric energy with conversion of solar energy, stores in the accumulator, and the electricity consumption facility in the flower stand is connected with accumulator, and green, energy-saving and environmental protection have been accomplished in the electric energy electricity supply and use equipment operation of accumulators store.
2. in the canopy body, be provided with storage tank and the timing watering device that is installed on the delivery port of storage tank, the output of accumulator and timing watering device electrically connect as timing watering device and supply power.Give regularly pre-set time of watering of sprinkler and pattern, just can water automatically, solved the person of growing flower because busy and forget the problem of watering, convenient management to the flowers that need in the flower stand to pay close attention to.
Description of drawings
Below in conjunction with accompanying drawing and embodiment the utility model is further specified.

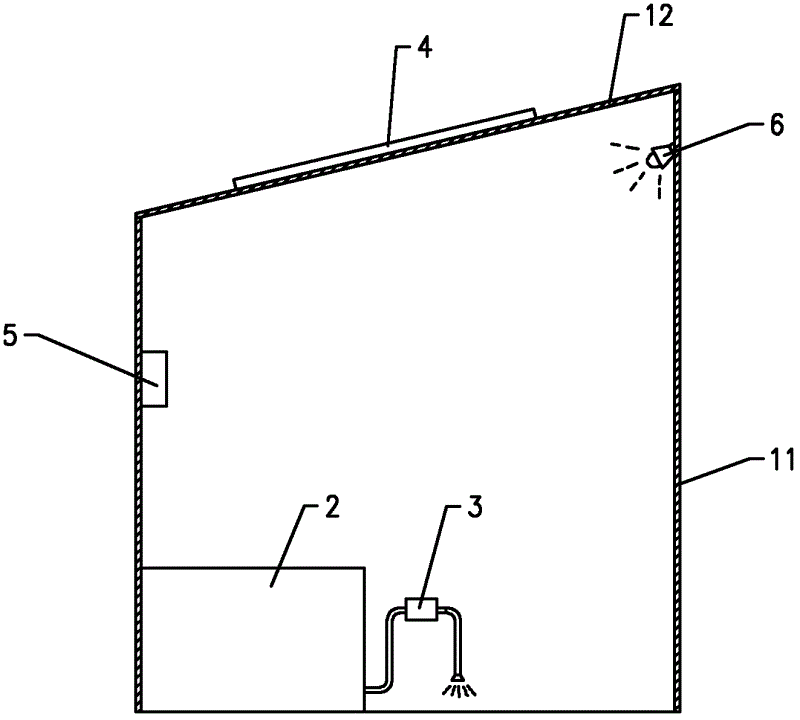

Fig. 1 is the structural representation of the utility model embodiment.
Fig. 2 is the schematic block circuit diagram among the utility model embodiment.
Among the figure: 11. canopy walls, 12. ceilings, 2. storage tank, 3. timing watering device, 4. solar panel, 5. accumulator, 6. illuminating lamp.
Embodiment
Shown in Fig. 1 and Fig. 2 were common, a kind of solar energy greenhouse flower stand comprised the canopy body, and the canopy wall 11 that this canopy body is processed by glass constitutes with ceiling 12, has reached the purpose of transparent heat insulating, was used for low temperature season and liked warm flower cultivation or grow seedlings etc.
In the canopy body, be provided with the timing watering device 3 on storage tank 2 and the delivery port that is installed on storage tank 2, the output of accumulator 5 is electrically connected with timing watering device 3.Give regularly sprinkler 3 pre-set time of watering and patterns, just can water automatically, solved the person of growing flower because busy and forget the problem of watering, convenient management to the flowers that need in the flower stand to pay close attention to.
In this implementation process, at the inner surface of canopy wall 11 or ceiling 12 illuminating lamp 6 is installed also, the output of accumulator 5 is electrically connected with illuminating lamp 6, and daytime, accumulator 5 electric energy stored can be supplied power for illuminating lamp 6 at night, practice thrift cost.
Claims (3)
1. the solar energy greenhouse flower stand comprises the canopy body, and canopy wall and ceiling that said canopy body is processed by glass constitute, and it is characterized in that:
In said canopy body, be provided with storage tank and the timing watering device that is installed on the delivery port of storage tank;
Said ceiling favours the horizontal plane setting, is provided with solar panel at the outer surface of said ceiling, is fixed with the accumulator that is connected with said solar panel at the inner surface of said canopy wall, and the output of said accumulator is electrically connected with said timing watering device.
2. solar energy greenhouse flower stand as claimed in claim 1 is characterized in that: the inner surface at said canopy wall or ceiling is equipped with illuminating lamp, and the output of said accumulator is electrically connected with said illuminating lamp.
3. solar energy greenhouse flower stand as claimed in claim 1 is characterized in that: the angle of said ceiling and horizontal plane is 13～15 degree.
