The utility model relates to an easily-pulled plug. A main body of an insert is connected to one bottom surface of the plug; an inverted L-shaped handle is fixedly connected to the top surface of the main body and can bring convenience to the plugging of the plug by holding the handle by people with hand. The easily-pulled plug is simple in structure, practical and convenient.

Description

Be prone to unplugg
Technical field
The utility model relates to a kind of plug, specifically a kind of easy unplugg.
Background technology
Plug is the often instruments of the connecting circuit of use of people, and when the plug of pegging graft on the socket was too many, the gap was very little between them, causes the plug difficulty, brings a lot of inconvenience for people's use, does not also have suitable way to solve this problem at present.
The utility model content
In order to solve the problem that existing plug in use runs into, the utility model provides easy unplugg, this plug construction is simple, easy to operate, has solved plug plug situation of difficult well, has stronger practicality.
The utility model solves the technical scheme that its technical problem adopted: this easy unplugg comprises handle and main body; Said plug has a bottom surface to be connected with the main body of inserted sheet; The end face of said main body is fixedly connected with a handstand " L " shape handle, can be convenient for people to grasp handle plug plug, has good skidproof effect.
The beneficial effect of the utility model is: this easy unplugg simple in structure, practical and convenient has good skidproof effect, the plug of can choosing very easily.
Description of drawings
Below in conjunction with accompanying drawing and embodiment the utility model is described further.

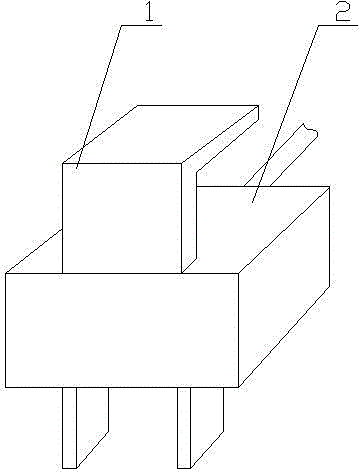

Accompanying drawing 1 is the example structure sketch map of this easy unplugg.
Among the figure, 1. handle, 2. main body.
Embodiment
In accompanying drawing 1, this easy unplugg comprises handle 1 and main body 2; Said plug has a bottom surface to be connected with the main body 2 of inserted sheet; The end face of said main body 2 is fixedly connected with a handstand " L " shape handle 1, can be convenient for people to grasp handle 1 plug plug, has good skidproof effect.

Claims (1)

1. an easy unplugg comprises handle (1) and main body (2); Said plug has a bottom surface to be connected with the main body of inserted sheet (2); It is characterized in that: the end face of said main body (2) is fixedly connected with " L " shape handle (1) of a handstand.
