A quick wire connecting card comprises a connecting card body, first fixing screws and second fixing screws which are made of insulating plastics. The connecting card body is rectangular, a round upper wire connecting hole and a lower wire connecting hole are respectively arranged on the connecting card body close to the upper lateral side and the lower lateral side, a W-shaped conducting metal sheet and a tile-shaped conducting metal sheet are respectively and fixedly connected into the upper wire connecting hole, only a middle section of the W-shaped conducting metal sheet is fixedly connected with the upper wire connecting hole, two ends of the W-shaped conducting metal sheet are connected with the upper wire connecting hole but can move downward, end points of the W-shaped conducting metal sheet and the tile-shaped conducting metal sheet are both arranged between the first fixing screws and the second fixing screws, the upper lateral side of the upper wire connecting hole is provided with two first fixing screws and two second fixing screws, and the lower wire connecting hole is in mirror symmetry to the upper wire connecting hole. When the quick wire connecting card is used, an insulating layer at one end of each of two sections of wires is stripped, the two sections of wires are respectively inserted from two ends of the upper wire connecting hole (or the lower wire connecting hole), and the first fixing screws and the second fixing screws are screwed, so that the two sections of wires are connected.
Description
Technical field
The utility model belongs to electric wiring field, relates to a kind of quick Wiring card for electric wire.
Background technology
At present, in the process that connects electric wire, be electric wire to be twisted together with pliers through method commonly used, wrap up with insulating tape then.This method is inefficiency not only, and the electric leakage of insulating tape easy ageing, when particularly the people stands in the eminence wiring, bothers especially.
Summary of the invention
To an existing difficult problem, the purpose of the utility model provides a kind of quick Wiring card for electric wire, makes people need not to use pliers and insulating tape also can be connected the wiring card of electric wire.
The utility model solves the technical scheme that its technical problem adopted: quick Wiring card for electric wire; Comprise ply-yarn drill body, first standing screw and second standing screw; Process by ambroin, said ply-yarn drill body is a cuboid, and the card body is provided with circular wiring hole and the following wiring hole gone up respectively near place, side up and down; Be fixedly connected with W shape conductive metal sheet and watt shape conductive metal sheet in the last wiring hole respectively; One section was fixedly connected with last wiring hole in the middle of W shape conductive metal sheet had only, and two ends contact with last wiring hole but can move down, and the end points of W shape conductive metal sheet and watt shape conductive metal sheet is all between first standing screw and second standing screw; The upper side of last wiring hole is provided with two first standing screws and two second standing screws, said wiring hole down and last wiring hole mirror image symmetry.During use; Peel off the insulating barrier of an end of two sections electric wires; Inserting and guarantee to peel off the metal-cored of insulating barrier from the two ends of last wiring hole (or following wiring hole) respectively can be by the locking of second standing screw, screw first standing screw and second standing screw, and the metal-cored of electric wire closely contacts with a watt shape conductive metal sheet by the locking of second standing screw and with W shape conductive metal sheet; Also locked by first standing screw with the electric wire of the metal-cored vicinity of peelling off insulating barrier, two sections electric wires promptly are connected.
The beneficial effect of the utility model is that electric wire is easy to connect, quick, attractive in appearance, firmly.
Description of drawings

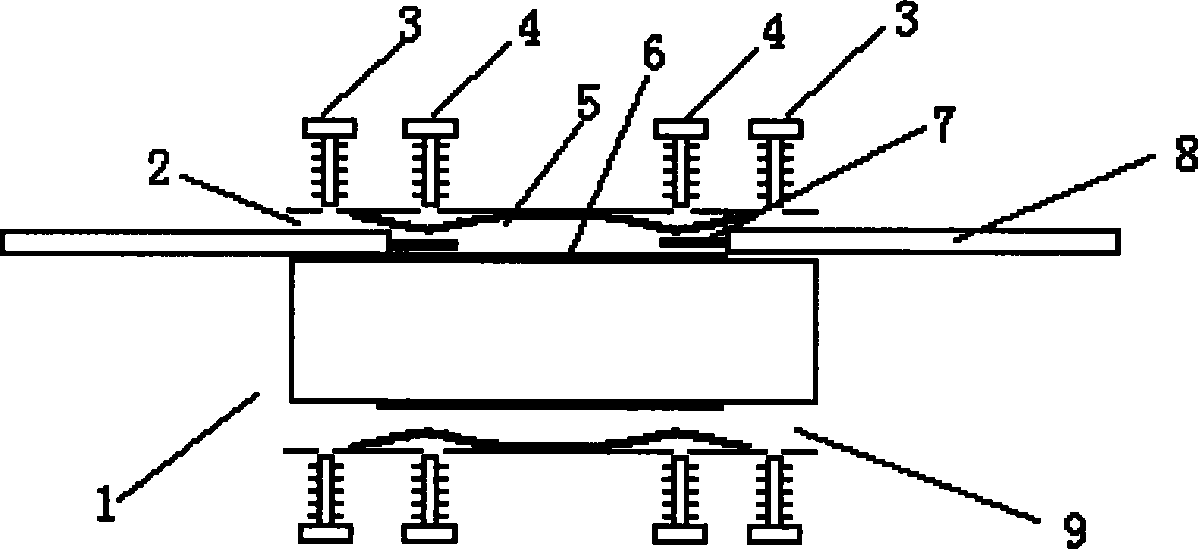

Fig. 1 is the horizontal section vertical view of the utility model.
Among the figure: 1-ply-yarn drill body 2-goes up wiring hole under the metal-cored 8-electric wire of the wiring hole 3-first standing screw 4-, the second standing screw 5-W shape conductive metal sheet 6-watt of shape conductive metal sheet 7-9-
Embodiment
Below in conjunction with accompanying drawing the utility model is done further detailed explanation:
As shown in Figure 1; The quick Wiring card for electric wire of the utility model comprises ply-yarn drill body 1, first standing screw 3 and second standing screw 4, processes by ambroin; Said ply-yarn drill body 1 is a cuboid; Card body 1 is provided with circular wiring hole 2 and the following wiring hole 9 gone up respectively near place, side up and down, is fixedly connected with W shape conductive metal sheet 5 and watt shape conductive metal sheet 6 in the last wiring hole 2 respectively, and W shape conductive metal sheet has only middle one section to be fixedly connected with last wiring hole 2; Two ends contact with last wiring hole 2 but can move down; All between first standing screw 3 and second standing screw 4, the upper side of last wiring hole 2 is provided with two first standing screws 3 and two second standing screws 4 to the end points of W shape conductive metal sheet 5 and watt shape conductive metal sheet 6, said wiring hole 9 down and last wiring hole 2 mirror images symmetry.During use; Peel off the insulating barrier of an end of two sections electric wires 8; Inserting and guarantee to peel off the metal-cored of insulating barrier from the two ends of last wiring hole 2 (or following wiring hole 9) respectively can be by 4 locking of second standing screw; Screw first standing screw 3 and second standing screw 4; The metal-cored of electric wire 8 closely contacts with a watt shape conductive metal sheet 6 by 4 lockings of second standing screw and with W shape conductive metal sheet 5, also locked by first standing screw 3 with the electric wire of the metal-cored vicinity of peelling off insulating barrier, and two sections electric wires 8 promptly are connected.
Claims (2)
1. quick Wiring card for electric wire; Comprise ply-yarn drill body, first standing screw and second standing screw; It is characterized in that: said ply-yarn drill body is a cuboid; The card body is provided with circular wiring hole and the following wiring hole gone up respectively near place, side up and down, is fixedly connected with W shape conductive metal sheet and watt shape conductive metal sheet in the last wiring hole respectively, and W shape conductive metal sheet has only middle one section to be fixedly connected with last wiring hole; Two ends contact with last wiring hole but can move down; All between first standing screw and second standing screw, the upper side of last wiring hole is provided with two first standing screws and two second standing screws to the end points of W shape conductive metal sheet and watt shape conductive metal sheet, said wiring hole down and last wiring hole mirror image symmetry.
2. quick Wiring card for electric wire according to claim 1 is characterized in that: ply-yarn drill body, first standing screw and second standing screw are processed by ambroin.
