The utility model discloses a toilet brush with a cleaning agent inside, which comprises a brush head and a brush rod connected with the brush head. The brush rod is of an internal hollow structure, a one-way valve is arranged at one end of the brush rod connected with the brush head, and the other end of the brush rod is connected with a cover with a piston. The cleaning agent is filled inside the toilet brush, users only need press down a button on the cover, appropriate amount of the cleaning agent can be discharged from the brush head, two steps are integrated, the toilet brush is convenient and fast, the toilet brush can be used after the cleaning agent is poured in, and use efficiency is improved.
Description
Technical field
The utility model relates to a kind of toilet brush, and particularly a kind of inside fills the toilet brush of cleaning agent.
Background technology
Along with people's growth in the living standard and development of city; Toilet has become articles for use indispensable in people's daily life; And the cleaning of toilet is people's a a great problem; Because the long-term cleaning that the dirt that is retained in toilet bowl interior can have a strong impact on toilet and attractive in appearance of using, general people are to use toilet brush to handle.
When people brush toilet, directly topple in the toilet brush again to the detergent of closet agent, most of detergent of closet agent meeting flows to sewer along nightstool wall; If be poured on the detergent of closet agent on the toilet brush, the detergent of closet agent does not just fully contact with toilet brush and directly drips, and these methods are not only lost time but also are prone to cause waste, cause brush inhomogeneous because the detergent of closet agent is lost very soon.
The utility model content
The technical problem that the utility model will solve provides the toilet brush that a kind of inside fills cleaning agent.
For achieving the above object, the technical scheme of the utility model is following:
A kind of inside fills the toilet brush of cleaning agent, comprises brush and the brush holder support that is connected brush; Said brush holder support is the inner hollow structure, and the end that said brush holder support is connected with brush is provided with one-way cock, and its other end is connected with the lid of a band piston.
Said brush holder support is provided with sheath near an end of lid, and said sheath is wrapped on the said brush holder support, and forms the confession user by the handle of holding.
Preferably, said lid is provided with button.
Preferably, sealing ring is settled in the junction of said lid and brush holder support.
Preferably, said lid and brush holder support are for removably connecting.
Preferably, said lid and brush holder support are for being threaded.
Preferably, said jacket surface is provided with the prominent bar of a plurality of annulars.
Through technique scheme, the beneficial effect of the utility model is:
The utility model brush holder support inside is hollow structure; It can adorn cleaning agent in the inside in use; Cleaning only needs the button on the flicking lid when toilet needs cleaning agent, an amount of cleaning fluid just can flow out from one-way cock, and this one-way cock can stop the liquid in the toilet to get in the brush holder support; The utility model is convenient to use, when cleaning toilet, need not to pour into earlier cleaning agent and uses toilet brush again, and it has improved the efficient of cleaning toilet; The sealing ring of lid and brush holder support junction can effectively prevent the cleaning agent outflow, after cleaning agent uses up, can lid and brush holder support be separated, thereby in brush holder support, add cleaning agent; Another advantage of the utility model is that the user has improved the comfort level of using when using the surface to be provided with the handle of the prominent bar of plural annular.
Description of drawings
In order to be illustrated more clearly in the utility model embodiment or technical scheme of the prior art; To do to introduce simply to the accompanying drawing of required use in embodiment or the description of the Prior Art below; Obviously, the accompanying drawing in describing below only is some embodiment of the utility model, for those of ordinary skills; Under the prerequisite of not paying creative work, can also obtain other accompanying drawing according to these accompanying drawings.

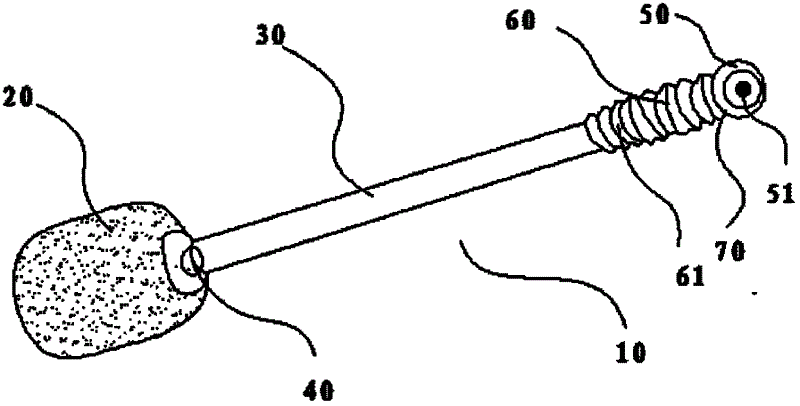

Fig. 1 is the utility model structural representation.
The numeral corresponding component title represented among the figure with letter:
10, toilet brush 20, brush 30, brush holder support 40, one-way cock 50, lid 51, button 60, sheath 61, prominent bar 70, sealing ring
The specific embodiment
For technological means, creation characteristic that the utility model is realized, reach purpose and be easy to understand understanding with effect, below in conjunction with concrete diagram, further set forth the utility model.
Referring to shown in Figure 1, the toilet brush 10 that a kind of inside of the utility model fills cleaning agent comprises brush 20 and the brush holder support that is connected brush 20 30; Said brush holder support 30 is the inner hollow structure, and it is used to place cleaning agent; The end that said brush holder support 30 is connected with brush 20 is provided with one-way cock 40, and one-way cock 40 can make the cleaning agent in the brush holder support 30 flow into toilet, also can stop the liquid in the toilet to flow to brush holder support 30; The other end of brush holder support 30 is connected with the lid 50 of a band piston, and lid 50 is used to seal the cleaning agent in the brush holder support 30.
In order to improve the comfort level of user when using, the utility model is provided with sheath 60 at brush holder support 30 near an end of lid 50, and sheath 60 is processed by plastics or elastomeric material; Said sheath 60 is wrapped on the said brush holder support 30, and forms the confession user by the handle of holding.
The utility model lid 50 is provided with button 51; Button 51 control pistons are pressed into the cleaning agent in the brush holder support 30 in the toilet; In order to improve the sealing property of lid 50, the utility model is settled rubber seal 70 in the lid 50 and the junction of brush holder support 30, and it has improved the sealing property of this product.
For the ease of adding cleaning agent, the utility model lid 50 and brush holder support 30 are for removably connecting, and it is preferably and is threaded, and it can also be to be fixedly connected according to actual needs.
Comfort level when using in order to improve the utility model, the utility model are provided with the prominent bar 61 of a plurality of annulars on sheath 60 surfaces.
The utility model is simple in structure, and is easy to use, and cleaning efficiency is high.
More than show and described basic principle of the utility model and the advantage of principal character and the utility model.The technical staff of the industry should understand; The utility model is not restricted to the described embodiments; The principle of describing in the foregoing description and the specification that the utility model just is described; Under the prerequisite that does not break away from the utility model spirit and scope, the utility model also has various changes and modifications, and these variations and improvement all fall in the utility model scope that requires protection.The utility model requires protection domain to be defined by appending claims and equivalent thereof.
Claims (7)
1. an inside fills the toilet brush of cleaning agent, comprises brush and the brush holder support that is connected brush; It is characterized in that said brush holder support is the inner hollow structure, the end that said brush holder support is connected with brush is provided with one-way cock, and its other end is connected with the lid of a band piston.
2. a kind of inside according to claim 1 fills the toilet brush of cleaning agent, it is characterized in that: said brush holder support is provided with sheath near an end of lid, and said sheath is wrapped on the said brush holder support, and forms the confession user by the handle of holding.
3. a kind of inside according to claim 1 fills the toilet brush of cleaning agent, it is characterized in that: said lid is provided with button.
4. a kind of inside according to claim 1 fills the toilet brush of cleaning agent, it is characterized in that: sealing ring is settled in the junction of said lid and brush holder support.
5. a kind of inside according to claim 1 fills the toilet brush of cleaning agent, it is characterized in that: said lid and brush holder support are for removably connecting.
6. a kind of inside according to claim 5 fills the toilet brush of cleaning agent, it is characterized in that: said lid and brush holder support are for being threaded.
7. a kind of inside according to claim 2 fills the toilet brush of cleaning agent, it is characterized in that: said jacket surface is provided with the prominent bar of a plurality of annulars.
