The utility model relates to a multifunctional notebook which comprises a notebook main body for recording characters, and the notebook main body comprises a notebook cover, a notebook core and a notebook ridge, wherein pen holes for holding writing pens and a storage bag are arranged on the notebook cover of the notebook, the paper edge corners of the notebook core of the notebook are rounded corners, and a cap on the storage bag is provided with a bonding device. In the multifunctional notebook provided by the utility model, the pen holes are arranged on the notebook cover, writing pens can be put into the notebook in carrying, the missing of the writing pens can be avoided, the edge corners of paper are set into rounded corners, and the curling up of the edge corners can be effectively avoided.
Description
Technical field
The utility model relates to a kind of notebook, is a kind of multifunctional note specifically.
Background technology
Notebook is meant and is used for the book made of paper of shorthand that along with science and technology development, the pattern of notebook is also more and more, makes people when buying, and selects the variation that also becomes.
At present, when people carry notebook, always with on the lettering pen or other instruments that are used to write, yet the less instrument of picture this type of lettering pen carries and can let your inconvenient, the situation that occurs dropping through regular meeting.
Therefore, need a kind of multifunctional note especially, to solve the above-mentioned existing problem that exists.
The utility model content
The purpose of the utility model is to provide a kind of multifunctional note, and the defective that exists to prior art can be put into lettering pen or other instruments the multifunctional note of the utility model, and is simple in structure, very practical.
To achieve these goals, the technical scheme of the utility model is following:
A kind of multifunctional note; The body that comprises the notebook that is used for shorthand; The body of said notebook comprises this skin, this core and this ridge, it is characterized in that: the hole and the storage bag that is used for stored article that on this skin of notebook, are provided for placing lettering pen.
The paper water caltrop of the pen core of said notebook is a fillet.
Further, in an embodiment of the utility model, the quantity in said hole is 3.
Further, in an embodiment of the utility model, said pouch has the corresponding lid that is used to seal pouch.
Further, in an embodiment of the utility model, the lid on the said storage bag is provided with adhering device, and said adhering device is the device of a splicing tape and another splicing tape sack that is used for the enclosed storage bag adhered to one another.
The multifunctional note of the utility model is compared with existing product, and a hole is set on this skin; When carrying, can lettering pen be put into the utility model, avoid losing of lettering pen, the pouch in a kind of multifunctional note of the utility model can be put into pouch with card or scrappy material; At the pouch opening lid is set, adhering device is set on lid, after saying that article are put into sack; Be stained with adhering device; The storage bag of the utility model just can be placed article safely, and the water caltrop of paper is set to fillet, can effectively avoid water caltrop to roll.
The characteristics of the utility model can consult this case graphic and below better embodiment detailed description and obtain to be well understood to.
Description of drawings

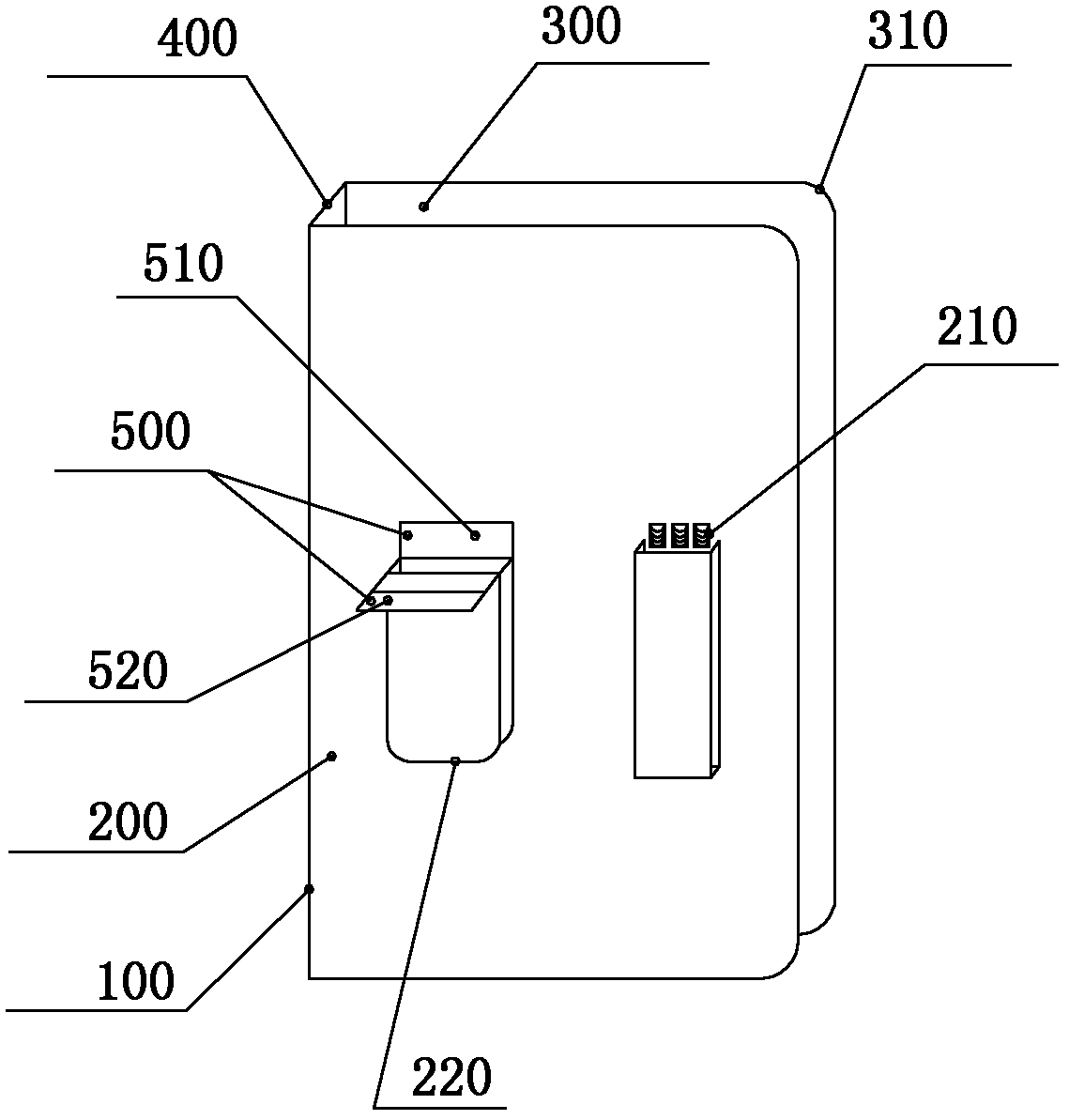

Fig. 1 is the structural representation of the multifunctional note of the utility model.
The specific embodiment
For technological means, creation characteristic that the utility model is realized, reach purpose and be easy to understand understanding with effect, further set forth the utility model below in conjunction with specific embodiment.
As shown in Figure 1; The multifunctional note of the utility model; The body 100 that comprises the notebook that is used for shorthand; The body of said notebook comprises this skin 200, this core 300 and this ridge 400, it is characterized in that: the hole 210 and the storage bag 220 that is used for stored article that on this skin 200 of notebook, are provided for placing lettering pen.
The paper water caltrop 310 of the pen core 300 of said notebook is a fillet, has disperseed lifting surface area, can effectively avoid water caltrop to roll.
Further, in the utility model, 210 quantity in said hole are 3, many lettering pens of placement that can be neat.
Further, in the utility model, said pouch 220 has the corresponding lid 230 that is used to seal pouch, can protect the article in the storage bag, reaches effect neat, attractive in appearance.
Further, in an embodiment of the utility model, the lid on the said storage bag is provided with adhering device 500, and said adhering device is a splicing tape 510 and the device of another splicing tape 520 sack that is used for the enclosed storage bag adhered to one another.
In use, can lettering pen be put into a hole 210 of the utility model, card or sundries are put into storage bag 220, just can reach the effect that is convenient for carrying, the water caltrop 310 of paper is set to fillet, can effectively avoid water caltrop 310 to roll.
More than show and described the advantage of basic principle, principal character and the utility model of the utility model.The technical staff of the industry should understand; The utility model is not restricted to the described embodiments; The just principle of describing in the foregoing description and the specification of the utility model; The utility model also has various changes and modifications under the prerequisite that does not break away from the utility model spirit and scope, and these variations and improvement all fall in the scope of the utility model that requires protection.The protection domain that the utility model requires is defined by appending claims and equivalent thereof.
Claims (5)
1. multifunctional note comprises the body of the notebook that is used for shorthand, and the body of said notebook comprises this skin, this core and this ridge, it is characterized in that: the hole and the storage bag that on this skin of notebook, are provided for placing lettering pen.
2. multifunctional note according to claim 1 is characterized in that: the paper water caltrop of the pen core of said notebook is a fillet.
3. multifunctional note according to claim 1 is characterized in that: the quantity in said hole is 3.
4. multifunctional note according to claim 1 is characterized in that: said pouch has the corresponding lid that is used to seal pouch.
5. multifunctional note according to claim 1 is characterized in that: the lid on the said storage bag is provided with adhering device, and said adhering device is the device of a splicing tape and another splicing tape sack that is used for the enclosed storage bag adhered to one another.
