CN202312759U - Sucking disc type hook row

Info

Publication number: CN202312759U
Application number: CN2011204678519U
Authority: CN
Inventors: 赵泽旭; 王菁楠; 孙福兵
Original assignee: China University of Mining and Technology Beijing CUMTB
Current assignee: China University of Mining and Technology Beijing CUMTB
Priority date: 2011-11-11
Filing date: 2011-11-11
Publication date: 2012-07-11
Anticipated expiration: 2021-11-11

Abstract

The utility model relates to a suction cup type hook row, which includes a hook row main body and a suction cup, and is characterized in that suction cups are respectively installed at the left and right ends of the hook row main body, and people can adsorb the hook row on the wall through the suction cups at the left and right ends of the hook row main body. In addition, when people do not need to use the hook row, the hook row can be taken off from the wall. The utility model has a simple structure and is easy to manufacture.

Description

A suction cup hook row

技术领域 technical field

本实用新型涉及一种生活用品，更确切的说是一种吸盘式挂钩排。The utility model relates to a daily necessities, more precisely a sucker type hook row.

背景技术 Background technique

挂钩排是现在人们日常生活中必不可少的一部分，人们使用挂钩排来悬挂物品，但是现在的挂钩排一般都是固定在墙上的，当挂钩排从墙上取下之后就无法继续使用，这就造成了一定的浪费。Hook row is an indispensable part of people's daily life now. People use hook row to hang items, but the current hook row is generally fixed on the wall. When the hook row is removed from the wall, it cannot be used anymore. This creates a certain amount of waste.

发明内容 Contents of the invention

本实用新型的目的是提供一种结构简单的一种吸盘式挂钩排。The purpose of the utility model is to provide a suction cup type hook row with a simple structure.

本实用新型的目的可通过以下方式来实现：一种吸盘式挂钩排，包括有挂钩排主体和吸盘，其特点是在挂钩排主体的左右两端分别安装有吸盘，人们通过挂钩排主体左右两端的吸盘将挂钩排吸附在墙上，当人们不需要使用挂钩排的时候，将挂钩排从墙上取下即可。The purpose of this utility model can be achieved in the following ways: a suction cup type hook row, including a hook row main body and a suction cup, which is characterized in that suction cups are respectively installed at the left and right ends of the hook row main body, and people pass through the left and right sides of the hook row main body. The suction cup at the end absorbs the hook row on the wall, and when people don't need to use the hook row, just take the hook row off the wall.

本实用新型与现有技术相比有如下优点：由于在挂钩排主体的两端设置了吸盘，这就可以让挂钩排多次使用。Compared with the prior art, the utility model has the following advantages: since the two ends of the main body of the hook row are provided with suction cups, the hook row can be used for many times.

附图说明 Description of drawings

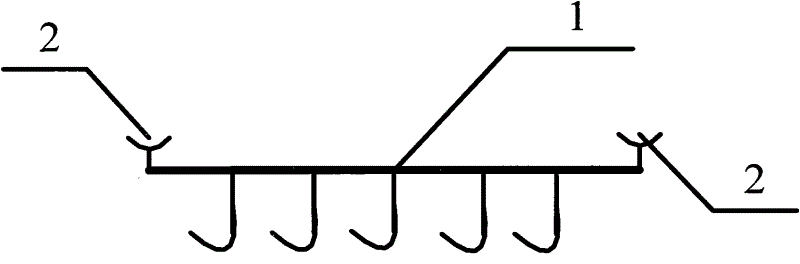

附图1是本实用新型的结构示意图。Accompanying drawing 1 is the structural representation of the utility model.

具体实施方式 Detailed ways

参照附图1如下：一种吸盘式挂钩排，包括挂钩排主体1和吸盘2，其特征在于：在挂钩排主体1的左右两端分别设置有吸盘2，人们要使用挂钩排1的时候，通过挂钩排主体1左右两端的吸盘2将挂钩排主体1固定在墙上即可，本实用新型结构简单，易于制造。Referring to accompanying drawing 1 as follows: a kind of sucker type hook row, comprises hook row main body 1 and sucker 2, is characterized in that: the left and right ends of hook row main body 1 are respectively provided with sucker 2, when people want to use hook row 1, The hook row main body 1 can be fixed on the wall through the suction cups 2 at the left and right ends of the hook row main body 1. The utility model has a simple structure and is easy to manufacture.

Claims

1. a sucked type hook row includes hook row's main body (1) and sucker (2), and it is characterized in that: the right ends in hook row's main body (1) is equipped with sucker (2).
