Abstract

The utility model discloses a multifunctional hanging rack which comprises a main body of the hanging rack; the main body of the hanging rack is provided with a lifting hook; the main body of the hanging rack is provided with two symmetrical hollow structures; the main body of the hanging rack is provided with a plurality of stand columns passing through the two sides of the main body; an arrowhead-shaped structure is arranged under the lifting hook; the lifting hook is movably connected with the main body of the hanging rack; and the lifting hook can rotate automatically. The multifunctional hanging rack is simple in structure and ingenious in design, can be hung in many places, can be used for hanging multiple articles, is very convenient to use, and fully utilizes the space.

Description

A kind of multi-functional hanger
Technical field
The utility model relates to the home appliances field, specially refers to a kind of multi-functional hanger.
Background technology
Clothes hanger is the shelf that is used for taking the coating shirt, and modern clothes hanger adopts coupling type or branch V shape mostly, and clothing is many to be hung on the clothes hook with neck neck place.Ancients' clothes hanger comprises Qing Dynasty's clothes hanger, adopts the cross bar form more, and there is column both sides, and bearer pier base has transverse slat or horizontal doorjamb between two up and down, column top peace crossbeam, and two ends grow column, and end undercuts dragon and phoenix line or glossy ganoderma or cloud cluster and so on to the greatest extent.Plate in the peace under the cross bar, on have openwork carving to decorate, mainly play firmly acting on.After taking off, clothes just rides on the cross bar.
Application number is that 201020559355 patent application document discloses a kind of multifunctional clothes rack, can hang up more clothes and article simultaneously, comprises hook, clothes hanger body, and two shoulders of said clothes hanger body are provided with groove, and said groove is provided with the retaining tongue; Said clothes hanger body top is provided with straight hook; Said clothes hanger body middle part is provided with level and takes bar, and said clothes hanger body bottom is provided with crossbeam, and the two ends of said crossbeam are provided with suspension hook; Two clothes pegs are housed on the said crossbeam, and said clothes peg comprises two cramping bodies; Said hook bottom and said clothes hanger bodies top flexibly connect.
In sum, to the defective of prior art, need a kind of multi-functional hanger especially, with the problem of mentioning more than solving.
The utility model content
The purpose of the utility model is to provide a kind of multi-functional hanger, through adopting special structural design, thereby reaches the purpose of the utility model.
The technical problem that the utility model solved can adopt following technical scheme to realize:
A kind of multi-functional hanger comprises the main body of a hanger, and said hanger main body is provided with suspension hook; It is characterized in that; The main body of said hanger is provided with the hollow structure of two symmetries, and the main body of hanger is provided with some columns that run through the main body both sides, and the below of said suspension hook is provided with the arrow-shaped structure.
In an embodiment of the utility model, the maximum length of said hanger is 320 millimeters, and Breadth Maximum is 175 millimeters, and the diameter of hook is 7 millimeters.
In an embodiment of the utility model, the main body of said suspension hook and hanger adopts and flexibly connects, and suspension hook self can rotate.
The beneficial effect of the utility model is: simple in structure, design ingeniously, and can hang on multiple place, can hang multiple object, very convenient to use, the abundant space that utilized.
Description of drawings

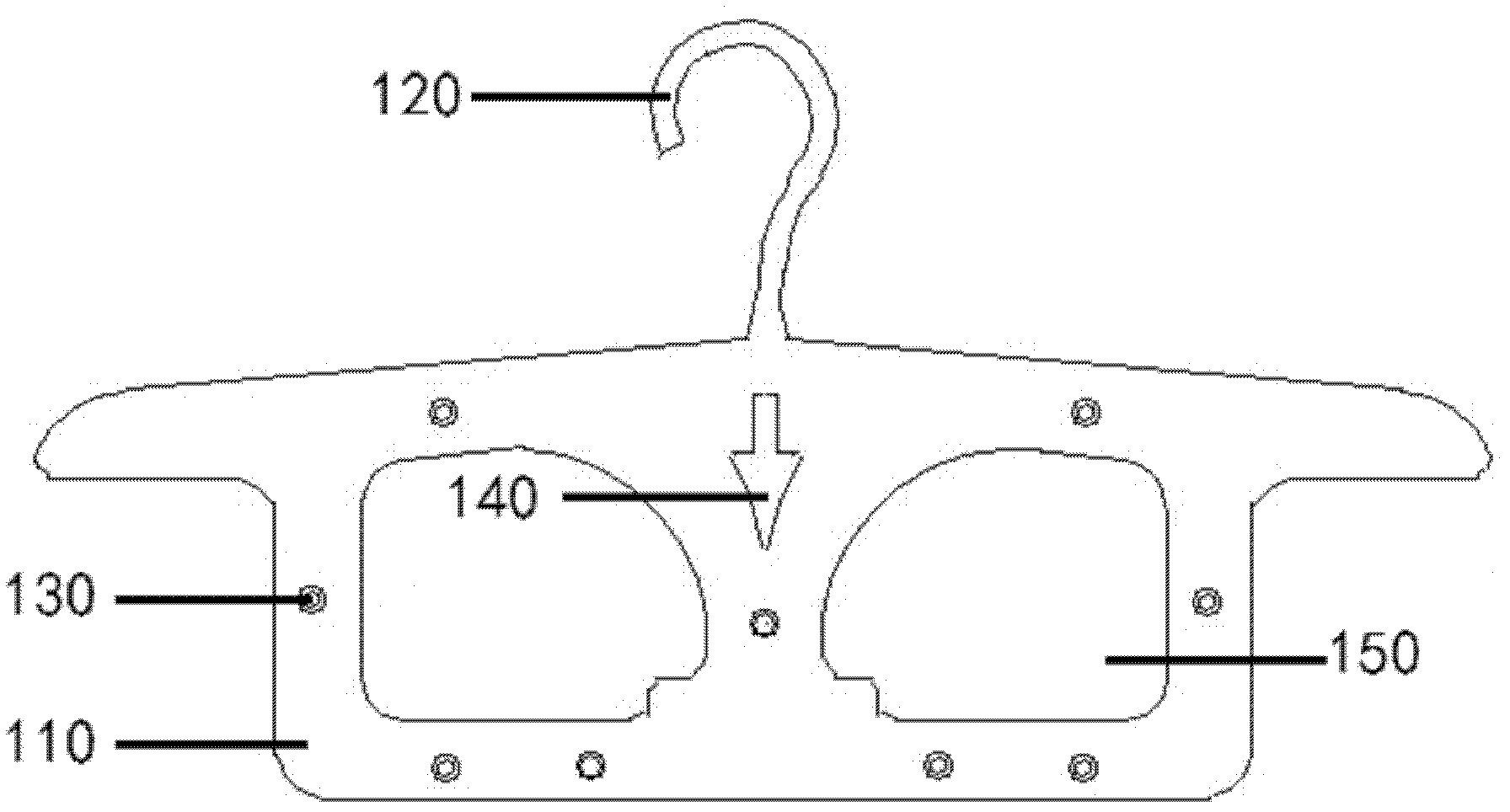

Fig. 1 is the structural representation of the described a kind of multi-functional hanger of the utility model.
The specific embodiment
For technological means, creation characteristic that the utility model is realized, reach purpose and be easy to understand understanding with effect, below in conjunction with the specific embodiment, further set forth the utility model.
As shown in Figure 1; The described a kind of multi-functional hanger of the utility model; The main body 110 that comprises a hanger, said hanger main body 110 is provided with suspension hook 120, and the main body 110 of said hanger is provided with the hollow structure 150 of two symmetries; The main body 110 of hanger is provided with some columns 130 that run through the main body both sides, and the below of said suspension hook 120 is provided with the arrow-shaped structure.
In an embodiment of the utility model, the maximum length of said hanger is 320 millimeters, and Breadth Maximum is 175 millimeters, and the diameter of hook 120 is 7 millimeters.
In an embodiment of the utility model, said suspension hook 120 adopts flexible connection with the main body 110 of hanger, and suspension hook self can rotate.
The beneficial effect of the utility model is: simple in structure, design ingeniously, and can hang on multiple place, can hang multiple object, very convenient to use, the abundant space that utilized.
More than show and described basic principle of the utility model and the advantage of principal character and the utility model.The technical staff of the industry should understand; The utility model is not restricted to the described embodiments; The principle of describing in the foregoing description and the specification that the utility model just is described; Under the prerequisite that does not break away from the utility model spirit and scope, the utility model also has various changes and modifications, and these variations and improvement all fall in the utility model scope that requires protection.The utility model requires protection domain to be defined by appending claims and equivalent thereof.

Claims (3)

1. multi-functional hanger; The main body that comprises a hanger; Said hanger main body is provided with suspension hook, it is characterized in that, the main body of said hanger is provided with the hollow structure of two symmetries; The main body of hanger is provided with some columns that run through the main body both sides, and the below of said suspension hook is provided with the arrow-shaped structure.
2. a kind of multi-functional hanger according to claim 1 is characterized in that the maximum length of said hanger is 320 millimeters, and Breadth Maximum is 175 millimeters, and the diameter of hook is 7 millimeters.
3. a kind of multi-functional hanger according to claim 1 is characterized in that, the main body of said suspension hook and hanger adopts and flexibly connects, and suspension hook self can rotate.
