Abstract
The utility model relates to an agrosprayer and discloses a greenhouse atomizing machine. The greenhouse atomizing machine comprises a rack, a liquid pesticide chest arranged on the rack, a pressure module which is driven by alternating current and a spraying pesticide gun. According to the utility model, the alternating current is used to drive the pressure module to control the pesticide spraying gun to spray pesticide, thereby reducing the pollution to environment and crops when the greenhouse atomizing machine operates; furthermore, the pressure module is internally provided with a voltage-stabilizing module, and the electrical energy is effectively saved; and further, a drip-proof plug-preventing nozzle is adopted to effectively prevent pesticides from leaking and plugging a nozzle, thereby improving the utilization ratio of the pesticides and operating efficiency.
Description
Technical field
The utility model relates to a kind of agrosprayer, particularly relates to a kind of agrosprayer that is applicable to chamber crop.
Background technology
The plantation development of the ground of protection such as greenhouse, plastic tunnel in recent years rapidly; Damage by disease and insect in the green house mainly is to prevent and treat through spraying all kinds of chemical pesticides; But present agricultural drugs sprayer adopts gasoline engine to drive mostly; Such sprayer produces serious fume pollution during operation in the greenhouse, the quality of chamber crop is produced serious influence.
The utility model content
The technical problem that (one) will solve
The technical problem that the utility model will solve is how to reduce sprayer pollution to environment and crop when chamber operation.
(2) technical scheme
In order to solve the problems of the technologies described above, the utility model provides a kind of greenhouse sprayer, comprising: frame; Rack-mounted liquid medicine-chest, its bottom is provided with discharging opening; Adopt to exchange electrically driven (operated) modular pressure, it is provided with feeding opening and medicine outlet; Be positioned at the medicine spraying gun of frame front end, its muzzle is provided with nozzle; Feed pipe, its two ends are connected with the discharging opening of liquid medicine-chest and the feeding opening of modular pressure respectively; High-voltage tube, its two ends are connected with medicine spraying gun with the medicine outlet of modular pressure respectively.
Wherein, said nozzle is antidrip block-resistant type nozzle.
Wherein, said modular pressure inside is provided with Voltage stabilizing module.
Wherein, the bottom of said liquid medicine-chest is provided with the liquid level module.
Wherein, the junction of said feeding opening and high-voltage tube is provided with pressure regulator valve.
Wherein, the front end of said frame also is provided with tube wrapping device.
Wherein, the rear end of said frame is provided with bobbin winder bracket.
Wherein, the bottom of said frame is provided with four wheels.
(3) beneficial effect
A kind of greenhouse sprayer that technique scheme provided adopts alternating current driving pressure module controls medicine spraying gun to spray medicine, when having reduced operation to the pollution of environment and crop; Further, be provided with Voltage stabilizing module in the modular pressure, effectively saves energy; Further, adopt antidrip anti-blocking nozzle, effectively prevent agricultural chemicals water clock and plug nozzle, thereby improved agricultural chemicals availability and operating efficiency.
Description of drawings

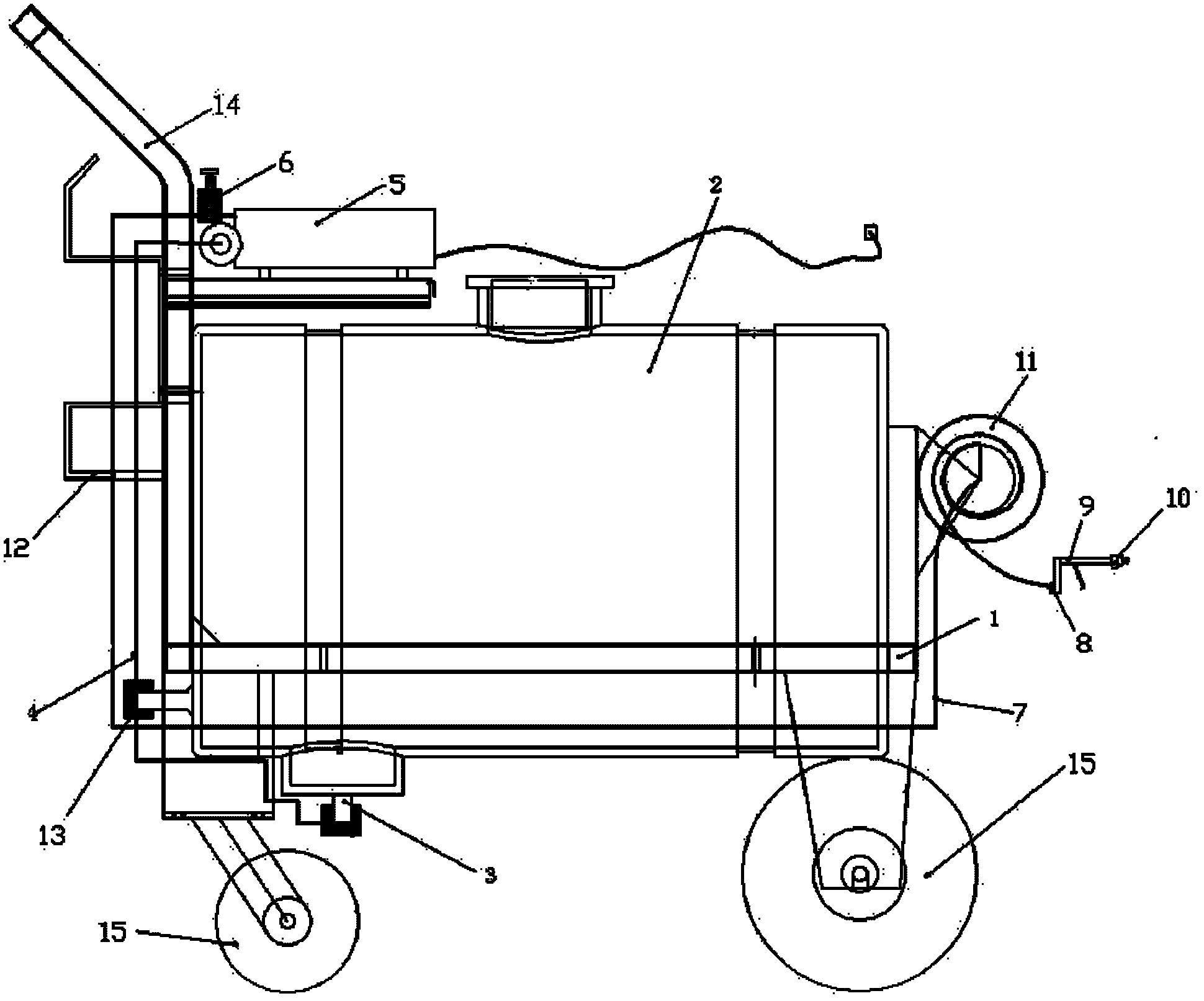

Fig. 1 is the front view of the utility model greenhouse sprayer;
Fig. 2 is the end view of the utility model greenhouse sprayer.
Wherein, 1, frame; 2, liquid medicine-chest; 3, discharging opening; 4, feed pipe; 5, modular pressure; 6, pressure regulator valve; 7, high-voltage tube; 8, swivel; 9, medicine spraying gun; 10, nozzle; 11, tube wrapping device; 12, bobbin winder bracket; 13, liquid level module; 14, pushing hands; 15, wheel.
Embodiment
Below in conjunction with accompanying drawing and embodiment, the embodiment of the utility model is described in further detail.Following examples are used to explain the utility model, but are not used for limiting the scope of the utility model.
Shown in Fig. 1 and 2, the utility model greenhouse sprayer comprises: frame 1, and be installed in the liquid medicine-chest 2 that mixes the back soup is housed on the frame 1, modular pressure 5, medicine spraying gun 9, feed pipe 4 and high-voltage tube 7, the bottom of said liquid medicine-chest 2 is provided with discharging opening 3.Said modular pressure 5 comprises motor, farm chemical spray pump, manometer, filter, feeding opening, medicine outlet and cable.The two ends of said feed pipe 4 link to each other with said feeding opening with said discharging opening 3 respectively; The two ends of said high-voltage tube 7 link to each other with said medicine spraying gun 9 with said medicine outlet respectively; The junction of said medicine outlet and high-voltage tube 7 is provided with pressure regulator valve 6; Said high-voltage tube 7 is provided with swivel 8 with the junction of medicine spraying gun 9; Said medicine spraying gun 9 is provided with antidrip anti-blocking nozzle 10, and medicine spraying gun 9 is positioned at the front end of frame 1.Wherein, modular pressure 5 is provided with ac plug, 5 work of alternating current driving pressure module.Said modular pressure 5 inside also are provided with Voltage stabilizing module, and Voltage stabilizing module can pressurize to soup according to the force value of setting, and can realize the discontinuous operation of pressure unit, effectively saves electric energy.
The front end of said frame 1 also is equipped with tube wrapping device 11, and tube wrapping device 11 is provided with folding handle, swing handle can make high-voltage tube 7 in tube wrapping device 11 around, high-voltage tube 7 is wrapped in the tube wrapping device 11, save the space so that carrying; The rear end of said frame 1 is provided with bobbin winder bracket 12, and sufficiently long cable is wrapped on the bobbin winder bracket 12, when needing to use ac plug is inserted on the socket in the greenhouse, and cable can be with the mobile bobbin winoler 12 that is drawn out of frame 1.
The bottom of said liquid medicine-chest 2 is equipped with liquid level module 13, and when the liquid level of liquid medicine-chest 2 was lower than warning line, liquid level module 13 can be reported to the police automatically, reminded operating personnel should add soup.
The above only is the preferred implementation of the utility model; Should be understood that; For those skilled in the art; Under the prerequisite that does not break away from the utility model know-why, can also make some improvement and replacement, these improvement and replacement also should be regarded as the protection domain of the utility model.
Claims (8)
1. a greenhouse sprayer is characterized in that, comprising: frame;
Rack-mounted liquid medicine-chest, its bottom is provided with discharging opening;
Adopt to exchange electrically driven (operated) modular pressure, it is provided with feeding opening and medicine outlet;
Be positioned at the medicine spraying gun of frame front end, its muzzle is provided with nozzle;
Feed pipe, its two ends are connected with the discharging opening of said liquid medicine-chest and the feeding opening of said modular pressure respectively;
High-voltage tube, its two ends are connected with said medicine spraying gun with the medicine outlet of said modular pressure respectively.
2. greenhouse according to claim 1 sprayer is characterized in that, said nozzle is antidrip block-resistant type nozzle.
3. greenhouse according to claim 1 sprayer is characterized in that, said modular pressure inside is provided with Voltage stabilizing module.
4. greenhouse according to claim 1 sprayer is characterized in that the bottom of said liquid medicine-chest is provided with the liquid level module.
5. greenhouse according to claim 1 sprayer is characterized in that the junction of said feeding opening and high-voltage tube is provided with pressure regulator valve.
6. according to each described greenhouse sprayer of claim 1-5, it is characterized in that the front end of said frame also is provided with tube wrapping device.
7. according to each described greenhouse sprayer of claim 1-5, it is characterized in that the rear end of said frame is provided with bobbin winder bracket.
8. according to each described greenhouse sprayer of claim 1-5, it is characterized in that the bottom of said frame is provided with four wheels.
