The utility model relates to a fully automatic chocolate bean forming machine which comprises a feeding system, a cooling conveying system, a cooling particle rolling system, a rotary screen system and a cooling system, wherein, the feeding system comprises a stirring tank, a rotor pump and a pouring head; the rotor pump is mounted on the stirring tank and connected to the pouring head through a pipeline; the cooling conveying system comprises a conveying room and conveying belts mounted inside the conveying room; the cooling particle rolling system comprises pair roller dies and a driving motor thereof, the pair roller dies are mounted at the feeding position of the conveying belts, and the pouring head is mounted at the upper parts of the pair roller dies; the cooling system comprises a condenser, a refrigerator, a blower and an air duct; and the rotary screen system comprises a rotary screen and a driving motor thereof, and the rotary screen is mounted at the lower part of a discharging position of the conveying belts. The fully automatic chocolate bean forming machine can realize fully automatic production of chocolate beans and has the outstanding advantages of simple processes, integrated equipment, good hygiene, high yield and low labor intensity.
Description
Technical field
The utility model belongs to the food machinery field, particularly a kind of full-automatic marble chocolate make-up machine.
Background technology
Traditional marble chocolate moulding process is: in freezer, be frozen into raw slurry tabular; The dried formation marble chocolate that rolls of an equipment is rolled in tabular raw material employing; Pass through roller screen deburring and marble chocolate in irregular shape then, collect the marble chocolate of regular shape.Traditional handicraft exists that complex process, step are many, complex equipments, yield poorly, problem such as wholesomeness is poor, mouthfeel is bad.And, need a large amount of manually-operateds, waste of manpower, production efficiency is low.
Summary of the invention
The purpose of the utility model is to overcome the deficiency of prior art, provides that a kind of technology is simple, the integrated height of equipment, wholesomeness is good, output is high full-automatic marble chocolate make-up machine.
The utility model solves its technical problem and takes following technical scheme to realize:
A kind of full-automatic marble chocolate make-up machine; It is characterized in that: roll a system, rotary screen system and cooling system and constitute by feed system, cooling induction system, cooling; Feed system is made up of agitator tank, impeller pump and pouring head; Impeller pump is installed on agitator tank, and impeller pump is connected to pouring head through pipeline; The cooling induction system is by conveying chamber and be installed on the inner conveyer belt of conveying chamber and constitute; Cooling is rolled a system and is made up of pair roller mould and drive motors thereof, and the pair roller mould is installed on the feed entrance point of said conveyer belt, on the top of pair roller mould said pouring head is installed; Cooling system is made up of condenser, refrigerator, blower fan and air channel, and two condensate liquid outlet pipes of condenser are connected to refrigerator and pair roller mould respectively, and refrigerator is connected on the air channel, and the blower fan that is connected with conveying chamber is installed on the air channel; The rotary screen system is made up of rotary screen and drive motors thereof, and rotary screen is installed on bottom, conveyer belt discharging position.
And said pair roller mould is made up of the mould that a pair of surface is covered with pit, and this pair roller mould is rotated by drive motor drives in opposite directions.
And; Be provided with turning set in the pair roller both mold ends, an end of this turning set is equipped with swivel joint, and the inner of this swivel joint is connected with the central shaft tube that is installed on the pair roller mould inside; The outer end of this swivel joint is shaped on condensate liquid delivery port and water return outlet, on central shaft tube, is shaped on liquid distributing hole.
And; Described pair roller mould is the many groups pair roller mould that is installed on the cooling induction system leading section support body; Said conveyer belt is many of corresponding said pair roller mould; By pair roller mould drive motors driven in synchronism, said rotary screen system also be corresponding organizes to this conveyer belt more through the sprocket wheel chain drive mechanism.
And, the downward-sloping installation of the port of export of said rotary screen.
The advantage and the good effect of the utility model are:
1, this marble chocolate make-up machine is changed tradition and is adopted chocolate freezing tabular raw material to carry out dried processing technology of rolling, and converts into and adopts chocolate mass to pour into a mould, under the cooling effect of moulding pair roller mould; Make slurry form the beans shape, and in the cooling procedure of induction system, continue cooling and form marble chocolate; Obtain the marble chocolate finished product through rotary screen at last, have the output height, processing step is few; Need not manually-operated in the production process, the advantage that wholesomeness is good.
2, this marble chocolate make-up machine can adopt and many moulding pair roller mould processed, and its conveyer belt is set to corresponding many, thereby applicable to producing the not marble chocolate of particle diameter of the same race, improves the equipment scope of application and production efficiency.
3, the pair roller of this marble chocolate make-up machine all adopts driven by servomotor, and cooling system is set, and the pair roller chilling temperature satisfies marble chocolate moulding requirement at-30 degree.
4, the utility model scientific structure design is reasonable; Break through the processing technology of traditional marble chocolate; Can realize the fully-automatic production of marble chocolate; Having the outstanding advantage that technology is simple, equipment is integrated, wholesomeness is good, output is high, labour intensity is low, is a kind of marble chocolate production equipment that has than high innovation character.
Description of drawings

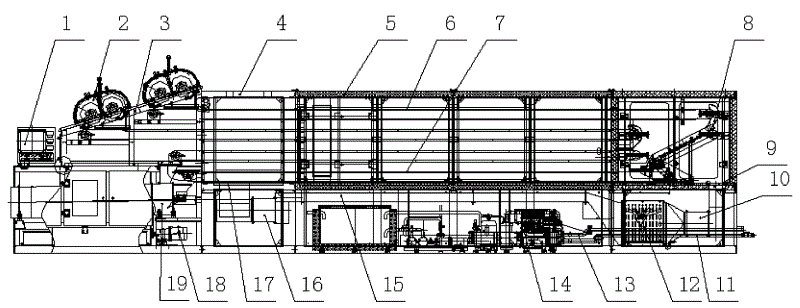

Fig. 1 is the front view (not comprising feed system) of the utility model;
Fig. 2 is the left view of Fig. 1;
Fig. 3 is that the master of the pair roller mould of the utility model looks enlarged drawing (cutaway view).
The specific embodiment
Through specific embodiment the utility model is done further to detail below, following examples are descriptive, are not determinate, can not limit the protection domain of the utility model with this.
A kind of marble chocolate make-up machine, it is rolled a system, rotary screen system and cooling system and is constituted by feed system, cooling induction system, cooling.
Wherein, Feed system is made up of agitator tank 23, impeller pump 24 and pouring head 21, in the bottom of agitator tank impeller pump is installed, and impeller pump is connected to pouring head through pipeline 22; The upper end of this agitator tank is equipped with shaft and stirring motor, and the outer wall of agitator tank is provided with muff.
The cooling induction system is by conveying chamber 4 and be installed on the inner conveyer belt of conveying chamber and constitute, and this conveyer belt is made up of upper strata conveyer belt 6, conveying belt of lower floor 7 and chute 8, and upper and lower layer conveyer belt throughput direction is opposite, and the one of which end is connected through chute.The outer wall of conveying chamber is provided with heat-insulation layer 5.
Cooling is rolled a system and is made up of pair roller mould 2 and drive motors 20 thereof, and the pair roller mould is installed on the frame 3 of feed end top of said conveyer belt, and the pouring head of feed system is installed on the top of pair roller mould.The pair roller mould is made up of the mould that a pair of surface is covered with pit, and drive motors is a servomotor, drives this pair roller mould by this servomotor through gear drive 26 and rotates in opposite directions.Pair roller mould drive motors sprocket wheel chain drive mechanism conveyer belt is simultaneously realized driven in synchronism, guarantees uniformity, the harmony of its operation.Be provided with turning set 27 at the two ends of pair roller mould; The end of this turning set is equipped with swivel joint 25, and this swivel joint is inner to be connected with the central shaft tube that is installed on the pair roller mould inside 28, and the outer end of this swivel joint is shaped on condensate liquid water inlet 31 and delivery port 30; On the tube wall of central shaft tube, be shaped on liquid distributing hole 29; Cooling fluid gets into the roller inwall from this liquid distributing hole, after accumulating completely, by the water return outlet that gets into swivel joint between central shaft tube outer wall and the turning set.Cooling fluid can make the pair roller mould be under-30 ℃ the low temperature.
The rotary screen system is made up of rotary screen 19 and drive motors 18 thereof, and drive motors is through the slowly rotation of belt transmission driven in rotation sieve.Rotary screen is installed on bottom, conveyer belt discharging position.The downward-sloping installation of the port of export of rotary screen is to make things convenient for discharging.
According to the needs of producing; The pair roller mould can be two groups or more, and conveyer belt and rotary screen also are many of corresponding said pair roller mould, adopts two groups of pair roller moulds with different-grain diameter in the present embodiment; Conveyer belt should be two mutually, and rotary screen also should be two mutually.Thus, can significantly enhance productivity, and satisfy the production needs of different model marble chocolate.
Cooling system is made up of condenser 14, refrigerator 12, blower fan and air channel 15; Condenser comprises two condensate liquid outlet pipes; Article one, condensate liquid outlet pipe 13 is connected to refrigerator; Another condensate liquid outlet pipe 11 is connected to the swivel joint of pair roller mould, is respectively arranged with the air inlet 17 and the air outlet 9 that are communicated with the air channel in the bottom of conveying chamber, on the air channel of this air inlet and air outlet bottom, axial flow blower 16,10 is housed all.
The operation principle of the marble chocolate make-up machine of the utility model is:
The chocolate slurries of high temperature under agitation are delivered to pouring head through impeller pump; Be poured between the pair roller mould by pouring head, pair roller mould portion's cooling fluid effect lower surface within it presents low temperature, makes the rapid freeze forming of chocolate slurries; Marble chocolate after the moulding falls to the end of upper strata conveyer belt; In conveying chamber delivered inside process, continue freezingly, accomplish freeze forming technology, fall to rotary screen in the end of conveying belt of lower floor; Remove burr and the too small beans of particle diameter through rotary screen, the moulding marble chocolate falls in the pan tank at the leading section of rotary screen and collects.
This marble chocolate make-up machine all can be realized automatic control through 1 pair of moulding cryogenic temperature of automatic control system, conveying chamber cryogenic temperature, temperature of charge, has the advantage of automaticity height, production efficiency height, good product quality.
Claims (5)
1. full-automatic marble chocolate make-up machine; It is characterized in that: roll a system, rotary screen system and cooling system and constitute by feed system, cooling induction system, cooling; Feed system is made up of agitator tank, impeller pump and pouring head; Impeller pump is installed on agitator tank, and impeller pump is connected to pouring head through pipeline; The cooling induction system is by conveying chamber and be installed on the inner conveyer belt of conveying chamber and constitute; Cooling is rolled a system and is made up of pair roller mould and drive motors thereof, and the pair roller mould is installed on the feed entrance point of said conveyer belt, on the top of pair roller mould said pouring head is installed; Cooling system is made up of condenser, refrigerator, blower fan and air channel, and two condensate liquid outlet pipes of condenser are connected to refrigerator and pair roller mould respectively, and refrigerator is connected on the air channel, and the blower fan that is connected with conveying chamber is installed on the air channel; The rotary screen system is made up of rotary screen and drive motors thereof, and rotary screen is installed on bottom, conveyer belt discharging position.
2. full-automatic marble chocolate make-up machine according to claim 1 is characterized in that: said pair roller mould is made up of the mould that a pair of surface is covered with pit, and this pair roller mould is rotated by drive motor drives in opposite directions.
3. full-automatic marble chocolate make-up machine according to claim 1; It is characterized in that: be provided with turning set in the pair roller both mold ends; One end of this turning set is equipped with swivel joint; The inner of this swivel joint is connected with the central shaft tube that is installed on the pair roller mould inside, and the outer end of this swivel joint is shaped on condensate liquid delivery port and water return outlet, on central shaft tube, is shaped on liquid distributing hole.
4. full-automatic marble chocolate make-up machine according to claim 1; It is characterized in that: described pair roller mould is the many groups pair roller mould that is installed on the cooling induction system leading section support body; Said conveyer belt is many of corresponding said pair roller mould; By pair roller mould drive motors driven in synchronism, said rotary screen system also be corresponding organizes to this conveyer belt more through the sprocket wheel chain drive mechanism.
5. full-automatic marble chocolate make-up machine according to claim 1 is characterized in that: the downward-sloping installation of the port of export of said rotary screen.
