Abstract
The utility model discloses a tool which is capable of fastening a line suspension clamp U type bolt under power. The tool includes an operating rod and a ratchet socket wrench, wherein the operating rod is made of an insulating material, and one end of the operating rod is rotatingly connected with a handle of the ratchet socket wrench. When a lead suspension clamp U type bolt is fastened under power through adopting the ground potential, a corresponding charged operating tool does not exist, and the tool solves the above problem. The insulating rod guarantees the safe distance between an operating person and a charged object, and at the same time, the rotation connection between the operating rod and the ratchet socket wrench gives convenience to the screwing or dismounting operation of the lead suspension clamp U type bolt, and consequently the entire operation process becomes time-saving, manpower-saving, and material-saving, and the working efficiency is improved.
Description
Technical field
The utility model relates to the live line working technical field in the power and distribution supply cable, particularly a kind of instrument of charged secure wires suspension clamp U-bolt.
Background technology
Transmission line is the important component part of electrical network, and it is in operation, owing to receive the natural environment or the influence of external force factor such as strong wind; The phenomenon that the hanging conductor clamp U-bolt becomes flexible is comparatively common; If can not handle this type defective in time, in the course of time, becoming flexible will appear in hanging conductor clamp; Very the person comes off, thereby the major accident that lead goes offline occurs.At present, eliminate the operating type that this type of defective needs equipotential to combine with earth potential, in the operation process, the power tool that needs comprises: insulation load instrument; Insulating bar, insulation safety rope, insulating ladder, insulation coaster; Pin removal, screening clothing, spanner, insulation rope; The operating personnel needs 8, divides the work to be: 1 of work director, 3 of earth potential electricians, 1 of equipotential electrician, 3 of ground electricians.
Job step is:
A) the work director reads out work ticket, and hands over dangerous spot and safety measure in the operation process to the staff;
B) the equipotential electrician dress behind a complete set of screening clothing and 3 earth potential electrician Deng Ta to job position;
C) the ground electrician will be insulated power tool dischargings such as load instrument, insulating ladder in order under the work director commands;
D) the earth potential electrician of cross-arm place hangs up properly insulation coaster and insulation rope;
E) the ground electrician delivers to the earth potential electrician of cross-arm place through will insulate load instrument, insulating bar of insulation rope, and pin removal, insulating ladder are delivered to the earth potential electrician of body of the tower place;
F) 2 earth potential electricians of cross-arm place utilize insulation load instrument with the lead force of gravity;
G) the earth potential electrician cooperatively interacts on 3 towers, lead is drop to the position (height of the about 20cm of landing) of satisfying electrified body and earth electrode minimum safe distance in the live line working;
H) treat the earth potential electrician of body of the tower place with insulating ladder fixing after, assist the equipotential electrician to get into electric field along insulating ladder, to the hanging conductor clamp place, tighten up loosening bolt with spanner;
I) behind the fastening bolt, equipotential electrician returns body of the tower, with the earth potential electrician All Jobs instrument is removed, and reaches ground with the insulation rope, tower under the personnel, and end-of-job is worked well and is summed up and record.
In practical operation, the activity duration that aforesaid way carries out generally reaches about 60 minutes, and operating efficiency is very low.Need more human and material resources in the operation process simultaneously, cost is higher.
If can adopt earthy mode, then can the staff be reduced to 4 people, 1 of the director of wherein working, earth potential electrician 2 people, ground electrician 1 people; Only need develop corresponding tools for live working, can restrict and the insulation coaster by coordinated insulation, accomplish fastening work circuit suspension clamp U-bolt.
Wherein job step is:
A) the work director reads out work ticket, and hands over dangerous spot and safety measure in the operation process to the staff;
B) two earth potential electricians step on tower respectively to job position;
C) the ground electrician commands down with tools for live working, the discharging of insulation rope in order the work director;
D) the earth potential electrician of cross-arm place hangs up properly insulation coaster and insulation rope;
E) the ground electrician reaches the earth potential electrician of body of the tower place through the insulation rope with tools for live working;
F) the earth potential electrician cooperatively interacts on 2 towers, utilizes novel tools for live working fastening bolt;
G) tighten up bolt after, the electrician is sent to ground with instrument on the tower, tower under the personnel, end-of-job is worked well and is summed up and record.
Though the activity duration of the earth potential mode of operation of above-mentioned steps can be reduced to about 20 minutes, improved the efficient of work greatly, reduced the cost of manpower and physics, also need develop corresponding tools for live working, could in practical application, implement.
Summary of the invention
To the deficiency of prior art, the utility model proposes a kind of instrument of realizing the charged fastening circuit suspension clamp U-bolt of earth potential operation carrying out.
For realizing above-mentioned purpose, the technical scheme that the utility model is taked is: a kind of instrument of charged fastening circuit suspension clamp U-bolt, and it comprises action bars and box socket set; Wherein, action bars adopts insulating material to process, the be rotationally connected handle of box socket set of one of which end.
As a kind of improvement, realize being rotationally connected between insulating bar and the box socket set with connector in the utility model; One end of connector flexibly connects an end of action bars, the be rotationally connected handle of box socket set of the other end of connector.Preferably, between the end of said connector and action bars for being threaded; Be connected through bearing pin between the handle of said connector and box socket set.Connector can adopt process of the prior art to process.
As a kind of improvement, the end of said action bars is provided with metal connector, and connector inside and connector are provided with coadapted screw thread.Concrete, insulating material is processed because action bars is selected epoxy resin etc. for use, itself is difficult to the connector with metal, perhaps is generally between the ratchet spanner handle that stainless steel processes to connect.Adopt the connector identical to be connected the above-mentioned problem that solved with connector with the action bars diameter.The material of connector should select for use the high material of intensity to process, and is preferably duralumin, and its length should not surpass 100mm, and preferably end and edge all are processed into circular arc.
Preferably, the said action bars of the utility model is a hollow stem, its inner filled and process.Because action bars will guarantee the safe distance of operating personnel and electrified body, thus need to test through permeability test, power frequency withstand test, hygrometric state dielectric test, insulation tolerance, and mechanical test could be selected for use after qualified.The type of action bars can be solid hopkinson bar, hollow pipe, or the hollow stem of inner filled and process, and density of material should not be lower than 1.75g/cm
3, water absorption rate is not more than 0.3%, is preferably epoxide resin material and processes, diameter 28mm, the hollow stem of wall thickness 2.5mm, the inwall of the bonding hollow stem of filled and process.
The total length of insulating bar is by the decision of the summation of the shortest effective insulated lengths, end metal joint length and portion of the handle length, and its each several part length requirement is with reference to table 1:
Table 1: action bars each several part length requirement
With 220kV is example, considers tower structure, and under the prerequisite that every length all meets the demands, the length of getting insulating bar is 3.5m.
In the power frequency withstand test, the insulating material of insulating bar is carried out the 1min power frequency withstand test of 300mm test product; In the hygrometric state dielectric test, the insulating material of insulating bar is carried out the 1h rain test of 1200mm test product, test product should satisfy no flashover under 100 kV power-frequency voltages, does not have to puncture, and the surface does not have visible electric leakage evidence of corrosion, the requirements such as temperature rise that can not find; During insulation tolerance can be tested, insulating bar wanted tolerate 1min power-frequency voltage test between two electrodes of the 300mm of being separated by, and test product is no flashover under the 100kV power-frequency voltage, does not have to puncture, and it is thus clear that surperficial nothing is the evidence of corrosion that leaks electricity, the requirements such as temperature rise that can not find; In addition, insulating bar should have certain mechanical bending resistance, antitorque characteristic, and anti-extruding, anti-mechanical aging performance; After 4000 bend cycles of experience; When not using visual inspection by amplifying device, test product should not have the vestige of any damage, and any permanent deformation does not have yet.
The described connector of the utility model can adopt screw rod of the prior art, utilizes the existing processes means to change a social system, and also can directly utilize the existing processes means to process.Be preferably, the length of the threaded portion of an end is 4.5cm on the connector, and pin shaft hole is set on the other end, simultaneously corresponding pin shaft hole is set also on the handle of box socket set, utilizes bearing pin that both are coupled together, and can realize being rotationally connected.The installation of connector for ease connects, and is preferably at the middle part of connector nut is set.
The said box socket set of the utility model can be selected existing box socket set for use; Existing processes also capable of using is processed, and its handle embeds the afterbody of sleeve, and formation is rotationally connected between the sleeve; Sleeve can rotate to be adjusted to required angle by thorny handle, fixes then.
Moment of torsion during general manual dismounting nut is 10000Ncm, and people's thrust is 250N, and the decreased food of box socket set is L=10000/250=40cm thus.The screw rod of considering the wire clamp U-bolt is generally longer, so the length of sleeve is preferably 10cm.
When the utility model has solved charged secure wires suspension clamp U-bolt; Adopt earth potential to operate the problem that lacks corresponding hot-line tool; Insulating bar has guaranteed the safe distance between staff and the electrified body; Action bars and being rotationally connected of box socket set have made things convenient for the operation of screwing or dismantling to the wire clamp U-bolt simultaneously, make the whole operation process reduce elapsed time and man power and material, have improved operating efficiency.
Description of drawings

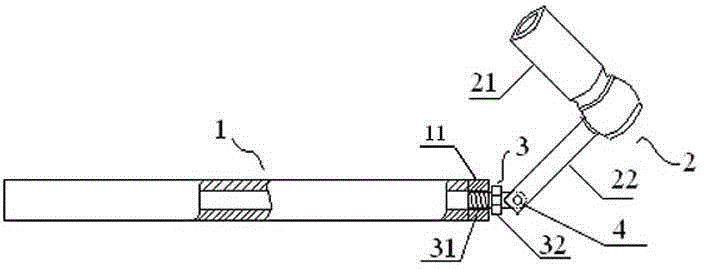

Shown in Figure 1 is the structural representation of the utility model.
Embodiment
For the content that makes the utility model is more obviously understandable, further specify below in conjunction with accompanying drawing and embodiment.
In conjunction with Fig. 1, a kind of preferred embodiment of the utility model comprises insulating bar 1 and box socket set 2, connects through connector 3 between the two; One end of insulating bar is provided with connector 11, and is threaded through between connector 11 and the connector 3; Realize being rotationally connected through bearing pin 4 between the handle 22 of connector 3 and box socket set 2; Be specially; The end that sheet embeds handle 22 is processed in the end of connector 3, all is provided with pin shaft hole on the part that both overlap, and bearing pin 4 is inserted in the pin shaft hole get final product.In addition, the installation of connector 3 for ease, the middle part of connector 3 also is provided with a nut.
In the present embodiment, insulating bar 1 adopts epoxide resin material to process, and diameter is 28mm, wall thickness 2.5mm, and when voltage level was 220KV, the total length of action bars was 3.5m, comprised end connector 11.Connector 11 adopts duralumin to process, and it is all identical with action bars 1 internal diameter wall thickness shaft-like, and inwall is provided with the screw thread that adapts with connector 3 end thread; The length of connector 11 is 60mm.Set reach is 45mm on the connector 3, and nut 4 models and connector threaded shank portion size are suitable.Handle 22 length of box socket set are 0.4m, and sleeve 21 length are 0.1m, are rotationally connected between sleeve 21 afterbodys and the handle 22.
The case of practical implementation described in the utility model is merely the preferable case study on implementation of the utility model, is not the practical range that is used for limiting the utility model.Be that all equivalences of doing according to the content of the utility model claim change and modification, all should be as the technological category of the utility model.
Claims (10)
1. the instrument of charged fastening circuit suspension clamp U-bolt is characterized in that, comprises action bars and box socket set; Wherein, action bars adopts insulating material to process, the be rotationally connected handle of box socket set of one of which end.
2. the instrument of charged fastening circuit suspension clamp U-bolt according to claim 1 is characterized in that, also comprises connector; One end of connector flexibly connects an end of action bars, the be rotationally connected handle of box socket set of the other end of connector.
3. the instrument of charged fastening circuit suspension clamp U-bolt according to claim 2 is characterized in that, between the end of said connector and action bars for being threaded.
4. the instrument of charged fastening circuit suspension clamp U-bolt according to claim 2 is characterized in that, is connected through bearing pin between the handle of said connector and box socket set.
5. the instrument of charged fastening circuit suspension clamp U-bolt according to claim 3 is characterized in that the end of said action bars is provided with metal connector, and connector inside and connector are provided with coadapted screw thread.
6. according to the instrument of each described charged fastening circuit suspension clamp U-bolt of claim 1 to 5, it is characterized in that said action bars is a hollow stem, its inner filled and process.
7. the instrument of charged fastening circuit suspension clamp U-bolt according to claim 5 is characterized in that, the length that screw thread is set on the said connector is 4.5cm.
8. according to the instrument of claim 3 or 5 or 7 described charged fastening circuit suspension clamp U-bolts, it is characterized in that the middle part of said connector is provided with nut.
9. the instrument of charged fastening circuit suspension clamp U-bolt according to claim 1 is characterized in that, between the handle of said box socket set and the sleeve for being rotationally connected.
10. the instrument of charged fastening circuit suspension clamp U-bolt according to claim 9 is characterized in that, the length sleeve of said box socket set is 10cm.
