Abstract
The utility model relates to a writing correcting tool. The writing correcting tool comprises an eraser, wherein a concave part for accommodating a pen is arranged on the eraser; and correction liquid and a correction belt are arranged below the eraser. In the utility model, the concave part for accommodating the pen is arranged on the eraser and can be used for accommodating the pen which is not used, so that the pen is prevented from rolling back and forth on a desktop. The utility model combines the eraser, the correction liquid and the correction belt and is convenient to use.
Description
Technical field
The utility model relates to a kind of truing tool of writing, and is specifically related to a kind of compound truing tool of writing that comprises rubber, opaquing fluid and correction band, belongs to the technical field of stationery.
Background technology
The main tool of writing at present remains pencil, pen, neutral water-color paintbrush.
Pencil has two kinds of principal modes of wooden pencil of wooden pencil and band rubber.In pencil uses, there is tip of a pencil to fracture easily, scratches the people easily, carry inconvenience; After use shortened, it is inconvenient that finger is pinched pen.Be not with pencil the time, round pencil rolls over easily on the table.
In the use,, need to seek erasing rubber, opaquing fluid or revise band if run into clerical error.Use and be not very convenient.
The utility model content
The utility model technical problem to be solved is to provide a kind of truing tool of writing, to solve the many weak points of existing in prior technology.This utility model is applicable to large-scale production.
The technical problem of the required solution of the utility model, can realize through following technical scheme:
A kind of truing tool of writing comprises erasing rubber, it is characterized in that, the recess of shelving pen is set on the said erasing rubber.
Wherein, a kind of embodiment is provided with opaquing fluid under the said erasing rubber.
Wherein, a kind of embodiment is provided with under the said erasing rubber and revises band.
The beneficial effect of the utility model:
The utility model is provided with the recess of shelving pen on erasing rubber, recess can be used for placing idle pen, prevents that pen from rolling on the table.
In addition, the utility model is compound erasing rubber, opaquing fluid and correction band, convenient use.
Description of drawings
Further specify the utility model below in conjunction with the accompanying drawing and the specific embodiment.

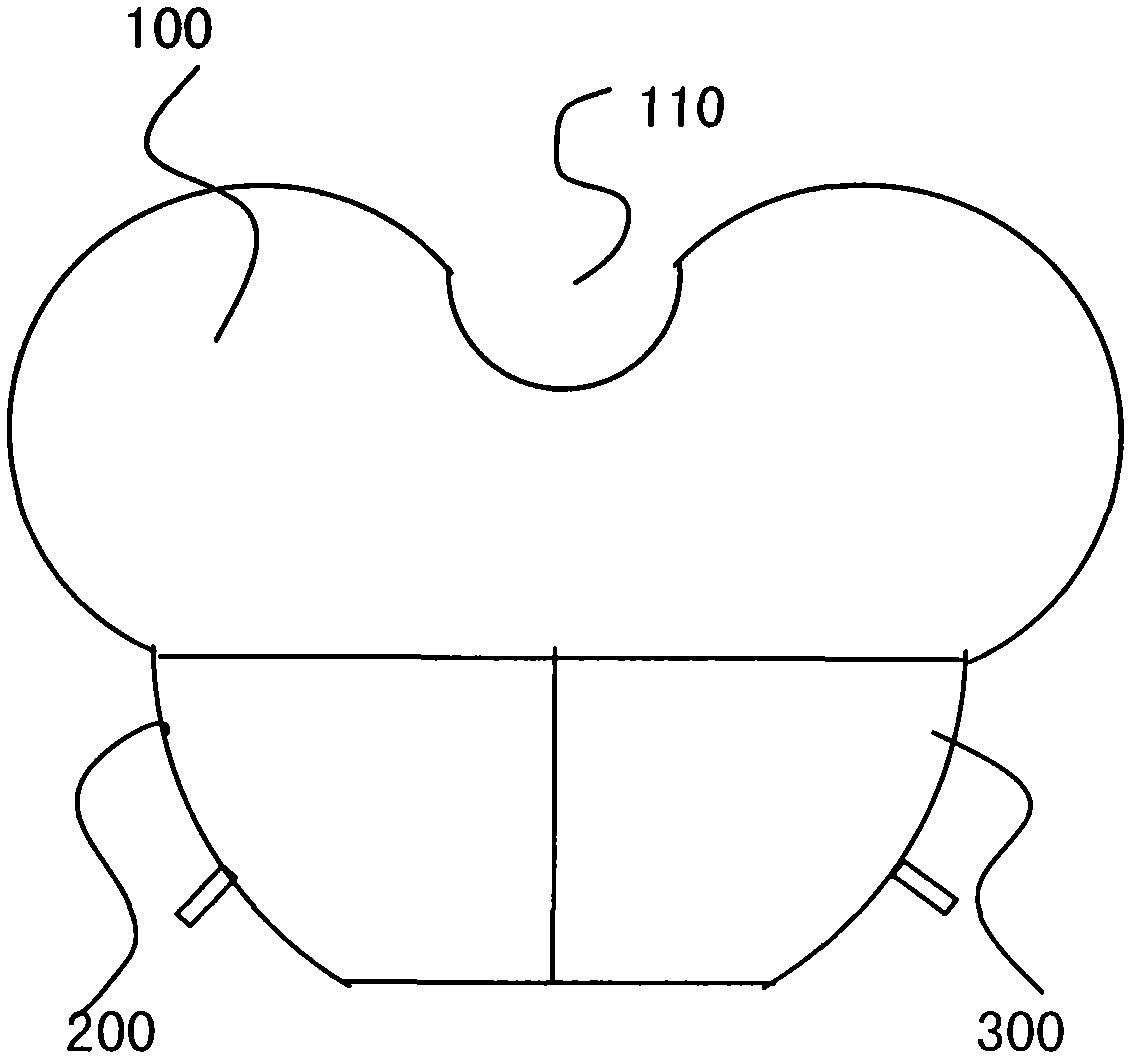

Fig. 1 is the structural representation of the utility model.
The drawing explanation:
Erasing rubber 100, opaquing fluid 200, revise be with 300, recess 110.
The specific embodiment
For the technological means, the creation characteristic that make the utility model, reach purpose and effect and be easy to understand and understand, below in conjunction with concrete diagram, further set forth the utility model.
Embodiment 1
A kind of truing tool of writing, as shown in Figure 1.Comprise: erasing rubber 100, opaquing fluid 200, correction are with 300.
Erasing rubber 100 is set to the Pear-Shaped structure, erasing rubber 100 recesses 110, and recess 110 can be used for placing idle pen, like the pencil of circle, ball pen etc., prevents that pen from rolling on the table.
Erasing rubber is provided with opaquing fluid 200 100 times.
Erasing rubber is provided with for 100 times to revise is with 300.
Opaquing fluid 200, correction are with 300 to be prior art, do not launch narration at this.The utility model is compound erasing rubber, opaquing fluid and correction band, convenient use.
More than show and described the advantage of basic principle, principal character and the utility model of the utility model.The technical staff of the industry should understand; The utility model is not restricted to the described embodiments; The principle of describing in the foregoing description and the specification that the utility model just is described; The utility model also has various changes and modifications under the prerequisite that does not break away from the utility model spirit and scope, and these variations and improvement all fall in the utility model scope that requires protection.The utility model requires protection domain to be defined by appending claims and equivalent thereof.
Claims (3)
1. write truing tool for one kind, comprise erasing rubber, it is characterized in that, the recess of shelving pen is set on the said erasing rubber.
2. a kind of truing tool of writing according to claim 1 is characterized in that, under the said erasing rubber opaquing fluid is set.
3. a kind of truing tool of writing according to claim 1 is characterized in that, is provided with under the said erasing rubber to revise band.
