The utility model relates to a heat preservation and insulation outer wall decorating plate, which belongs to the technical field of decorating materials and is characterized in that a jute fiber plate (1) serves as a base layer, a poly urethane (PU) layer (2) is composited on the upper surface of the jute fiber plate (1), and a baking varnish layer (3) is arranged on the surface of the PU layer (2). By adopting the jute fiber as the base plate, the heat preservation and insulation outer wall decorating plate is good in sound insulation effect, low in material cost, easy to process and recover and good in heat preservation and insulation effect of the PU layer. Furthermore, the baking varnish layer has good corrosion resistance, thereby being suitable for outdoor usage. Adhesive agents are not used during processing, thereby being green and environment-friendly.
Description
Technical field
The utility model relates to a kind of thermal insulation outer wall decorative panel, belongs to decorative materials technology.
Background technology
Decorative plate of outer wall is the novel building decoration of exterior wall heat-insulating integral formed material of researching and developing in recent years; This material is composited by enamel polyester paint or fluorine carbon lacquer, carving alumin(i)um zinc alloy steel plate, layer of polyurethane, glass fabric; Be mainly used in the decoration of exterior wall and the reducing energy consumption of the various buildings such as office building, villa of sports palace, library, school and hospital.Need to use the alumin(i)um zinc alloy steel plate in its manufacturing process, Heavy Weight and material cost are high; During discarded in addition the dismounting, reclaim difficulty, and use glue, not environmental protection in the recombination process.
Summary of the invention
The purpose of the utility model is to overcome above-mentioned deficiency, provides that a kind of the cost of material is low, reclaims easily, the thermal insulation outer wall decorative panel of environmental protection.
The purpose of the utility model is achieved in that a kind of thermal insulation outer wall decorative panel, and it is to be basic unit with the hemp fibre board, the compound PU layer of the upper surface of said hemp fibre board, and said PU laminar surface is provided with the baking vanish layer.
Compared with prior art, the beneficial effect of the utility model is:
The utility model thermal insulation outer wall decorative panel, the employing hemp fibre board is a substrate, and soundproof effect is good, and the cost of material is low; And processing is simple, is prone to reclaim, and PU layer thermal and insulating performance is good; Baking vanish layer good corrosion resistance is fit to outdoor application, do not use bonding adhesive, environmental protection in the process.
Description of drawings

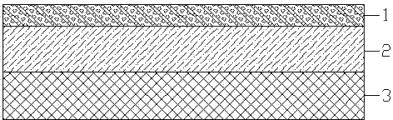

Fig. 1 is the cross-sectional structure sketch map of the utility model thermal insulation outer wall decorative panel.
Wherein:
Baking vanish layer 3.
The specific embodiment
Referring to Fig. 1, a kind of thermal insulation outer wall decorative panel that the utility model relates to, it is to be basic unit with hemp fibre board 1, at the compound PU layer 2 of the upper surface of said hemp fibre board 1, said PU layer 2 surface are provided with baking vanish layer 3.
Claims (1)
1. thermal insulation outer wall decorative panel is characterized in that: it is to be basic unit with hemp fibre board (1), the compound PU layer of the upper surface of said hemp fibre board (1) (2), and said PU layer (2) surface is provided with baking vanish layer (3).
