CN202120564U - Three-dimensional visualization bus stop board with all-around lighting - Google Patents
Three-dimensional visualization bus stop board with all-around lighting Download PDFInfo
- Publication number
- CN202120564U CN202120564U CN2011200705076U CN201120070507U CN202120564U CN 202120564 U CN202120564 U CN 202120564U CN 2011200705076 U CN2011200705076 U CN 2011200705076U CN 201120070507 U CN201120070507 U CN 201120070507U CN 202120564 U CN202120564 U CN 202120564U
- Authority
- CN
- China
- Prior art keywords
- lamp
- lighting
- bus stop
- board
- concave arc
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model discloses a three-dimensional visualization bus stop board with all-around lighting, wherein a bus stop marker lamp with a lighting device and a cylindrical transparent lamp box are arranged on the top part; the cylindrical lamp box is provided with a blue light emitting diode (LED) surrounding lamp, and sprayed with the stop name and the public publicity advertisement to stand out the position of the bus stop; an information board of a three-sided inward-concave cambered three-dimensional structure is made of fluorescent material; a white LED glass lamp tube is arranged on the vertical side, and a travelling direction board block, a bus information board block and an advertisement publicity board block are arranged in three directions from top to bottom in sequence to form the three-dimensional visualization effect. The energy-saving lighting lamp and the LED lamp are designed to generate good lighting effect for the information board, and then the night visibility and the information definition are effectively improved, and the supporting action for lighting urban construction is achieved; the three-dimensional visualization bus stop board with all-around lighting has the characteristics of elegant appearance, low cost, energy saving and the like, can be applicable to the advertisement publicity, the road markings and the like to promote beautifying the city and the construction of lighting engineering, and has broad application prospect.
Description
Technical field
The utility model belongs to a kind of mass transportation facilities riding information station board, particularly a kind of 3 d visualization public transport stop board of comprehensive band illumination.
Background technology
Modernization along with urban construction; The public transport cause is also along with develop rapidly; Increasing public transit vehicle and circuit satisfy the demand of people's trip; Public transport stop board is not only as the mediator of people's riding information, but also can play beautifying urban environment, dredge public transport, the function of city lighting engineering.At present domestic public transport stop board great majority adopt plate armature to be installed on the column; Profile is simple and easy and coarse; Only have the space of a whole page and the information capacity of both direction less, check that transport information such as transfer train number, route name of station are inconvenient, especially the passengers on the passing by vehicle more can't see via information such as name of station; To people by bus trip caused very big inconvenience, extremely incompatible with the The Surroundings in Cities construction; Existing electronic public transport stop board exists also that floor area and volume are big, view direction is single, is difficult to check problem such as information of vehicles comprehensively, and because of acquisition cost and cost of use is higher can't widespread use.
Therefore, develop a kind of 3 d visualization public transport stop board, can give prominence to the position of bus stop with comprehensive band illumination; Amount of traffic information and advertising breadth have been expanded; Be widely used in fields such as public transport, help improving the environment by bus of public transport, make people convenient, fast, accurately understand riding information and region of living in; Promoted the construction of beautifying city and lighting engineering, had broad application prospects.
Summary of the invention
The purpose of the utility model is the 3 d visualization public transport stop board of a kind of comprehensive band illumination of design, can be widely used in fields such as public transport.The bus stop sign lamp and the cylindrical transparent lamp box of top mounting strap lighting device, encircling all air brushing has name of station and public good exploitation, the outstanding position that has shown the bus stop; The information board surface of three inner concave arc surface stereoisomers makes with fluorescent material, comprises riding information, line identification, public good or commercial propaganda advertisement etc., forms omnibearing stereoscopic visual effect; The design of energy-saving lighting lamp and LED lamp produces good illuminating effect to information board, improves the visibility at night and the readability of information effectively, not only brightening public transport stop board, also the urban environment lighting engineering is played supporting effect.Characteristics such as this public transport stop board has that good looking appearance is generous, information capacity is big, 3 d visualization is effective, manufacturing cost and maintenance cost are lower; Also can be applicable to aspects such as advertising, road markings; Promoted the construction of beautifying city and lighting engineering, had broad application prospects.
The 3 d visualization public transport stop board that the purpose of the utility model is achieved in that the illumination of comprehensive band identifies lamp, right cylinder lamp box, three inner concave arc surface stereoisomers, White LED glass lamp, station board base, advertising plate, riding information plate, travel direction plate, 360 ° of name of station plates, blue led by the bus stop and forms around lamp etc.; Three inner concave arc surface stereoisomers are installed on the station board base, and the right cylinder lamp box is installed in the top of three inner concave arc surface stereoisomers, and right cylinder lamp box top is provided with bus stop sign lamp; The flap of three inner concave arc surface stereoisomers is provided with the White LED glass lamp, and travel direction plate, riding information plate, advertising plate are arranged on 3 directions of three inner concave arc surface stereoisomers successively from top to bottom; Right cylinder lamp box surface is provided with 360 ° of name of station plates, and last bottom is respectively arranged with blue led around lamp.
Three inner concave arc surface stereoisomers are made up of newel, inner concave arc surface information board; The aggregate erection of 3 inner concave arc surface information boards is on newel.
The station board base is made up of pedestal, newel mounting hole, anchor (bolt) hole etc.; The middle part of pedestal is provided with the newel mounting hole, and 3 anchor (bolt) holes are separately positioned on the limit of pedestal.
The right cylinder lamp box is made up of tube face, lamp box, energy-saving lighting lamp, newel gusset, light refracting telescope etc.; The lamp box bottom is provided with the newel gusset, and light refracting telescope and tube face are installed in the top in the lamp box respectively, and energy-saving lighting lamp is installed on the tube face.
The advantage of the 3 d visualization public transport stop board of the comprehensive band illumination of the utility model is: the visual riding information plate and the exploitation plate composite design that adopt three inner concave arc surface stereoisomers; Not only enlarge the capacity of public traffic information, and had omnibearing visual effect; The information space of a whole page of three inner concave arc surfaces adopts fluorescent material to make, and does not set up and is equipped with the public traffic information plate, also is provided with public service ads and picture poster plate; The public traffic information plate of human oriented design is sorted out arrangement design according to the public transit vehicle travel direction, can consult public transport train number and information such as station on the way fast; The bus stop sign lamp and the cylindrical transparent lamp box of top mounting strap lighting device; Encircle all air brushing name of station and public good exploitation are arranged; Around LED light in the outstanding position that has shown the bus stop at night; Have that the brightening degree is good, the characteristics of energy saving, can improve the visibility at night and the readability of information effectively, also supporting effect is played in the brightening urban construction simultaneously.This public transport stop board has the visual effect of omnibearing stereo; The present position of outstanding bus stop; Expansion amount of traffic information and advertising breadth, and good looking appearance is generous, manufacturing cost and use and maintenance cost is lower, energy saving, also can be applicable to aspects such as advertising, road markings; Help promoting the use of, have broad application prospects.
Description of drawings
The concrete structure of the utility model is provided by following examples and accompanying drawing.

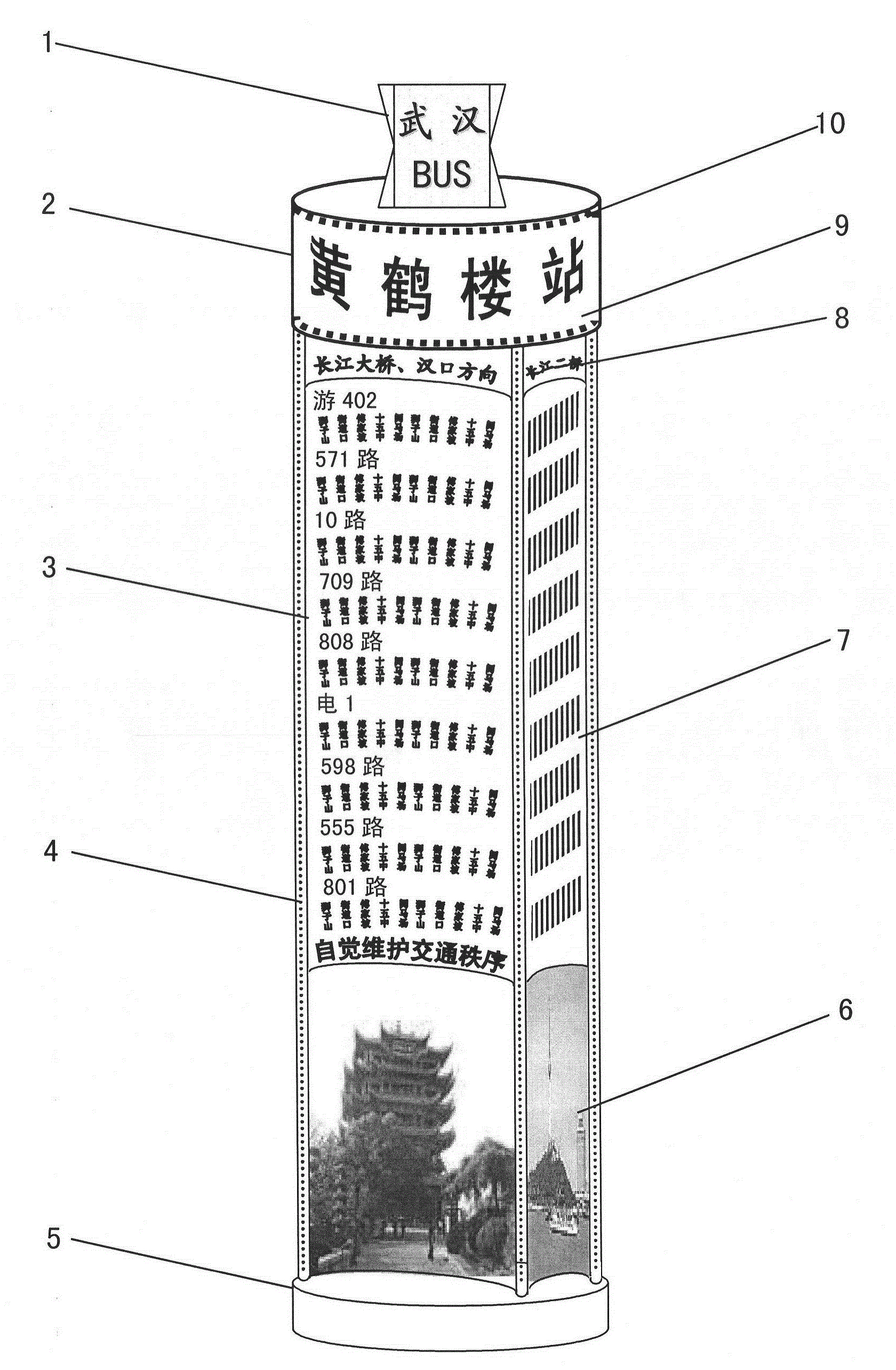

Fig. 1 is the structural representation of 3 d visualization public transport stop board of the comprehensive band illumination of the utility model.
Fig. 2 is the structural representation of three inner concave arc surface stereoisomers of the utility model.
Fig. 3 is the structural representation of the station board base of the utility model.
Fig. 4 is the structural representation of the right cylinder lamp box of the utility model.
Below in conjunction with Fig. 1, Fig. 2, Fig. 3, Fig. 4 the utility model is specified.
Among the figure 1, bus stop sign lamp, 2, the right cylinder lamp box, 3, three inner concave arc surface stereoisomers, 4, the White LED glass lamp; 5, station board base, 6, the advertising plate, 7, the riding information plate, 8, the travel direction plate; 9,360 ° of name of station plates, 10, blue led is around lamp, 11, newel, 12, the inner concave arc surface information board; 13, pedestal, 14, the newel mounting hole, 15, anchor (bolt) hole, 16, tube face; 17, lamp box, 18, energy-saving lighting lamp, 19, the newel gusset, 20, the light refracting telescope
Embodiment
As shown in Figure 1: three inner concave arc surface stereoisomers 3 are installed on the station board base 5, and right cylinder lamp box 2 is installed in three inner concave arc surface stereoisomer 3 tops, and right cylinder lamp box 2 tops are provided with bus stop sign lamp 1; The flap of three inner concave arc surface stereoisomers is provided with White LED glass lamp 4, and travel direction plate 8, riding information plate 7, advertising plate 6 are successively set on 3 directions of three inner concave arc surface stereoisomers 3; Right cylinder lamp box 2 surfaces are provided with 360 ° of name of station plates 9, and last bottom is not provided with blue led around lamp 10.
As shown in Figure 2: three inner concave arc surface information board 12 aggregate erections are on newel 11.
As shown in Figure 3: the middle part of pedestal 13 is provided with 14,3 anchor (bolt) holes 15 of newel mounting hole and is separately positioned on the limit of pedestal 13.
As shown in Figure 4: lamp box 17 bottoms are provided with newel gusset 19, and light refracting telescope 20 is installed in the top in the lamp box 17 respectively with tube face 16, and energy-saving lighting lamp 18 is installed on the tube face 16.
Claims (1)
1. the 3 d visualization public transport stop board of comprehensive band illumination identifies lamp, right cylinder lamp box, three inner concave arc surface stereoisomers, White LED glass lamp, station board base, advertising plate, riding information plate, travel direction plate, 360 ° of name of station plates, blue leds by the bus stop and forms around lamp; It is characterized in that: three inner concave arc surface stereoisomers are installed on the station board base; The right cylinder lamp box is installed in three inner concave arc surface stereoisomer tops, and right cylinder lamp box top is provided with bus stop sign lamp; The flap of three inner concave arc surface stereoisomers is provided with the White LED glass lamp, and travel direction plate, riding information plate, advertising plate are arranged on 3 directions of three inner concave arc surface stereoisomers successively from top to bottom; Right cylinder lamp box surface is provided with 360 ° of name of station plates, and last bottom is respectively arranged with blue led around lamp.
