Abstract

The utility model discloses a folding clothes rack which comprises a hook (1), a connecting device (2), clothes supporting rods (4) and a sliding block (5); the hook (1) and the connecting device (2) are fixedly connected; the connecting device (2) is respectively connected with the two clothes supporting rods (4) through rotating shafts (3); springs (6) are mounted on the rotating shafts (3); and two through holes are formed on the sliding block (5) and pass through the clothes supporting rods (4) respectively. The folding clothes rack achieves the purpose of reducing the storage space of the clothes rack and has the advantages of attractiveness, practicability, simple structure and convenience in use.

Description

A kind of folding clothes-hanger
Technical field
The utility model relates to a kind of clothes hanger, especially a kind of folding clothes hanger.
Background technology
The kind of clothes hanger in the market is a lot, and design is also multifarious, but most of family expenses clothes hanger all has several general character: on the storage organization, form is more single, and takies more space; Aspect hommization, can only satisfy function of use, but can not give the use fragrance, profile is generally all more flat, does not have what fresh fashion element.Along with the fast development of economy and the progressively raising of living standard, people's spiritual demand has also obtained very big raising, and people begin more to pay attention to the grade of household articles, the aesthetic and practicality of producing product.
Summary of the invention
The purpose of this utility model be to propose a kind of collapsible, reduce the clothes hanger that is taken up space, this clothes hanger can be folded up when idle, it is little to take up room.
The technical solution of the utility model is: a kind of folding clothes-hanger comprises hook (1), jockey (2), clothing supporting rod (4) and slide block (5); Described hook (1) is fixedlyed connected with described jockey (2), and described jockey (2) links to each other with two clothing supporting rods (4) by rotating shaft (3) respectively; Spring (6) is installed on the described rotating shaft (3); Described slide block (5) has two through holes, and described through hole passes clothing supporting rod (4) respectively.
Further, described jockey is the U type.
Further, described clothing supporting rod (4) is provided with groove, and described slide block (5) is provided with the projection with described groove fit.
Further, the free-ended diameter of described clothing supporting rod (4) is greater than the diameter of described slide block (5) through hole.
Further, be provided with supporter piece 51 in the middle of the described slide block (5).
The beneficial effects of the utility model are: by the structure of slide block and movable clothing supporting rod, make clothing supporting rod can realize folding, therefore just realized reducing the space problem of clothes hanger storage, accomplish both artistic and practical, simple in structure, easy to use.
Description of drawings
Accompanying drawing is the structural representation of a kind of Foldable multifunctional clothes hanger of relating to of the utility model.

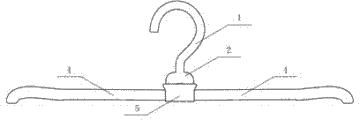

Fig. 1 is an embodiment folded state schematic diagram;
Fig. 2 is the cutaway view of Fig. 1.
Fig. 3 is an embodiment deployed condition schematic diagram.
Fig. 4 is the cutaway view of Fig. 3.
Fig. 5 is the cutaway view in the folding process.
Fig. 6 is the cutaway view of the front view of slide block.
Fig. 7 is the vertical view of slide block
Wherein: 1 hook, 2 jockeys, 3 rotating shafts, 4 clothing supporting rods, 5 slide blocks, 6 springs, 51 supporter pieces.
The specific embodiment
Shown in Fig. 1-2, embodiment comprises hook 1, jockey 2, clothing supporting rod 4 and slide block 5; 2 one-tenth inverted Us of jockey, fixedlying connected with hook 1 in the top of jockey 2, links to each other with two clothing supporting rods 4 by rotating shaft 3 respectively on the capable supporting leg of U, and spring all is installed on the rotating shaft 3.The slide block that has two through holes passes clothing supporting rod 4 respectively.Under slide block 5 and spring 6 actings in conjunction, clothing supporting rod 4 can be done freely rotating in 90 ° of scopes.
Fig. 1-2 is the folded state of clothes hanger, and as seen from the figure, during folded state, slide block 5 is in the medium position of clothing supporting rod 4, so that can make the clothing supporting rod 4 stable folded states that keep.In an embodiment, can be with the free-ended diameter of clothing supporting rod 4 diameter, so that slide block 5 can not skid off clothing supporting rod 4 and come off greater than described slide block 5 through holes.The clothing supporting rod 4 of slide block 5 stop places can be provided with groove in the drawings, is provided with the projection with groove fit on slide block 5, so that make slide block can be fixed on assigned address.
As shown in Figure 5, when upwards spurring the position of slide block 5 arrival jockeys 2, the active force of spring 6 is at an end of clothing supporting rod 4, in the time of sliding slider upwards 5, when slide block 5 slides into certain altitude, two clothing supporting rods 4 will flick under the effect of spring 6, and clothing supporting rod 4 is launched into deployed condition as shown in Figure 3-4 under the effect of spring 6.The shape of slide block 5 is shown in Fig. 6-7, it has two manholes, when clothes hanger launches, supporter piece 51 in the slide block 5 just is clipped between two clothing supporting rods 4, be arranged side by side with an end of two clothing supporting rods 4 body piece by three right angles two clothing supporting rods 4 are strutted, guaranteeing that clothing supporting rod 4 can not rotate back when the deployed condition, thus the weight of stable carrying clothing.
When folded state, promptly when 2 one-tenth 180 ° of clothing supporting rod 4 and jockeys.Clothing supporting rod 4 is the level of state under 51 effects of supporter piece in slide block 5, when downward sliding slider 5, supporter piece 51 moves down and has cancelled the effect of supporting in the slide block 5, this moment, clothing supporting rod 4 rotated by rotating shaft 3 under the effect of the downward power at slide block 5 two ends, when slide block 5 slides into certain distance, clothing supporting rod 4 will well play the effect of saving the space altogether.
In implementation process, slide block 5 can be designed to be different from the color of clothes hanger, when a plurality of clothes hangers are put together, because slide block 5 in the upper end, illustrates that clothes hanger in use; Otherwise slide block 5 illustrates that clothes hanger is in idle condition below the time, can take, and has saved the time that the user seeks.

Claims (5)

1. a folding clothes-hanger comprises hook (1), jockey (2), clothing supporting rod (4) and slide block (5); It is characterized in that: described hook (1) is fixedlyed connected with described jockey (2), and described jockey (2) links to each other with two clothing supporting rods (4) by rotating shaft (3) respectively; Spring (6) is installed on the described rotating shaft (3); Described slide block (5) has two through holes, and described through hole passes clothing supporting rod (4) respectively.
2. a kind of folding clothes-hanger according to claim 1 is characterized in that: described jockey is the U type.
3. a kind of folding clothes-hanger according to claim 1 is characterized in that: described clothing supporting rod (4) is provided with groove, and described slide block (5) is provided with the projection with described groove fit.
4. a kind of folding clothes-hanger according to claim 1 is characterized in that: the free-ended diameter of described clothing supporting rod (4) is greater than the diameter of described slide block (5) through hole.
5. a kind of folding clothes-hanger according to claim 1 is characterized in that: be provided with supporter piece (51) in the middle of the described slide block (5).
