CN202077575U - Ashtray with storage part - Google Patents
Ashtray with storage part Download PDFInfo
- Publication number
- CN202077575U CN202077575U CN2011201632570U CN201120163257U CN202077575U CN 202077575 U CN202077575 U CN 202077575U CN 2011201632570 U CN2011201632570 U CN 2011201632570U CN 201120163257 U CN201120163257 U CN 201120163257U CN 202077575 U CN202077575 U CN 202077575U
- Authority
- CN
- China
- Prior art keywords
- storage
- ashtray
- storage part
- utility
- model
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Packaging Of Annular Or Rod-Shaped Articles, Wearing Apparel, Cassettes, Or The Like (AREA)
Abstract
本实用新型涉及一种生活用品，特别涉及一种带收纳的烟灰缸。为解决桌面容易显得杂乱，吸烟者使用不便的技术问题，本实用新型提供了一种带收纳的烟灰缸。其技术方案为：一种带收纳的烟灰缸，包括烟灰盛具1和收纳部2，所述收纳部2位于烟灰盛具1的底部，与烟灰盛具1固定连接。所述收纳部2由四根支撑杆3和底板4组成。收纳部2可以收纳烟和打火机等。所述收纳部2的上侧边5设置为波浪形侧边，波浪形侧边便于放置烟卷。本实用新型的有益效果在于：收纳方便、结构简单、功能多样化。
The utility model relates to a daily necessities, in particular to an ashtray with storage. In order to solve the technical problems that the desktop is easy to appear cluttered and smokers are inconvenient to use, the utility model provides an ashtray with storage. The technical solution is: an ashtray with storage, comprising an ash container 1 and a storage part 2, the storage part 2 is located at the bottom of the ash container 1, and is fixedly connected with the ash container 1. The receiving portion 2 is composed of four support rods 3 and a bottom plate 4 . The storage part 2 can store cigarettes, lighters and the like. The upper side 5 of the receiving portion 2 is configured as a wave-shaped side, which is convenient for placing cigarettes. The utility model has the beneficial effects of convenient storage, simple structure and diversified functions.
Description
技术领域 technical field
本实用新型涉及一种生活用品，特别涉及一种带收纳的烟灰缸。 The utility model relates to a daily necessities, in particular to an ashtray with storage. the
背景技术 Background technique
一般家庭茶几或是会议室总少不了烟灰缸，传统的烟灰缸一般只具有盛放烟灰的功能，烟和打火机一般是杂乱的摆放在桌面上的。这样不仅桌面容易显得杂乱，也给吸烟者带来使用上的不便。所以就需要一种收纳方便、结构简单、功能多样化的烟灰缸。 Ashtrays are always indispensable in general family tea tables or conference rooms. Traditional ashtrays generally only have the function of holding ash. Cigarettes and lighters are generally placed on the desktop in a messy manner. This not only tends to be messy on the desktop, but also brings inconvenience to the smoker. Therefore, there is a need for an ashtray with convenient storage, simple structure and diversified functions. the
实用新型内容 Utility model content
为解决上述技术问题，本实用新型提供了一种带收纳的烟灰缸。 In order to solve the above technical problems, the utility model provides an ashtray with storage. the
本实用新型的技术方案为：一种带收纳的烟灰缸，包括烟灰盛具1和收纳部2，所述收纳部2位于烟灰盛具1的底部，与烟灰盛具1固定连接。所述收纳部2由四根支撑杆3和底板4组成。收纳部2可以收纳烟和打火机等。 The technical solution of the utility model is: an ashtray with storage, comprising an ash container 1 and a storage part 2, the storage part 2 is located at the bottom of the ash container 1, and is fixedly connected with the ash container 1. The receiving portion 2 is composed of four support rods 3 and a bottom plate 4 . The storage part 2 can store cigarettes, lighters and the like. the
所述收纳部2的上侧边5设置为波浪形侧边，波浪形侧边便于放置烟卷。 The upper side 5 of the receiving portion 2 is configured as a wave-shaped side, and the wave-shaped side is convenient for placing cigarettes. the
本实用新型的有益效果在于：收纳方便、结构简单、功能多样化。 The utility model has the beneficial effects of convenient storage, simple structure and diversified functions. the
附图说明 Description of drawings

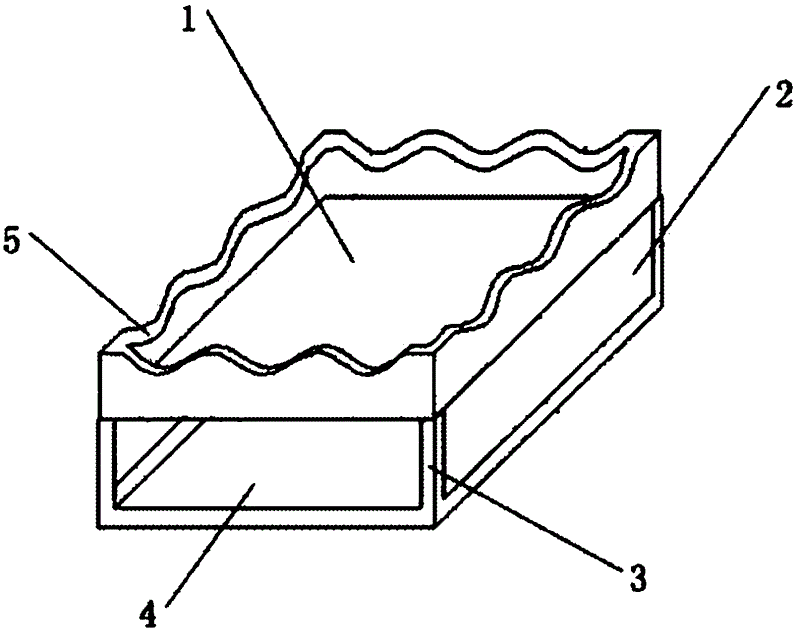

图1是本实用新型的结构示意图。 Fig. 1 is a structural representation of the utility model. the
其中，1、烟灰盛具，2、收纳部，3、支撑杆，4、底板，5、上侧边5。 Wherein, 1. ash container, 2. storage part, 3. support rod, 4. bottom plate, 5. upper side 5. the
具体实施方式 Detailed ways
以下结合附图具体说明本实用新型。 The utility model is described in detail below in conjunction with the accompanying drawings. the
参见图1，本实用新型包括烟灰盛具1和收纳部2，所述收纳部2位于烟灰盛具1的底部，与烟灰盛具1固定连接。所述收纳部2由四根支撑杆3和底板4组成。所述收纳部2的上侧边5设置为波浪形侧边。 Referring to FIG. 1 , the utility model includes an ash container 1 and a storage part 2 , the storage part 2 is located at the bottom of the ash container 1 and is fixedly connected with the ash container 1 . The receiving portion 2 is composed of four support rods 3 and a bottom plate 4 . The upper side 5 of the receiving portion 2 is configured as a wave-shaped side. the
