CN202052598U - Medicine ultra-micro crushing device - Google Patents
Medicine ultra-micro crushing device Download PDFInfo
- Publication number
- CN202052598U CN202052598U CN2011200537155U CN201120053715U CN202052598U CN 202052598 U CN202052598 U CN 202052598U CN 2011200537155 U CN2011200537155 U CN 2011200537155U CN 201120053715 U CN201120053715 U CN 201120053715U CN 202052598 U CN202052598 U CN 202052598U
- Authority
- CN
- China
- Prior art keywords
- tank body
- blade
- feeding
- medicine
- crushing device
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Crushing And Pulverization Processes (AREA)
- Disintegrating Or Milling (AREA)
Abstract
The utility model discloses a medicine ultra-micro crushing device and comprises a tank body fixedly arranged on a support. A feeding chute is fixedly welded on the support, a feeding port is arranged at the bottom of the tank body, a feeding pipe is communicated between the feeding chute and the feeding port, and an air blower is arranged in the feeding pipe. A blade is movably arranged in the tank body, a filtering net is arranged above the blade, a discharging port is arranged at the upper end of the lateral wall of the tank body and connected with a discharging pipe, and a draught fan is arranged in the discharging pipe. A sundry-material outlet is arranged at the bottom of the tank body. The medicine ultra-micro crushing device is simple and reliable in structure, convenient to operate, low in cost and good in crushing effect, improves product quality and has excellent practical value.
Description
Technical field
The utility model relates to a kind of medicine micron ultra shifter.
Background technology
Ultramicro grinding is a nearly new and high technology that developed rapidly in 20 years, can be processed into micron even nano level micro mist to raw material, has obtained using widely in all trades and professions.In view of pulverizing be Chinese medicine production and use in basic process technology, ultramicro grinding more and more causes people's attention, though this technology is started late, the kind of development is less relatively, has manifested distinctive advantage and wide application prospect.
Superfine communication technique is an important content in the powder technology, comprises the ultramicro grinding to powder material, contents such as high-precision classification and surface-active change.According to the size or the granularity of raw material and finished particle, pulverizing can be divided into coarse crushing, and fine powder is broken, the broken and ultramicro grinding of micro mist, and this is a general classification.It should be noted that various countries' every profession and trade because the purposes of ultrafine powder, the difference of preparation method and technical merit has different divisions to the granularity of ultrafine powder.
Micronizer is generally no sieve formula pulverizer, the comminuting matter granularity is controlled by air velocity, grinding particle size requires 95% by the 0.15mm(100 order), generally be used for special aquatic products bait or open-mouthed bait for aquaculture, ultramicro grinding usually by micronizer, strength carry, grader is supporting finishes.The grinding particle size of raw material is very thin, may demonstrate beyond thought characteristic, but many problems have also been brought, as Electrostatic Absorption, the flowability of material is poor, and it is big to pulverize the energy that consumes, and has improved production cost, influence to process operation is bigger, and these adverse effects can take diverse ways to be overcome (as changing feed processing technology).
Ultramicro grinding is by to the impact of material, and collision is sheared, and grinds means such as dispersion and realizing.Extruding breaking method during tradition is pulverized can not be used for ultramicro grinding, otherwise can produce the granulation effect.When selecting breaking method, must decide on the character and the desired comminution ratio of comminuting matter, especially be had very big decisive action, and wherein the hardness of material and disruptiveness more top the list and want the status by the physics of comminuting matter and chemical property, for hard and material fragility, impact very effective; Then better to Chinese medicine with grinding and cutting method.In fact, any pulverizing machine is not simple a certain crushing mechanism, generally all is to be joined together to pulverize by two or more crushing mechanism, is to pulverize with the mutual impact and the collision of material as airslide disintegrating mill; High speed impact formula pulverizer is impact and has sheared pulverization; Vibromill, the crushing mechanism that stirs mill and ball mill then mainly are to grind, and impact and shearing; And mainly mill body and the fixing strong shearing that relative motion produced of grinding body by rotating at a high speed of the course of work of colloid mill, friction, impact or the like.
In the medicine production field, be to guarantee dose, all be strictness very to the requirement of medicine size, the particle of some medicines all is very tiny, this just need pulverize the bigger medicine of particle, to meet the requirements.
The utility model content
The purpose of this utility model provides a kind of medicine micron ultra shifter, utilizes superfine communication technique to pulverize medicine, makes it reach the particle that meets related request.
The technical solution of the utility model is as follows:
A kind of medicine micron ultra shifter, include and be fixedly installed in the support upper tank body, it is characterized in that: be fixedly welded with feed well on the described support, the bottom of described tank body is provided with charging aperture, be linked with feed pipe between described feed well and the charging aperture, in the described feed pipe air blast be installed; Be rotatablely equipped with blade in the described tank body, the top of described blade is provided with screen pack, and the upper end of described tank wall is provided with discharging opening and is connected with discharge nozzle, in the described discharge nozzle air-introduced machine is installed; The bottom of described tank body is provided with assorted material outlet.
Described medicine micron ultra shifter is characterized in that: be respectively equipped with several feed openings on the described discharge nozzle.
The beneficial effects of the utility model:
The utility model is simple in structure, reliable, and is easy to operate, and cost is low, and good crushing effect has improved product quality, has good practical value.
Description of drawings

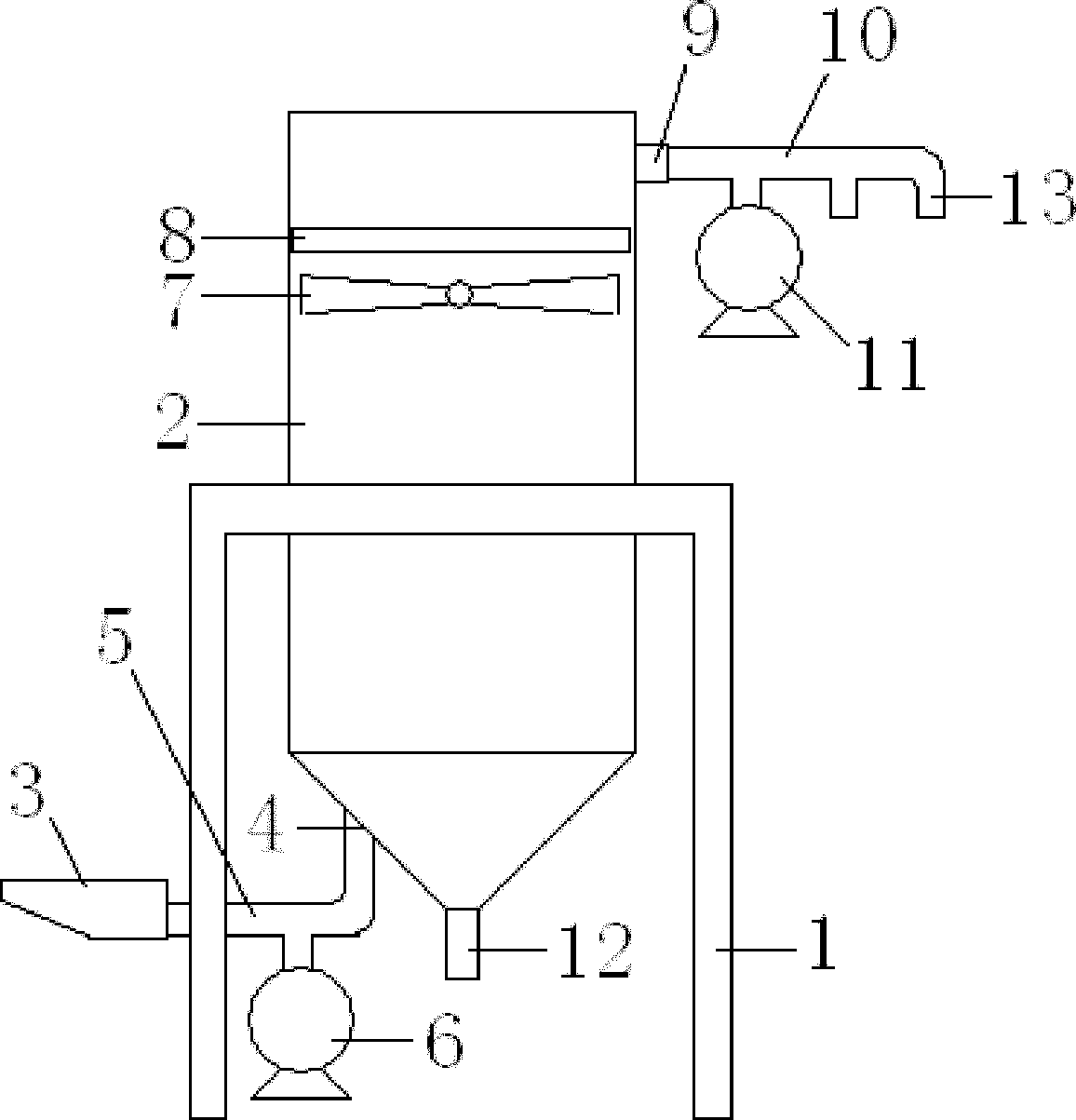

Fig. 1 is the utility model structural representation.
The specific embodiment
Referring to Fig. 1, a kind of medicine micron ultra shifter includes and is fixedly installed in support 1 upper tank body 2, be fixedly welded with feed well 3 on the support 1, the bottom of tank body 2 is provided with charging aperture 4, is linked with feed pipe 5 between feed well 3 and the charging aperture 4, and air blast 6 is installed in the feed pipe 5; Be rotatablely equipped with blade 7 in the tank body 2, the top of blade 7 is provided with screen pack 8, and the upper end of tank body 2 sidewalls is provided with discharging opening 9 and is connected with discharge nozzle 10, and air-introduced machine 11 is installed in the discharge nozzle 10; The bottom of tank body 2 is provided with assorted material outlet 12.
Be respectively equipped with several feed openings 13 on the discharge nozzle 10.
Oarse-grained medicine is introduced into feed well 3, under the guiding of air blast 6, enter in the tank body 2 by feed pipe 5 and charging aperture 4, constantly become tiny graininess under the rotation smear metal at blade 7, pass through the screening of screen pack 8 again, satisfactory particle passes through and is discharged by discharge nozzle 10 under the guiding of air-introduced machine 11, carries out the processing or the finished product packing of next process.Then fall for the medicine that does not have in time to pulverize, and discharge, continue to be recycled to and carry out the ultramicro grinding process in the feed well 3 through assorted material outlet 12.
Claims (2)
1. medicine micron ultra shifter, include and be fixedly installed in the support upper tank body, it is characterized in that: be fixedly welded with feed well on the described support, the bottom of described tank body is provided with charging aperture, be linked with feed pipe between described feed well and the charging aperture, in the described feed pipe air blast be installed; Be rotatablely equipped with blade in the described tank body, the top of described blade is provided with screen pack, and the upper end of described tank wall is provided with discharging opening and is connected with discharge nozzle, in the described discharge nozzle air-introduced machine is installed; The bottom of described tank body is provided with assorted material outlet.
2. medicine micron ultra shifter according to claim 1 is characterized in that: be respectively equipped with several feed openings on the described discharge nozzle.
