CN202040680U - Modular LED (light-emitting diode) street lamp - Google Patents
Modular LED (light-emitting diode) street lamp Download PDFInfo
- Publication number
- CN202040680U CN202040680U CN2011200832137U CN201120083213U CN202040680U CN 202040680 U CN202040680 U CN 202040680U CN 2011200832137 U CN2011200832137 U CN 2011200832137U CN 201120083213 U CN201120083213 U CN 201120083213U CN 202040680 U CN202040680 U CN 202040680U
- Authority
- CN
- China
- Prior art keywords
- street lamp
- led
- lamp housing
- circuit board
- illuminating module
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B20/00—Energy efficient lighting technologies, e.g. halogen lamps or gas discharge lamps
- Y02B20/72—Energy efficient lighting technologies, e.g. halogen lamps or gas discharge lamps in street lighting
Landscapes
- Fastening Of Light Sources Or Lamp Holders (AREA)
- Arrangement Of Elements, Cooling, Sealing, Or The Like Of Lighting Devices (AREA)
- Non-Portable Lighting Devices Or Systems Thereof (AREA)
Abstract
A modular LED (light-emitting diode) street lamp comprises a street lamp housing and a lamp shade arranged at the street lamp housing, wherein the street lamp housing is internally provided with at least two LED light-emitting modules and grooves for installing the LED light-emitting modules; the LED light-emitting modules are arranged in the grooves; and as the street lamp housing is internally provided with the LED light-emitting modules which are arranged in the grooves of the street lamp housing, when a certain LED light-emitting module has failure, only the LED light-emitting module is directly replaced; therefore, the replacement is convenient and quick.
Description
Technical field
The utility model relates to field of illumination lamp technology, relates in particular to a kind of Modular LED street lamp.
Background technology
The LED street lamp is just obtaining the favor of government department with its energy-saving advantages, existing LED street lamp is that a plurality of LED lamps are welded on the circuit board, when the LED lamp breaks down, change out of order LED lamp if desired, must remove this LED lamp with instrument earlier, and then new LED lamp is welded in circuit board.Therefore, existing LED street lamp is changed cumbersome, length consuming time.
Summary of the invention
The purpose of this utility model is to provide a kind of Modular LED street lamp at the deficiencies in the prior art, and the LED lamp in the street lamp housing adopts the module type structure, changes convenient, fast.
For achieving the above object, the utility model is achieved through the following technical solutions.
A kind of Modular LED street lamp, comprise street lamp housing and the lampshade that is arranged at the street lamp housing, be provided with at least two group LED illuminating module in the described street lamp housing, be provided with the groove that is used to install the LED illuminating module in the described street lamp housing, described LED illuminating module is arranged in the described groove.
Described LED illuminating module comprises circuit board, LED lamp and connection-peg, and described LED lamp is arranged at described circuit board, and described connection-peg is electrically connected with described circuit board by cable.
Described circuit board is provided with locating hole, and described fin is provided with screwed hole, and when described circuit board was connected with described fin, screw passed locating hole and is connected with described screwed hole.
The both sides of described fin are respectively arranged with brace, and described brace is provided with locating hole, and the both sides of described groove are respectively arranged with jut, and described jut is provided with screwed hole, and described brace is fixed in described jut by screw.
Be provided with two luminous zones in the described street lamp housing, each luminous zone is respectively arranged with one or more grooves, and each groove is provided with one group of LED illuminating module.
The beneficial effects of the utility model are: owing to be provided with the LED illuminating module in the street lamp housing, the LED illuminating module is arranged in the groove of street lamp housing, when a certain group of LED illuminating module breaks down,, change convenient, fast as long as directly change this LED illuminating module.
Description of drawings
Utilize accompanying drawing to come the utility model is further described below, but the embodiment in the accompanying drawing does not constitute any restriction of the present utility model.
Fig. 1 is the utility model structural representation.

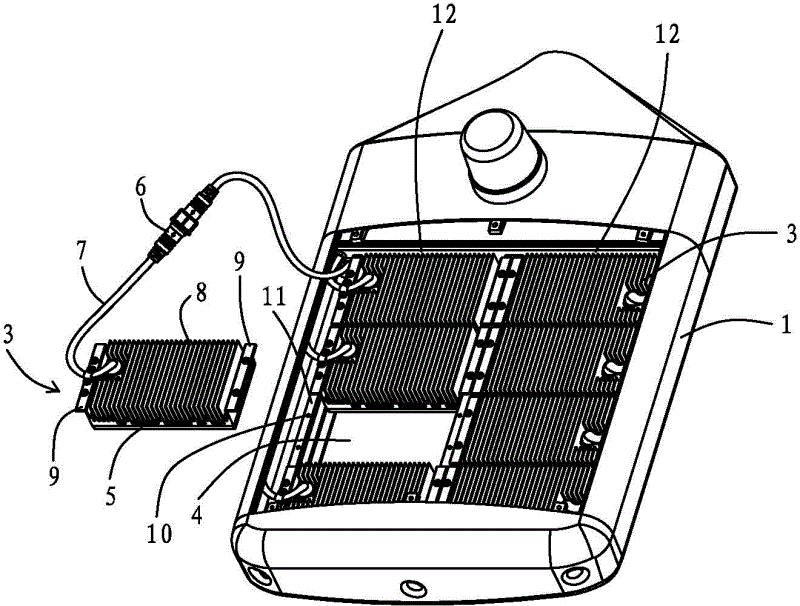

Fig. 2 removes decomposing schematic representation behind the lampshade for the utility model.
Fig. 3 is the single led illuminating module decomposing schematic representation of the utility model.
The specific embodiment
Come the utility model is further described below in conjunction with embodiment.
See Fig. 1 to Fig. 3, a kind of Modular LED street lamp, comprise street lamp housing 1 and the lampshade 2 that is arranged at street lamp housing 1, be provided with at least two group LED illuminating module 3 in the street lamp housing 1, be provided with the groove 4 that is used to install LED illuminating module 3 in the street lamp housing 1, LED illuminating module 3 is arranged in the groove 4.
LED illuminating module 3 comprises circuit board 5, LED lamp 13 and connection-peg 6, and the LED lamp is arranged at circuit board 5, and connection-peg 6 is electrically connected with circuit board 5 by cable 7, and connection-peg 6 other ends are connected with power supply.
Circuit board 5 is provided with locating hole 14, and fin 8 is provided with screwed hole (not drawing among the figure), and when circuit board 5 was connected with fin 8, screw 15 passed locating hole 14 and is connected with described screwed hole (not drawing among the figure).
The both sides of circuit board 5 are respectively arranged with brace 9, and brace 9 is provided with locating hole, and the both sides of groove 4 are respectively arranged with jut 11, and jut 11 is provided with screwed hole 10, and brace 9 is fixed in jut 11 by screw.
Be provided with one or more luminous zones 12 in the street lamp housing 1, each luminous zone 12 is provided with one or more grooves 4, and each groove 4 is provided with one group of LED illuminating module 3.
Above content only is preferred embodiment of the present utility model, for those of ordinary skill in the art, according to thought of the present utility model, the part that all can change in specific embodiments and applications, this description should not be construed as restriction of the present utility model.
Claims (5)
1. Modular LED street lamp, comprise street lamp housing and the lampshade that is arranged at the street lamp housing, it is characterized in that: be provided with at least two group LED illuminating module in the described street lamp housing, be provided with the groove that is used to install the LED illuminating module in the described street lamp housing, described LED illuminating module is arranged in the described groove.
2. a kind of Modular LED street lamp according to claim 1 is characterized in that: described LED illuminating module comprises circuit board, LED lamp and connection-peg, and described LED lamp is arranged at described circuit board, and described connection-peg is electrically connected with described circuit board by cable.
3. a kind of Modular LED street lamp according to claim 2, it is characterized in that: described circuit board is provided with locating hole, described fin is provided with screwed hole, and when described circuit board was connected with described fin, screw passed locating hole and is connected with described screwed hole.
4. a kind of Modular LED street lamp according to claim 3, it is characterized in that: the both sides of described fin are respectively arranged with brace, described brace is provided with locating hole, the both sides of described groove are respectively arranged with jut, described jut is provided with screwed hole, and described brace is fixed in described jut by screw.
5. a kind of Modular LED street lamp according to claim 1 is characterized in that: be provided with two luminous zones in the described street lamp housing, each luminous zone is respectively arranged with one or more grooves, and each groove is provided with one group of LED illuminating module.
