Abstract
一种可对金属垃圾进行识别的垃圾分类箱，包括支撑架、活动垃圾桶、连接杆和支撑板，支撑架内安装有2个活动垃圾桶，活动垃圾桶通过连接杆安装在支撑架内，活动垃圾桶上安装有支撑板，垃圾分类箱还包括金属探测仪、活动板和连接装置，金属探测仪安装在活动垃圾桶的端口处，活动垃圾桶内有2个支撑杆，活动垃圾桶内有2个活动板，活动板一端安装在支撑杆上，活动板另一端上设置有连接装置，活动板通过连接弹簧连接在活动垃圾桶内壁上，本专利在垃圾回收桶内测设置金属探测仪若垃圾内有金属，连接装置处于锁紧状态，使得含有金属的垃圾只能放进金属垃圾回收桶，不含金属的垃圾只能放进非金属垃圾回收桶，从而可对金属垃圾更好的进行回收利用。
A garbage sorting box that can identify metal garbage, including a support frame, a movable trash can, a connecting rod and a supporting plate, two movable trash cans are installed in the supporting frame, and the movable trash can is installed in the supporting frame through the connecting rod. A support plate is installed on the movable trash can. The garbage sorting box also includes a metal detector, a movable plate and a connecting device. The metal detector is installed at the port of the movable trash can. There are 2 support bars in the movable trash can. There are 2 movable plates, one end of the movable plate is installed on the support rod, and the other end of the movable plate is provided with a connecting device, and the movable plate is connected to the inner wall of the movable garbage bin through a connecting spring. This patent is equipped with a metal detector in the garbage recycling bin If there is metal in the garbage, the connecting device is in a locked state, so that the garbage containing metal can only be put into the metal garbage recycling bin, and the garbage without metal can only be put into the non-metal garbage recycling bin, so that the metal garbage can be better treated for recycling.
Description
Technical field
The utility model relates to the refuse classification process field, the particularly a kind of Classified refuse can that can discern metal rubbish.
Background technology
Along with people's living standard, the rubbish that the human being's production life is produced is more and more, the expense of garbage loading embeading is very high, the expense of handling one ton of rubbish is about 400 yuan to 600 yuans, and the mankind are consumption of natural resource in large quantities, Quantity production, consumption in large quantities, producing rubbish again in large quantities, along with rubbish to increase not only processing pressure increasing but also can make a big impact to environment if deal with improperly, the normal now for this reason recyclable rubbish of placement of two sewage disposers that uses, another places not recyclable rubbish, rubbish classified so not only can effectively reduce pollution, and can recycle once more recyclable resources such as metals, thereby significantly reduced the waste of resource, but, people's disposal of refuse places because mixing metal rubbish and other recyclable rubbish and not recyclable rubbish often, therefore often existing metal rubbish has Other Waste again in the sewage disposer, often do not have classifying quality, and metal rubbish can reuse mostly if divide most not recyclable rubbish, then can cause very big waste.
The utility model content
At above problem, the utility model is by designing a kind of Classified refuse can that can discern metal rubbish, in garbage reclaiming barrel, survey and metal detector is set if having metal then can only put the metal garbage reclaiming barrel in the rubbish, thereby can better reclaim metal rubbish, for reaching this purpose, the utility model provides a kind of Classified refuse can that can discern metal rubbish, comprise bracing frame, movable sewage disposer, pipe link and stay bearing plate, 2 movable sewage disposers are installed in the support frame as described above, described movable sewage disposer is installed in the bracing frame by pipe link, on the movable sewage disposer stay bearing plate is installed, described Classified refuse can also comprises metal detector, portable plate and connecting device, described metal detector is installed in the port of movable sewage disposer, 2 strut bars are arranged in the described movable sewage disposer, 2 portable plates are arranged in the described movable sewage disposer, portable plate one end is installed on the strut bar, the portable plate other end is provided with connecting device, and portable plate is connected on the movable sewage disposer inwall by connecting spring.
As further improvement of the utility model, on the described stay bearing plate solar panel is installed, can charge to metal detector and connecting device by solar panel, the present invention also can charge to it by battery or fixed power source.
As further improvement of the utility model, bottom bracket is arranged at the support frame as described above bottom, Classified refuse can be fixed on different places by the bracing frame underframe is set.
As further improvement of the utility model, the pipe link between support frame as described above and the movable sewage disposer is provided with rotating spring, when movable sewage disposer moves to certain position, can carry out return by rotating spring.
As further improvement of the utility model, the this patent connecting device comprises electromagnet and derby, described electromagnet is arranged in 2 one of them portable plates of portable plate, described derby is arranged in another portable plate, on this architecture basics, this patent also can be provided with spring, and described spring is arranged in the portable plate, and spring one end links to each other with derby;
This patent connecting device also can comprise electromagnet, electromagnet and spring, and described electromagnet, electromagnet and spring are arranged in 2 one of them portable plates of portable plate, and described spring is arranged between electromagnet and the electromagnet, in described another portable plate inside groove is arranged;
This patent connecting device also can comprise electromagnet and electromagnet, and described electromagnet is with in electromagnet is separately positioned on different portable plates;
This patent can link to each other with metal detector by the different structure connecting device, realization activity sewage disposer portable plate switch, and producer can be provided with corresponding connecting arrangement according to self needs.
The utility model is by designing a kind of Classified refuse can that can discern metal rubbish, in garbage reclaiming barrel, survey and metal detector is set if in the rubbish metal is arranged, connecting device is in locking state, make that containing metallo-rubbish can only put the metal garbage reclaiming barrel into, metal-free rubbish can only be put the non-metal garbage reclaiming barrel into, thereby can better recycle metal rubbish.
Description of drawings

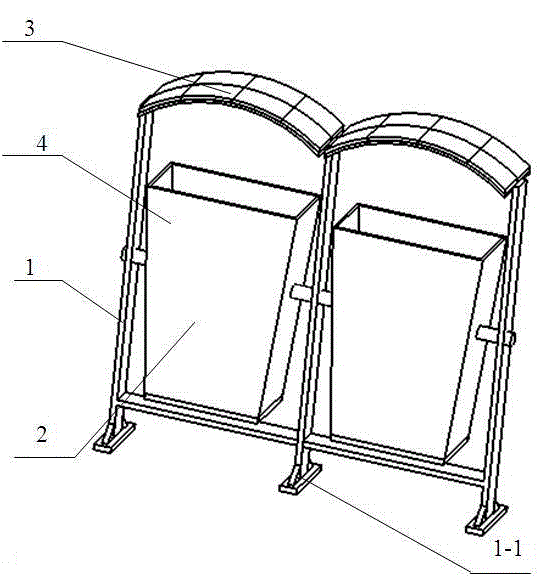

Fig. 1 is the utility model structural representation;
Fig. 2 is a kind of specific embodiment inner structure of the utility model scheme drawing;
Fig. 3 is the another kind of specific embodiment inner structure of a utility model scheme drawing;
Fig. 4 is the another kind of specific embodiment inner structure of a utility model scheme drawing;
Member among the figure is:
1, bracing frame; 1-1, bottom bracket; 2, movable sewage disposer; 2-1, strut bar;
3, solar panel; 4, pipe link; 5, stay bearing plate; 6, metal detector;
7, portable plate; 7-1, inside groove; 8, connect spring; 9, connecting device;
9-1, electromagnet; 9-1-1, electromagnet; 9-1-2, electromagnet; 9-2, spring;
9-3, derby; 10, rotating spring;
The specific embodiment
Below in conjunction with drawings and Examples utility model is described in detail:
The utility model is provided with metal detector if having metal then can only put the metal garbage reclaiming barrel in the rubbish by designing a kind of Classified refuse can that can discern metal rubbish, surveying in garbage reclaiming barrel, thereby can better reclaim metal rubbish.
The utility model provides a kind of Classified refuse can that can discern metal rubbish shown in structural representation Fig. 1, comprise bracing frame 1, movable sewage disposer 2, pipe link 4 and stay bearing plate 5,2 movable sewage disposers 2 are installed in the support frame as described above 1, described movable sewage disposer 2 is installed in the bracing frame 1 by pipe link 4, pipe link 4 between support frame as described above 1 and the movable sewage disposer 2 is provided with rotating spring 10, when movable sewage disposer 2 moves to certain position, can carry out return by rotating spring 10, bottom bracket 1-1 is arranged at support frame as described above 1 bottom, by being set, the bracing frame underframe Classified refuse can be fixed on different places, on the movable sewage disposer 2 stay bearing plate 5 is installed, on the described stay bearing plate 5 solar panel 3 is installed, can charge to metal detector 6 and connecting device 9 by solar panel 3, the present invention also can charge to it by battery or fixed power source, described Classified refuse can also comprises metal detector 6, portable plate 7 and connecting device 9, described metal detector 6 is installed in the port of movable sewage disposer 2,2 strut bar 2-1 are arranged in the described movable sewage disposer 2,2 portable plates 7 are arranged in the described movable sewage disposer 2, portable plate 7 one ends are installed on the strut bar 2-1, portable plate 7 other ends are provided with connecting device 9, portable plate 7 is connected on movable sewage disposer 2 inwalls by connecting spring 8, after rubbish is put into sewage disposer, can make portable plate 7 returns by connecting spring 8.
As a kind of specific embodiment of the utility model, connecting device 9 comprises electromagnet 9-1 and derby 9-3 in the patent, described electromagnet 9-1 is arranged in 2 portable plates, 7 one of them portable plate 7, described derby 9-3 is arranged in another portable plate 7, containing metal rubbish in rubbish, can detect containing metal rubbish in it by metal detector 10, and make the electromagnet 9-1 of connecting device 9 in the metal garbage reclaiming barrel be in off-position, electromagnet 9-1 and derby 9-3 can't connect together, thereby this rubbish can be put into the metal garbage reclaiming barrel, the non-metal garbage reclaiming barrel then in contrast, electromagnet 9-1 of connecting device 9 is in "on" position in it, electromagnet 9-1 and derby 9-3 connect together, make this rubbish can't put into this garbage reclaiming barrel 2, if 2 garbage reclaiming barrels of no metal rubbish, 2 interior 9 of connecting devices are in inverse state in the rubbish, make this rubbish can only be placed in the non-metal garbage reclaiming barrel.
As a kind of specific embodiment of the utility model as shown in Figure 2, connecting device 9 comprises electromagnet 9-1 in the patent, spring 9-2 and derby 9-3, described electromagnet 9-1 is arranged in 2 portable plates, 7 one of them portable plate 7, described derby 9-3 is arranged in another portable plate 7, described spring 9-2 is arranged in the portable plate 7, spring 9-2 one end links to each other with derby 9-3, containing metal rubbish in rubbish, can detect containing metal rubbish in it by metal detector 10, and make the electromagnet 9-1 of connecting device 9 in the metal garbage reclaiming barrel be in off-position, electromagnet 9-1 and derby 9-3 can't connect together, derby 9-3 can be removed by spring 9-2, thereby this rubbish can be put into the metal garbage reclaiming barrel, the non-metal garbage reclaiming barrel then in contrast, electromagnet 9-1 of connecting device 9 is in "on" position in it, electromagnet 9-1 and derby 9-3 connect together, make this rubbish can't put into this garbage reclaiming barrel 2, if 2 garbage reclaiming barrels of no metal rubbish, 2 interior 9 of connecting devices are in inverse state in the rubbish, make this rubbish can only be placed in the non-metal garbage reclaiming barrel.
As a kind of specific embodiment of the utility model as shown in Figure 3, connecting device 9 comprises electromagnet 9-1-1 in the patent, electromagnet 9-1-2 and spring 9-2, described electromagnet 9-1-1, electromagnet 9-1-2 and spring 9-2 are arranged in 2 portable plates, 7 one of them portable plate 7, described spring 9-2 is arranged between electromagnet 9-1-1 and the electromagnet 9-1-2, in described another portable plate 7 inside groove 7-1 is arranged, containing metal rubbish in rubbish, can detect containing metal rubbish in it by metal detector 10, and make the electromagnet of connecting device 9 in the metal garbage reclaiming barrel be in "on" position, electromagnet 9-1-1 inhales mutually with electromagnet 9-1-2, and holddown spring 9-2, make portable plate 7 be in open mode, thereby this rubbish can be put into the metal garbage reclaiming barrel, the non-metal garbage reclaiming barrel then in contrast, electromagnet of connecting device 9 is in off-position in it, spring 9-2 withstands electromagnet to another portable plate 7 inside groove 7-1, portable plate 7 is in closed condition, make this rubbish can't put into this garbage reclaiming barrel 2, if 2 garbage reclaiming barrels of no metal rubbish, 2 interior 9 of connecting devices are in inverse state in the rubbish, make this rubbish can only be placed in the non-metal garbage reclaiming barrel.
As a kind of specific embodiment of the utility model as shown in Figure 4, connecting device 9 comprises electromagnet 9-1-1 and electromagnet 9-1-2 in the patent, described electromagnet 9-1-1 is with in electromagnet 9-1-2 is separately positioned on different portable plate 7, containing metal rubbish in rubbish, can detect containing metal rubbish in it by metal detector 10, and make the electromagnet of connecting device 9 in the metal garbage reclaiming barrel be in off-position, portable plate 7 is in open mode, thereby this rubbish can be put into the metal garbage reclaiming barrel, the non-metal garbage reclaiming barrel then in contrast, electromagnet of connecting device 9 is in "on" position in it, electromagnet 9-1-1 inhales mutually with electromagnet 9-1-2, portable plate 7 is in closed condition, make this rubbish can't put into this garbage reclaiming barrel 2, if 2 garbage reclaiming barrels of no metal rubbish, 2 interior 9 of connecting devices are in inverse state in the rubbish, make this rubbish can only be placed in the non-metal garbage reclaiming barrel.
The utility model is by designing a kind of Classified refuse can that can discern metal rubbish, in garbage reclaiming barrel, survey and metal detector is set if in the rubbish metal is arranged, connecting device is in locking state, make that containing metallo-rubbish can only put the metal garbage reclaiming barrel into, metal-free rubbish can only be put the non-metal garbage reclaiming barrel into, thereby can better recycle metal rubbish.
The above; it only is preferred embodiment of the present utility model; be not to be the restriction of the utility model being made any other form, and, still belong to the utility model scope required for protection according to any modification or equivalent variations that technical spirit of the present utility model is done.
Claims (8)
1. the Classified refuse can that can discern metal rubbish, comprise bracing frame (1), movable sewage disposer (2), pipe link (4) and stay bearing plate (5), 2 movable sewage disposers (2) are installed in the support frame as described above (1), described movable sewage disposer (2) is installed in the bracing frame (1) by pipe link (4), on the movable sewage disposer (2) stay bearing plate (5) is installed, it is characterized in that: described Classified refuse can also comprises metal detector (6), portable plate (7) and connecting device (9), described metal detector (6) is installed in the port of movable sewage disposer (2), 2 strut bars (2-1) are arranged in the described movable sewage disposer (2), 2 portable plates (7) are arranged in the described movable sewage disposer (2), portable plate (7) one ends are installed on the strut bar (2-1), portable plate (7) other end is provided with connecting device (9), and portable plate (7) is connected on movable sewage disposer (2) inwall by connecting spring (8).
2. a kind of Classified refuse can that can discern metal rubbish according to claim 1 is characterized in that: solar panel (3) is installed on the described stay bearing plate (5).
3. a kind of Classified refuse can that can discern metal rubbish according to claim 1, it is characterized in that: bottom bracket (1-1) is arranged at support frame as described above (1) bottom.
4. a kind of Classified refuse can that can discern metal rubbish according to claim 1, it is characterized in that: the pipe link (4) between support frame as described above (1) and the movable sewage disposer (2) is provided with rotating spring (10).
5. according to claim 1 or 2 or the 3 or 4 described a kind of Classified refuse cans that can discern metal rubbish, it is characterized in that: described connecting device (9) comprises electromagnet (9-1) and derby (9-3), described electromagnet (9-1) is arranged in one of them portable plate of 2 portable plates (7) (7), and described derby (9-3) is arranged in another portable plate (7).
6. a kind of Classified refuse can that can discern metal rubbish according to claim 5, it is characterized in that: described connecting device (9) also comprises spring (9-2), described spring (9-2) is arranged in the portable plate (7), and spring (9-2) end links to each other with derby (9-3).
7. according to claim 1 or 2 or the 3 or 4 described a kind of Classified refuse cans that can discern metal rubbish, it is characterized in that: described connecting device (9) comprises electromagnet (9-1-1), electromagnet (9-1-2) and spring (9-2), described electromagnet (9-1-1), electromagnet (9-1-2) and spring (9-2) are arranged in one of them portable plate of 2 portable plates (7) (7), described spring (9-2) is arranged between electromagnet (9-1-1) and the electromagnet (9-1-2), and inside groove (7-1) is arranged in described another portable plate (7).
8. according to claim 1 or 2 or the 3 or 4 described a kind of Classified refuse cans that can discern metal rubbish, it is characterized in that: described connecting device (9) comprises electromagnet (9-1-1) and electromagnet (9-1-2), and described electromagnet (9-1-1) is with in electromagnet (9-1-2) is separately positioned on different portable plate (7).
