Abstract
The utility model relates to a lifted auxiliary bath device for a patient with severe disability, which comprises a shift device, a foldable bath bed and a bath; a bath control device is arranged on one end of the bath; the foldable bath bed is fixed on the shift device through a guide rail; the device can shift the patient with severe disability so that the patient can lie or sit when being shifted, and simultaneously can lift the patient with severe disability so that the patient with severe disability can conveniently take a bath; the bath bed is placed at an appropriate height in a bathtub through a lifting device; the patient with severe disability can be lifted, lift the back and bend the legs when taking a bath, so that different bath positions are realized; and a mechanism for preventing side rolling and a fixing device are arranged on the bath bed. Meanwhile, spa as well as water temperature and water level intelligent control can be realized, and a real-time monitoring system is designed; and anti-drowning, anti-fall, current leakage protection and other measures are taken by acquiring the data of a sensor and monitoring the system status in real time, a safe alarm function is provided, so that the body of a user is not harmed when the user takes a bath.
Description
Technical field
This utility model relates to the rehabilitation appliances technical field, belongs to heavily barrier person bathing-aid device of a kind of lift.
Background technology
At present, bathing is a very big difficult problem for heavy barrier person, but heavily the barrier person also must bathing, the one, and be the sanitation and hygiene that keep skin, the blood circulation that promotes epidermis, reduce the generation of complication; The 2nd, can be by means of the chance of bathing, close examination paraplegia body has not damaged; The 3rd, bathing is for heavy barrier person, still a kind of motion mode of general.
According to national people with disability's sampling survey data for the second time in 2006, national all kinds of people with disabilitys add up to 8,296 ten thousand people, 1,6.34%(to 2006 on the April that accounts for country's total population).Because vehicle accident, industrial injury, disease etc. constantly take place, the absolute value of severe disability patient number and proportion are also in continuous rising.In addition, China has old people 1.5 hundred million approximately, is to have the most populous country of disability in the world.Huge population base will make the aging problem become our serious social problem of puzzlement in following 10 years.At present, special-care recipient 11033 people wherein live the president in ten thousand key entitled groups surplus the whole nation has 600, and are very poor mostly, age is higher, disease pilosity, long-term bed, they not only need the love and the help of family, more need society that the rehabilitation product is provided, to solve practical difficulty.
The bathing-aid utensil research of the high intelligence of China at present is less, fails to realize industrialization.Domesticly aspect bathing-aid system, start late, technical equipment falls behind, disadvantage is low, the lack of wisdom of automaticity, the main still auxiliary implement of pure mechanical mechanisms such as the simple bathing chair of some functions, bathtub handrail, heavily the barrier person relies on the auxiliary of nursing staff to a great extent when using these bathing-aid utensils, balneation, go out to bathe, workload is big, and intelligent degree is low, has limited the raising of bathing effect and efficient.
This patent is at bathing difficulty and bathing safety problem in the heavy barrier person daily life, solve balneation, bathing in their the bathing process, go out difficulties such as bath, improve and heavily hinder crowd's quality of life, reduce the person's of accompanying and attending to labor intensity, reduce the occurrence probability of long-term bed person's complication (as decubital ulcer, amyotrophy and arthrogryposis).
The utility model content
The purpose of this utility model provides heavily barrier person bathing-aid device of a kind of lift, and it has solved the heavily problem of barrier person bathing difficulty, and auxiliary heavily barrier person bathing has improved heavily barrier person's quality of life.
To achieve these goals, this utility model is by the following technical solutions:
A kind of lift is barrier person bathing-aid device heavily, and it comprises moves quadrupler, collapsible bathing bed, bath; One end of bath is provided with the bath control device; Described collapsible bathing bed is fixed on by guide rail and moves on the quadrupler, and the described quadrupler that moves comprises base, elevating lever, pushing hands, bathing bed bracket platform and safeguard protection hurdle; Be fixed with elevating lever on the base, pushing hands and bathing bed bracket platform are installed on the elevating lever, on the bathing bed bracket platform safeguard protection hurdle is arranged.
Described bath inside is provided with 4 nozzles, and the bath inner bottom part is provided with sensor array and discharge outlet, and control panel, bubble knob, forced drainage knob are arranged on the front end of bath, and bath also attaches simultaneously shower nozzle.
Bottom at base is equipped with universal wheel.
The beneficial effects of the utility model are as follows: (1) has solved the heavily problem of barrier person bathing difficulty.(2) in heavy barrier person bathing process, can realize the hydrotherapy effect, counterweight barrier person's rehabilitation has certain help.(3) in heavy barrier person bathing process, the heavily barrier person's that can in time reflect bathing situation guarantees bathing safety.
Description of drawings

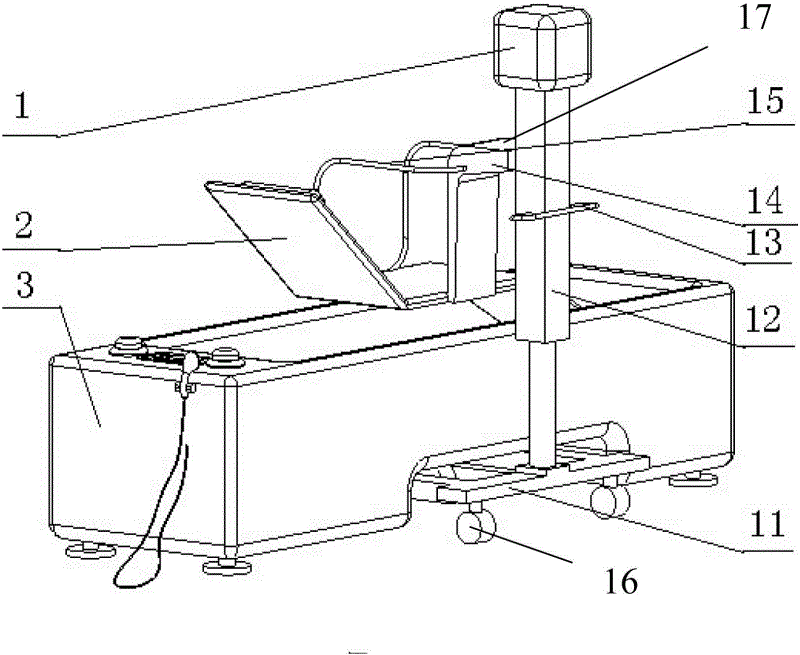

Fig. 1 is a whole perspective view of the present utility model.
Fig. 2 is a bath structural representation of the present utility model.
Drawing reference numeral:
1-moves quadrupler; The collapsible bathing bed of 2-; The 3-bath; The 11-base; The 12-elevating lever; The 13-pushing hands; The 14-guide rail; 15-safeguard protection hurdle; The 16-universal wheel; 17-bathing bed bracket platform; The 31-nozzle; The 32-discharge outlet; The 33-sensor array; The 34-control panel; 35-bubble knob; 36-forced drainage knob; The 37-shower nozzle.
The specific embodiment
Below in conjunction with accompanying drawing this utility model is described further:
Embodiment 1: a kind of lift is barrier person bathing-aid device heavily, and it comprises moves quadrupler 1, collapsible bathing bed 2, bath 3; One end of bath 3 is provided with the bath control device; Described collapsible bathing bed 2 is fixed on by guide rail 14 and moves on the quadrupler 1, and the described quadrupler that moves comprises base 11, elevating lever 12, pushing hands 13, bathing bed bracket platform 17 and safeguard protection hurdle 15; Be fixed with elevating lever 12 on the base 11, pushing hands 13 and bathing bed bracket platform 17 are installed on the elevating lever, on the bathing bed bracket platform 17 safeguard protection hurdle 15 is arranged.
Described bath 3 inside are provided with 4 nozzles 31, and bath 3 inner bottom parts are provided with sensor array 33 and discharge outlet 32, and control panel 34, bubble knob 35, forced drainage knob 36 are arranged on the front end of bath 3, and bath 3 also attaches simultaneously shower nozzle 37.
In the bottom of base 11 universal wheel 16 is installed.
The control device of bath can be realized hydrotherapy; water temperature, water level Based Intelligent Control; and has a real-time monitoring system; by fixedly protecting band, anti-rollover guardrail and pedal; and real-time pick-up transducers data and monitoring system state; prevent drowning, anti-ly fall, measure such as earth leakage protective, the security alarm function is provided, guarantee that user health in the bathing process can not come to harm.
The control device of bath can be realized hydrotherapy; water temperature, water level Based Intelligent Control; and has a real-time monitoring system; by fixedly protecting band 11, anti-rollover guardrail 12 and pedal 13; and real-time pick-up transducers data and monitoring system state; prevent drowning, anti-ly fall, measure such as earth leakage protective, the security alarm function is provided, guarantee that user health in the bathing process can not come to harm.
Move quadrupler 1 and collapsible bathing bed 2 is separable, and move quadrupler 1 and bath 3 separates, the base 11 that bath 3 belows have certain space to place to move quadrupler 1.Move shown in structural representation Fig. 1 of quadrupler 1.
Use this device to carry out the step of bathing: medical personnel move on the collapsible bathing bed 2 from the bed heavily hindering the patient earlier, and collapsible bathing bed 2 can lifting and lifted the back of the body, bends one's legs.Promote then to move quadrupler 1, place in place, then regulate elevating lever 12 height that move quadrupler 1, make it, get final product bathing at suitable height moving quadrupler 1 to bath 3.Scalable water spray intensity and bubble intensity in the bathing process, and can realize lifting the back of the body and bend one's legs in the bathing, in the bathing process, there is shower nozzle 37 to come bathing-aid.
This utility model electricity consumption masterpiece is the power resources of lowering or hoisting gear, but water power is isolating, has guaranteed the safety of bathing.
This utility model has solved heavily barrier person bathing difficulty, has alleviated medical personnel's workload and work difficulty.In heavy barrier person bathing process, the utlity model has the hydrotherapy effect, counterweight barrier person's the helpful effect of rehabilitation.
Claims (3)
1. the heavy barrier person bathing-aid device of a lift, it is characterized in that: it comprises moves quadrupler (1), collapsible bathing bed (2), bath (3); One end of bath (3) is provided with the bath control device;
Described collapsible bathing bed (2) is fixed on by guide rail (14) and moves on the quadrupler (1), and the described quadrupler that moves comprises base (11), elevating lever (12), pushing hands (13), bathing bed bracket platform (17) and safeguard protection hurdle (15); Be fixed with elevating lever (12) on the base (11), pushing hands (13) and bathing bed bracket platform (14) are installed on the elevating lever, safeguard protection hurdle (15) is arranged on the bathing bed bracket platform (14).
2. lift according to claim 1 is barrier person bathing-aid device heavily, it is characterized in that: described bath (3) inside is provided with 4 nozzles (31), bath (3) inner bottom part is provided with sensor array (33) and discharge outlet (32), control panel (34), bubble knob (35), forced drainage knob (36) are arranged on the front end of bath (3), and bath (3) also attaches simultaneously shower nozzle (37).
3. lift according to claim 1 and 2 is barrier person bathing-aid device heavily, it is characterized in that: in the bottom of base (11) universal wheel (16) is installed.
