Abstract
The utility model provides an LED illuminating lamp which comprises a lamp head, a radiating aluminum piece connected with the lamp head, a wide voltage driver arranged in the radiating aluminum piece and an aluminum base plate connected with the wide voltage driver. A group of luminotrona are arranged on the aluminum base plate, an aluminum loop is arranged on a front opening of the radiating aluminum piece, and a light-transmitting hemisphere-shaped lamp cover is arranged at the front end of the radiating aluminum piece. LED light is uniformly spread with a large area through a light-transmitting glass cover with high light-guide rate, and the LED illuminating lamp is a perfect product of an energy saving lamp for replacing a filament lamp. The LED illuminating lamp has light efficiency of 90-110 LM/W, saves more energy than the traditional filament lamp by 90% of energy and has long service life.
Description
Technical field
Traditional incandescent lamp, the energy consumption height can not frequent starting, can turn black, can break down very soon, and the LED lamp not can, environmental protection, harmful substance such as not mercurous, the assembling parts of LED lamp is recyclable to be utilized again; Highly versatile, the voltage range of LED lamp is very wide, but from the equal operate as normal of 85～260V, is applicable to whole world domestic power grid voltage; Use comfortablely, the built-in B dimming driver of LED lamp can arbitrarily change its brightness, thereby reaches not only comfortable but also energy-conservation effect.
The utility model content
The purpose of this utility model is, holds main above-mentioned defective at existing, and a kind of high-efficiency LED illuminating lamp is provided.
A kind of LED illuminating lamp is provided, comprise a lamp holder, the heat radiation aluminum component that is connected with lamp holder, be arranged on the wide voltage driver in the heat radiation aluminum component, the aluminium base that is connected with wide voltage driver, one group of luminous tube is housed on the aluminium base, one aluminium ring is housed, be provided with a photic hemisphere shape lampshade at the front end of described heat radiation aluminum component in open front place of described heat radiation aluminum component.
In above-mentioned LED illuminating lamp, described lamp holder adopts the mode that is spirally connected to be connected with described heat radiation aluminum component.
In above-mentioned LED illuminating lamp, the front end of described heat radiation aluminum component is provided with a groove, described aluminium ring is arranged in this groove, and there is a gap on the annulus limit in the outer circumferential edge of aluminium ring and the described heat radiation aluminum component groove, and the edge of opening of described photic hemisphere shape lampshade embeds in the described gap.
The utlity model has following advantage: the wide region civil power is connected to driver through lamp holder, driver becomes 18V to voltage transitions, 300MA gives LED luminous tube constant current power supply, driver adopts PWM conversion regime efficiently, be suitable for global mains voltage, the heat that LED work produces conducts to radiator through aluminium base and distributes to the external world, and radiator adopts 6063 aluminium of high heat conduction, therefore mutliblade design has enough big area of dissipation, guarantees whole have better heat radiating effect and profile attractive in appearance.
LED light evenly spreads through the outside large tracts of land of too high light-conductive rate transparent glass cover, is the perfect product of replace incandescent electricity-saving lamp, and the optical efficiency of this illumination LED lamp reaches 90-110LM/W, than conventional incandescent energy-conservation 90%; Long service life, the life-span of LED illuminating lamp can reach more than 50000 hours, was higher than incandescent lamp and common energy-saving lamp far away.
Description of drawings
Fig. 1 is the outside drawing of the utility model LED illuminating lamp;

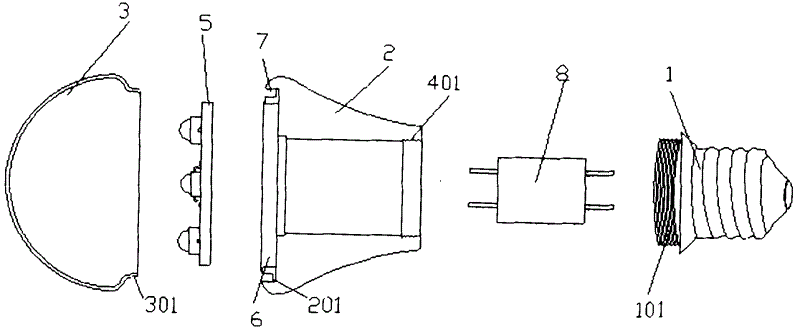

Fig. 2 is the decomposition texture schematic diagram of LED illuminating lamp.
The specific embodiment
With reference to Fig. 1, shown in Figure 2, design a kind of LED illuminating lamp, comprise a lamp holder 1, the heat radiation aluminum component 2 that is connected with lamp holder 1, be arranged on the wide voltage driver 8 in the heat radiation aluminum component 2, the aluminium base 5 that is connected with wide voltage driver 8 is equipped with one group of luminous tube on the aluminium base 5, in open front place of described heat radiation aluminum component 2 an aluminium ring 4 is housed, is provided with a photic hemisphere shape lampshade at the front end of described heat radiation aluminum component 2.Described lamp holder 1 is provided with external screw thread 101 and adopts the mode that is spirally connected to be connected with the heat radiation aluminum component 2 that is provided with internal thread 201.
The front end of described heat radiation aluminum component 2 is provided with a groove 201, described aluminium ring 4 is arranged in this groove 201, there is a gap 7 on the interior annulus limit of the outer circumferential edge of aluminium ring 4 and described heat radiation aluminum component 2 grooves 201, and the edge of opening 301 of described photic hemisphere shape lampshade 3 embeds in the described gap 7.
The optical efficiency of the utility model illuminating LED lamp reaches 90-110LM/W, than conventional incandescent streetlamp energy-saving 90%; Long service life, the life-span of LED illuminating lamp can reach more than 50000 hours, was higher than incandescent lamp and common energy-saving lamp far away; Can frequent starting, traditional electricity-saving lamp, if vehement lamp starts frequently or turn-offs, filament will turn black, very fast breaks down, and the LED lamp can not; The harmful substance such as not mercurous, the recyclable recycling of the assembling parts of LED lamp; Highly versatile, the voltage range of LED lamp is very wide, all can work from 8～40V, is applicable to various multiple power sources.
Claims (3)
1. LED illuminating lamp, it is characterized in that, comprise a lamp holder, the heat radiation aluminum component that is connected with lamp holder, be arranged on the wide voltage driver in the heat radiation aluminum component, the aluminium base that is connected with wide voltage driver is equipped with one group of luminous tube on the aluminium base, in open front place of described heat radiation aluminum component one aluminium ring is housed, is provided with a photic hemisphere shape lampshade at the front end of described heat radiation aluminum component.
2. LED illuminating lamp according to claim 1 is characterized in that, described lamp holder adopts the mode that is spirally connected to be connected with described heat radiation aluminum component.
3. LED illuminating lamp according to claim 1, it is characterized in that, the front end of described heat radiation aluminum component is provided with a groove, described aluminium ring is arranged in this groove, there is a gap on the annulus limit in the outer circumferential edge of aluminium ring and the described heat radiation aluminum component groove, and the edge of opening of described photic hemisphere shape lampshade embeds in the described gap.
